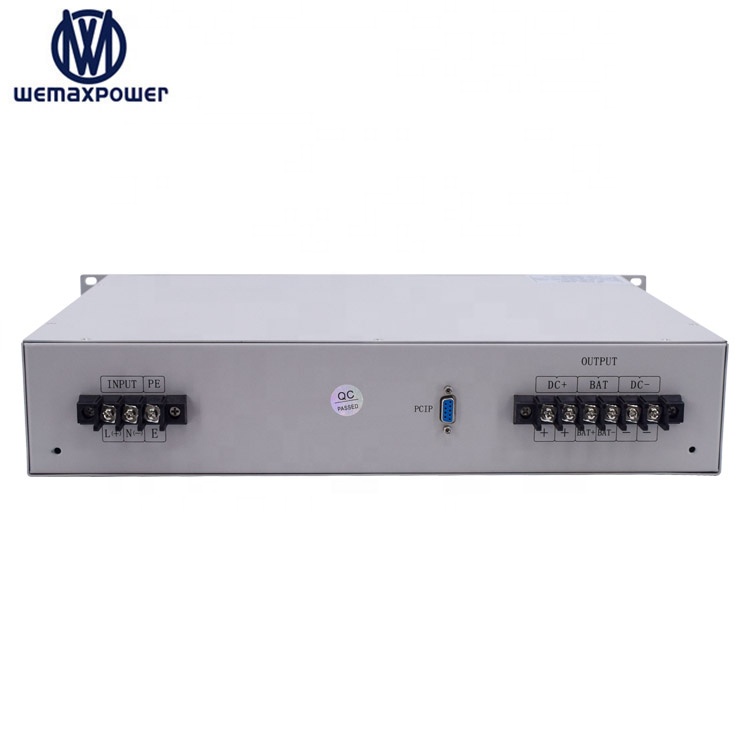

Wide range input 180-270vdc Rack Mount DC-DC Power Converter DC/DC Converter 220Vdc to 48Vdc 20A Specifications:
| Model | WMX-DSD220S4820 |
|---|---|
| Input rate voltage | 220VDC |
| Input voltage range | 180~270VDC |
| Output rate voltage | 48VDC |
| Output voltage range | 40~60VDC |
| Output Current | 20A |
| Load regulation | ≤0.2% |
| Power grid regulation | ≤0.1% |
| Degree of imbalance for equalized current | ≤±5% |
| Phone weighted noise voltage | ≤2mV (CCITT) |
| Peak—peak noise | ≤150mV |
| Wide frequency noise | ≤50mV |
| Discrete noise | ≤20mV |
| Efficiency | more than 90% |
| Dynamic response | 20% ~ 100% step load≤200 Restoring time≤100uS |
| Working temperature | -5~45℃ |
| Cooling mode | Temperature control wind cooling |
| MTBF | 100,000 Hour |
| Output type | Screw terminal |
| Dimension (W*H*D) | 19inch 2U Rack Mount 482*300*88mm |
| Net Weight | 8kg |
| Model | DC Input Voltage | DC Output Voltage | Output Current |
|---|---|---|---|
| WMX-DSD220S48** | 220V | 48V | 10A, 20A, 30A, 40A, 50A, 60A, 80A, 100A |
| WMX-DSD220S24** | 220V | 24V | 20A, 30A, 40A, 50A, 60A, 80A, 100A |
| WMX-DSD220S110** | 220V | 110V | 5A, 10A, 15A, 20A |
| WMX-DSD110S48** | 110V | 48V | 10A, 20A, 30A, 40A, 50A, 60A |
| WMX-DSD110S24** | 110V | 24V | 10A, 20A, 30A, 40A, 50A, 60A |
| WMX-DSD110S220** | 110V | 220V | 5A, 10A |
| WMX-DSD48S24** | 48V | 24V | 10A, 20A, 30A, 40A, 50A |
| WMX-DSD48S220** | 48V | 220V | 5A, 10A |
| WMX-DSD48S110** | 48V | 110V | 10A, 20A |
| WMX-DSD24S48** | 24V | 48V | 10A, 15A, 20A, 30A, 40A |
| WMX-DSD24S110** | 24V | 110V | 10A |

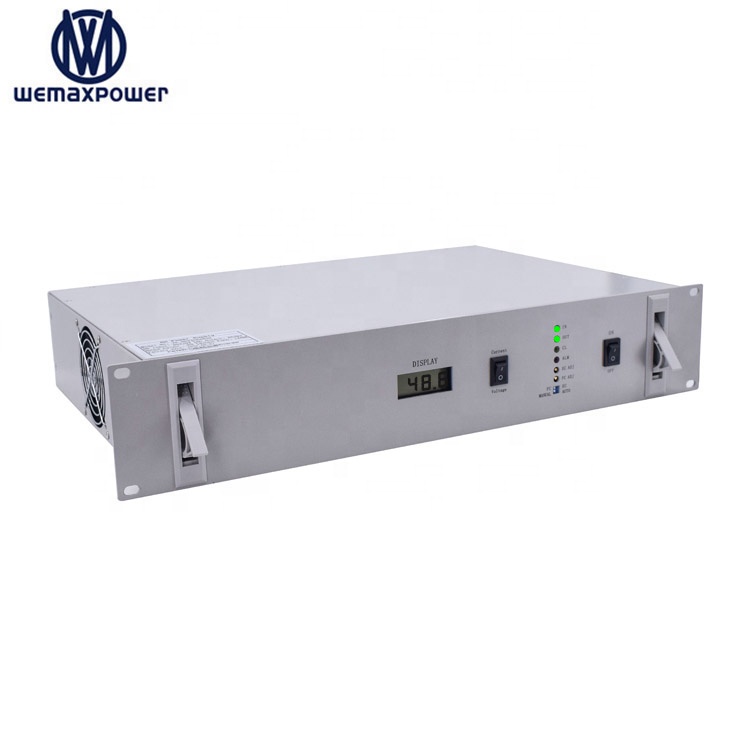

Wide range input 180-270vdc Rack Mount DC-DC Power Converter DC/DC Converter 220Vdc to 48Vdc 20A Overview.

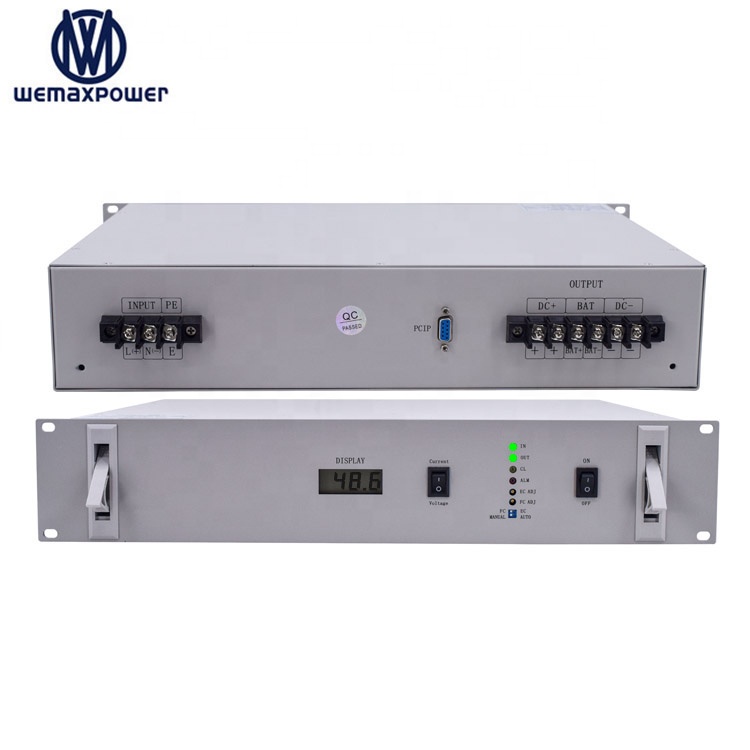

220Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 80A 100A 19INCH 2U Rack Mount DC-DC Converter Features and Layout.
220Vdc to 48Vdc 10A 20A 30A 40A 50A 60A 80A 100A 19INCH 2U Rack Mount DC-DC Converter standard industrial packaging.
