WEMAXPOWER Lead Acid LifePO4 Lithium Electric Sightseeing Patrol Floor Scrubber 12v 100a Battery Charger

1 / 5

WEMAXPOWER Lead Acid LifePO4 Lithium Electric Sightseeing Patrol Floor Scrubber 12v 100a Battery Charger

Send Inquiry

Product Description

Lead Acid LiFePO4 Lithium Electric Sightseeing Patrol Floor Scrubber 12V 100A Battery Charger

12V 100A Electric Vehicle Battery Charger

✓ Full automatic transition of CC, CV and float / cut-off, precise limit of voltage & current.
✓ High efficiency ≥ 90%, high performance, stable and durable.
✓ Using three-stage charging mode: CC-CV-floating, charging more intelligent and safety, high saturation and lower calorie.
✓ Multi-protection functions: protection for short circuit, over voltage, over-temperature, reverse polarity protections.
✓ Aluminium black and silver housing, light weight portable and reliable.

Series No.	WMX-C2000
Model Definition	WMX-BC XX YY BC- Battery Charger, XX-Output Voltage, YY-Output(Max charge)current
Product Name	12V100A Electronic Vehicles Lithium Ion Lifepo4 Lead Acid Automatic Smart Battery Charger
Model	WMX-BC12100
AC Input Voltage	1 Phase 100-240VAC, 50-60Hz
Output Voltage	12V
Output Current	100A
Charging Current Selection	Lithium battery charge current = Battery capacity 0.3C~2C. Lead acid battery charge current = Battery capacity 0.12C~0.15C
Charge Mode	C.C, C.V, Trickle \| Float
Display	LCD display
MTBF	MTBF > 20000 hours (25 Degrees Celsius, Full load and rated voltage input)
Conversion Efficiency	88%
Application	E-Motorcycle, Lawn Mower, Electric Wheelchair, Electric Push Pallet, Electric Pallet Truck, Electric Forklift, Electric Stacker, Electric Motorcycle, Sweeper, Floor Washer, Cleaning Machine, Floor Scrubber, Electric Tricycle, Electric Large Cargo Van, Electric Express Delivery Cars, Snack Selling Cart, E-Rickshaw, Electric Wheelchair, Golf Cart, Electric Trolley
Protection	OVP \| OCP \| OTP \| SCP (Over voltage \| Over current \| Over Temperature \| Short Circuit \| Reverse Polarity Protection)
Operating Temperature	-15 ~ 40 Degrees Celsius
Storage Temperature	-40 ~ 70 Degrees Celsius
Humidity	5 ~ 95%
Altitude	0 ~ 3000m
Shell Material	Aluminum Shell

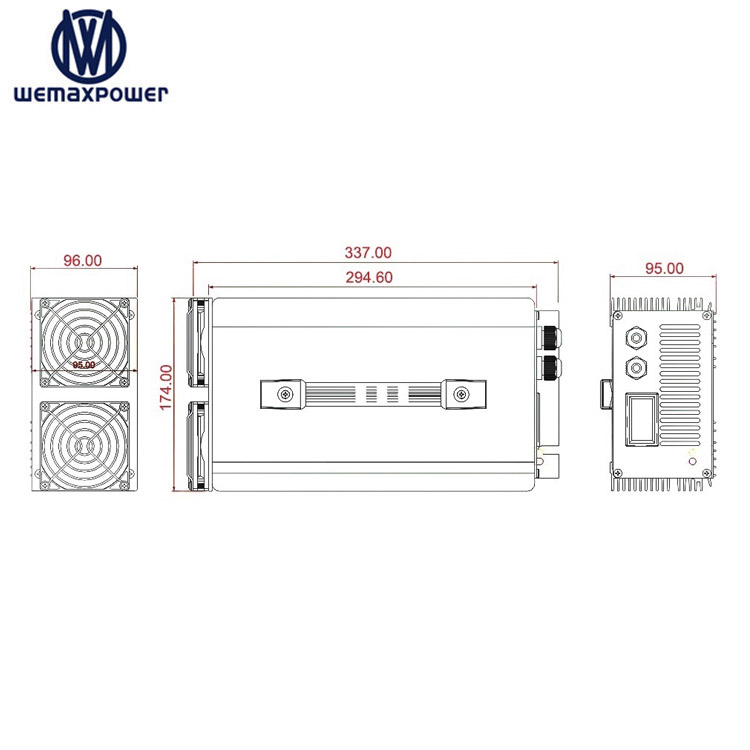

Dimension	33717496mm
N.W	7kg
AC Plug (Option)	CN \| US \| EU \| IT \| UK \| ZA \| IN \| KR \| AU \| JP \| BR \| CH…
DC Plug (Option)	Aviation Plug (GX16-3pin) \| XLR-3PIN Plug \| IEC Plug \| Anderson \| DC Jack (5.5*2.1) \| RCA Plug \| Alligator Clips \| XT60 \| XT90 \| OT Circle Plug \| Bare wire (Standard)…
Golf Plug (Option)	SB50 With Handle \| EV Plug \| Ezgo TXT Plug \| Club Car Plug \| Small Crowfoot \| Big Crowfoot \| Yamaha 2pins \| Ezgo RXV \| G29 Yamaha 3PINS \| Grey Club Car… (Reminder: If the charger needs a golf plug, please contact our sales team before placing an order. Additional cost may apply)

⚠️ Warm Tip:

Please let us know the plugs you need before confirming the order.

Frequently Asked Questions (FAQ)

Q1: What battery types are compatible with this 12V 100A charger?

A: This smart battery charger is fully compatible with Lithium-ion (Li-ion), Lithium Iron Phosphate (LiFePO4), and Lead Acid batteries. Please specify your battery type when ordering.

Q2: How do I determine the correct charging current for my battery pack?

A: For Lithium batteries, the recommended charging current is battery capacity * 0.3C to 2C. For Lead Acid batteries, the recommended charging current is battery capacity * 0.12C to 0.15C.

Q3: What safety protections are built into this charger?

A: The charger is equipped with multiple protection features including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Reverse Polarity Protection.

Q4: Can I customize the input and output plugs for this charger?

A: Yes. Multiple options are available for both AC plugs (CN, US, EU, UK, AU, JP, etc.) and DC plugs (Aviation plug, XLR, Anderson, Alligator Clips, XT60, XT90, etc.). Please let us know your requirements before order confirmation.

Q5: How does the three-stage charging mode work?

A: The charger utilizes a CC-CV-Floating/Trickle charging process. It delivers constant current to charge quickly, transitions to constant voltage to top off safely, and applies a float/trickle charge to maintain full capacity with lower heat generation.

Q6: What key details should I confirm before placing an order?

A: To ensure compatibility, please confirm: 1. Battery chemistry type (Li-ion, LiFePO4, or Lead Acid); 2. Maximum charging voltage; 3. Number of cells in series; 4. Battery pack capacity (Ah); 5. Required input and output plug models.
