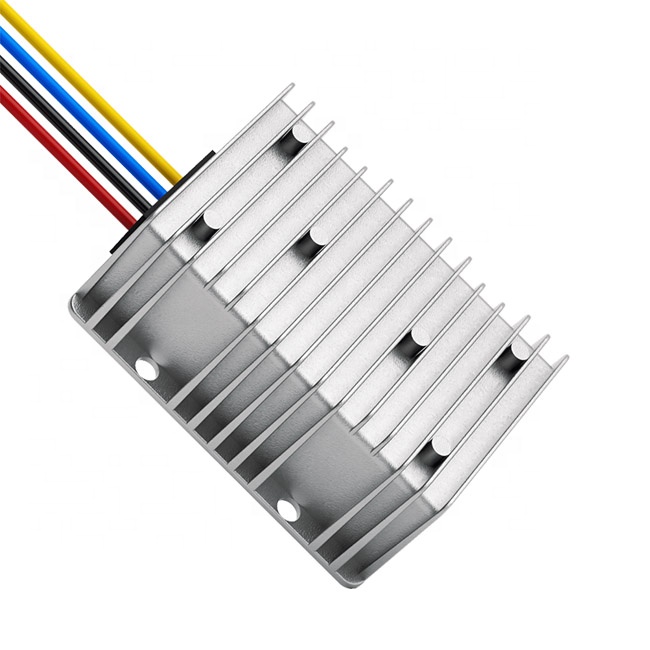

Isolated DC/DC Converter 50-100V to 12V Step-Down 15A 96% Efficiency IP67 Waterproof for Motor Applications

1 / 5

Isolated DC/DC Converter 50-100V to 12V Step-Down 15A 96% Efficiency IP67 Waterproof for Motor Applications

Send Inquiry

Product Description

Isolation module 15amp 60vdc 72vdc 80vdc step down 12vdc voltage regulator 60v 72v 80v to 12v 15a isolated dc dc converter

Similar Products

50~100v to 12v isolated dc converter

Isolated DC/DC Converter Features Divider

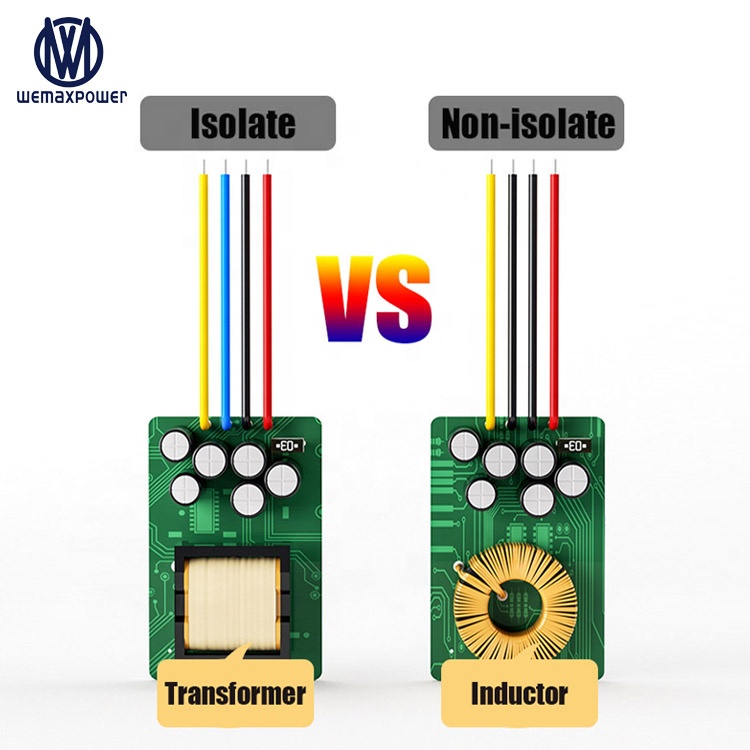

The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.

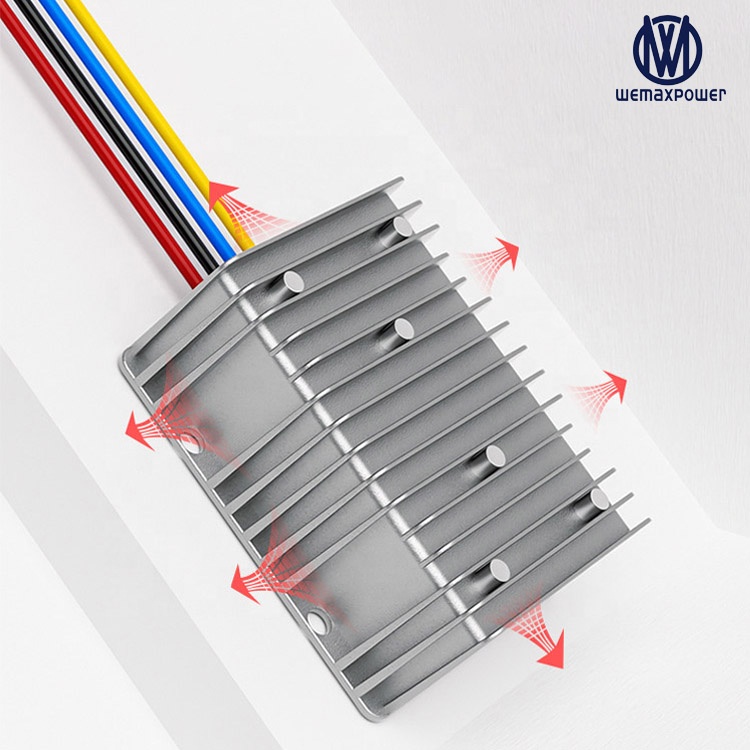

Die-cast plastic shell for more efficient heat dissipation.

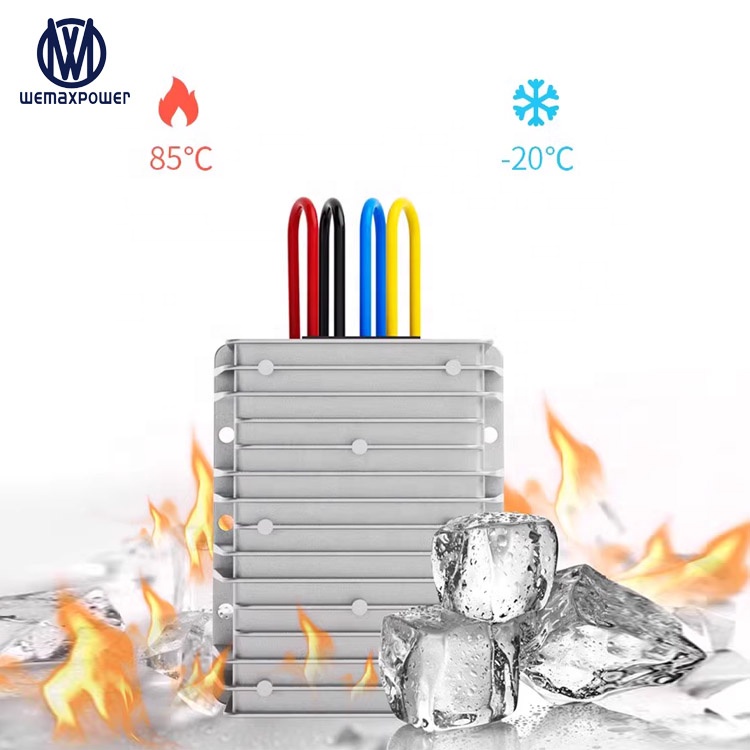

Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.

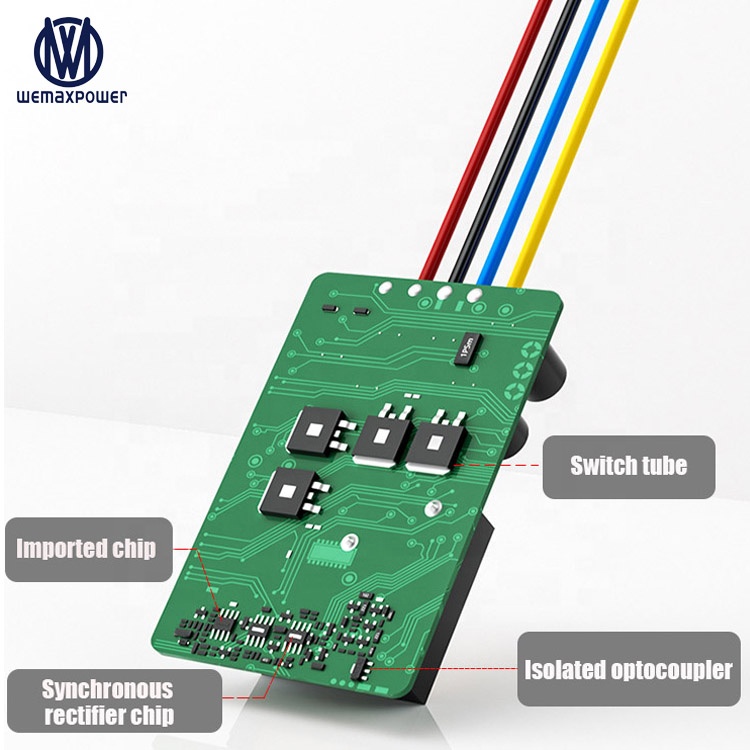

Industrial grade PSU chip, safe and reliable.

Series No.	WMX-D50-100D12
Model	WMX-DSD50-100S1215-
Product Name	60v/72v/80v to 5v isolated converter
Input rated voltage	60/72/80Vdc
Input voltage range	50-100Vdc
Conversion Efficiency	96%
Output voltage	12Vdc
Output current	15Amps
Output rated power	180Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	1008039mm
N. Weight	490g
Type	Input & output Isolation
Packing	Standard box
