Isolated DC/DC Converter 12V 8A 96W for Home Air Conditioner & Motor-IP67 Waterproof Aluminum Shell

1 / 5

Isolated DC/DC Converter 12V 8A 96W for Home Air Conditioner & Motor-IP67 Waterproof Aluminum Shell

Send Inquiry

Product Description

Isolation buck boost converters 12vdc 24vdc to 12vdc 8a 96w voltage regulator isolated dc dc converter 12v

>>> Isolated dc dc converter 12v 8a <<<

✔High quality components.
✔Full power, stable voltage & current output.
✔Wide input voltage range 9-36vdc.
✔Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
✔Industry grade product , efficiency up to 96%.

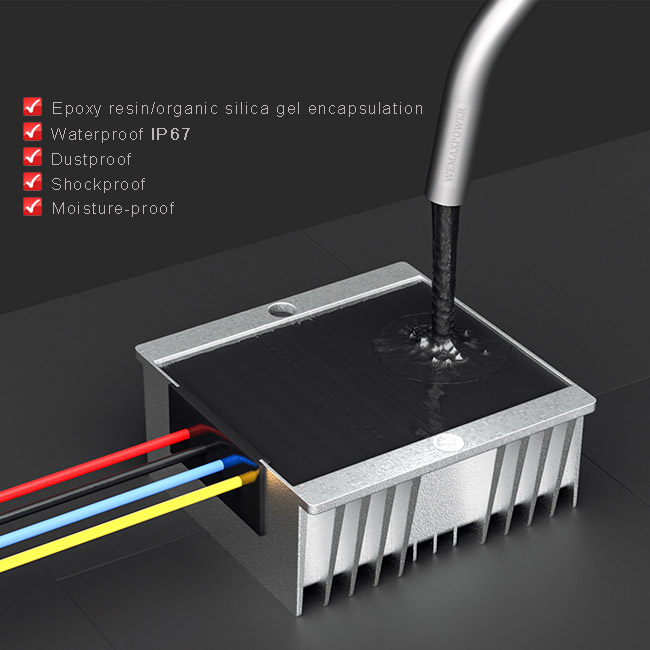

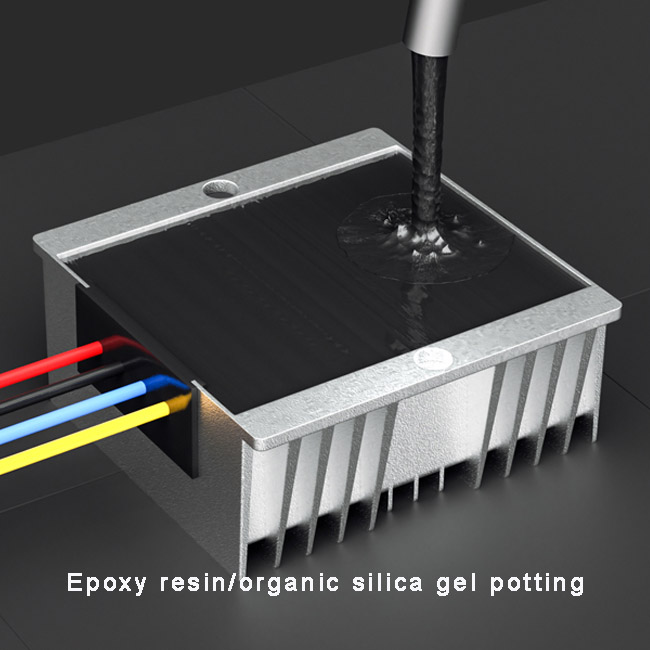

✔Die-cast aluminum shell, epoxy potting.

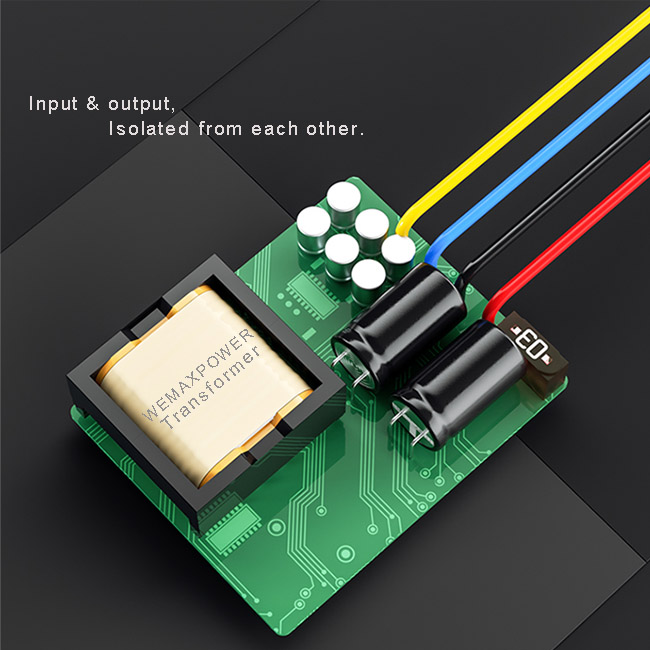

✔Isolated Module.

Series No.	WMX-D9-36D12
Model	WMX-DSD9-36S1208-I
Product Name	12/24v to 12v 8A Isolated DC DC Converter
Input rated voltage	12Vdc / 24Vdc
Input voltage range	9-36Vdc
Conversion Efficiency	96%
Output voltage	12Vdc
Output current	8Amps
Output rated power	96Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	747432mm
N. Weight	290g
Cooling way	Free air convection
Packing	White standard box

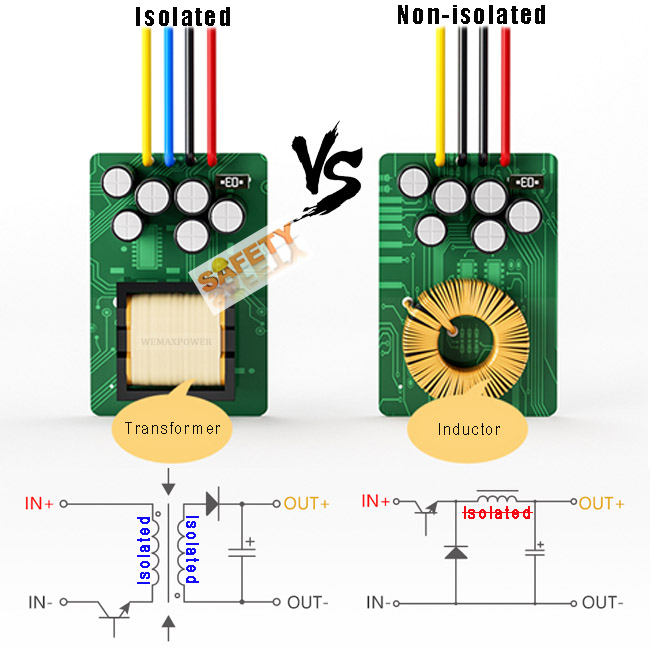

Type	Input output Isolation

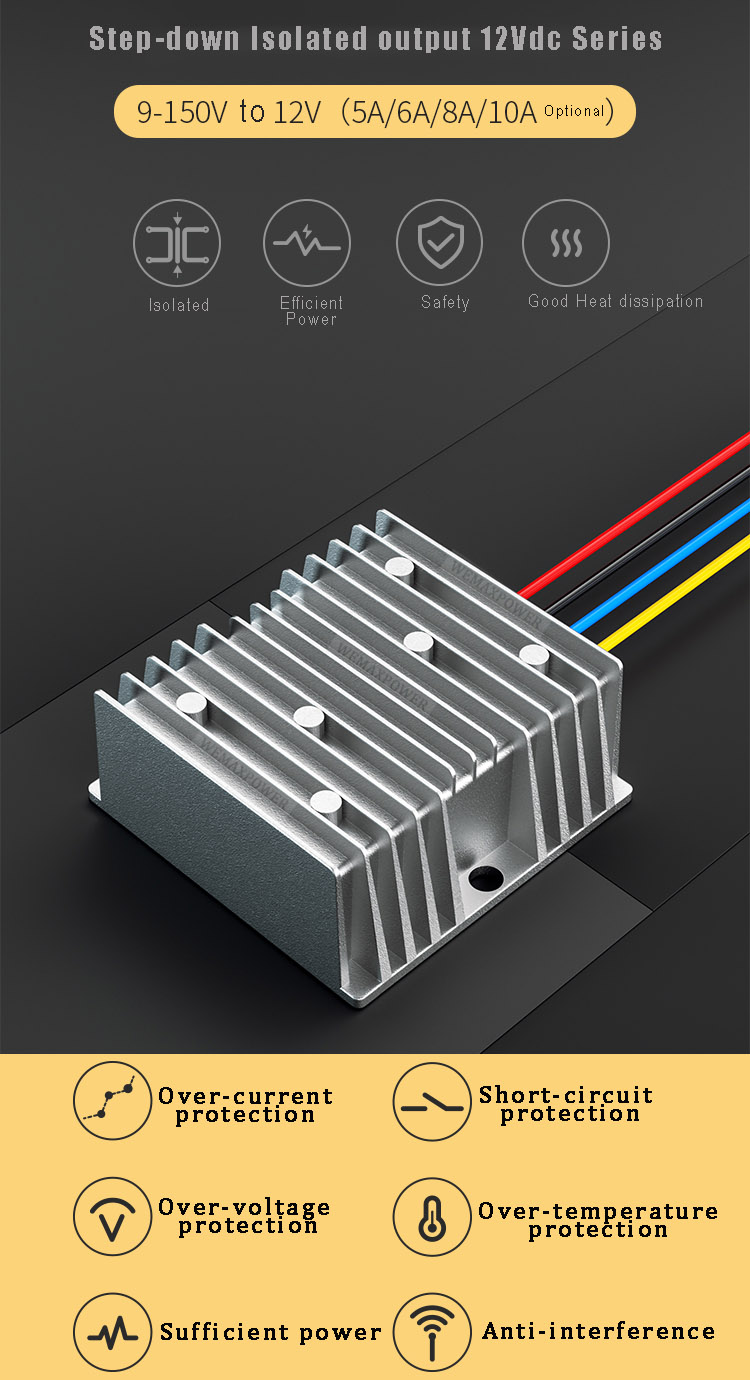

Product Overviews

FAQ

QWhy choose us?

We are a dedicated DC-DC converter manufacturer with more than 10 years of experience. The performance of our converters is highly stable, and our product technology is updated every year.

QIf the converter burns out, what will happen to the load?

Because the converter is isolated, once the converter is burnt out, the output voltage will become 0 V, which will not have any impact on the load and protects the load from being damaged.

QWhy are other products cheaper than yours?

Other suppliers may use cheaper components, leading to insufficient power output. Our products are made using imported components and can support long-term full load work.

QWhat about your after-sales service?

We provide a 1-year guarantee. We can exchange goods if there is any quality problem within the warranty period.

QWhat can you get from us?

You can receive excellent products (unique design, strict quality control), great service (OEM, ODM, after-sales services, fast delivery), and professional business consultation.

QWhat is the MOQ of the isolated DC DC Converter 12v?

We offer a low MOQ, and 2 to 5 units for sample testing are available.
