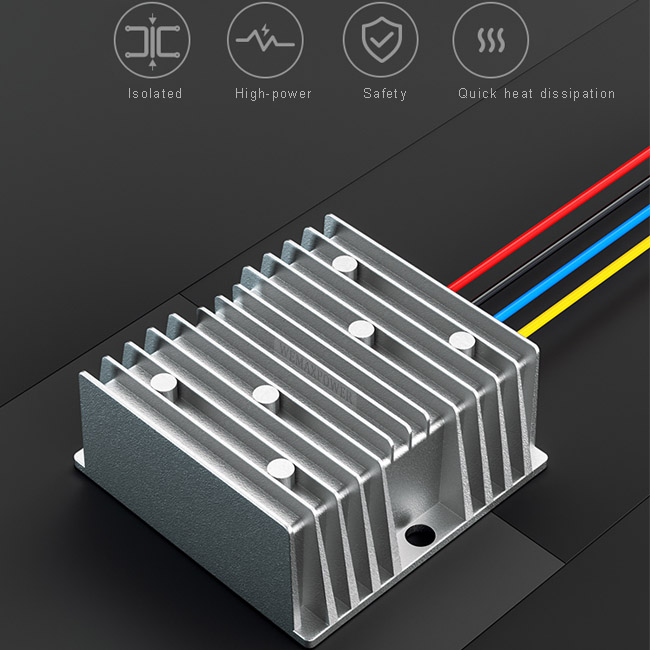

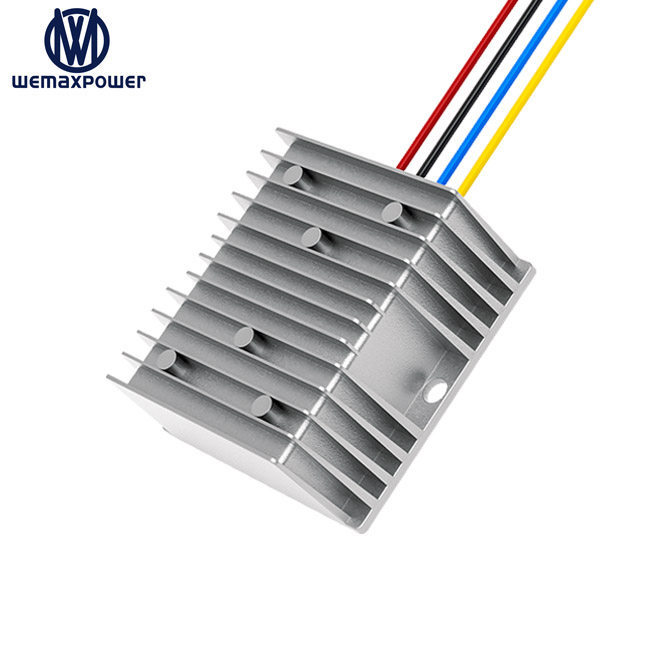

DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
1 / 5
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated

DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated

Send Inquiry

Product Description

DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated
>>>dc dc converter 36/48v to 24v isolated<<<
Features
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range 30-60vdc.
  • Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.

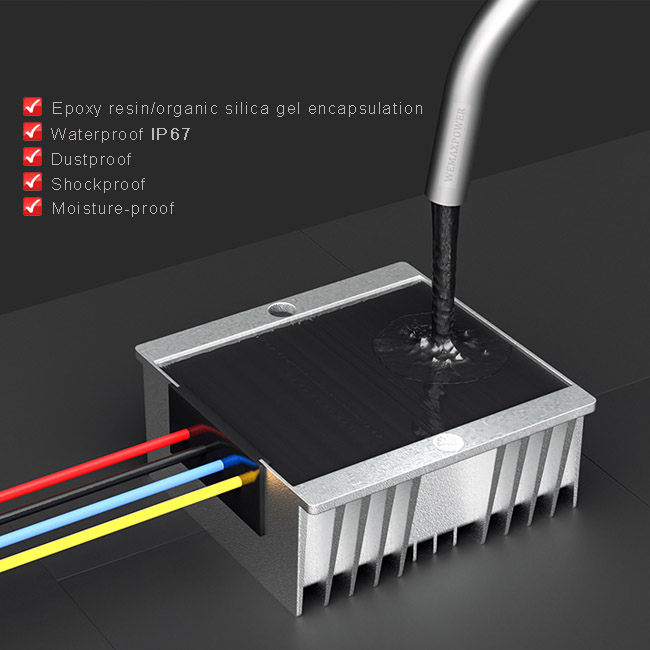

  • Die-cast aluminum shell, epoxy potting.

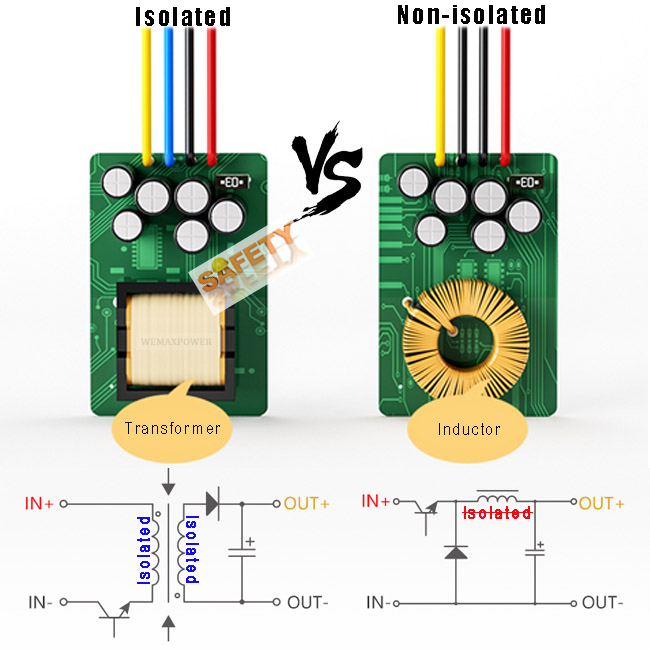

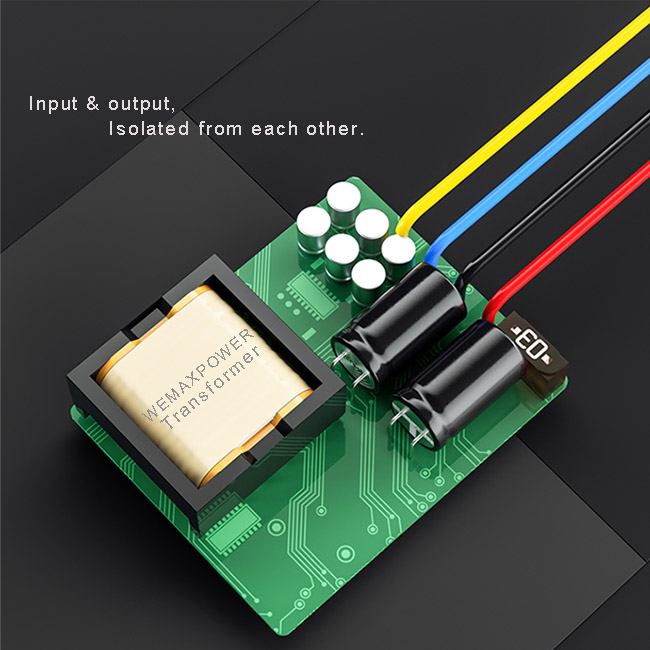

  • Isolated Module.
Specification
Series No. WMX-D30-60D24
Model WMX-DSD30-60S2405-I
Product Name dc dc converter 36/48v to 24v isolated
Input rated voltage 36/48Vdc
Input voltage range 30-60Vdc
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 5Amps
Output rated power 120Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Type Input output Isolation
Packing White standard box
Product Description
Product Image 1
Product Image 2
Product Image 3
Product Image 4
Product Image 5
Product Image 6
Product Image 7
Product Image 8
Product Image 9
Product Image 10
Product Image 11
Product Image 12
Product Image 13
Product Image 14
Buyer Feedback
Buyer Feedback
FAQ
Why choose us?
We are a professional DC-DC converters manufacturer for more than 10 years. The performance of the converters is very stable, and the product technology is updated every year.
If the converter burns out, what will happen to the load?
Because the converter is isolated, once the converter is burnt out, the output voltage will become 0 V, which will not have any impact on the load and protect the load from being burnt out.
Why are other products cheaper than yours?
Because other suppliers use cheap components, the products are with not enough power output. Our products are used imported components, they can support long-term full load work.
What about your after sales-service?
1. Guarantee time: 1 year
2. Return policy: we can exchange goods if there is any quality problem within warranty period.
Our Payment & Logistics
1. Payment terms: L/C, T/T, Western Union, MoneyGram, Paypal, etc.
2. Shipping terms: By DHL, UPS, FedEx, TNT, EMS, Sea, etc.
What can you get from us?
1. Excellent products (unique design, strict quality control)
2. Great service (OEM, ODM, after-sales services, fast delivery)
3. Professional business consultation.
What is the MOQ of the dc dc converter 48v to 24v isolated?
Low MOQ, 2~5 units for sample testing is available.
