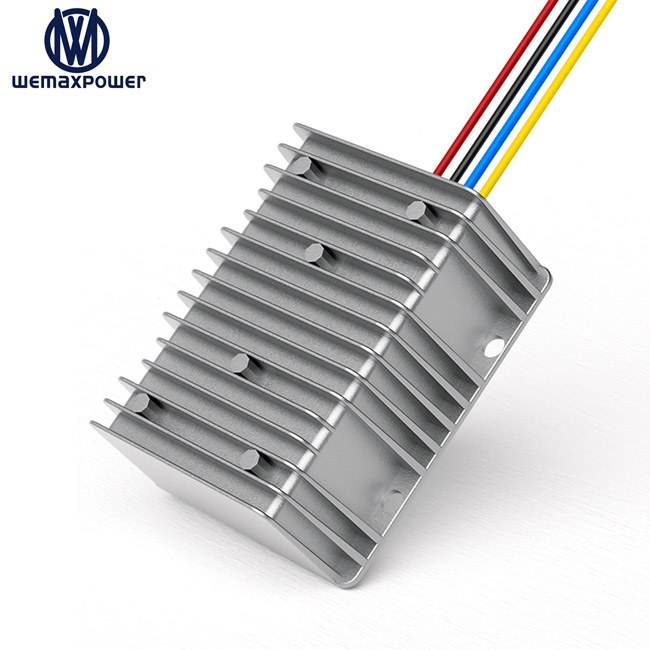

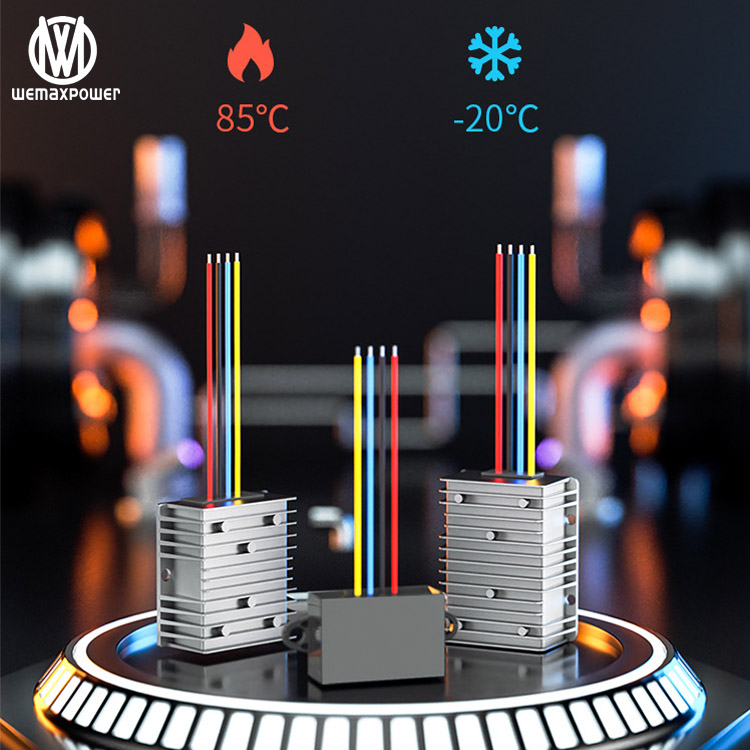

Waterproof 36vdc 48vdc buck 5vdc 24amp isolation module step down dc voltage regulator 36v 48v to 5v 24a dc isolated converter
Similar Products
30~60v to 5v isolated dc converter

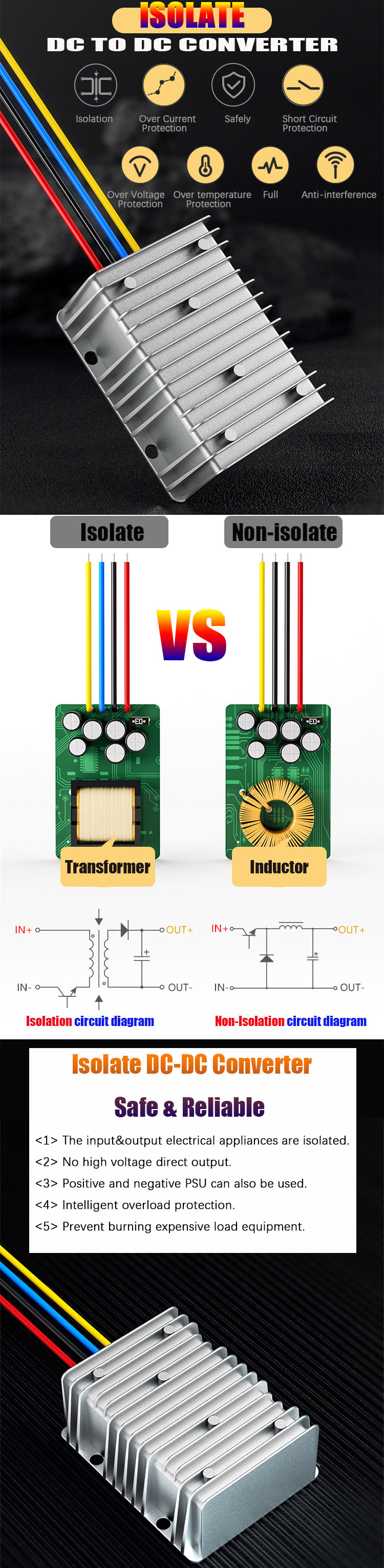

The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.

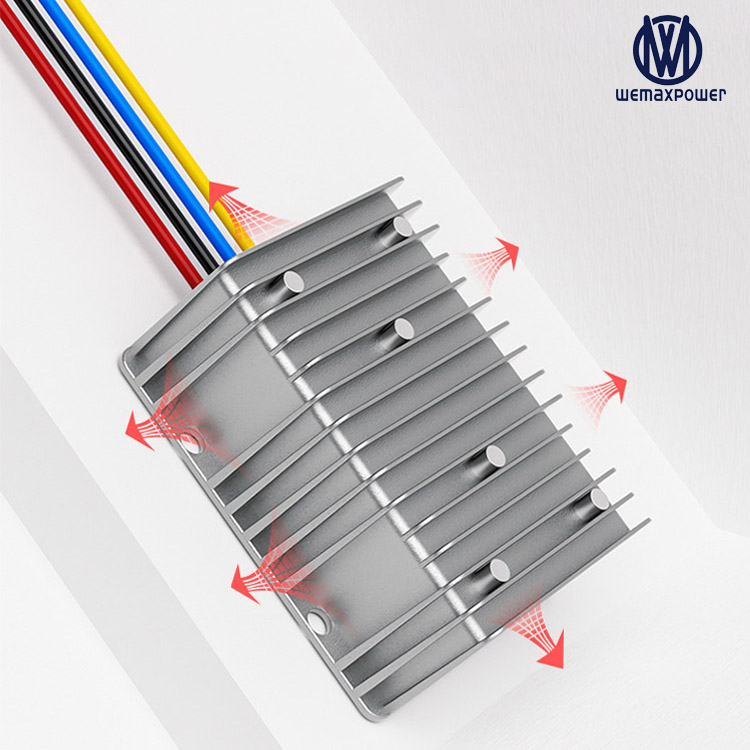

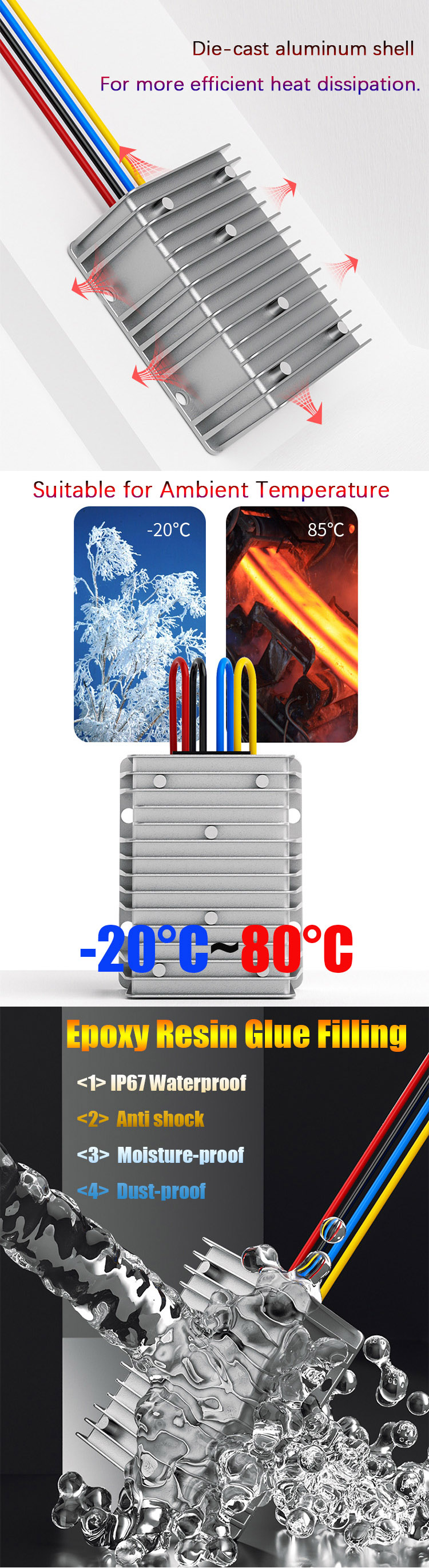

Die-cast plastic shell for more efficient heat dissipation.
Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.

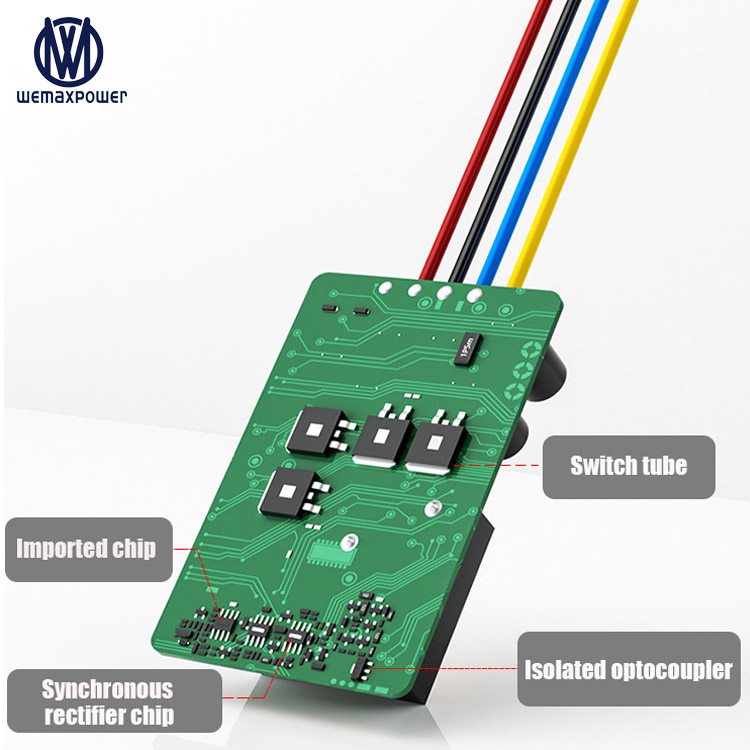

Industrial grade PSU chip, safe and reliable.
| Series No. |
WMX-D30-60D5 |
| Model |
WMX-DSD30-60S525-I |
| Product Name |
36v/48v to 5v isolated converter |
| Input rated voltage |
36/48Vdc |
| Input voltage range |
30-60Vdc |
| Conversion Efficiency |
96% |
| Output voltage |
5Vdc |
| Output current |
24Amps |
| Output rated power |
120Watts |
| Voltage regulation |
< 1% |
| Load regulation |
< 2% |
| Ripple (full load test) |
< 150mV |
| No-load current |
< 20mA |
| Working Temperature |
-40°c ~ +80°c |
| Waterproof rating |
IP67 |
| Protections |
Over-load, Over-current, Over-temperature, Over-voltage |

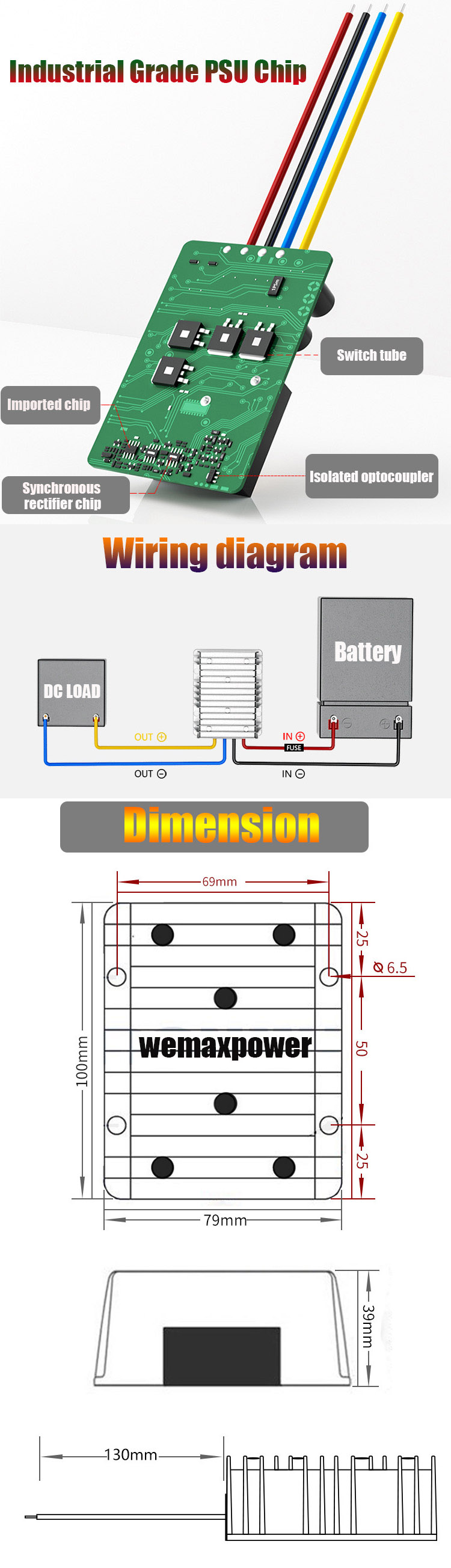

| Machine size |
100*80*39mm |
| N. Weight |
490g |
| Type |
Input & output Isolation |
| Packing |
Standard box |
Product Description
