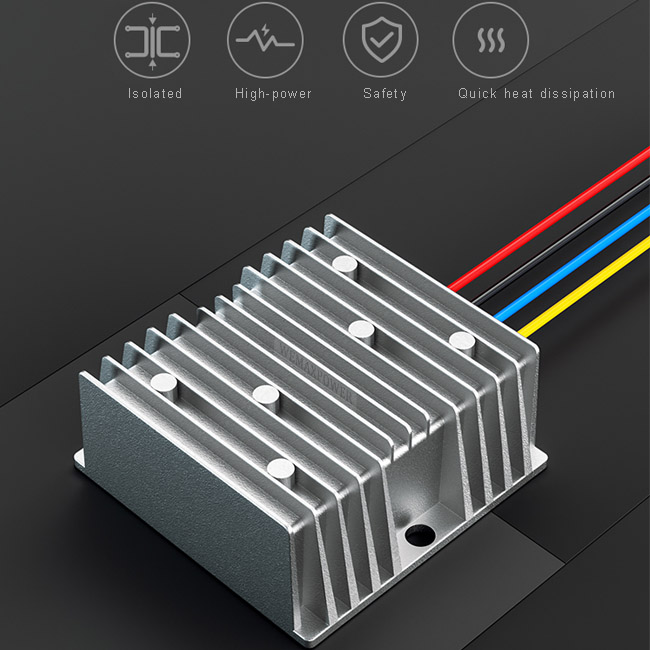

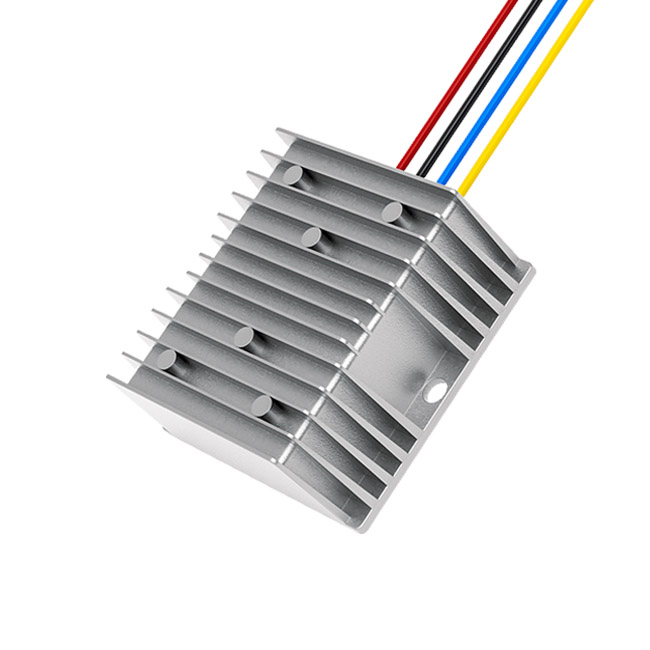

Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
1 / 5
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof

Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof

Send Inquiry

Product Description

Isolation 80vdc convert 5vdc step down dc regulator 100w 20a 120v 100v
80v to 5v isolated dc converter

Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof
>>> 80v / 100v / 120v to 5v isolated converter <<<
Divider Line
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range 75-150vdc.
  • Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.

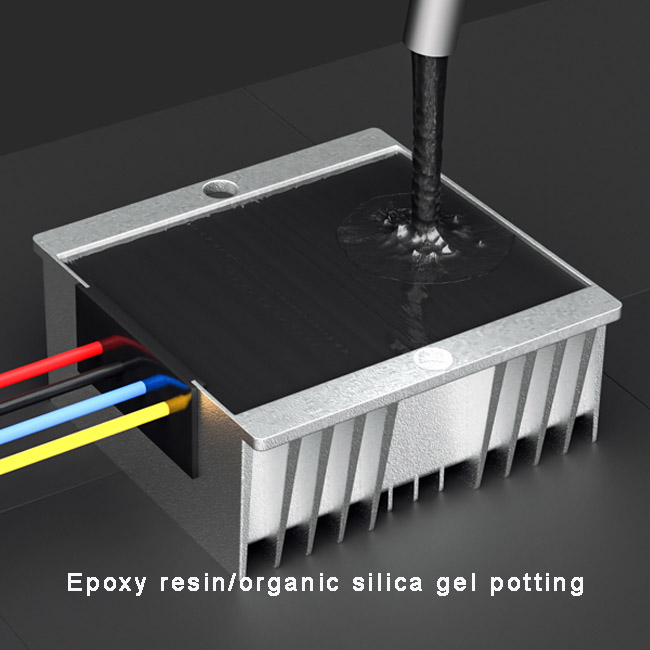

  • Die-cast aluminum shell, epoxy potting.

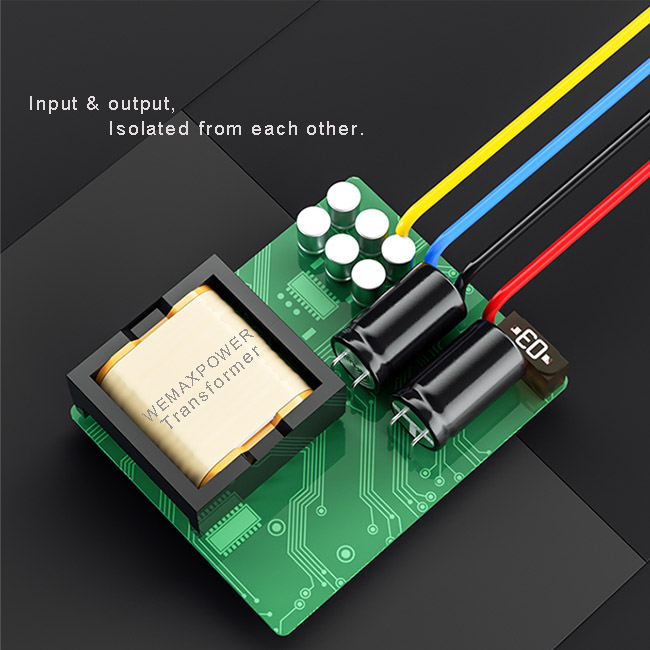

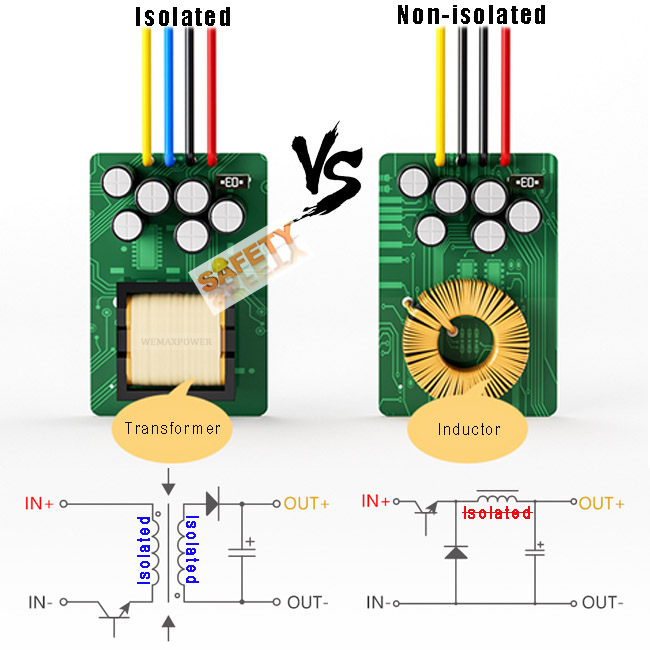

  • Isolated Module.
Divider Line
Isolated DC Voltage Converter options
Divider Line
Technical Specifications
Part No. WMX-D75-150D5
Model WMX-DSD75-150S520-I
Product Name 5v isolated dc dc converter
Input rated voltage 80/100/120Vdc
Input voltage range 75-150Vdc
Conversion Efficiency 96%
Output voltage 5Vdc
Output current 20Amps
Output rated power 100Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Type Input output Isolation
Packing White standard box
Product Description
Description Image 1
Description Image 2
Description Image 3
Description Image 4
Description Image 5
Description Image 6
Description Image 7
Description Image 8
Description Image 9
Description Image 10
Description Image 11
Description Image 12
Description Image 13
Buyer Feedback
Buyer Feedback
FAQ
Why choose our products?
A: We are a professional DC-DC converters manufacturer with more than 10 years of experience. The performance of our converters is highly stable, and our product technology is updated every year.
If the converter burns out, what will happen to the load?
A: Because the converter is isolated, once the converter is burnt out, the output voltage will become 0 V, which will not have any impact on the load and protect the load from being damaged.
Why are other products cheaper?
A: Other suppliers may use cheaper components, resulting in insufficient power output. Our products are made with imported premium components to support long-term full load operation.
What about the after sales-service?
A: We provide a 1-year warranty. We can exchange the goods if there is any quality problem within the warranty period.
What is the MOQ of the 5v isolated dc dc converter?
A: We support a low MOQ, and 2~5 units for sample testing is available.
What can you get from us?
A: You will get excellent products with unique design and strict quality control, outstanding service (including OEM, ODM, after-sales service, and fast delivery), as well as professional business consultation.
