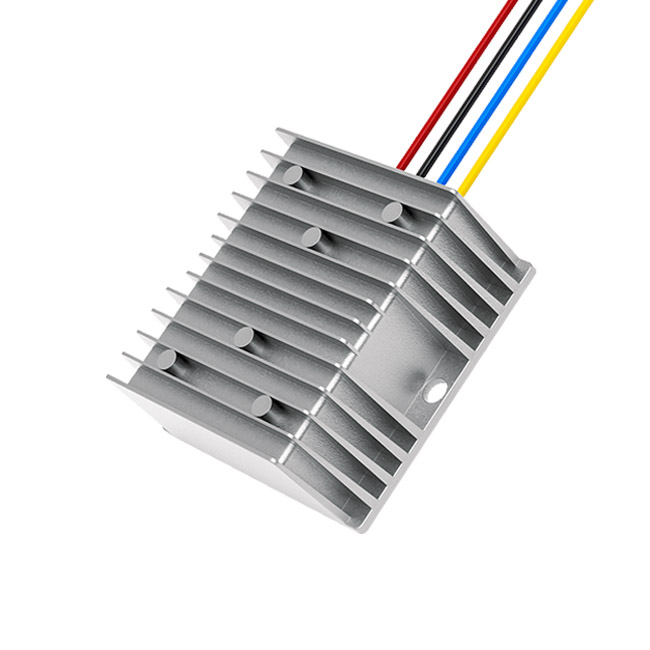

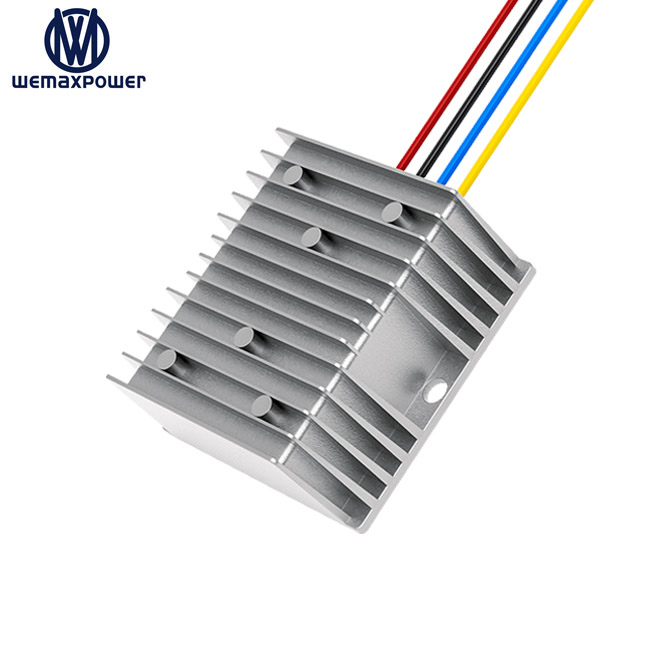

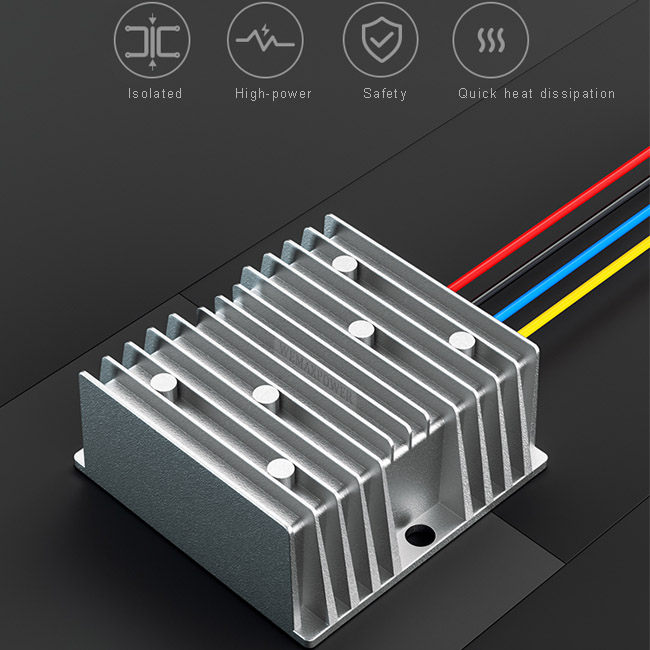

Buck Module 24A Isolated DC Voltage Converter 12V/24V to 5VDC Single Phase Automotive

Similar Products

9~36v to 5v isolated dc converter

The input & output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.
Die-cast plastic shell for more efficient heat dissipation.
Suitable for ambient temperature -20~80°C.

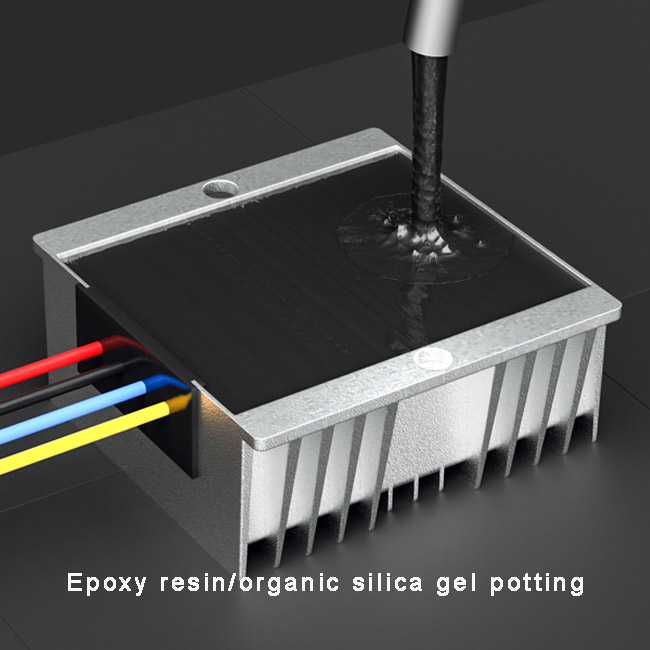

Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.
Industrial grade PSU chip, safe and reliable.

Product Specifications

Series No.	WMX-D9-36D5
Model	WMX-DSD9-36S524-
Product Name	12v/24v to 5v isolated converter
Input rated voltage	12/24Vdc
Input voltage range	9-36Vdc
Conversion Efficiency	96%
Output voltage	5Vdc
Output current	24Amps
Output rated power	120Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	1008039mm
N. Weight	490g
Type	Input & output Isolation
Packing	Standard box

Product Description

Frequently Asked Questions

Q1. How we work?

Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q2. What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q3. How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.

Q4. If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?

Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.

Q5. Can I buy 1 or 2 pieces of samples for testing before place bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.

Q6. What is your Minimum Order Quantity?

Different products have different MOQ, generally speaking, our MOQ is 1pcs, please don't hesitate to check with us for specific items.

Product Detail

Buck Module 24A Isolated DC Voltage Converter 12V/24V to 5VDC Single Phase Automotive

Product Description

Buck module 24amp isolation 12/24v step down 5vdc dc voltage regulator

12v 24v to 5v 24a dc isolated converter
