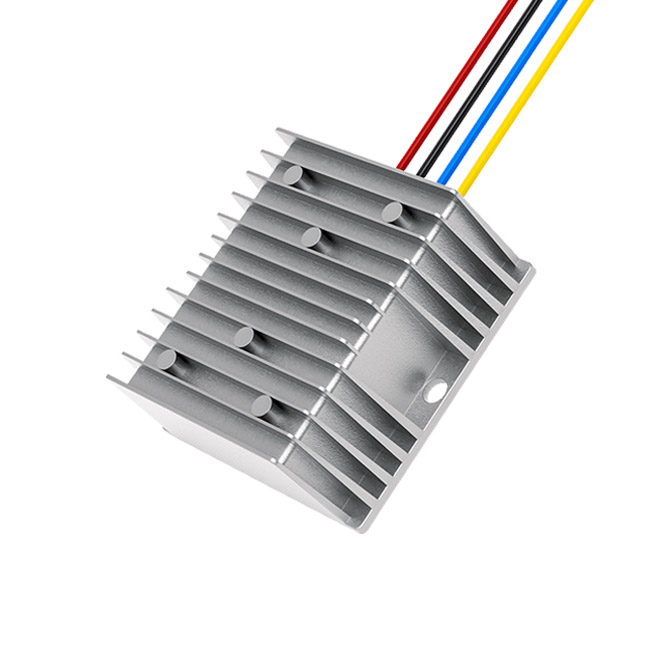

Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
1 / 5
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter
Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter

Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter

Send Inquiry

Product Description

Voltage Step Down Isolation DC Regulator 12/24V Convert 5VDC 10A 12V 24V to 5V Isolated DC Step Down Converter

12/24v to 5v isolated dc-dc converter

Voltage Step Down Isolation Dc Regulator

Features

  • ✓High quality components.
  • ✓Full power, stable voltage & current output.
  • ✓Wide input voltage range 9-36vdc.
  • ✓Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
  • ✓Industry grade product, efficiency up to 96%.

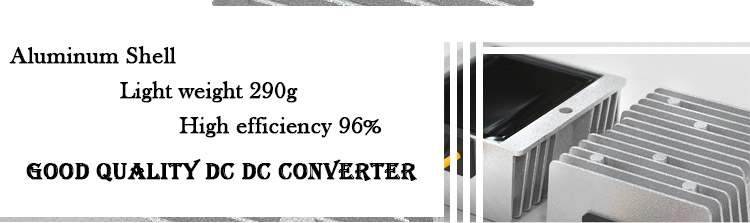

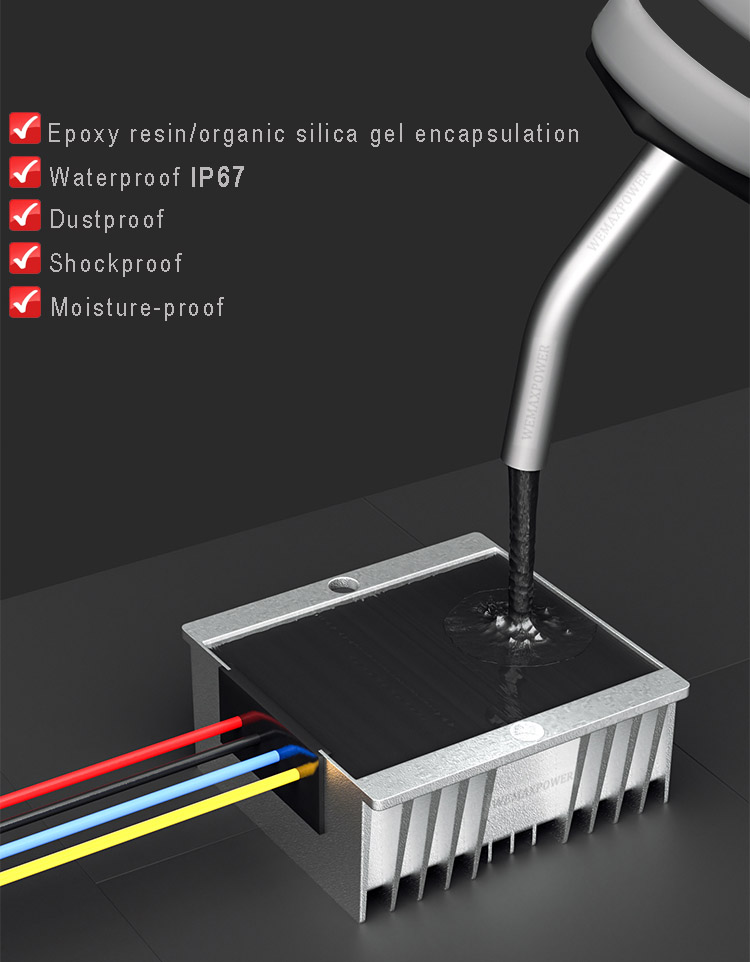

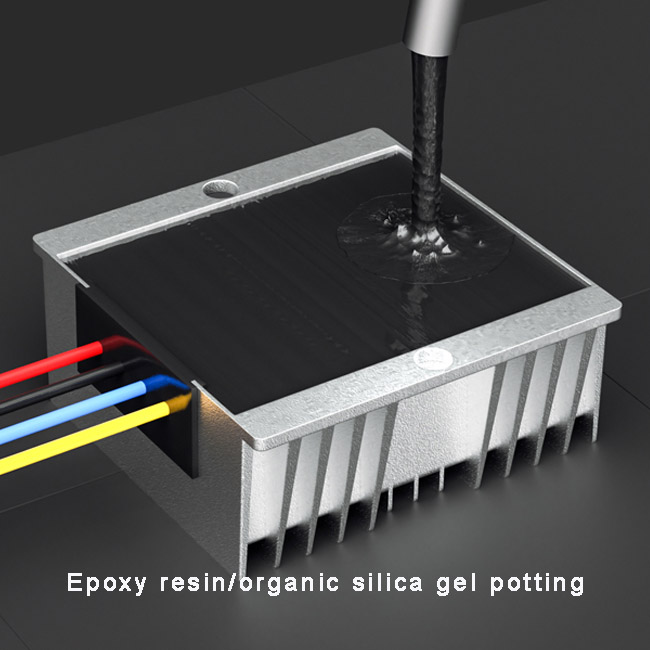

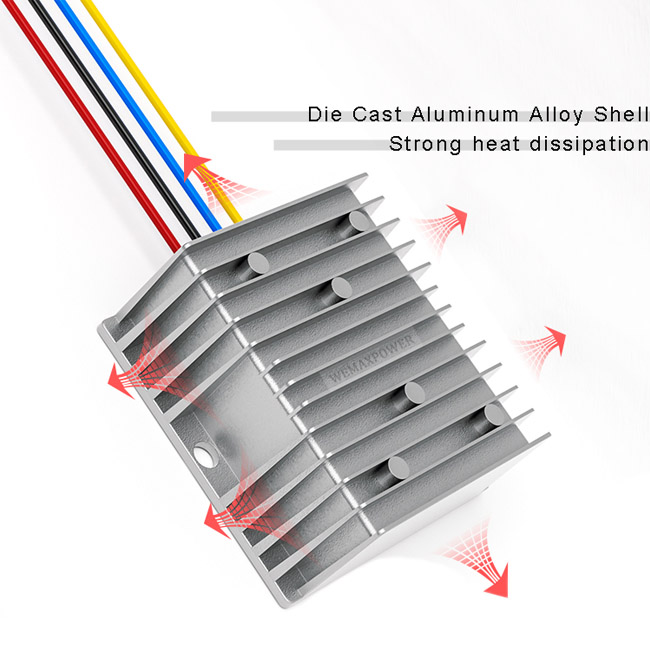

  • ✓Die-cast aluminum shell, epoxy potting.

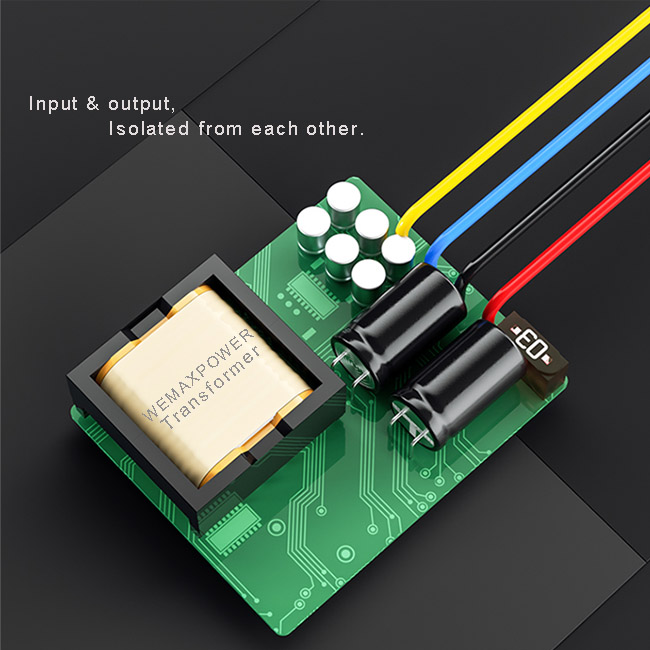

  • ✓Isolated Module.

Specification

Series No. WMX-D9-36D5
Model WMX-DSD9-36S510
Product Name 12/24v to 5v isolated dc-dc converter
Input rated voltage 12/24Vdc
Input voltage range 9-36Vdc
Conversion Efficiency 96%
Output voltage 5Vdc
Output current 10Amps
Output rated power 50Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 67
Protections Over-load, Over-current, Over-temperature, Over-voltage

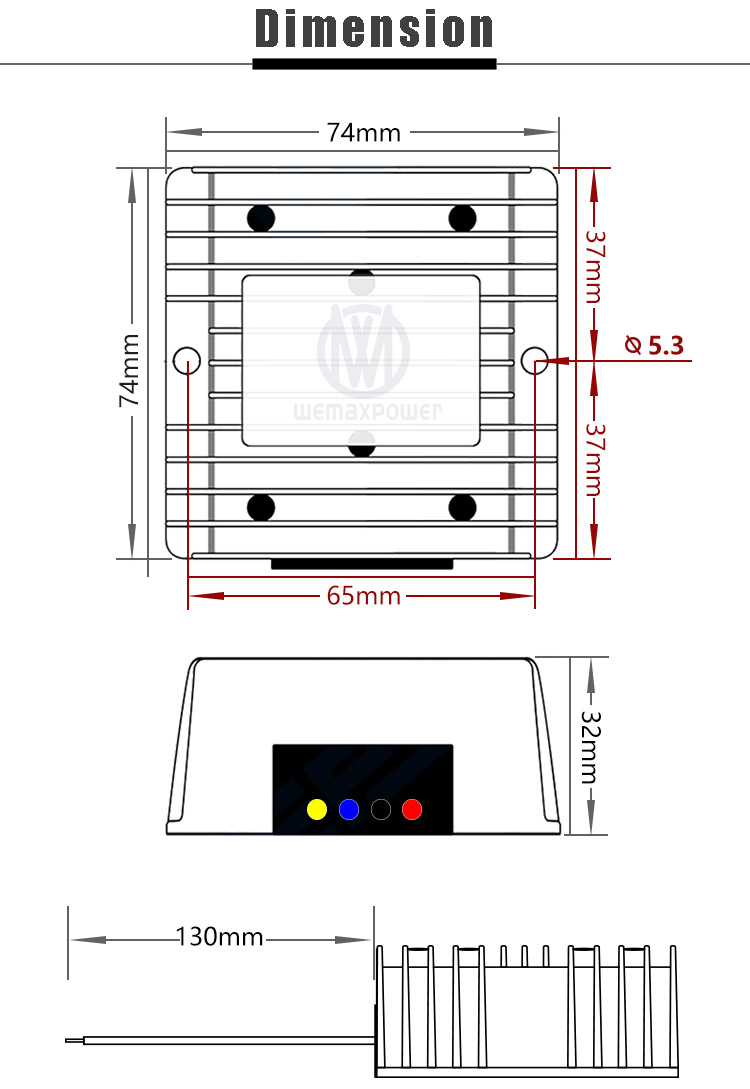

Machine size 74*74*32mm
N. Weight 290g
Cooling way Free air convection
Packing White standard box
Type Isolated

Product Overviews

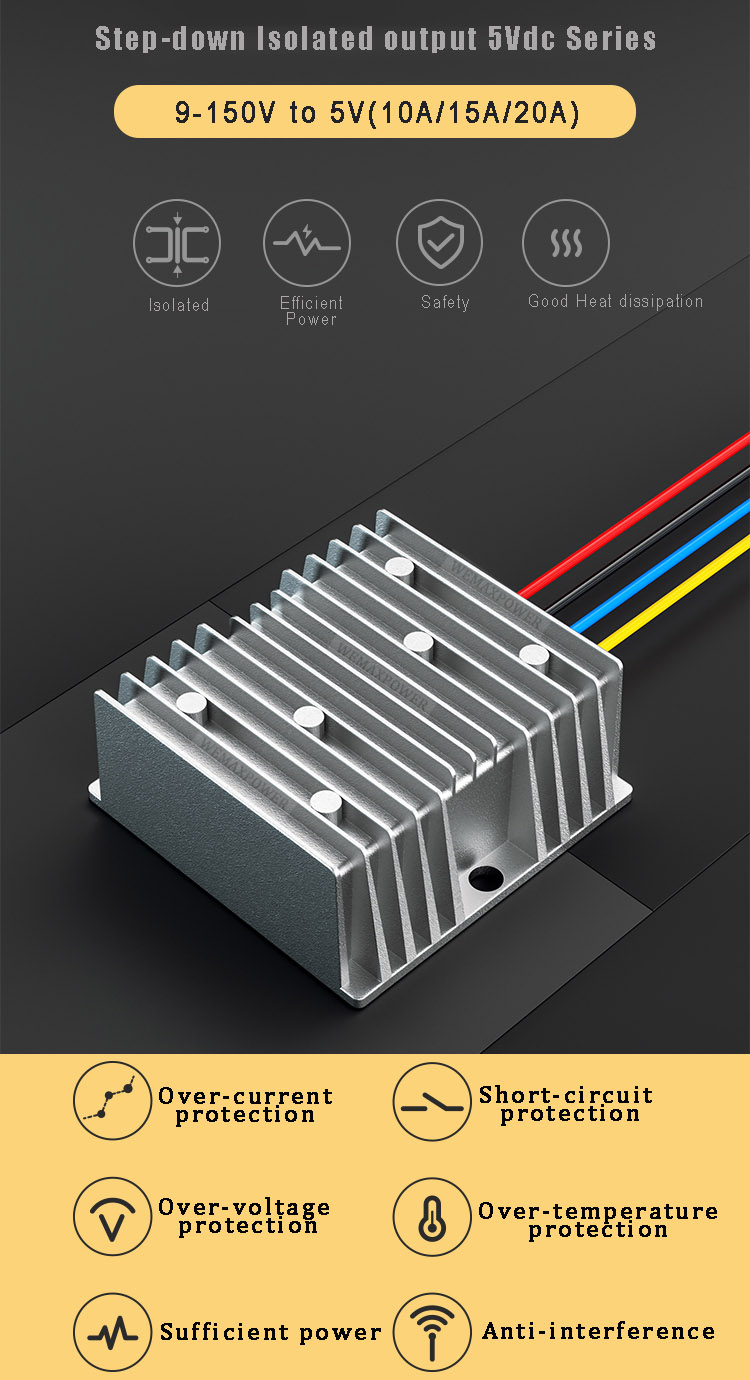

Product Overview 1

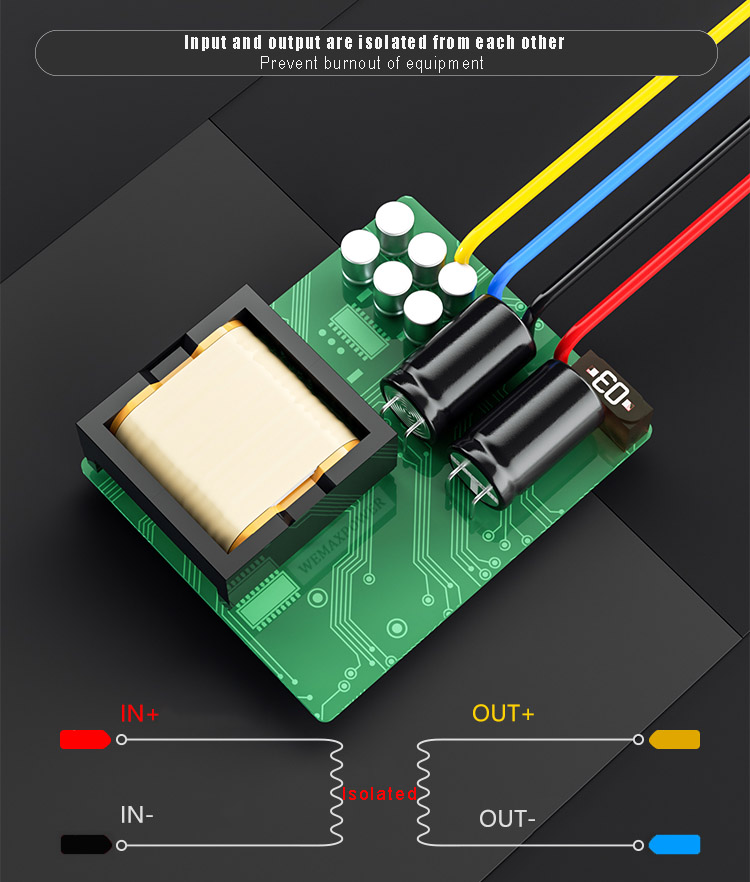

Product Overview 2

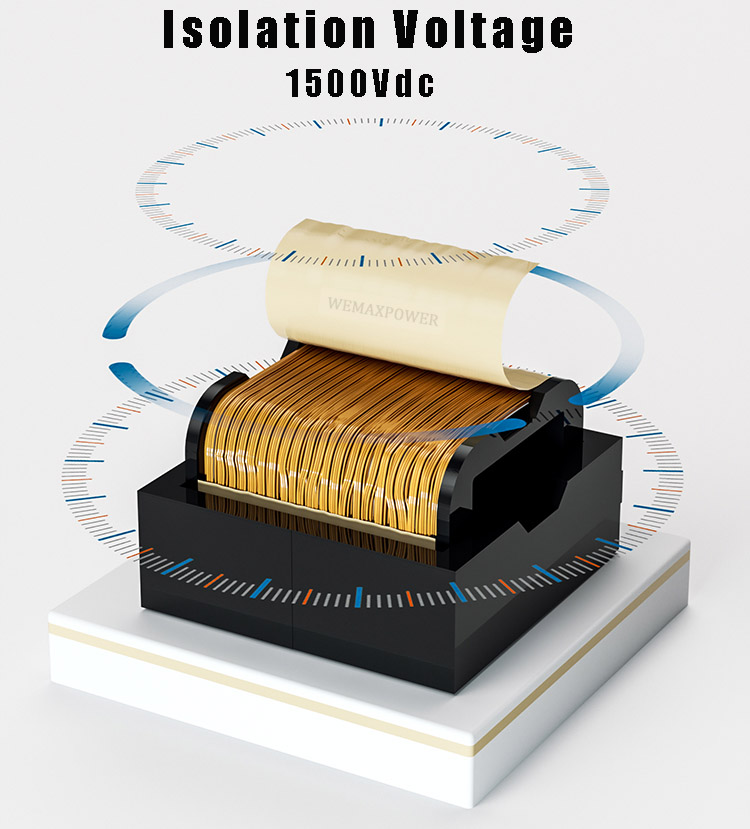

Product Overview 3

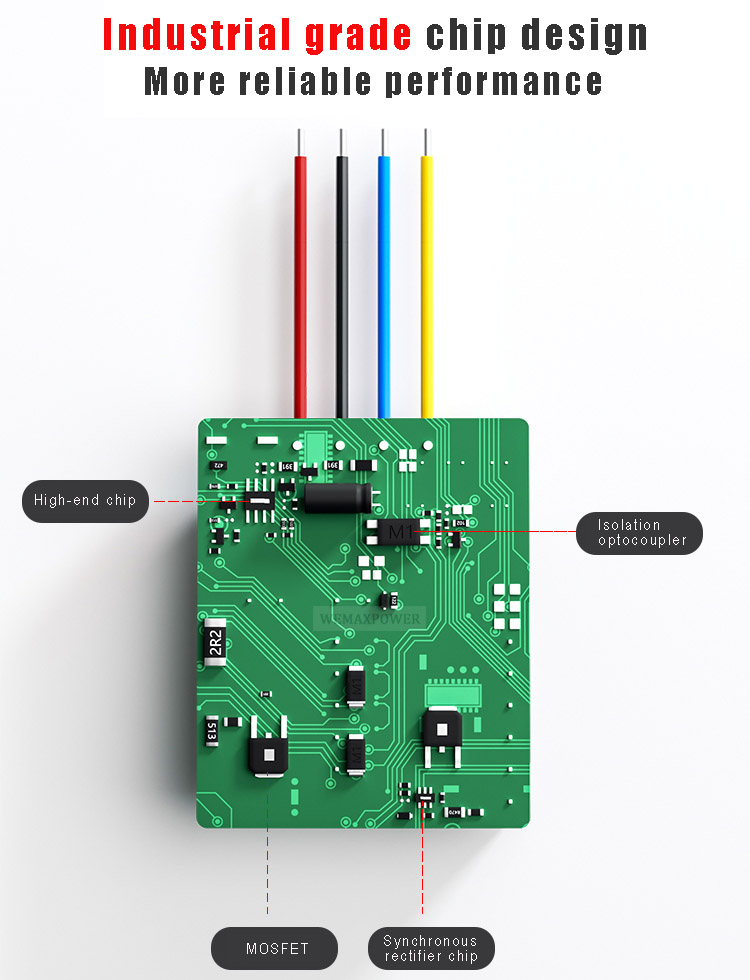

Product Overview 4

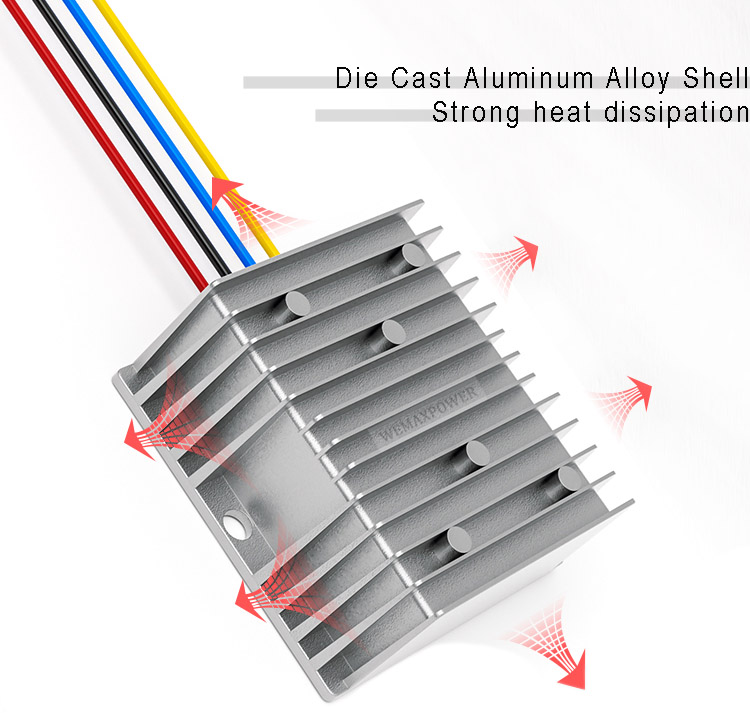

Product Overview 5
Product Overview 6

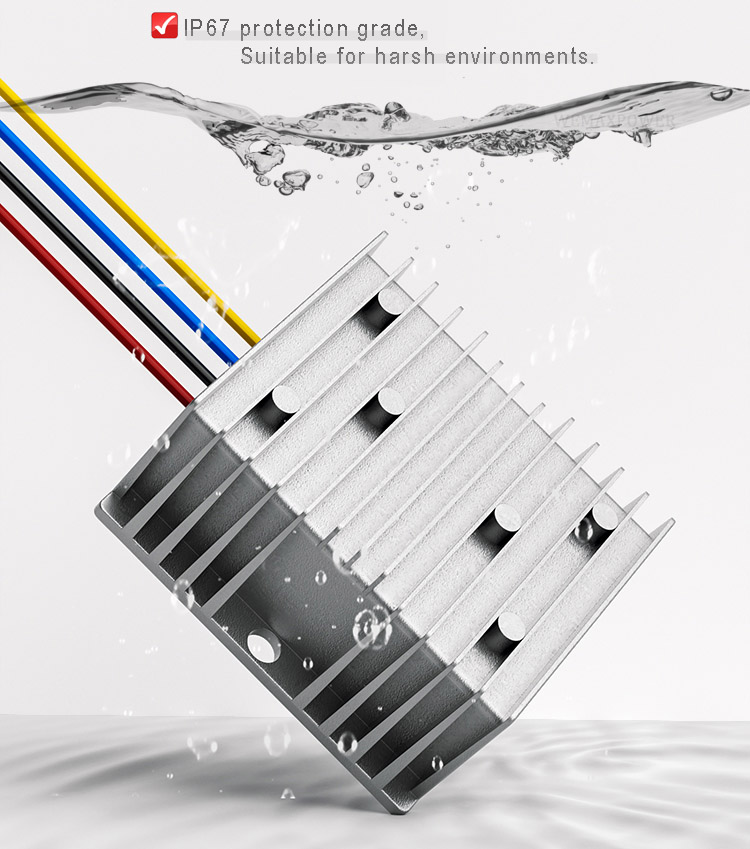

Product Overview 7
Product Overview 8
Product Overview 9

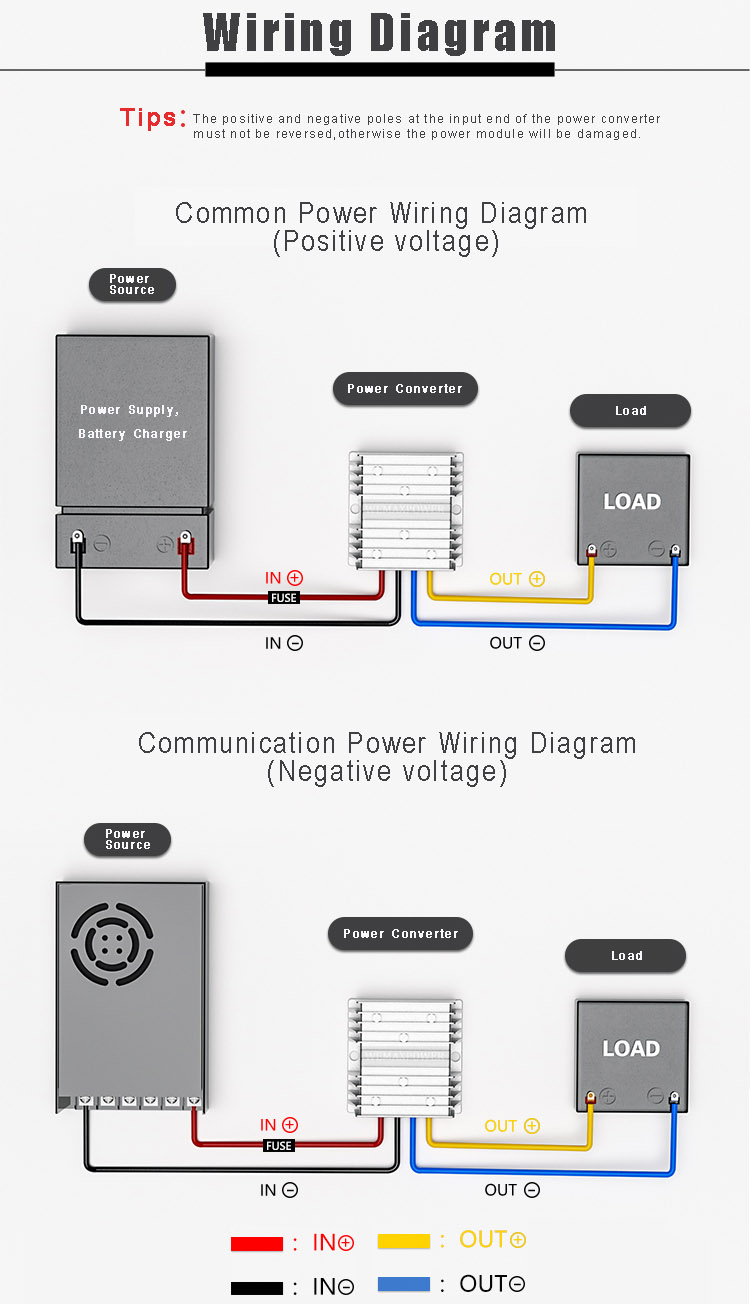

Product Overview 10
Product Overview 11
Product Overview 12
Product Overview 13
Product Overview 14
Product Overview 15

Frequently Asked Questions

QWhy choose us?
We are a professional DC-DC converters manufacturer with more than 10 years of experience. The performance of our converters is very stable, and our product technology is updated every year.
QIf the converter burns out, what will happen to the load?
Because the converter is isolated, once the converter is burnt out, the output voltage will become 0 V. This protects the load from being damaged.
QWhy are other products cheaper than yours?
Some suppliers use lower-quality components, leading to insufficient power output. Our products are made with high-grade components to support long-term, full-load work.
QWhat is the warranty policy?
We provide a 1-year warranty. We will exchange the goods if any quality issues occur within the warranty period.
QWhat are the supported payment and shipping methods?
We support payment terms including L/C, T/T, Western Union, MoneyGram, and PayPal. Shipping options include DHL, UPS, FedEx, TNT, EMS, and Sea freight.
QWhat is the MOQ of the 5v isolated dc-dc converter?
We have a low MOQ, and 2-5 units are available for sample testing.
