Wemax Power
1 / 5
| Part No. | WMX-D75-150D24 |
| Model | WMX-DSD75-150S2405-I |

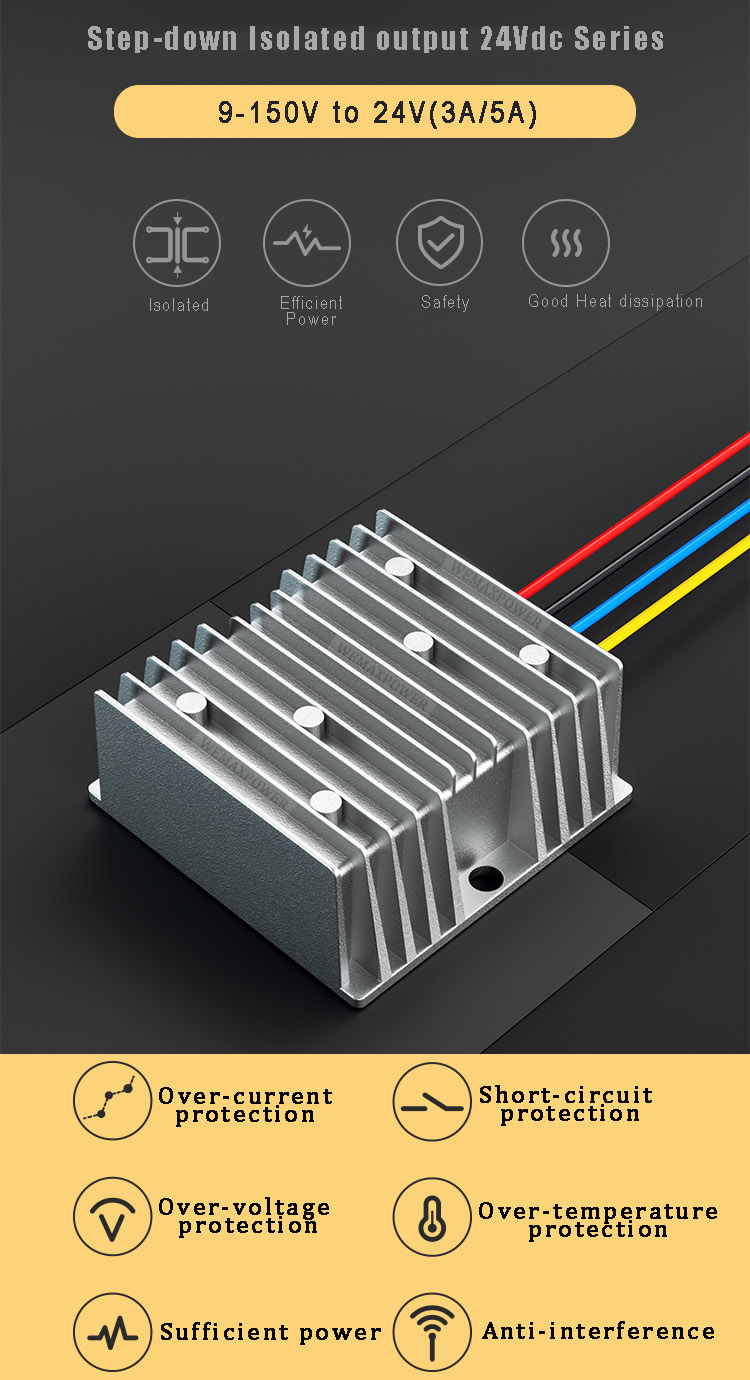

| Product Name | 24v isolated dc to dc converter |
| Input rated voltage | 80/100/120Vdc |
| Input voltage range | 75-150Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 24Vdc |
| Output current | 5Amps |
| Output rated power | 120Watts |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP 67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 74*74*32mm |
| N. Weight | 290g |

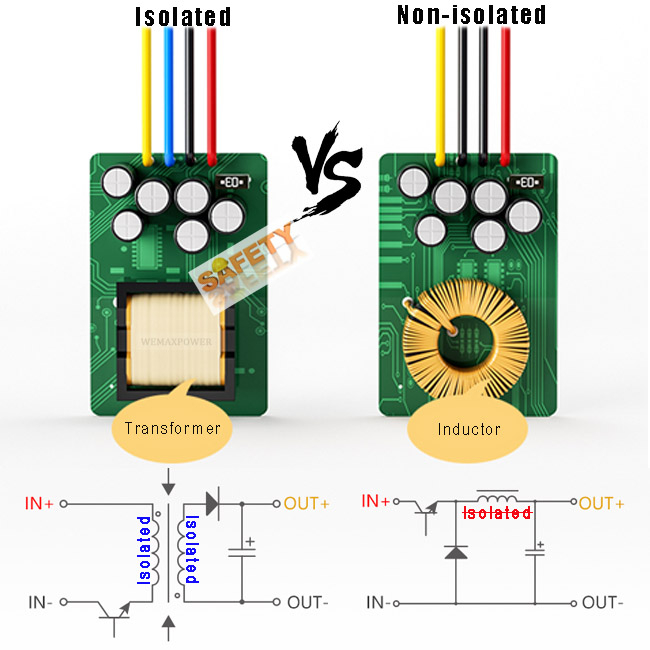

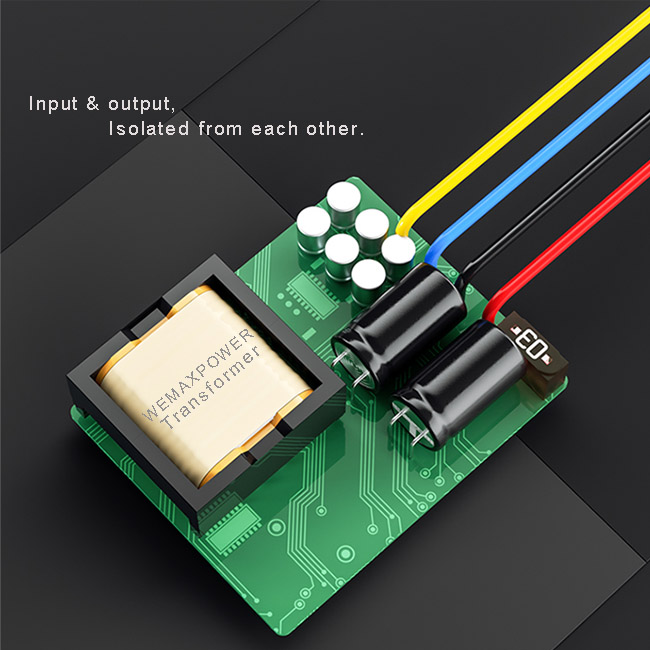

| Type | Input output Isolation |
| Packing | White standard box |
