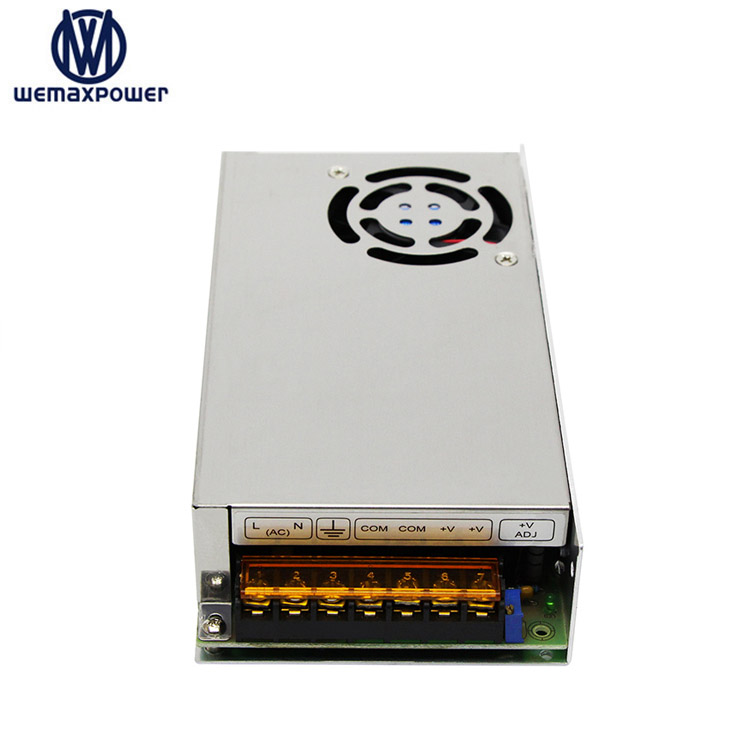

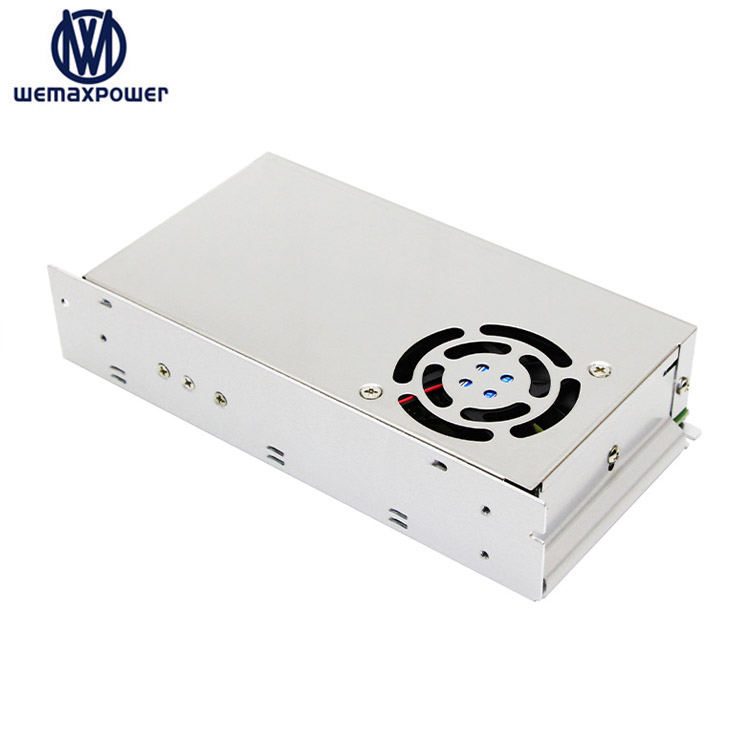

3D printer power switch power supply 200W 0-90V 110V 150V
- 3D printer power switch power supply 200W 0-90V110V150V with Compact size, light weight.

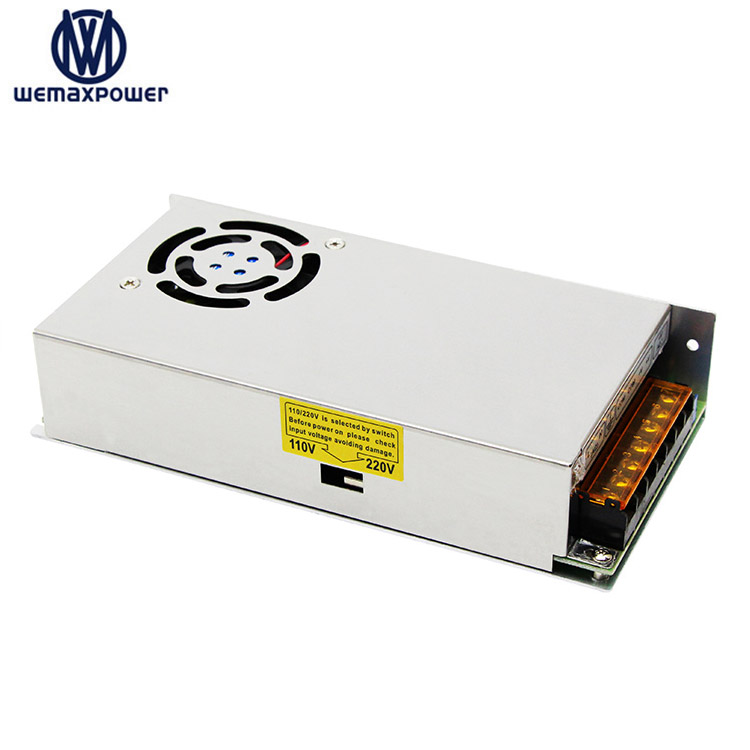

- Wide range AC Input, AC input 110V/220Vac input selected by switch.
- 100% full load burn-in test.
- Protection: Short circuit / Over load / Over voltage.
- Fixed switching frequency at 25KHz.
- 1 year warranty.
- High efficiency, reliability quality, competitive cost.
- 0-5Vdc / 0-10Vdc External control output (Optional)
- Extra adjustable potentiometer (Optional)
- Output voltage adjustable, output current be fix
| Model |
Out voltage |
Output Current |
Output Power |
| T-05-200 |
0-5Vdc |
40A |
200W |
| T-012-200 |
0-12Vdc |
16.7A |
200W |
| T-24-200 |
0-24Vdc |
8.3A |
200W |
| T-36-200 |
0-36Vdc |
5.6A |
200W |
| T-48-200 |
0-48Vdc |
4.2A |
200W |
| T-60-200 |
0-60Vdc |
3.3A |
200W |
| T-90-200 |
0-90Vdc |
2.2A |
200W |
| T-110-200 |
0-110Vdc |
1.8A |
200W |
| T-150-200 |
0-150Vdc |
1.3A |
200W |
| T-200-200 |
0-200Vdc |
1A |
200W |
| T-220-200 |
0-220Vdc |
0.9A |
200W |
| T-300-200 |
0-300Vdc |
0.7A |
200W |
| Model |
T-90-200 |
T-110-200 |
T-150-200 |
| Output Voltage |
0-90Vdc |
0-110Vdc |
0-150Vdc |
| Output voltage tolerance |
1% |
1% |
1% |
| Rated output current |
2.2A |
1.8A |
1.3A |
| Wave and noise |
130mV P-P |
130mV P-P |
130mV P-P |
| DC output power |
200W |
200W |
200W |
| Efficiency |
90% |
90% |
90% |
| Adjustable range for dc voltage |
The output voltage is 100% adjustable through the potentiometer |
| AC input voltage range |
AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch |
| Input current |
115V/3.6A | 230V/1.8A |
| AC in lash current |
Cold start current 25A/230V |
| leakage current |
≤1.5mA 230V AC |
| Overload protection |
Load more than 110%~120% switch to constant current mode |
| Overvoltage protection |
≥15% of output voltage |
| Setup/Rise/ Hold time |
200ms / 100ms / 20ms |
| Vibration |
10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
| Withstand voltage |
Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
| working temperature |
-10°C to 65°C 20%--90%RH |
| Storage temperature |
-10°C to 65°C 20%--95%RH |
| Net weight |
730g |
| Dimension |
199mm*98mm*42mm (L*W*H) |
Why choose us?
We are a professional manufacturer of DC-DC converters for more than 8 years. The performance of our converters is extremely stable, and the product technology is updated annually. As a direct manufacturer, we offer full OEM/ODM services.
Are there any requirements for product load?
Yes, these DC-DC converters feature a fixed voltage output, meaning they cannot be used to charge batteries directly. If you have requirements for charging batteries, please choose our specialized DC-DC chargers.
Why are other products cheaper than yours?
Many cheaper alternatives utilize lower-grade components, resulting in insufficient power output. Our products are engineered with imported high-quality components, supporting continuous long-term work at full load.
What about your after-sales service?
We provide a 1-year guarantee. If any quality issues arise, we offer exchange services.
What are the Payment & Logistics options?
Payment terms include L/C, T/T, Western Union, MoneyGram, and PayPal. Shipping options include DHL, UPS, FedEx, TNT, EMS, and sea freight.
What is the MOQ of the 3D printer power switch power supply 200W 0-90V110V150V?
We support a low MOQ, and 10 units for sample testing is available.
