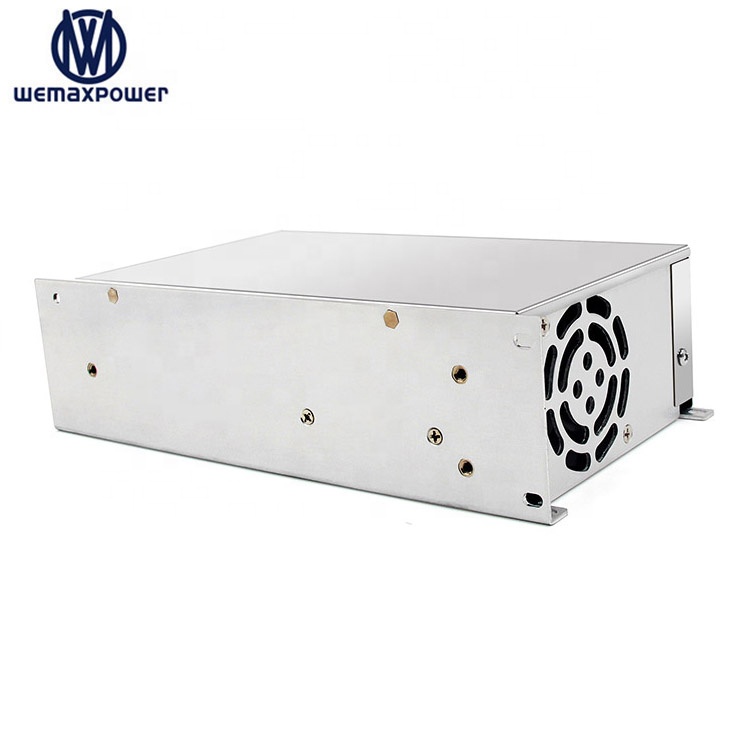

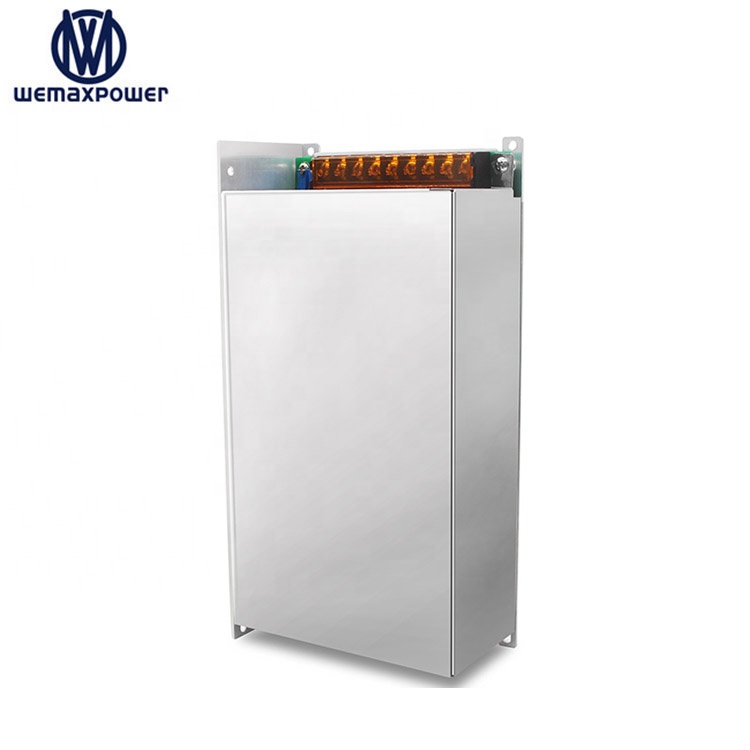

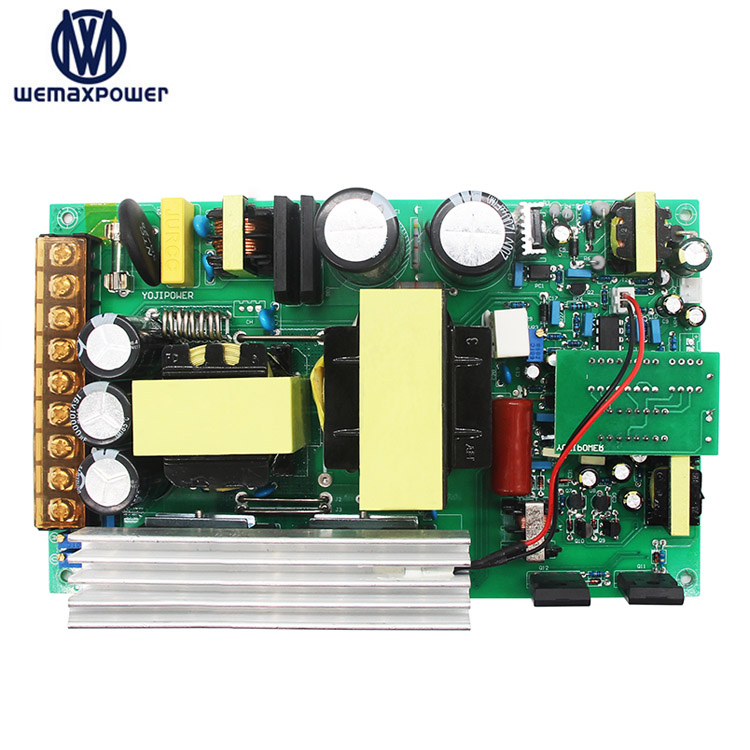

1000W Constant Voltage Constant Current Dimming Power Supply New Energy Charging Industrial Control Power Supply
PART 1. Features
✓
1. Compact size, light weight
✓
2. 1 Phase 220Vac input (Standard), It can customized 110Vac Input
✓
3. 100% full load burn-in test
✓
4. Protection: Short circuit / Over load / Over voltage
✓
5. Fixed switching frequency at 25KHz
✓
6. 1 year warranty
✓
7. High efficiency, reliability quality, competitive cost
★
8. 0-5Vdc / 0-10Vdc External control output (Optional)
★
9. Extra adjustable potentiometer (Optional)
★
10. Output voltage adjustable and output current be fix.
PART 2. Model List (1000W)
| Model |
Out voltage |
Output Current |
Output Power |
| T-012-1000 |
0-12Vdc |
83.3A |
1000W |
| T-24-1000 |
0-24Vdc |
41.7A |
1000W |
| T-36-1000 |
0-36Vdc |
27.8A |
1000W |
| T-48-1000 |
0-48Vdc |
20.8A |
1000W |
| T-60-1000 |
0-60Vdc |
16.7A |
1000W |
| T-90-1000 |
0-90Vdc |
11.1A |
1000W |
| T-110-1000 |
0-110Vdc |
9.1A |
1000W |
| T-150-1000 |
0-150Vdc |
6.7A |
1000W |
1000W Constant Voltage Constant current 12V24V36V48V60V90V110V150V dimming power supply new energy charging industrial control power supply
PART 3. Technical Parameters
| Model |
T-012-1000 |
T-024-1000 |
T-036-1000 |
T-048-1000 |
T-060-1000 |
T-090-1000 |
T-0110-1000 |
T-150-1000 |
| Output Voltage |
0-12V |
0-24V |
0-36V |
0-48V |
0-60V |
0-90V |
0-110V |
0-150Vdc |
| Output voltage tolerance |
1% |
1% |
1% |
1% |
1% |
1% |
1% |
1% |
| Rated output current |
82A |
42A |
27A |
20.8A |
16.5A |
11A |
9A |
6.7A |
| Wave and noise |
90mV P-P |
90mV P-P |
100mV P-P |
110mV P-P |
110mV P-P |
130mV P-P |
130mV P-P |
130mV P-P |
| DC output power |
1000W |
1000W |
1000W |
1000W |
1000W |
1000W |
1000W |
1000W |
| Efficiency |
83% |
85% |
85% |
87% |
87% |
89% |
91% |
83% |
PART 4. Common Specification
| Adjustable range for dc voltage |
The output voltage is 100% adjustable through the potentiometer |
| AC input voltage range |
AC174-264VAC 50Hz |
| Input current |
230V/6 A |
| AC in lash current |
Cold start current 80A/230V |
| leakage current |
≤1.5mA 230V AC |
| Overload protection |
Load more than 110%~120% switch to constant current mode |
| Overvoltage protection |
≥15% of output voltage |
| Setup/Rise/ Hold time |
200ms / 100ms / 20ms |
| Vibration |
10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
| Withstand voltage |
Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
| Net weight |
1360g |
| Dimension |
262mm*105mm*65mm (L*W*H) |
With 0-5vdc extender control 220vac to 12V 24V 48V 60V 90V 110V 720W Switching voltage Variable dc power supply
Product Description
Packaging & Shipping
FAQ
QHow about your After sales-service?
A: 1. Guarantee time: 12 Months.
2. Return policy: We can exchange goods if there is a quality problem.
QWhat can you get from us?
A: 1. Excellent products (unique design, strict quality control).
2. Great service (OEM, ODM, after-sales services, fast delivery).
3. Professional business consultation.
QWhat is the MOQ of the 1000W dimming power supply new energy charging industrial control power supply?
A: Low MOQ, 2 sets for sample testing are available.
QCan the output voltage and current parameters be customized?
A: Yes, other voltage outputs can be customized to fit your requirements. The standard output voltage is 100% adjustable via the potentiometer.
QDoes the power supply support 110Vac input?
A: The standard input voltage range is AC 174-264VAC 50Hz (1 Phase 220Vac). However, customized 110Vac input options are available on request.
QWhat kinds of protection features are built into this power supply?
A: This unit is designed with multiple security safeguards including Short circuit protection, Overload protection (switches to constant current mode when load exceeds 110%~120%), and Overvoltage protection (≥15% of output voltage).
