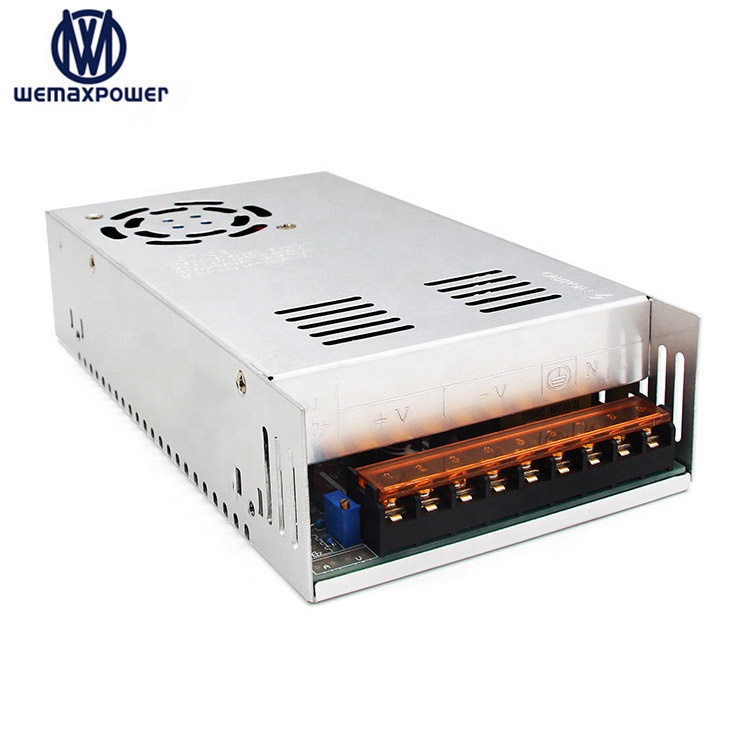

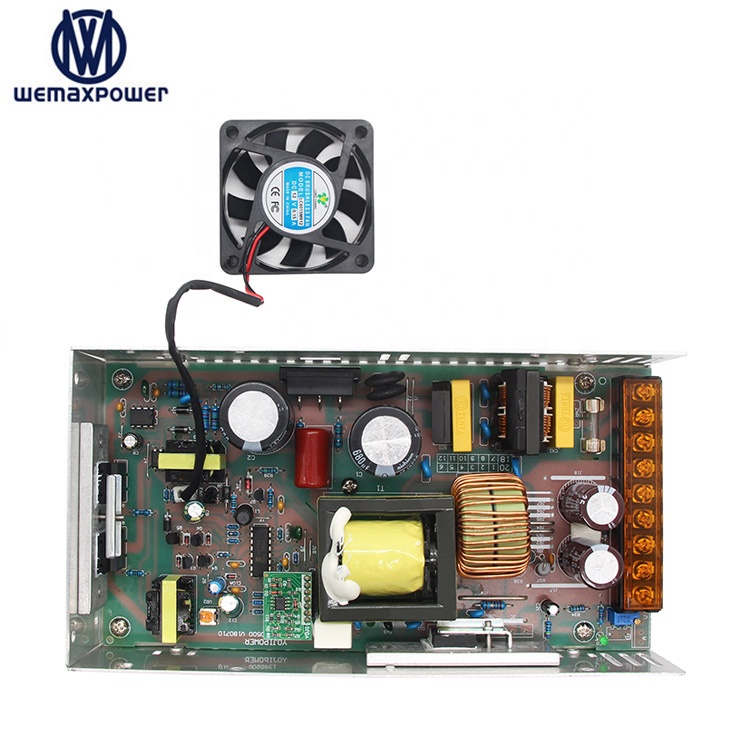

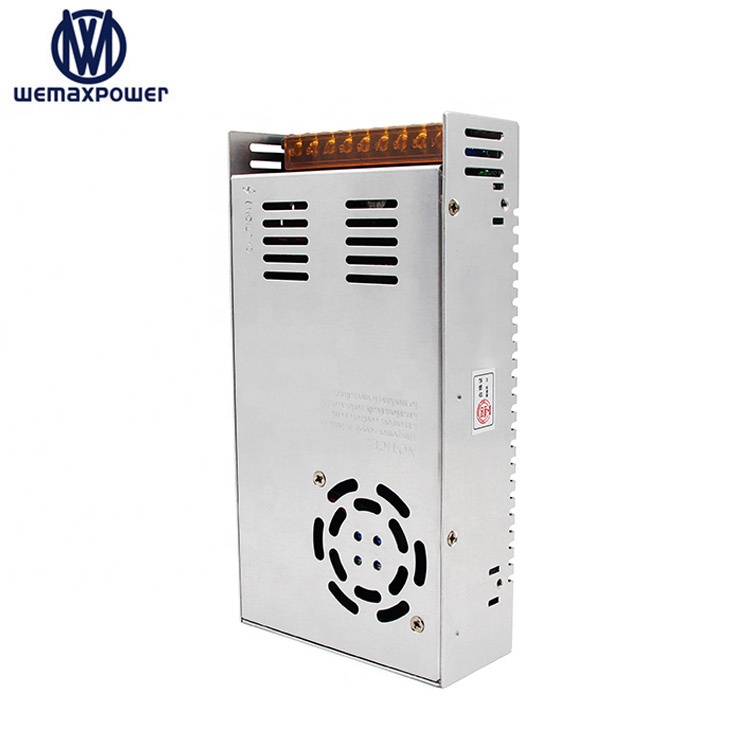

Support 0-5vdc / 0-10vdc Analog signal External Control Switching Mode 360w 0-220v 0-250v Variable Dc Power Supply

Product Description

Support 0-5vdc / 0-10vdc Analog signal External Control Switching Mode 360w 0-220v 0-250v Variable Dc Power Supply
Switching mode 360w 0-220v 0-250v Variable dc power supply
PART 1. Features
  • Switching mode 360w 0-220v 0-250v Variable dc power supply with Compact size, light weight
  • Wide range AC Input, AC input 110V/220Vac input selected by switch
  • 100% full load burn-in test
  • Protection: Short circuit / Over load / Over voltage
  • Fixed switching frequency at 25KHz
  • 1 year warranty
  • High efficiency, reliability quality, competitive cost
  • 0-5Vdc / 0-10Vdc External control output (Optional)
  • Extra adjustable potentiometer (Optional)
  • Output voltage & output current both are adjustable.
PART 2. Model List (360W)
Model Out voltage Output Current Output Power
T-012-360 0-12Vdc 30A 360W
T-24-360 0-24Vdc 15A 360W
T-36-360 0-36Vdc 10A 360W
T-48-360 0-48Vdc 7.5A 360W
T-60-360 0-60Vdc 6A 360W
T-70-360 0-70Vdc 5.1A 360W
T-90-360 0-90Vdc 4A 360W
T-110-360 0-110Vdc 3.3A 360W
T-150-360 0-150Vdc 2.4A 360W
T-200-360 0-200Vdc 1.8A 360W
T-220-360 0-220Vdc 1.6A 360W
T-250-360 0-250Vdc 1.4A 360W
T-300-360 0-300Vdc 1.2A 360W
T-330-360 0-330Vdc 1.1A 360W
PART 3. Technical Parameters (150V | 200V Output)
Model T-220-360 T-250-360
Output Voltage 0-220Vdc 0-250Vdc
Output voltage tolerance 1% 1%
Rated output current 1.6A 1.4A
Wave and noise 160mV P-P 170mV P-P
DC output power 360W 360W
Efficiency 91% 91%

Remark: Other voltage output can be customized, please contact us

PART 4. Common Specification
Adjustable range for dc voltage The output voltage is 100% adjustable through the potentiometer
AC input voltage range AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch
Input current 115V/6.0A / 230V/3.1A
AC in lash current Cold start current 35A/230V
leakage current ≤1.5mA 230V AC
Overload protection Load more than 110%~120% switch to constant current mode
Overvoltage protection ≥15% of output voltage
Setup/Rise/ Hold time 200ms / 100ms / 20ms
Vibration 10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes
Withstand voltage Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC
working temperature -10℃--65℃ 20%--90%RH
Storage temperature -10℃--65℃ 20%--95%RH
Net weight 1005g
Dimension 215mm*115mm*50mm (L*W*H)

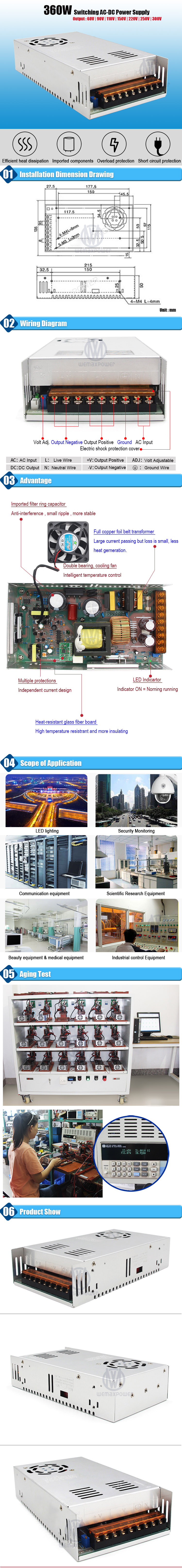

Product Description
Support 0-5vdc / 0-10vdc Analog signal External Control Switching Mode 360w 0-220v 0-250v Variable Dc Power Supply
Packaging & Shipping
Support 0-5vdc / 0-10vdc Analog signal External Control Switching Mode 360w 0-220v 0-250v Variable Dc Power Supply
Frequently Asked Questions
Why choose our products?
We are a direct manufacturer of high-quality DC-DC converters with over 8 years of production experience. Our converters deliver exceptionally stable performance, feature annual technology updates, and we fully support OEM/ODM customized services.
Are there any specific requirements for the product load?
Yes, our DC-DC converters are designed with a fixed voltage output, which means they cannot be used to charge batteries directly. If you require battery charging capabilities, please select from our range of dedicated DC-DC chargers.
Why are some similar products on the market cheaper?
Many suppliers utilize lower-grade components, resulting in insufficient power output. Our products are built using high-quality imported components designed to reliably support long-term, full-load operation.
What does your after-sales service policy include?
  • Warranty Period: 1 year.
  • Return & Exchange Policy: We offer comprehensive product exchanges in the event of any verified quality issues.
What payment and shipping options are available?
  • Payment Terms: L/C, T/T, Western Union, MoneyGram, Paypal, etc.
  • Shipping Terms: Delivery via DHL, UPS, FedEx, TNT, EMS, Sea freight, etc.
What is the Minimum Order Quantity (MOQ) for the 360W Variable DC Power Supply?
We support a low MOQ policy. Sample testing is available with a minimum order of just 5 units.
