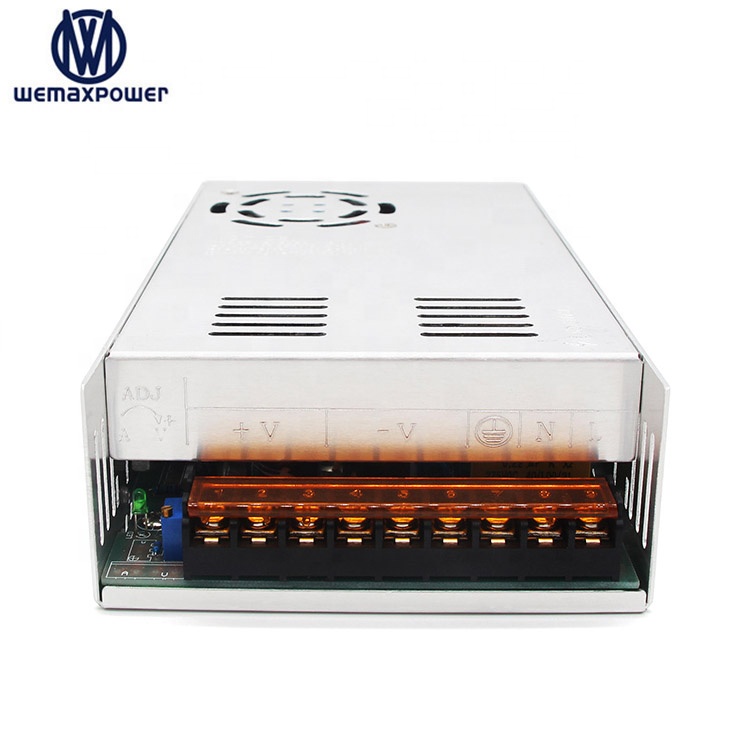

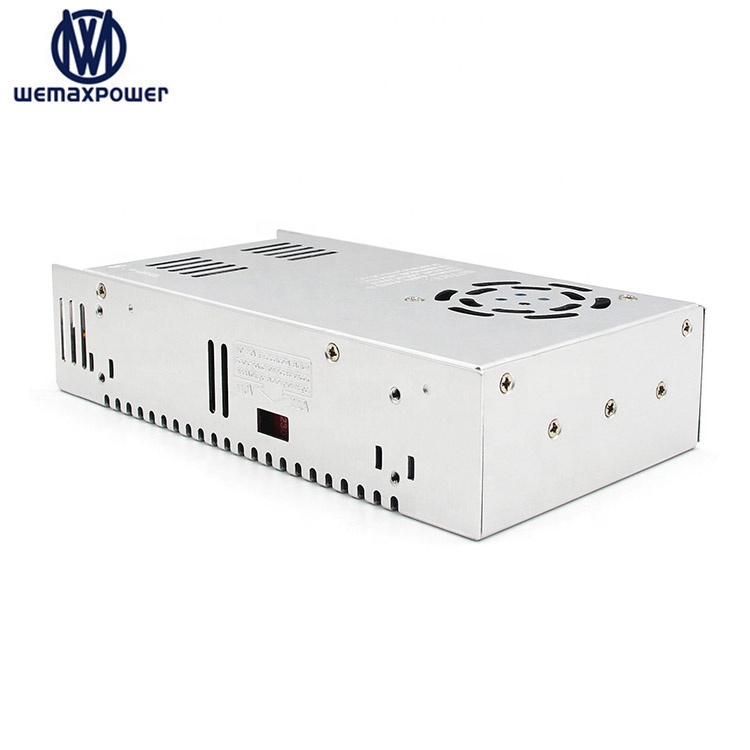

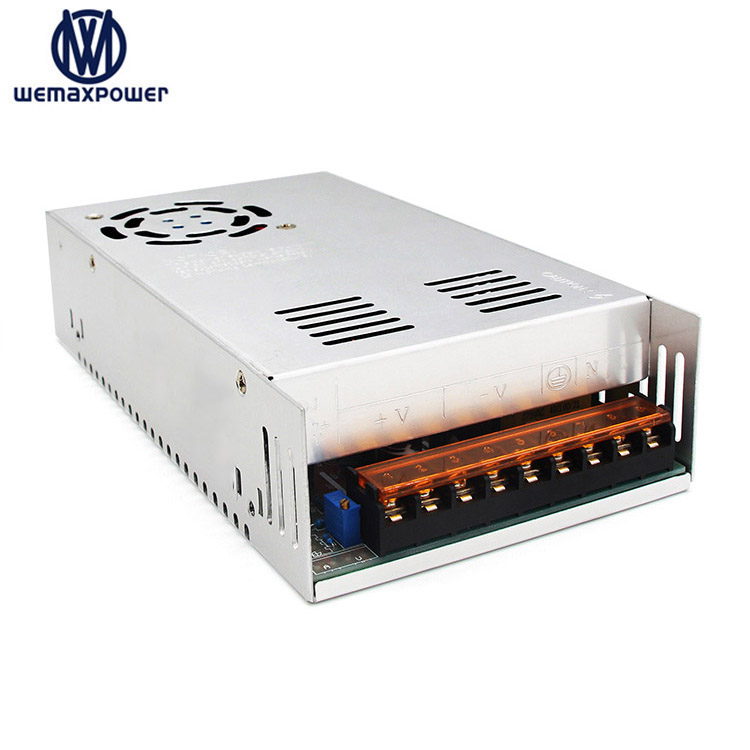

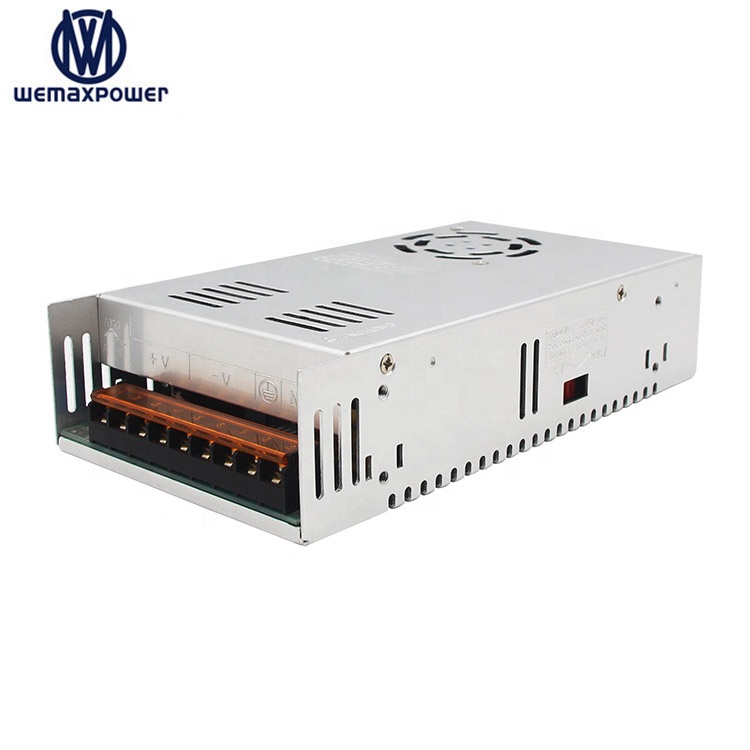

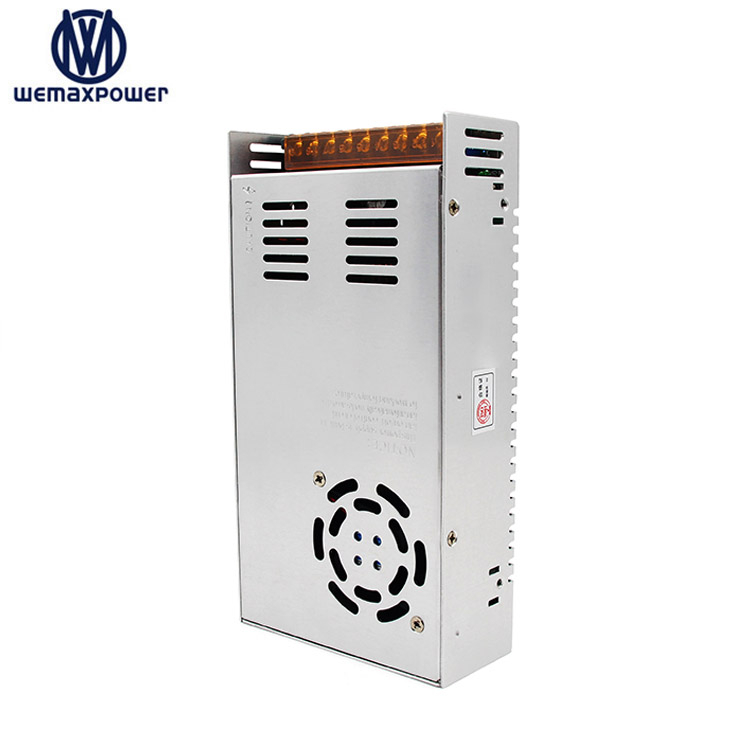

Factory price 500W 0-110Vdc 0-150Vdc 0-200Vdc 0-250Vdc 0-300Vdc Adjustable switching mode industrial control power supply
PART 1. Features
- Compact size, light weight
- Wide range AC Input, AC input 110V/220Vac input selected by switch
- 100% full load burn-in test
- Protection: Short circuit / Over load / Over voltage
- High efficiency, reliability quality, competitive cost
- 0-5Vdc / 0-10Vdc External control output (Optional)
- Extra adjustable potentiometer (Optional)
- Output voltage & output current both are adjustable.
PART 2. Model List (500W)
| Model |
Out voltage |
Output Current |
Output Power |
| T-012-500 |
0-12Vdc |
41.7A |
500W |
| T-24-500 |
0-24Vdc |
20.8A |
500W |
| T-36-500 |
0-36Vdc |
13.9A |
500W |
| T-48-500 |
0-48Vdc |
10.4A |
500W |
| T-60-500 |
0-60Vdc |
8.3A |
500W |
| T-70-500 |
0-70Vdc |
7.1A |
500W |
| T-90-500 |
0-90Vdc |
5.6A |
500W |
| T-110-500 |
0-110Vdc |
5A |
500W |
| T-150-500 |
0-150Vdc |
4.5A |
500W |
| T-200-500 |
0-200Vdc |
3.3A |
500W |
| T-220-500 |
0-220Vdc |
2.5A |
500W |
| T-250-500 |
0-250Vdc |
2.3A |
500W |
| T-300-500 |
0-300Vdc |
2A |
500W |
| T-330-500 |
0-330Vdc |
1.7A |
500W |
Factory price 500W 0-110Vdc 0-150Vdc 0-200Vdc 0-250Vdc 0-300Vdc Adjustable switching mode industrial control power supply
PART 3. Technical Parameters
200V | 220V | 250V | 300V | 330V Output
| Model |
T-200-500 |
T-220-500 |
T-250-500 |
T-300-500 |
T-330-500 |
| Output Voltage |
0-200Vdc |
0-220Vdc |
0-250Vdc |
0-300Vdc |
0-330Vdc |
| Rated output current |
3.3A |
2.5A |
2.3A |
2A |
1.7A |
| Wave and noise |
150mV P-P |
160mV P-P |
170mV P-P |
180mV P-P |
180mV P-P |
| DC output power |
500W |
500W |
500W |
500W |
500W |
| Efficiency |
91% |
91% |
91% |
91% |
91% |
PART 4. Common Specification
| Adjustable range for dc voltage |
The output voltage is 100% adjustable through the potentiometer |
| AC input voltage range |
AC 95-125V 60Hz | AC174-264VAC 50Hz Manual switch |
| Input current |
115V/6.9A / 230V/3.5A |
| AC in lash current |
Cold start current 45A/230V |
| leakage current |
≤1.5mA 230V AC |
| Overload protection |
Load more than 110%~120% switch to constant current mode |
| Overvoltage protection |
≥15% of output voltage |
| Setup/Rise/ Hold time |
200ms / 100ms / 20ms |
| Vibration |
10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
| Withstand voltage |
Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
| Net weight |
1100g |
| Dimension |
215mm*115mm*50mm (L*W*H) |
Factory price 500W Adjustable switching mode industrial control power supply

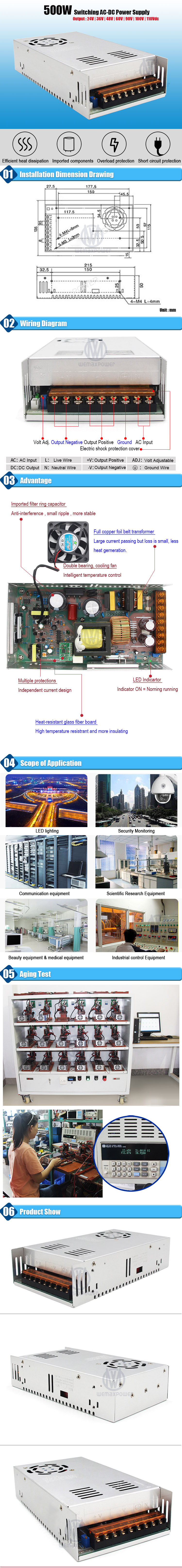

Product Description
Packaging & Shipping
FAQ
What types of products do you manufacture?
We are a professional manufacturer specializing in power solutions. Our product range includes DC-DC Converters, AC-DC Converters, DC Power Supplies, Battery Chargers, and more, which are highly utilized in home applications, motors, photovoltaic panels, and automotive industries.
Are you a direct manufacturer or a trading company?
Yes, we are a direct manufacturer supplying professional OEM and ODM services.
What is your after-sales service and warranty policy?
We provide a 12-month guarantee period. In the event of quality problems, we offer a return policy for exchanging goods.
What is the Minimum Order Quantity (MOQ) for this adjustable power supply?
We offer a low MOQ. Testing samples starting from 1 set is fully supported.
Does this 500W power supply feature protection mechanisms?
Yes, it comes with comprehensive safety protections including Short Circuit protection, Over Load protection, and Over Voltage protection.
Can both the output voltage and output current be adjusted?
Yes, both the output voltage and output current are fully adjustable. The output voltage is 100% adjustable via the built-in potentiometer. Additionally, optional 0-5Vdc/0-10Vdc external control output and extra adjustable potentiometers are available.
