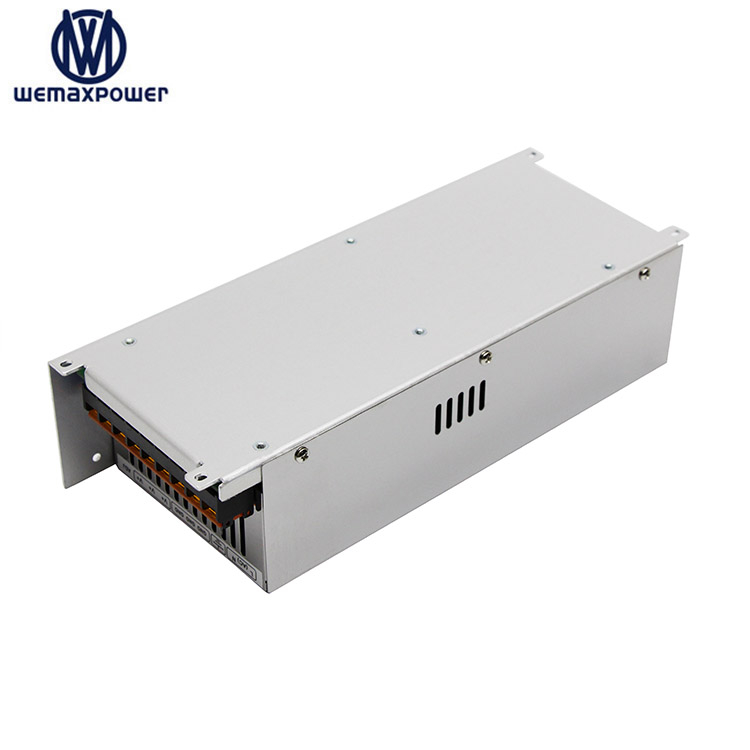

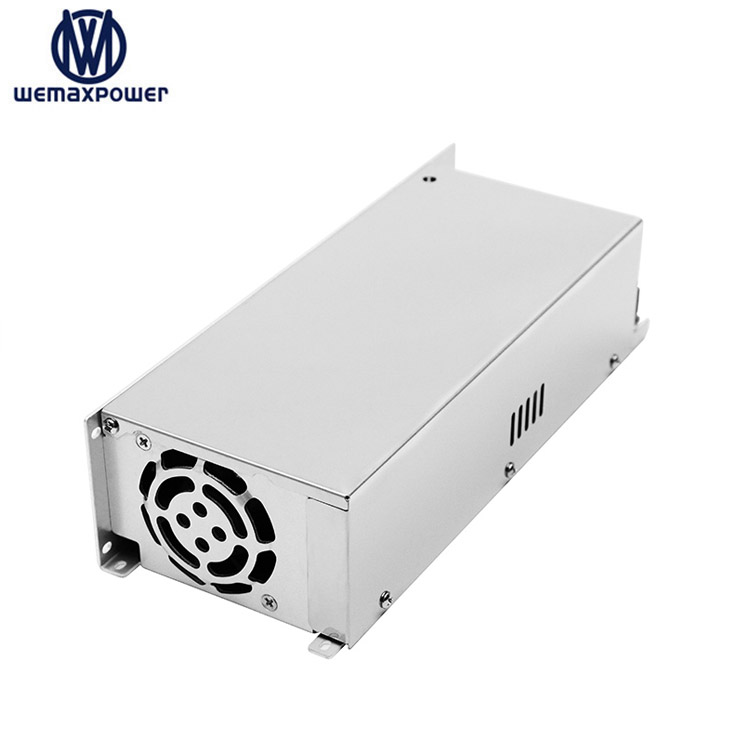

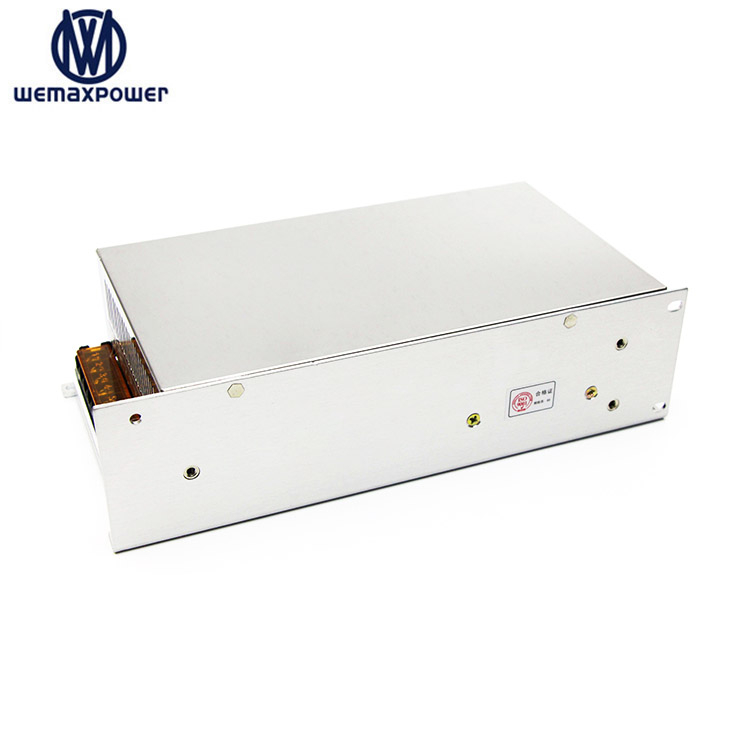

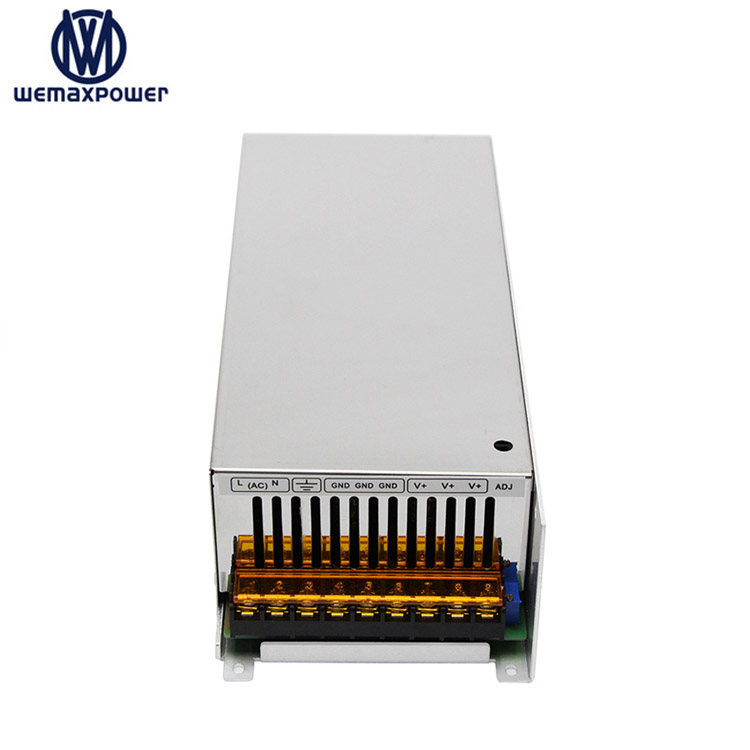

0-5vdc extender control 220vac to 12V 24V 48V 60V 90V 110V 720W Switching voltage Variable dc power supply
- Compact size, light weight
- 220Vac input
- 100% full load burn-in test
- Protection: Short circuit / Over load / Over voltage
- Fixed switching frequency at 25KHz
- 1 year warranty
- High efficiency, reliability quality, competitive cost
- 0-5Vdc / 0-10Vdc External control output (Optional)
- Extra adjustable potentiometer (Optional)
- Output voltage adjustable and output current be fix. Constant Voltage
| Model |
Out voltage |
Output Current |
Output Power |
| T-12-720 |
0-12Vdc |
60A |
720W |
| T-24-720 |
0-24Vdc |
30A |
720W |
| T-48-720 |
0-48Vdc |
20A |
720W |
| T-60-720 |
0-60Vdc |
15A |
720W |
| T-90-720 |
0-90Vdc |
12A |
720W |
| T-110-720 |
0-110Vdc |
8A |
720W |
With 0-5vdc extender control 220vac to 12V 24V 48V 60V 90V 110V 720W Switching voltage Variable dc power supply
12V | 24V | 48V | 60V | 90V | 110V Output
| Model |
T-012-720 |
T-24-720 |
T-48-720 |
T-60-720 |
T-90-720 |
T-110-720 |
| Output Voltage |
0-12V |
0-24V |
0-36V |
0-48V |
0-60V |
0-90V |
| Output voltage tolerance |
1% |
1% |
1% |
1% |
1% |
1% |
| Rated output current |
60A |
30A |
20A |
15A |
12A |
8A |
| Wave and noise |
90mV P-P |
90mV P-P |
100mV P-P |
110mV P-P |
110mV P-P |
130mV P-P |
| DC output power |
720W |
720W |
720W |
720W |
720W |
720W |
| Efficiency |
83% |
85% |
85% |
87% |
87% |
89% |
| Adjustable range for dc voltage |
The output voltage is 100% adjustable through the potentiometer |
| AC input voltage range |
AC174-264VAC 50Hz |
| Input current |
230V/6 A |
| AC in lash current |
Cold start current 80A/230V |
| leakage current |
≤1.5mA 230V AC |
| Overload protection |
Load more than 110%~120% switch to constant current mode |
| Overvoltage protection |
≥15% of output voltage |
| Setup/Rise/ Hold time |
200ms / 100ms / 20ms |
| Vibration |
10-50Hz, 2G 10 minutes/cycle X, Y, Z axis each 60 minutes |
| Withstand voltage |
Input to shell 1500V/3mA AC | Input to output 1500V/3mA AC | Input to output 500V/3mA AC |
| working temperature |
-10℃--65℃ 20%--90%RH |
| Storage temperature |
-10℃--65℃ 20%--95%RH |
| Net weight |
1360g |
| Dimension |
262mm*105mm*65mm (L*W*H) |
With 0-5vdc extender control 220vac to 12V 24V 48V 60V 90V 110V 720W Switching voltage Variable dc power supply
FAQ
Why choose this switching power supply?
We offer you the best quality products and service. A win-win partnership is our leading principle.
Are you a direct manufacturer?
Yes, we are a direct manufacturer supplying OEM and ODM services.
What are the details of your after-sales service?
We provide a 12-month guarantee. If there is a quality problem, we support a flexible exchange return policy.
What payment terms and logistics methods do you accept?
We accept L/C, T/T, Western Union, MoneyGram, and PayPal. For shipping, we utilize reliable express services including DHL, UPS, FedEx, TNT, and EMS.
What is the expected delivery time for orders?
Sample orders are typically delivered within 24 hours, and standard order lead time is within 3 days.
What is the Minimum Order Quantity (MOQ) for this power supply?
We support a low MOQ. Sample testing is available starting at just 2 sets.
