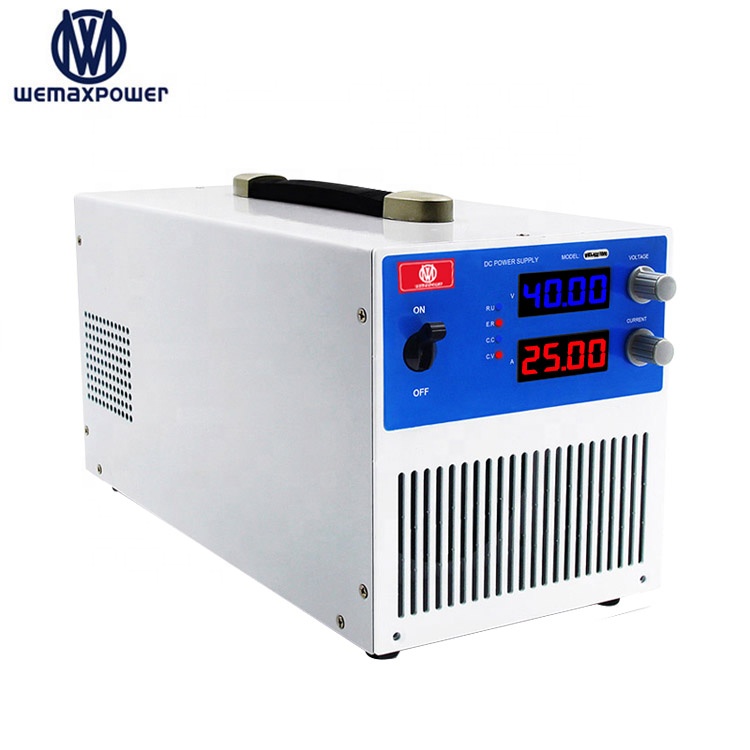

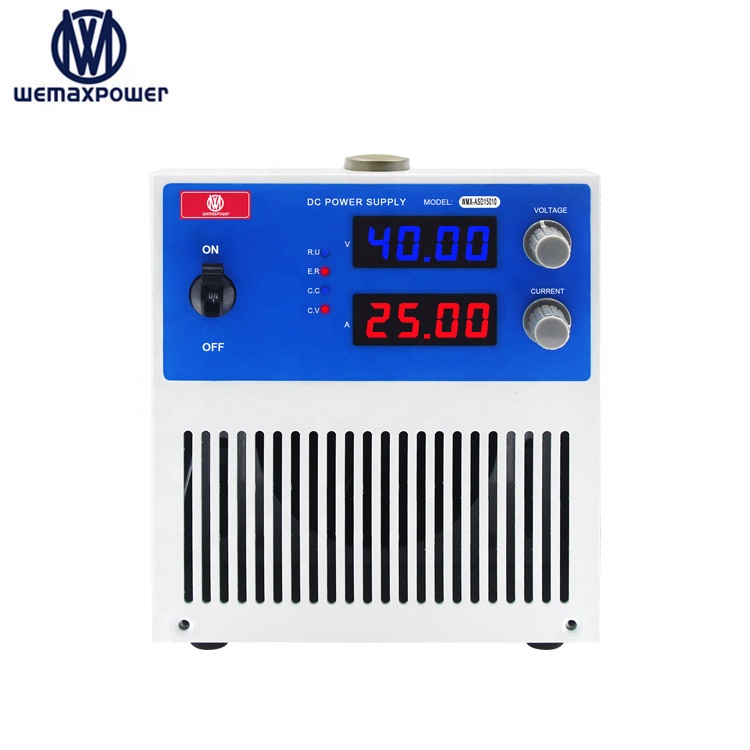

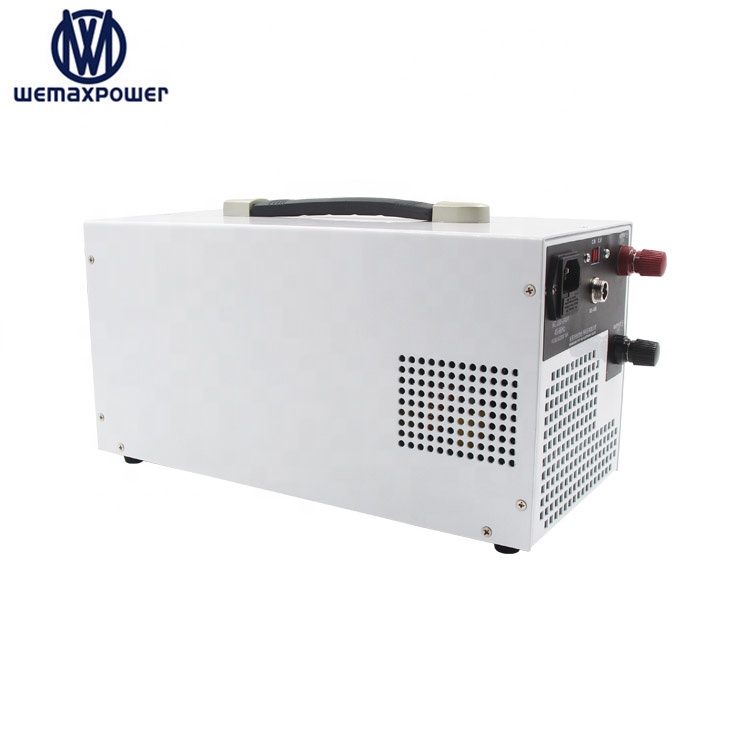

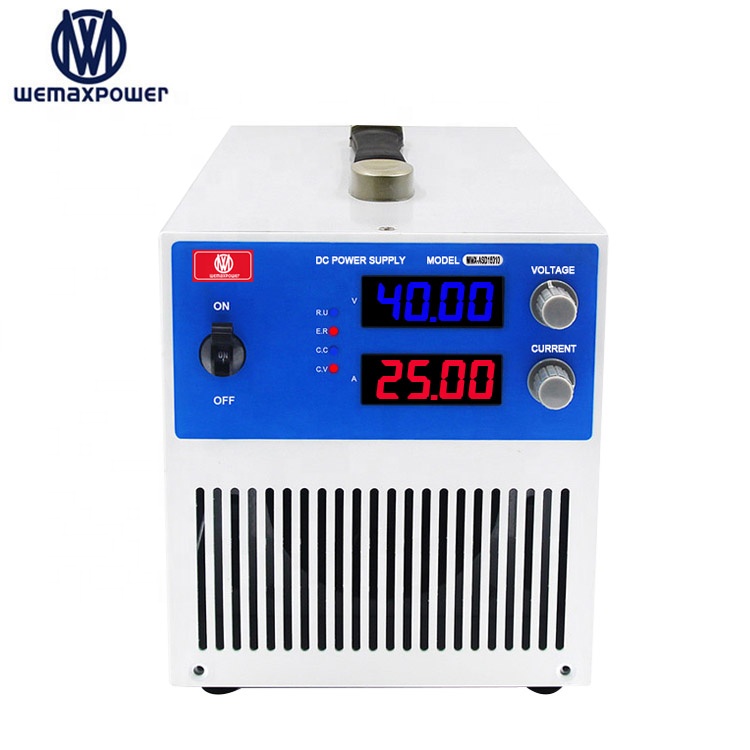

| Model | WMX-ASD 40 25 |
|---|---|
| Model name | 40v 25a dc power supply |
| Input Voltage |
1 Phase AC220V±10%, 50Hz/60Hz 1 Phase AC110V±10%, 50Hz/60Hz (Optional) |
| Output Voltage | 0V~40V adjustable output |
| Output Current | 2.5A~25A adjustable output |
| Output Power | 1000W |
| Load Regulation | ≤0.5%+30mV |
| Ripple | ≤0.5% + 10mVrms |
| Power supply stability | ≤0.3%+10mV |
| Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) |
| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; |
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
| Operation Temperature | Humidity | Operation Temperature : (0~40)℃; Operation Humidity : 10% ~ 85% RH |
| Storage Temperature | Humidity | Storage Temperature : (-20~70)℃; Storage Humidity : 10% ~ 90% RH |
| Over-Temperature Protection | (75~85) C. |
| Heat Dissipation Mode / Cooling mode | Forced air cooling |
| Efficiency | ≥86% |
| Start-up Output voltage setting time | ≤3S |
| Protections | Lower voltage, over voltage, over current, short circuit, overheating Protections. |
| Insulation Strength |
Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
| Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. |
| MTTF | ≥50000h |
| Input Voltage | 3 Phase: AC208V / AC220V±10%, 50/60Hz |
|---|---|
| Remote Control Functions |
|
