| *Adjustable Power Supply Series* | ||||
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
DC Power Supply is widely applied into industrial control, electronic power, electroplating, communication, scientific research, instrument, medical, ship, railway and other high-tech fields.
LED test and aging, energy-saving bulb testing and aging, lamp testing, tungsten gasification.
automobile electronics, high power dc motor, automobile motor controller, car lighting, cigarette lighter, automobile audio and video.
capacitors, resistors, relays, transistors, sensors.
electric motor, electric vehicle controller, dc motor test.
display screen, liquid screen, touch screen, on-board DVD, mobile phone display.
electrolysis, electroplating, anodic oxidation, nonferrous metal research.

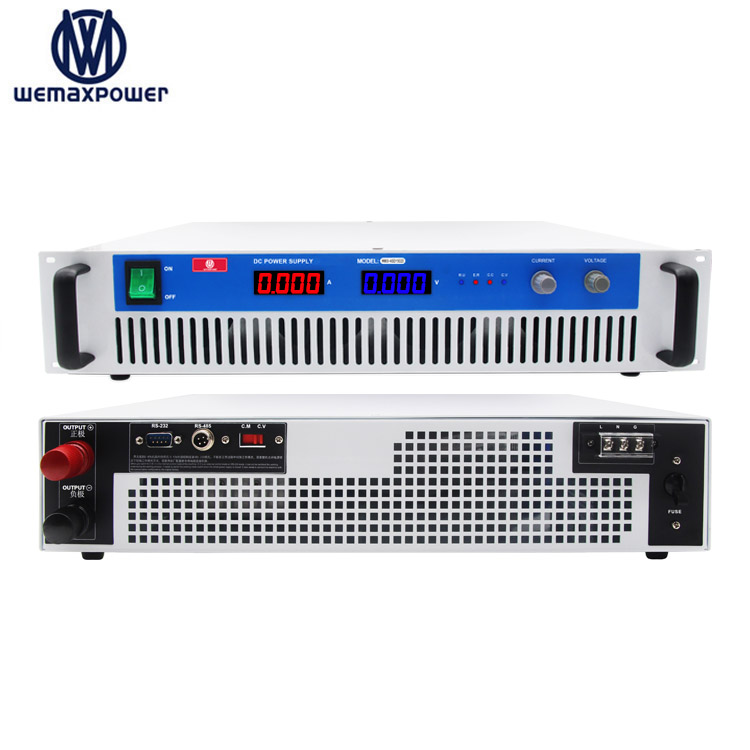

| Model | WMX-ASD 500 5 500-Output Voltage, 5-Output Current |
| Input Voltage |
1 Phase: AC220V±10%, 50Hz/60Hz 1 Phase: AC110V±10%, 50Hz/60Hz 3 Phase: AC380V±10%, 50Hz/60Hz |
| Output Voltage/Current Customize range | 0~500V, 0% to 100% adjustable, 0.5~5A, 10% to 100% adjustable. |
| Output Power | 2500W |
| Output mode | Constant voltage & Constant Current |
| Load Regulation | ≤0.5%+30mV |
| Ripple | ≤0.5% + 10mVrms |
| Power supply stability | ≤0.3%+10mV |

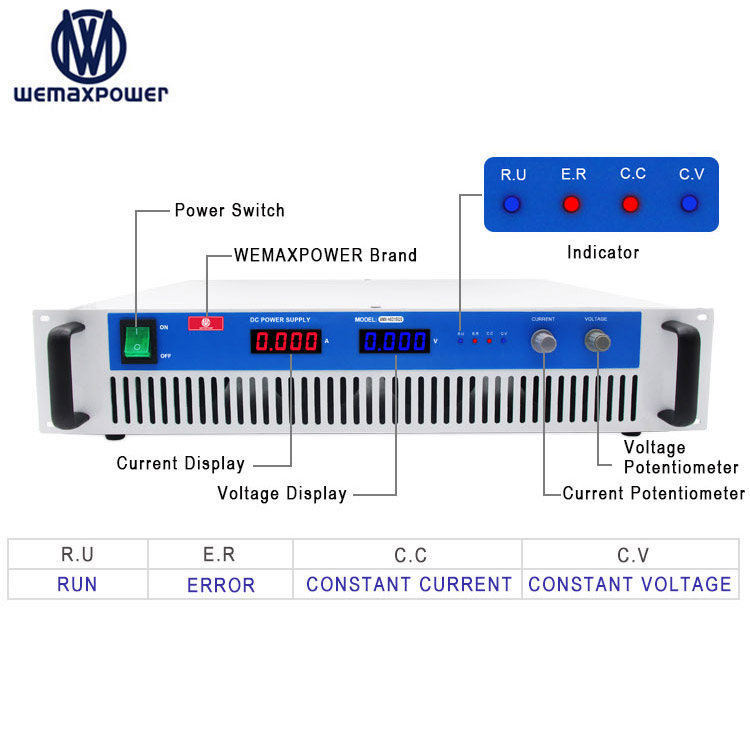

| Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) |
| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A |
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
| Operation Temperature | Humidity | Operation Temperature : (0~40)℃; Operation Humidity : 10% ~ 85% RH |
| Storage Temperature | Humidity | Storage Temperature : (-20~70)℃; Storage Humidity : 10% ~ 90% RH |
| Over-Temperature Protection | (75~85)℃ |
| Heat Dissipation Mode/ Cooling mode | Forced air cooling |
| Efficiency | ≥86% |
| Start-up Output voltage setting time | ≤3S |
| Protections | Lower voltage, over voltage, over current, short circuit, overheating. |
| Insulation Strength |
Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
| Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. |
| MTTF | ≥50000h |
| Remote Control (Non-Standard functions, contact if need) |

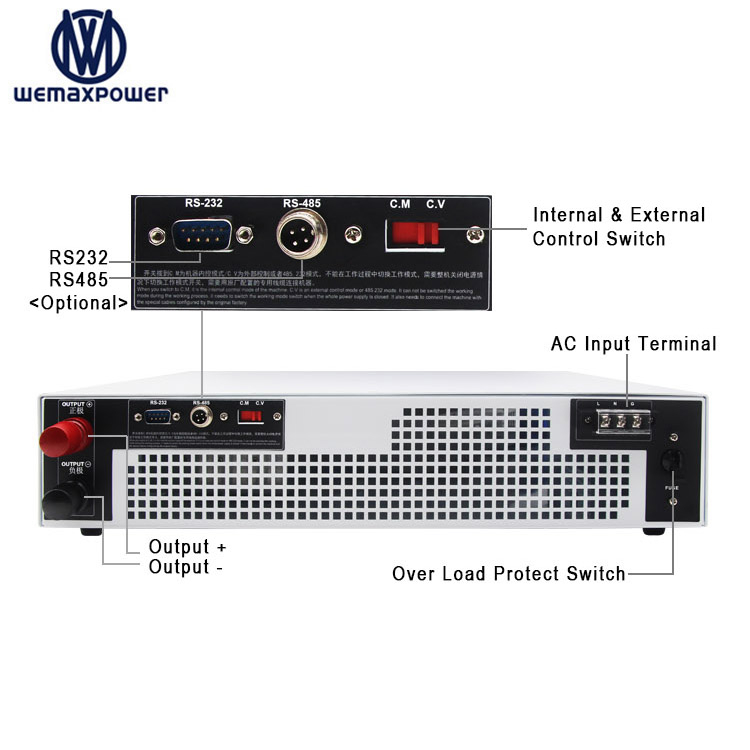

• 0-5Vdc /0-10Vdc analog signal control output voltage & current • 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current • 0-5Vdc /0-10Vdc analog switch signal to control output ON/OFF • 4-20mA analog signal control output voltage & current • RS232/RS485 Communication port control by computer |

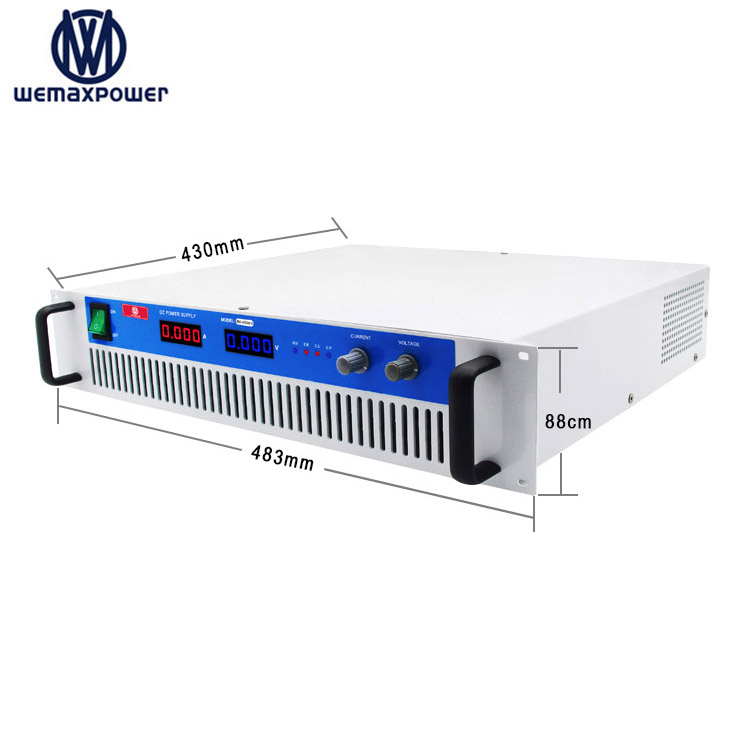

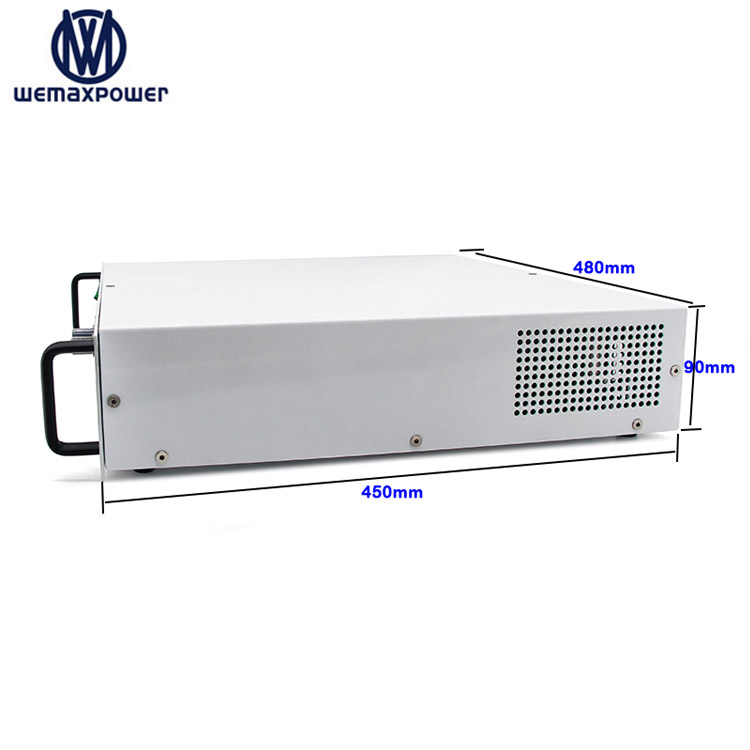

| Dimension | 483*430*88mm |
Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, and we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.
Different products have different MOQ, generally speaking, our MOQ is 1 set, please don't hesitate to check with us for specific items.
