| *Adjustable Power Supply Series* | ||||
|---|---|---|---|---|
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
| Model | WMX-ASD 100 30 100-Output Voltage, 30-Output Current |
| Input Voltage | 1 Phase: AC220V±10%, 50Hz/60Hz 1 Phase: AC110V±10%, 50Hz/60Hz 3 Phase: AC380V±10%, 50Hz/60Hz |
| Output Voltage/Current Customize range | 0~100V, 0% to 100% adjustable, 3~30A, 10% to 100% adjustable. |
| Output Power | 3000W |
| Output mode | Constant voltage & Constant Current |
| Load Regulation | ≤0.5%+30mV |
| Ripple | ≤0.5% + 10mVrms |
| Power supply stability | ≤0.3%+10mV |
| Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) |

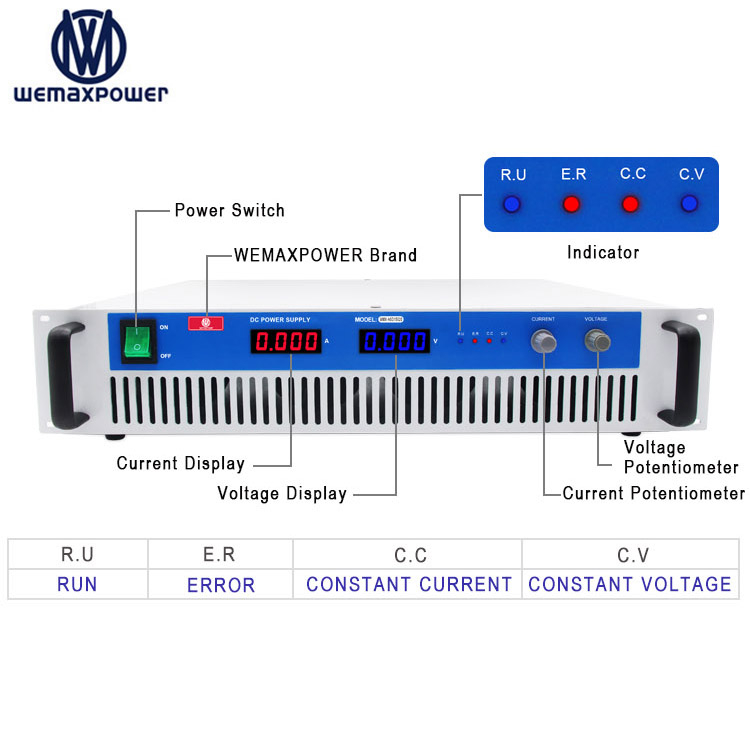

| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; |
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
| Operation Temperature | Humidity | Operation Temperature : (0~40)°C; Operation Humidity : 10% ~ 85% RH |
| Storage Temperature | Humidity | Storage Temperature : (-20~70)°C; Storage Humidity : 10% ~ 90% RH |
| Over-Temperature Protection | (75~85)°C |
| Heat Dissipation Mode/ Cooling mode | Forced air cooling |
| Efficiency | ≥86% |
| Start-up Output voltage setting time | ≤3S |
| Protections | Lower voltage, over voltage, over current, short circuit, overheating. |
| Insulation Strength | Input - output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
| Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. |
| MTTF | ≥50000h |
| Remote Control (Non-Standard functions) |

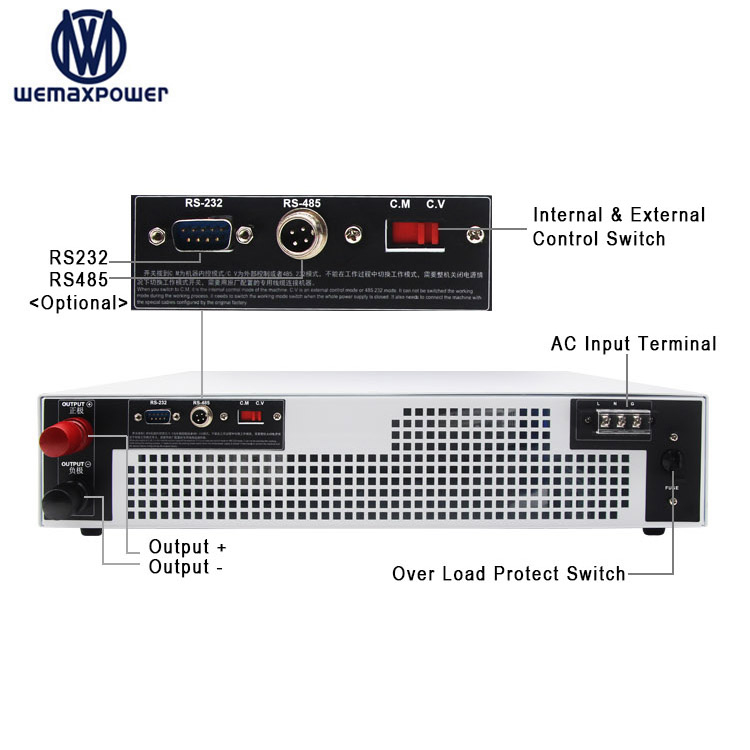

0-5Vdc / 0-10Vdc analog signal control output voltage & current 0-5Vdc / 0-10Vdc analog signal to read-back output voltage & current 0-5Vdc / 0-10Vdc analog switch signal to control output ON/OFF 4-20mA analog signal control output voltage & current RS232/RS485 Communication port control by computer |

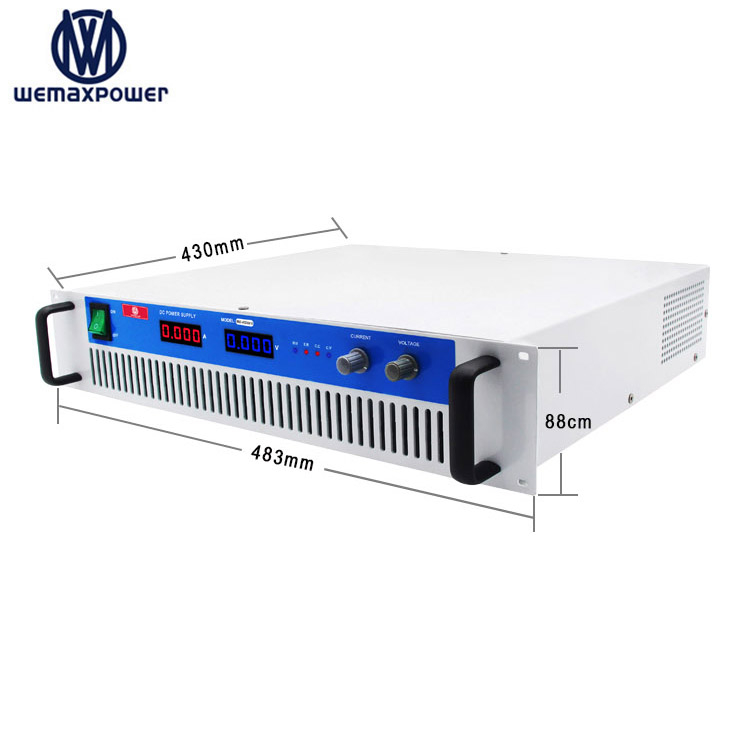

| Dimension | 483*430*88mm |
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.
All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same item. Our staff is always available to assist you.
Yes, we can provide bespoke services to customers with specific requirements. You can send the detailed requirements by email, and we will check if we can develop them. We develop new models every month, and some may not yet be updated on our website. Alternatively, you can send us samples, and we can develop new models specifically for you.
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you test the product, you will be highly satisfied with both our performance and competitive prices.
Different products have different MOQs. Generally speaking, our MOQ is 1 set. Please feel free to check with us for specific items.
