| Model definition |
WMX-ASD XXX YYY XXX---Output Voltage , YYY---Output Current |
||
| Model | WMX-ASD62516 | WMX-ASD80012.5 | WMX-ASD100010 |
| Input Voltage | 3 Phase: AC380V±10%, 50Hz/60Hz | ||
| Output Voltage (VDC) | 0~625V | 0~800V | 0~1000V |
| Output Current (Amp) | 1.6~16A | 1.25~12.5A | 1~10A |
| Output Power (W) | 10000W | ||
| Output mode |
Voltage adjustable range : 0-100% Current adjustable range : 10% -100% If the current need adjustable from 0-100% , please contact with us before order |
||
| Load Regulation | ≤0.5%+30mV | ||
| Ripple | ≤0.5% + 10mVrms | ||
| Power supply stability | ≤0.3%+10mV | ||
| Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) | ||
| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; | ||
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% | ||
| Operation Temperature | Humidity | Operation Temperature : (0~40) ℃; Operation Humidity : 10% ~ 85% RH | ||
| Over-Temperature Protection | (75~85) C. | ||
| Heat Dissipation Mode / Cooling mode | Forced air cooling | ||
| Efficiency | ≥86% | ||
| Start-up Output voltage setting time | ≤3S | ||
| Protections | Lower voltage, over voltage, over current, short circuit, overheating | ||
| Insulation Strength |
Input - output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
||
| MTTF | ≥50000h | ||

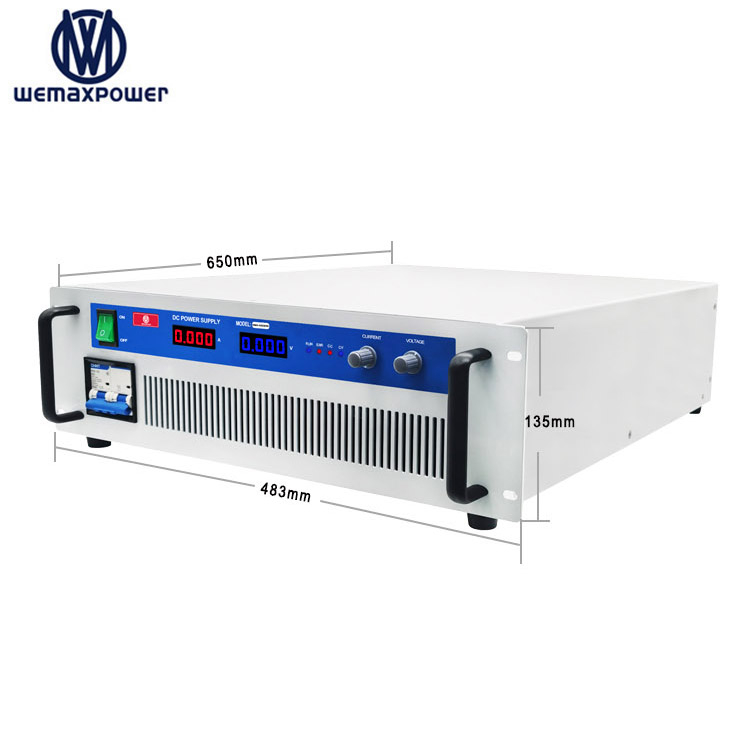

| Dimension / Net Weight | 483*575*135mm, NW: 23.5kg | ||
| Custom made (Non standard) | |||
| Analog signal External Control Functions (Option, with addition cost) |
|
||
| No. | Application | Detail range |
|---|---|---|
| 1 | DC System | Sewage treatment system |
| 2 | Laboratory | Laboratory research and development |
| 3 | Charge Battery | All kind of Lead acid battery / lithium battery |
| 4 | Motor Fields | Electric Vehicle Motor, Electric Vehicle Controller, DC Motor Test |
| 5 | Electrical Appliances | LED Test & Aging, Energy Saving Bulb Test & Aging, Lamp Test, Tungsten Wire Gasification |
| 6 | Electronic Devices | Capacitors, Resistors, Relays, Transistors, Sensors |
| 7 | Electrochemistry | Electrolysis, Electroplating, Nonferrous Metal Research |
