| *Adjustable Power Supply Series* | ||||
|---|---|---|---|---|
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
| Model | WMX-ASD 100 30 (100-Output Voltage, 30-Output Current) |
|---|---|
| Input Voltage |
1 Phase: AC220V±10%, 50Hz/60Hz 1 Phase: AC110V±10%, 50Hz/60Hz 3 Phase: AC380V±10%, 50Hz/60Hz |
| Output Voltage/Current Customize range | 0~100V (0% to 100% adjustable), 3~30A (10% to 100% adjustable) |
| Output Power | 3000W |
| Output mode | Constant voltage & Constant Current |
| Load Regulation | ≤0.5%+30mV |
| Ripple | ≤0.5% + 10mVrms |
| Power supply stability | ≤0.3%+10mV |
| Voltage | Current Display Accuracy | Precision of 4 digit table: ±1%+1 word (10%-100% rating) |
| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A |
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
| Operation Temperature | Humidity | Operation Temperature: (0~40)℃; Operation Humidity: 10% ~ 85% RH |
| Storage Temperature | Humidity | Storage Temperature: (-20~70)℃; Storage Humidity: 10% ~ 90% RH |
| Over-Temperature Protection | (75~85)℃ |
| Heat Dissipation Mode/ Cooling mode | Forced air cooling |
| Efficiency | ≥86% |
| Start-up Output voltage setting time | ≤3S |
| Protections | Lower voltage, over voltage, over current, short circuit, overheating |
| Insulation Strength |
Input - output: AC1500V, 10mA, 1 minute; Input - machine shell: AC1500V, 10mA, 1 minute; Output - shell: AC1500V, 10mA, 1 minute |
| Insulation Resistance | Input-Output ≥20MΩ |
| MTTF | ≥50000h |
| Remote Control (Non-Standard functions) |
• 0-5Vdc /0-10Vdc analog signal control output voltage & current • 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current • 0-5Vdc /0-10Vdc analog switch signal to control output ON/OFF • 4-20mA analog signal control output voltage & current • RS232/RS485 Communication port control by computer |

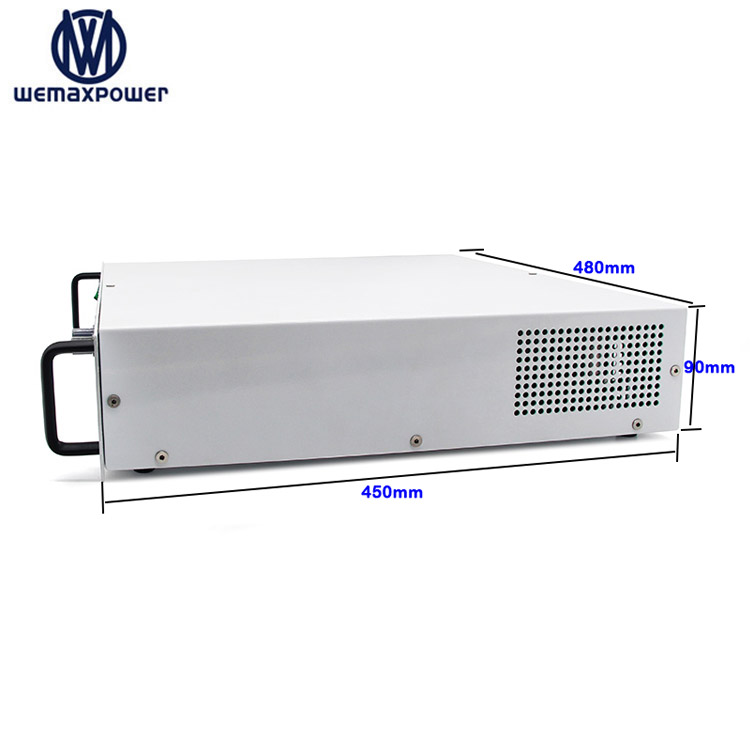

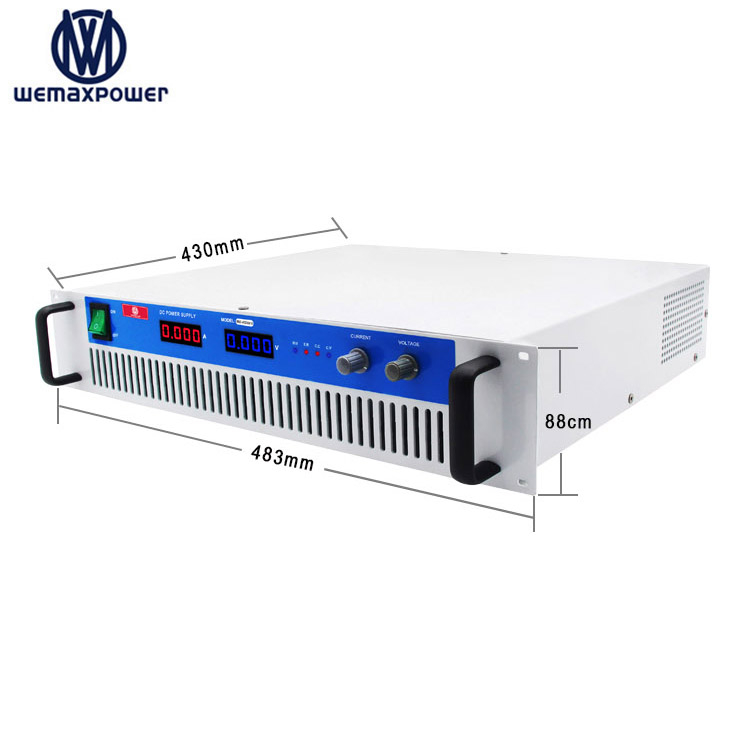

| Dimension | 483*430*88mm |
Since 2009, our factory has provided various power solutions for different projects worldwide. This includes DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
You can purchase DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If a product does not work properly as described due to a factory defect, we will provide exchange services for the same item. Our support team is always available to assist you.
Yes, we can provide bespoke services tailored to specific requirements. You can send your detailed specifications, and we will verify feasibility. We develop new models regularly, some of which may not yet be updated on our website.
Yes, we are pleased to offer samples to test quality and performance. We are confident in our product quality, competitive pricing, and reliable service solutions.
Different products have different MOQs. Generally, our MOQ is 1 set. Please contact us to confirm specific product details.
