Product Description

Apply for Capacitors, Resistors, Relay Electronic Variable Power Supply 6000W
(160V37.5A & 200V30A & 240V25A & 250V24A & 300V20A & 375V16A & 400V15A & 500V12A)

* Power Supply Series *
500~1000W	1501~2000W	3001~4000W	6001~8000W	10.1~12KW
1001~1500W	2001~3000W	4001~6000W	8001~10KW	12.1~20KW

>>> 6000W Electronic Variable Power Supply <<<

PART 1. PRODUCT FEATURE

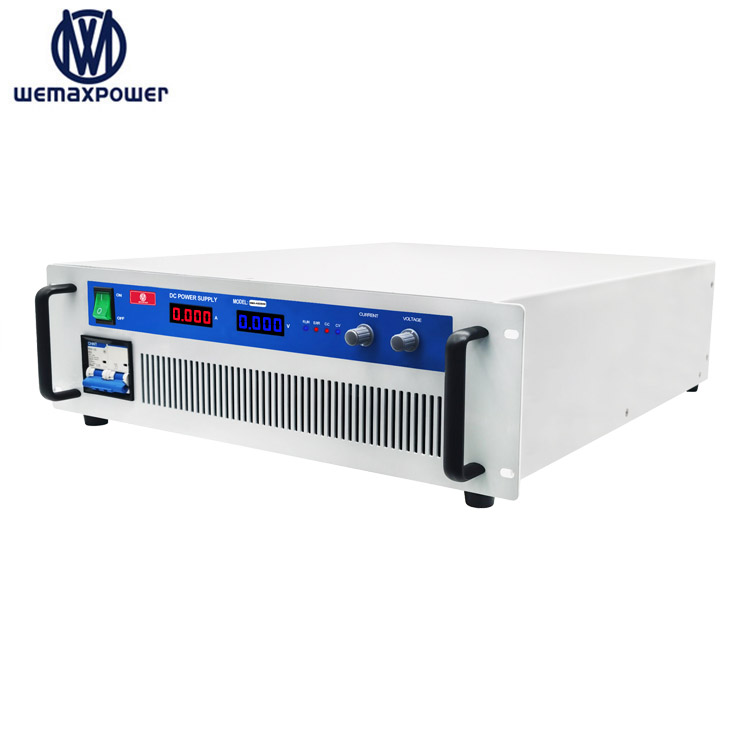

The Apply for Capacitors, Resistors, Relay Electronic variable power supply 6000W (160V37.5A to 500V12A range) features a compact size and light weight, making it ideal for working tables and rack installations.
Utilizes PWM modulation with low crystal module power consumption, high efficiency, and enhanced energy savings.
Carefully engineered electronic circuitry with forced air cooling heat treatment ensures a very low temperature coefficient.
Designed specifically for capacitors, resistors, and relays with low noise and low ripple output.
High-gain amplifier circuit design provides rapid and stable response characteristics.

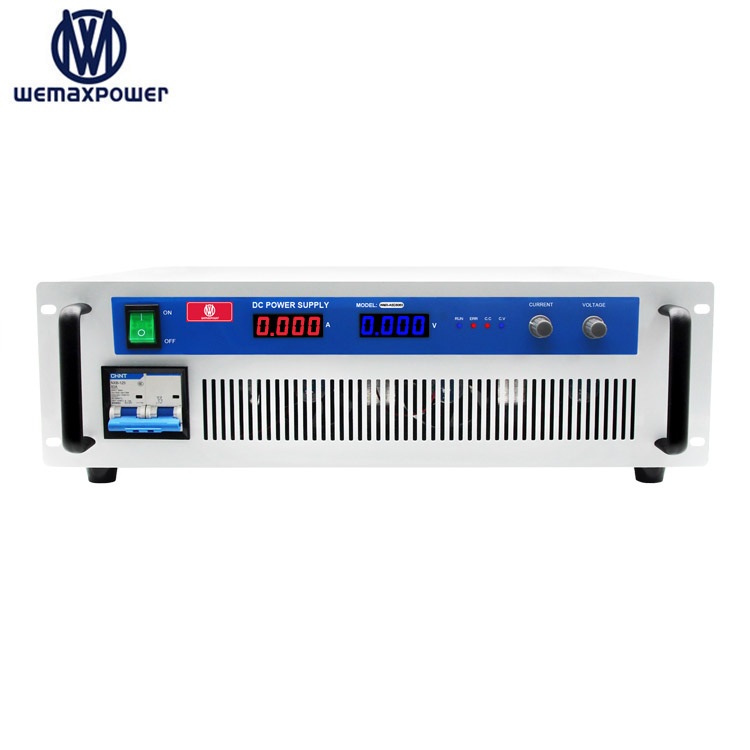

Equipped with digital voltage and current meters featuring a 4-bit high sampling rate and high resolution.

PART 2. 6000W SPECIFICATIONS

Model Definition	WMX-ASD XXX YYY (XXX: Output Voltage ; YYY: Output Current)
Model (WMX-ASD)	16037.5	20030	24025	25024	30020	37516	40015	50012
Input Voltage	Options: 1 Phase: AC110V±10%, 50Hz/60Hz 1 Phase: AC220V±10%, 50Hz/60Hz (Standard) 3 Phase: AC380V±10%, 50Hz/60Hz
Output Voltage (Vdc)	160V	200V	240V	250V	300V	375V	400V	500V
Output Current (Amp)	37.5A	30A	25A	24A	20A	16A	15A	12A
Output Adjustable Range	Output voltage adjustable range: 0 ~ Max Voltage Output current adjustable range: 10% of max current ~ Max Current
Output Power	6000W
Load Regulation	≤0.5% + 30mV
Ripple	≤0.5% + 10mVrms
Power Supply Stability	≤0.3% + 10mV
Display Accuracy	Precision of 4 digit table: ±1% + 1 digit (10% - 100% rating)
Display Format	Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A
Output Voltage Overshoot	Built-in O.V.P Protection with a rate of + 5%
Operation Temp \| Humidity	Operation Temperature: 0 ~ 40℃; Operation Humidity: 10% ~ 85% RH
Storage Temp \| Humidity	Storage Temperature: -20 ~ 70℃; Storage Humidity: 10% ~ 90% RH
Over-Temperature Protection	75 ~ 85℃
Cooling Mode	Forced air cooling
Efficiency	≥86%
Start-up Setting Time	≤3S
Protection	Lower voltage, over voltage, over current, short circuit, overheating protection
Insulation Strength	Input - Output: AC1500V, 10mA, 1 minute Input - Shell: AC1500V, 10mA, 1 minute Output - Shell: AC1500V, 10mA, 1 minute
Insulation Resistance	Input-Output ≥20MΩ; Input-Shell ≥20MΩ; Output-Shell ≥20MΩ
MTTF	≥50000h

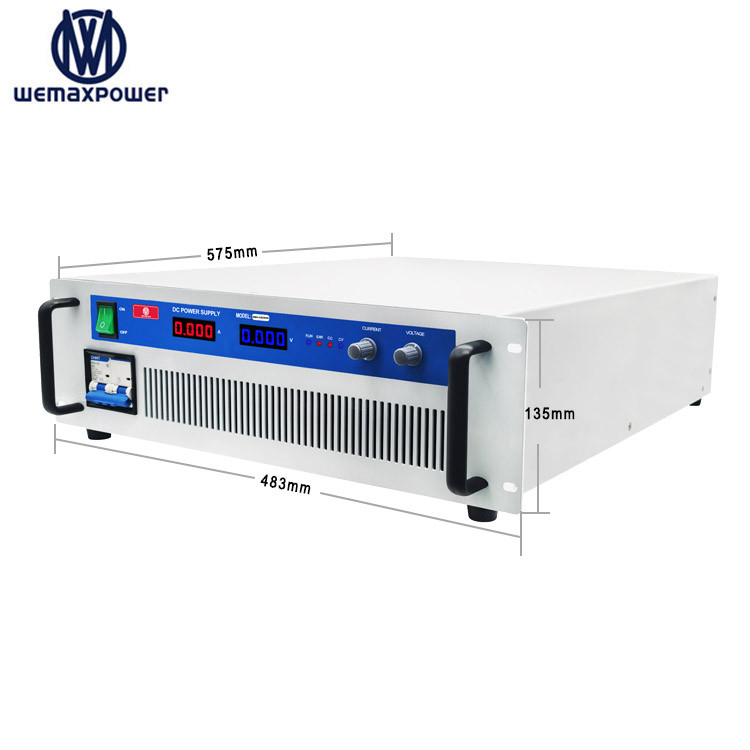

Dimension / Net Weight	483 * 575 * 135mm, NW: 23.5kg

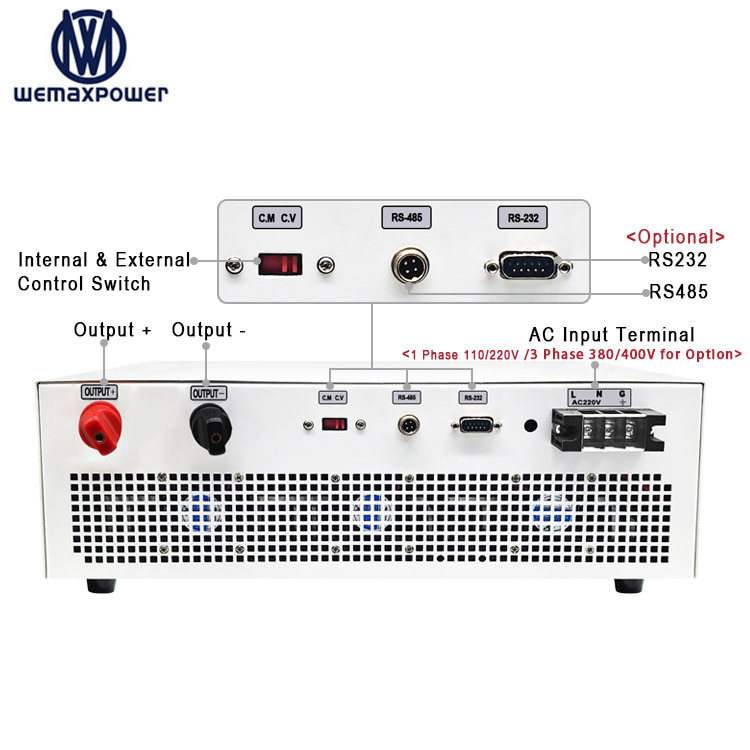

Analog Remote Control Function (Optional)
Remote Control Signals	- 0-5Vdc / 0-10Vdc analog signal control output voltage & current - 0-5Vdc / 0-10Vdc analog signal to read-back output voltage & current - 0-5Vdc / 0-10Vdc analog Switch signal to control output ON/OFF - 4-20mA analog signal control output voltage & current - RS232/RS485 Communication port control by computer

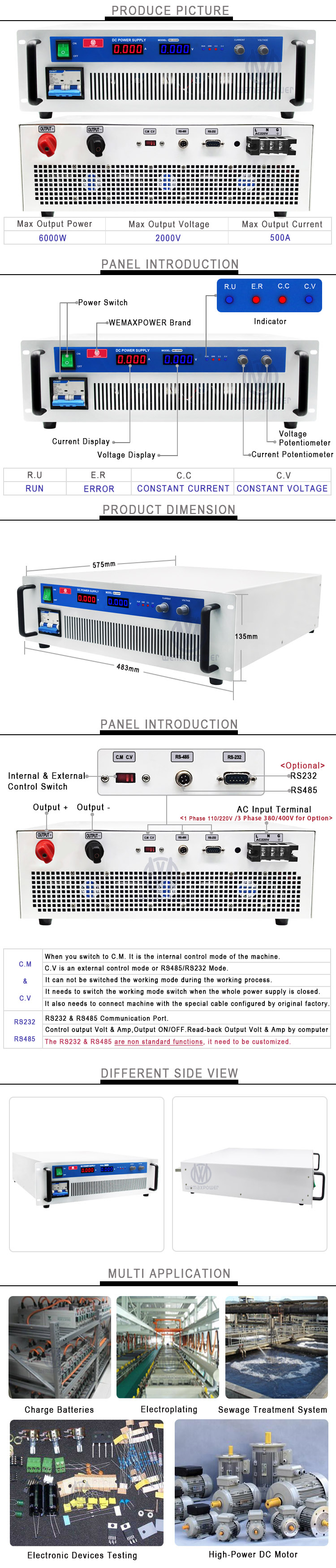

Product Description

Apply for Capacitors, Resistors, Relay Electronic variable power supply 6000W

Packaging & Shipping

Frequently Asked Questions

Why choose this variable power supply?

We offer top-quality power supplies and exceptional support. Our primary business principle is building win-win relationships with our clients.

Are you a direct manufacturer or a trading company?

Yes, we are a direct manufacturer. We supply OEM/ODM customized services to suit your technical requirements.

What is your warranty and after-sales service policy?

We offer a one-year warranty period. If there are any verified quality problems, we support exchanging the goods.

What are the available payment terms and logistics options?

We accept L/C, T/T, Western Union, MoneyGram, and PayPal. For delivery, we support shipping via sea or express carriers like DHL, UPS, FEDEX, TNT, and EMS.

What is the Minimum Order Quantity (MOQ) for this 6000W power supply?

We support a low MOQ. A single unit is available for sample testing. Please specify your required model specifications (e.g. 220VAC input, 200V30A output) when ordering.

What core products and services do you offer?

We provide high-quality DC-DC converters, AC-DC converters, DC power supplies, battery chargers, OEM/ODM customization services, and professional technical support.
