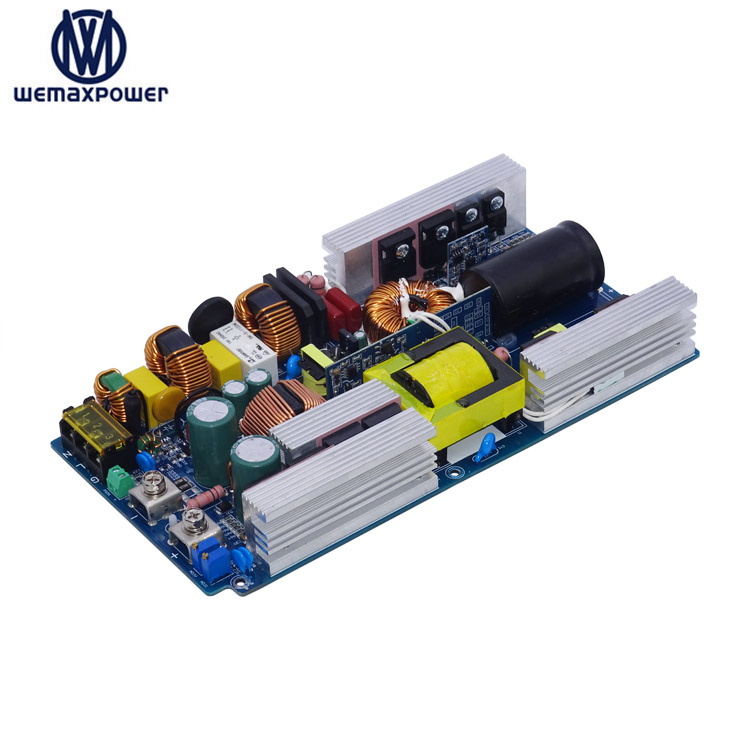

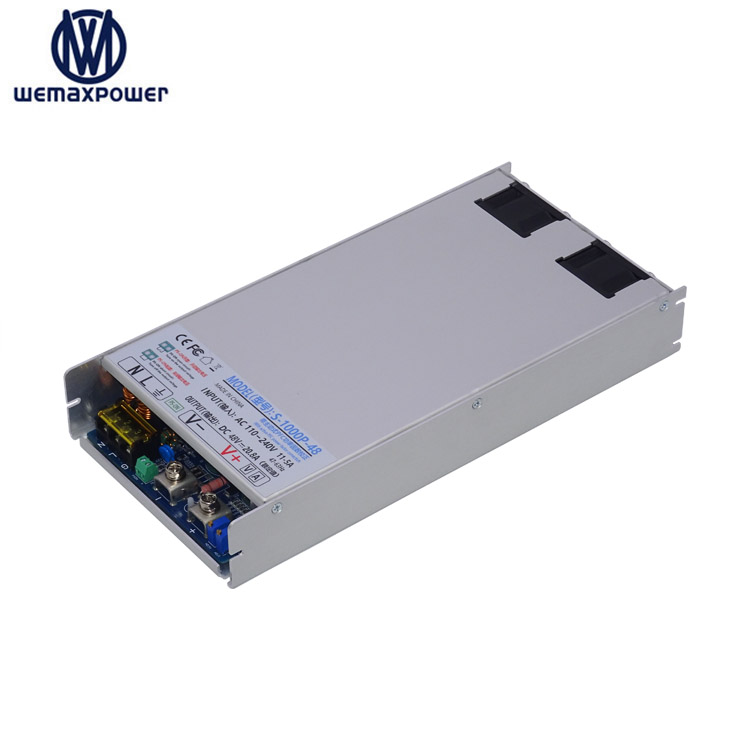

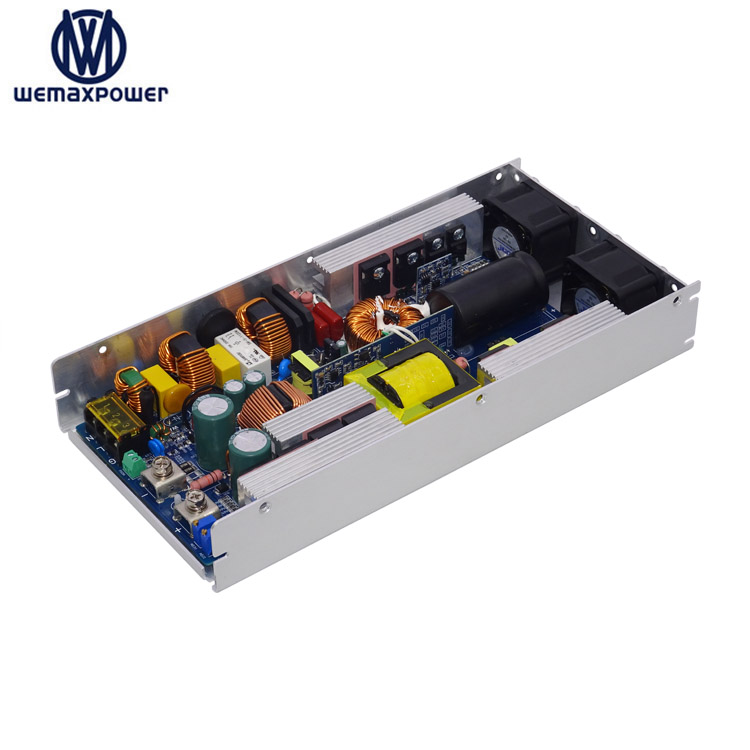

| 1000W Series Switching Power Supply with PFC | |||||||
|---|---|---|---|---|---|---|---|
| Model | S-1000P-24V | S-1000P-36V | S-1000P-48V | S-1000P-60V | S-1000P-72V | S-1000P-110V | S-1000P-150V |
| DC output voltage | 24V | 36V | 48V | 60V | 72V | 110V | 150V |
| Output current | 41.7A | 27.8A | 20.8A | 16.7A | 14A | 9.1A | 6.7A |
| Output power | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W | 1000W |
| Efficiency (Full load) | 88.3% | 88.7% | 89.5% | 89.7% | 90% | 90% | 91% |
| Range of voltage regulation | 17-24V | 25-36V | 33-48V | 41-60V | 50-74V | 74-110V | 102-150V |
| With Active PFC Power Factor Correction Function | |||||||
| Input voltage | AC 100-240V (50Hz / 60Hz) | ||||||
| Power factor (PF) | PF value > 0.99 (at 100% full load) | ||||||
| Fan failure protection | Either of the two cooling fans does not rotate or the fan is not detected, and the power supply has no output voltage. | ||||||
| Over load protection | The overload protection mode is constant current limiting mode, which limits the output current value to remain unchanged and does not cause over-current output. The output voltage decreases as the load increases. | ||||||
| Overheat protection | When the internal temperature is too high, activate the overheat protection, turn off the output voltage, and automatically recover after the temperature drops. | ||||||
| Short Circuit Protection | Short time instantaneous short circuit: turn off the output and automatically recover after 3 seconds | ||||||
| Long term continuous short circuit: turn off the output, automatically restart once every 3 seconds (burping mode) | |||||||
| Output overvoltage protection | The overvoltage point is 130% of the nominal voltage value. After overvoltage, the output is turned off and will not automatically recover. You need to turn off the power and power it back on to recover. | ||||||
| Under voltage protect | The AC input voltage is below 96V, and the power supply cannot be used | ||||||

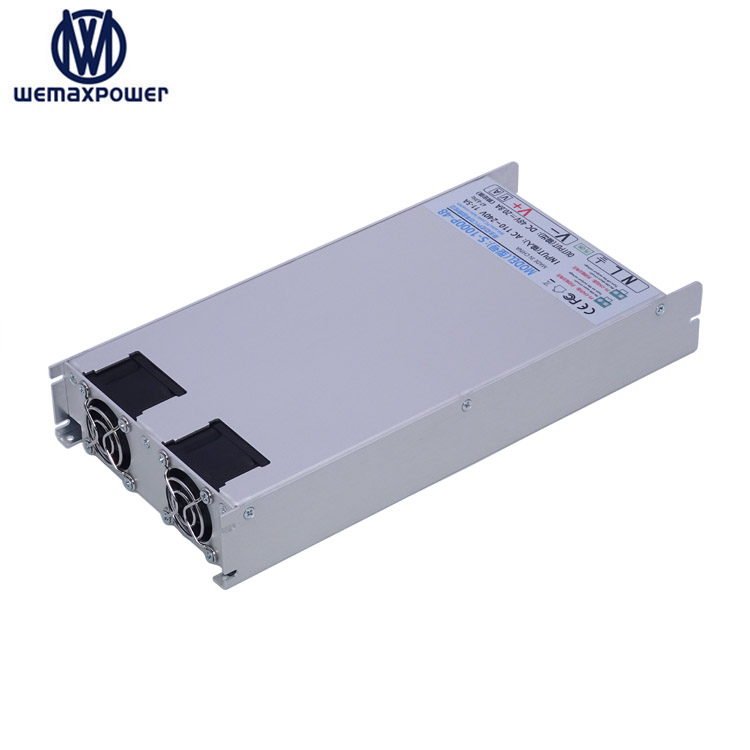

| Heat dissipation | Temperature controlled automatic speed regulation fan (internal blowing mode, 2 fans) | ||||||
| Net Weight | 1.4kg | ||||||

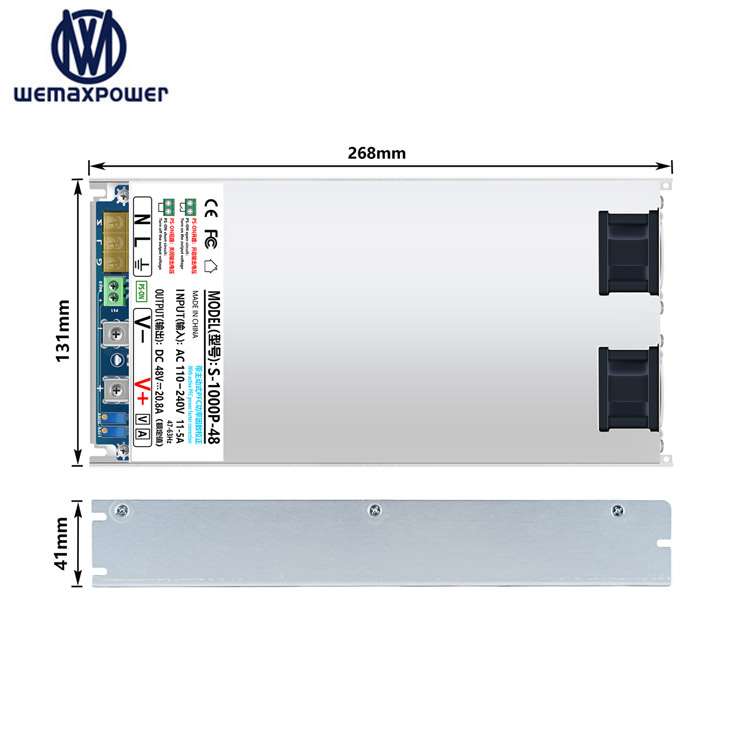

| Dimensions | 268 mm * 131 mm * 41mm (L* W* H) | ||||||
