| *Power Supply Series* | ||||
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
| Model definition |
WMX-ASD XXX YYY XXX---Output Voltage ; YYY---Output Current Apply for electroplate 8000W High Voltage high power 625V12.8A & 640V 12.5A & 800V 10A & 1000V 8A adjustable dc power supply |
|||
|---|---|---|---|---|
| Model (WMX-ASD) | 62512.8 | 64012.5 | 80010 | 10008 |
| Input Voltage |
Option : 1 Phase: AC110V±10%,50Hz/60Hz; 1 Phase: AC220V±10%,50Hz/60Hz; 3 Phase: AC380V±10%,50Hz/60Hz; (Standard) If need 110vac / 220vac input, please contact us |
|||
| Output Voltage (Vdc) | 0-625V | 0-640V | 0-800V | 0-1000V |
| Output Current (Amp) | 1.28-12.8A | 1.25-12.5A | 1-10A | 0.8-8A |
| Output Voltage / Current adjustable |
Output voltage adjustable range : 0~Max Voltage Output Current adjustable range: 10% of max current ~ Max Current If need 0~Max current, please contact with factory confirm |
|||
| Output Power | 8000W | |||
| Load Regulation | ≤0.5%+30mV | |||
| Ripple | ≤0.5% + 10mVrms | |||
| Power supply stability | ≤0.3%+10mV | |||
| Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) | |||
| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; | |||
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% | |||
| Operation Temperature | Humidity | Operation Temperature : (0~40)℃; Operation Humidity : 10% ~ 85% RH | |||
| Storage Temperature | Humidity | Storage Temperature : (-20~70)℃; Storage Humidity : 10% ~ 90% RH | |||
| Over-Temperature Protection | (75~85) C. | |||
| Heat Dissipation Mode/ Cooling mode | Forced air cooling | |||
| Efficiency | ≥86% | |||
| Start-up Output voltage setting time | ≤3S | |||
| Protection |
lower voltage, over voltage, over current, short circuit, overheating Protection Noted : if need addition Reverse Connection & Polarity reversal protection should be contact factory customized |
|||
| Insulation Strength |
Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
|||
| Insulation Resistance | Input-Output ≥20MΩ; Input-Output ≥20MΩ; Input-Output ≥20MΩ. | |||
| MTTF | ≥50000h | |||

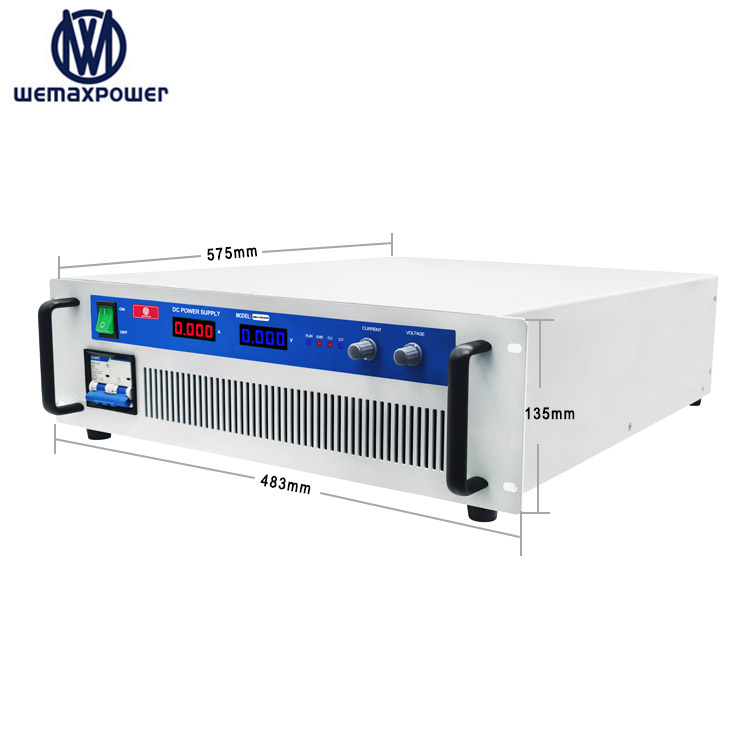

| Dimension /Net Weight | 483*575*135mm, NW: 23.5kg | |||
| Analog Remote Control Function (Option) | ||||
| Remote Control Function (Option, with addition cost) | 0-5Vdc /0-10Vdc analog signal control output voltage & current | |||
| 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current | ||||
| 0-5Vdc /0-10Vdc analog Switch signal to control output ON/OFF | ||||
| 4-20mA analog signal control output voltage & current | ||||
| RS232/RS485 Communication port control by computer | ||||
Apply for electroplate 8000W High Voltage high power 625V12.8A & 640V 12.5A & 800V 10A & 1000V 8A adjustable dc power supply, It is widely used in industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military industry, medical treatment, shipbuilding, railway and other high-tech fields.
