| Series No. | WMX-C600 | |||||
| Model Definition |
WMX-BC XX YY BC - Battery Charger, XX - Output Voltage, YY - Output (Max charge) Current |
|||||

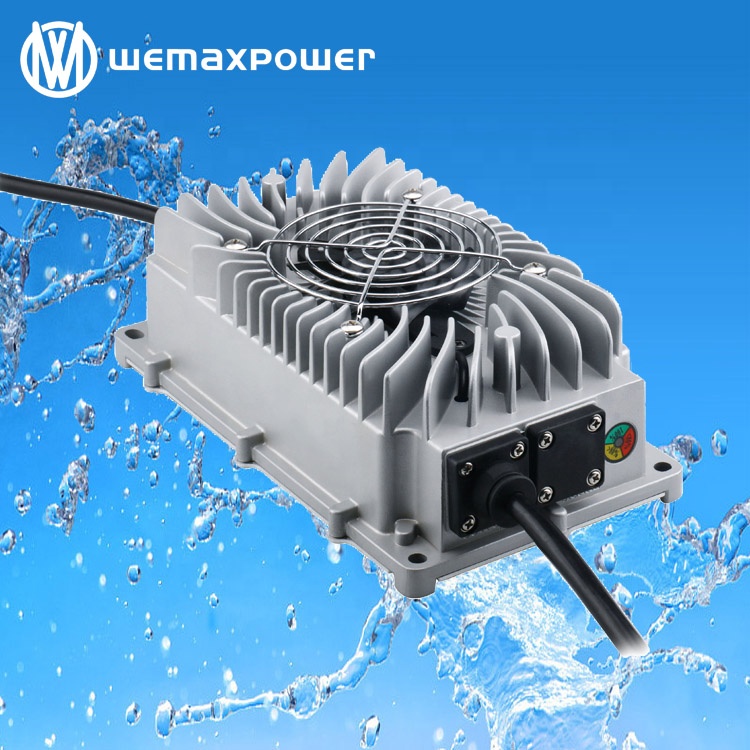

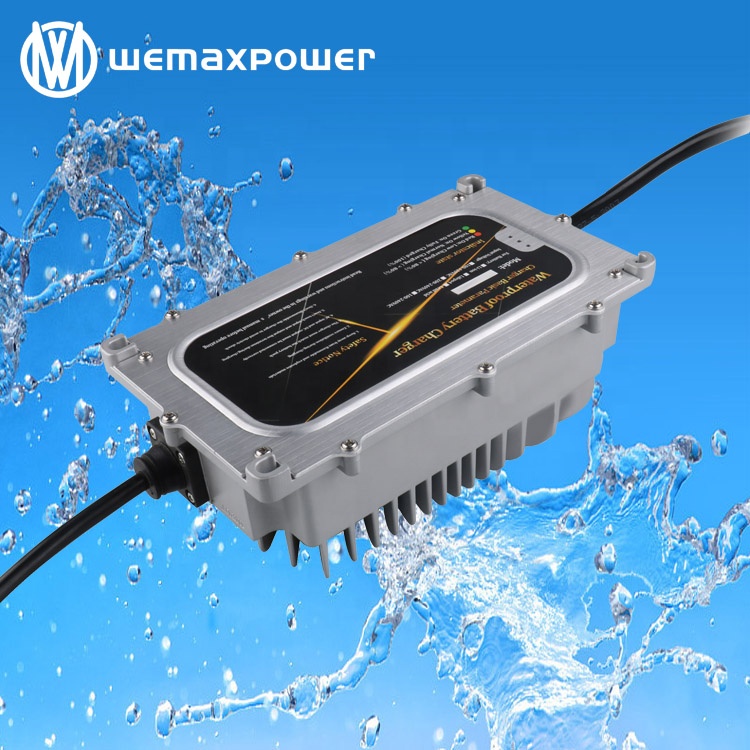

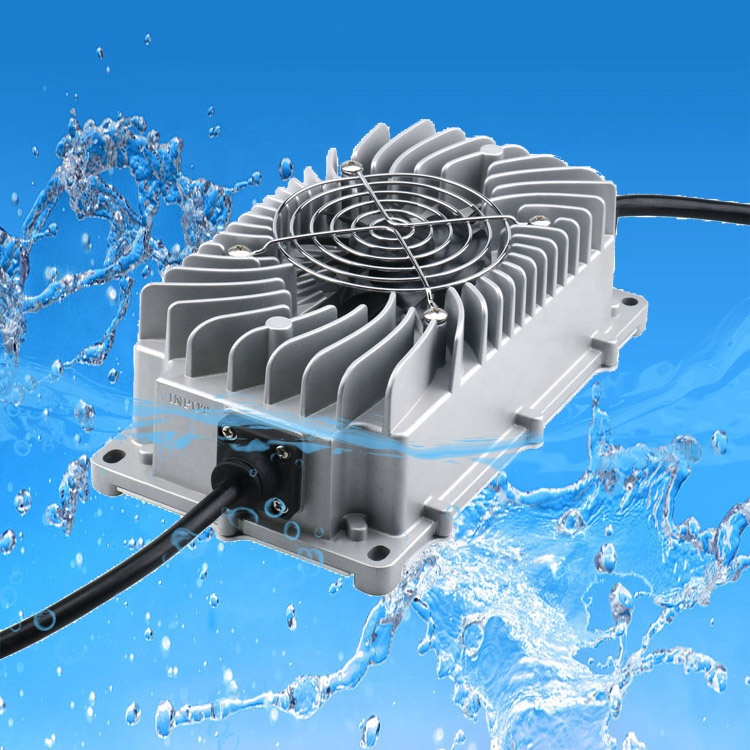

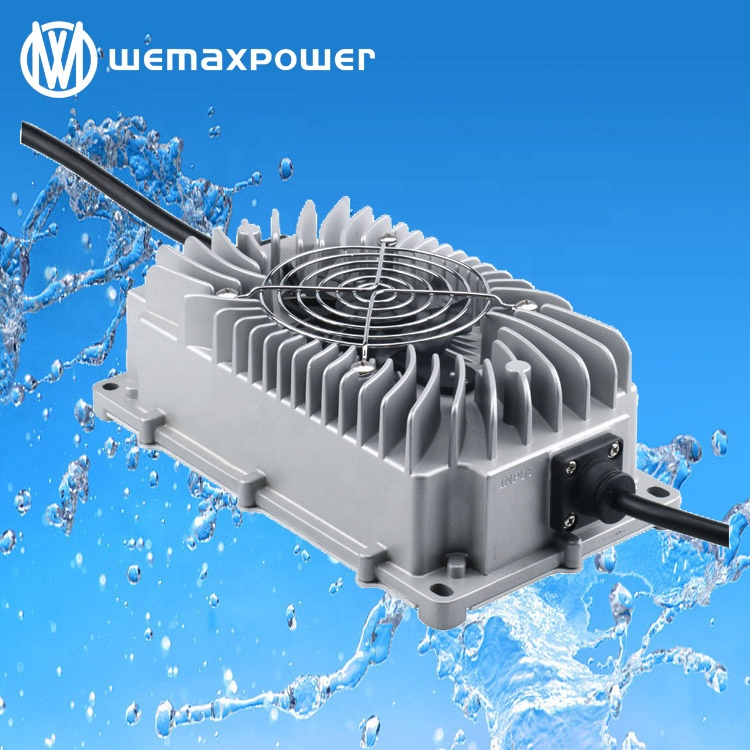

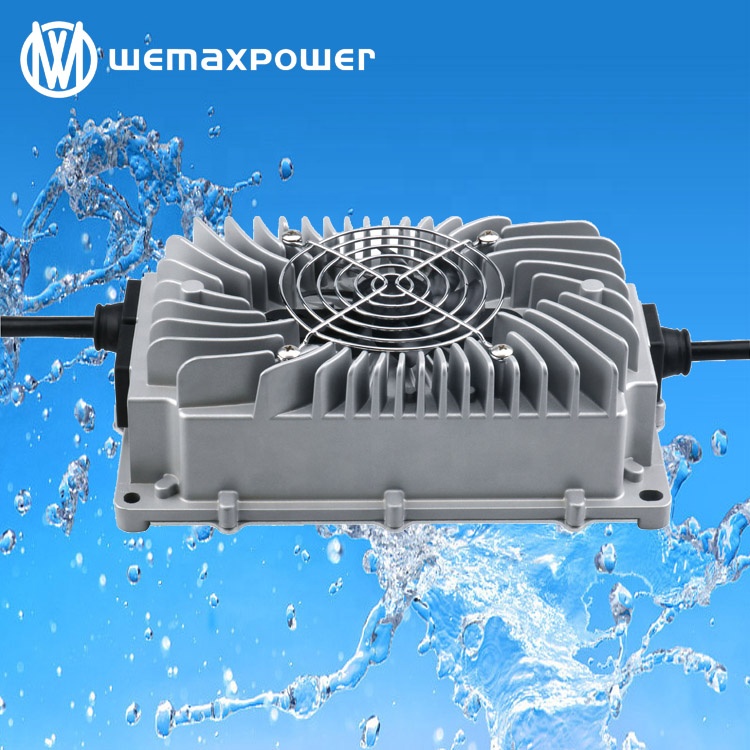

| Product Name | 12V25A | 24V18A | 36V12A | 48V10A | 60V8A | 72V6A Waterproof IP68 Electronic Vehicles Lithium Ion LiFePO4 Lead Acid Battery Charger | |||||
| Model (WMX-BC) | BC1225 | BC2418 | BC3612 | BC4810 | BC608 | BC7206 |
| AC Input Voltage (Option) |
1 Phase 100-130VAC, 50-60Hz. 1 Phase 200-240VAC, 50-60Hz. |
|||||
| Output Voltage | 12V | 24V | 36V | 48V | 60V | 72V |
| Output Current | 25A | 18A | 12A | 10A | 8A | 6A |
| Charging Current Selection |
Lithium battery charge current = Battery capacity x 0.3C ~ 2C. Lead acid battery charge current = Battery capacity x 0.12C ~ 0.15C |
|||||
| Charge Mode | C.C, C.V, Trickle | Float | |||||
| Waterproof | IP68 | |||||
| MTBF | MTBF > 20,000 hours (25 Degrees Celsius, Full load and rated voltage input) | |||||
| Conversion Efficiency | 91% | |||||
| Application | E-Bike, Electric Scooter, Mobility Scooter, Electric Toy Cars, Handicapped Scooter, Segway, Lime Electric Scooter, Electric Skateboard, Balancing Electric Scooter, Solo Wheel | Balance Freeman, Unfolded Balance Scooter, Le Bar Cart, Electric Forklift, Power Tools, Portable Electric Device, Golf Cart, Electric Trolley | |||||
| Protection |
OVP | OCP | OTP | SCP Over Voltage | Over Current | Over Temperature | Short Circuit | Reverse Polarity Protection |
|||||
| Operating Temperature | -15 ~ 40 Degrees Celsius | |||||
| Storage Temperature | -40 ~ 70 Degrees Celsius | |||||
| Humidity | 5 ~ 95% | |||||
| Altitude | 0 ~ 3000m | |||||
| Shell Material | Aluminum Shell | |||||

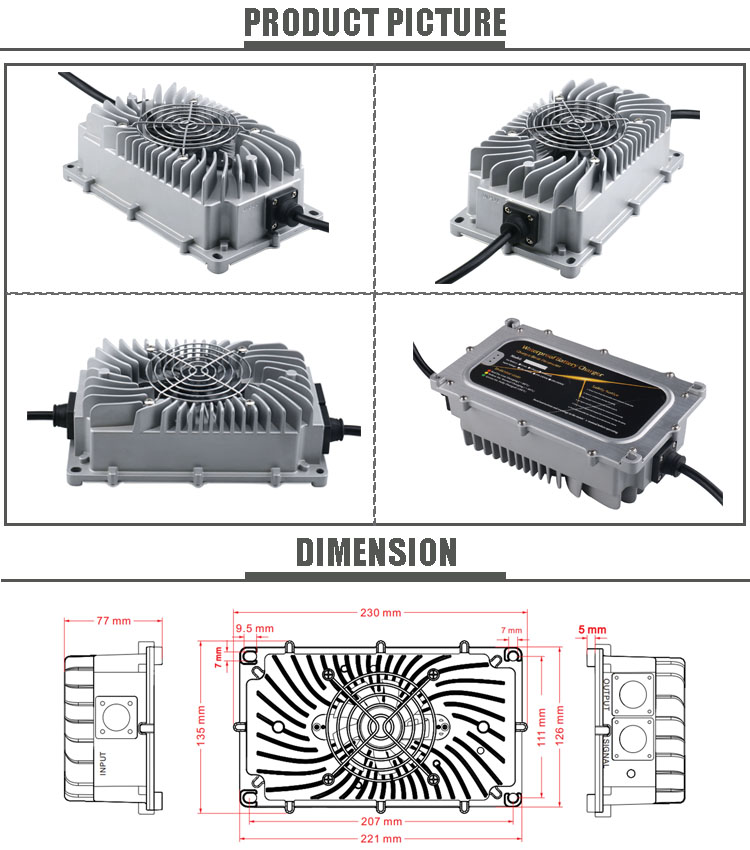

| Dimension | 230x135x77mm | |||||
| N.W | 2.3 ~ 2.5kg | |||||
| AC Plug (Option) | CN | US | EU | IT | UK | ZA | IN | KR | AU | JP | BR | CH... | |||||
| DC Plug (Option) | Aviation Plug (GX16-3pin) | XLR-3PIN Plug | IEC Plug | Anderson | DC Jack (5.5x2.1) | RCA Plug | Alligator Clips | XT60 | XT90 | OT Circle Plug | Bare wire | |||||
| Golf Plug (Customized) |
SB50 With Handle | EV Plug | Ezgo TXT Plug | Club Car Plug | Small Crowfoot | Big Crowfoot | Yamaha 2pins | Ezgo RXV | G29 Yamaha 3PINS | Grey Club Car... (Reminder: If the charger needs a golf cart plug, please confirm your requirements prior to ordering. Additional costs may apply.) |
|||||
1) 100~130Vac,
2) 12V 25A,
3) Li-ion battery,
4) 16.8V,
5) Plug B & Connector 10
