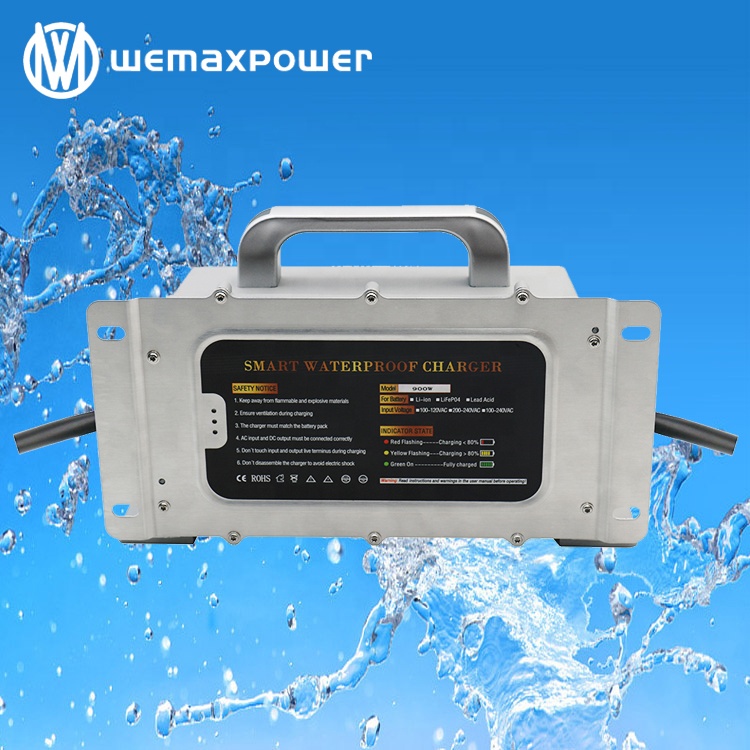

Waterproof 12v 35a 24v 28a 36v 20a 48v 15a 60v 12a 72v 10a Lead Acid Lithium Ion LiFe-PO4 Intelligent Smart Battery Charger

1 / 5

Waterproof 12v 35a 24v 28a 36v 20a 48v 15a 60v 12a 72v 10a Lead Acid Lithium Ion LiFe-PO4 Intelligent Smart Battery Charger

Send Inquiry

Product Description

Waterproof Smart Battery Charger Summary

Waterproof Battery Charger

Series No.	WMX-C900
Model Definition	WMX-BC XX YY BC - Battery Charger, XX - Output Voltage, YY - Output (Max charge) current
Product Name	12V35A \| 24V28A \| 36V20A \| 48V15A \| 60V12A \| 72V10A Waterproof IP68 Electronic vehicles Lithium ion LiFePO4 lead acid battery Charger
Model (WMX-BC)	BC1235	BC2428	BC3620	BC4815	BC6012	BC7210
AC Input Voltage (Option)	1 Phase 100-130VAC, 50-60Hz. 1 Phase 200-240VAC, 50-60Hz.
Output Voltage	12V	24V	36V	48V	60V	72V
Output current	35A	28A	20A	15A	12A	10A
Charging current selection	Lithium battery charge current = Battery capacity x 0.3C ~ 2C. Lead acid battery charge current = Battery capacity x 0.12C ~ 0.15C
Charge mode	C.C, C.V, Trickle \| Float
Waterproof	IP68
MTBF	MTBF > 20000 hours (25 Degrees Celsius, Full load and rated voltage input)
Conversion efficiency	91%
Application	E-Bike, Electric Scooter, Mobility Scooter, Electric Toy Cars, Handicapped Scooter, Segway, Lime Electric Scooter, Electric Skateboard, Balancing Electric Scooter, Solo Wheel \| Balance Freeman, Unfolded Balance Scooter, Le Bar Cart, Electric Forklift, Power Tools, Portable Electric Device, Golf Cart, Electric Trolley
Protection	OVP \| OCP \| OTP \| SCP Over voltage \| Over current \| Over Temperature \| Short Circuit \| Reverse Polarity Protection
Operating Temperature	-15 ~ 40 Degrees Celsius
Storage Temperature	-40 ~ 70 Degrees Celsius
Humidity	5 ~ 95%
Altitude	0 ~ 3000m
Shell Material	Aluminum Shell
Dimension	286x145x83mm
N.W	3.6 ~ 3.8kg
AC Plug (Option)	CN \| US \| EU \| IT \| UK \| ZA \| IN \| KR \| AU \| JP \| BR \| CH…
DC Plug (Option)	Aviation Plug (GX16-3pin) \| XLR-3PIN Plug \| IEC Plug \| Anderson \| DC Jack (5.5x2.1) \| RCA Plug \| Alligator Clips \| XT60 \| XT90 \| OT Circle Plug \| Bare wire
Golf Plug (Customized)	SB50 With Handle \| EV Plug \| Ezgo TXT Plug \| Club Car Plug \| Small Crowfoot \| Big Crowfoot \| Yamaha 2pins \| Ezgo RXV \| G29 Yamaha 3PINS \| Grey Club Car… (Reminder: If the charger needs a golf cart plug, addition cost should be paid)

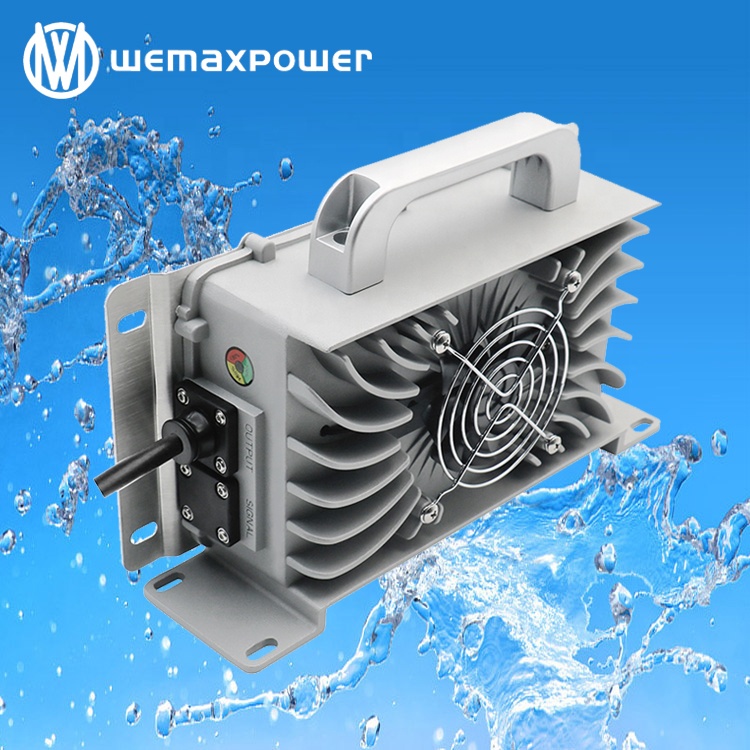

Waterproof Smart Battery Charger Details 1

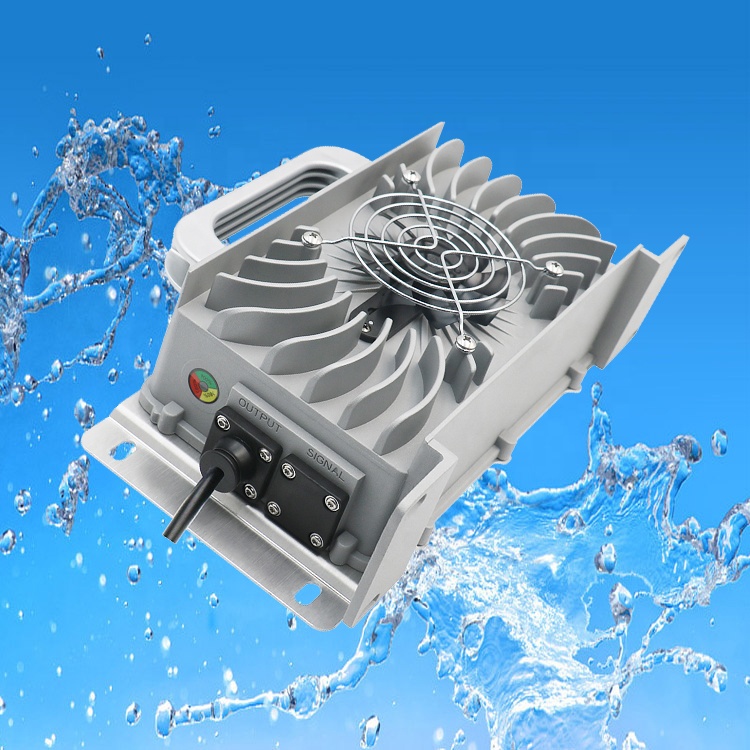

Waterproof Smart Battery Charger Details 2

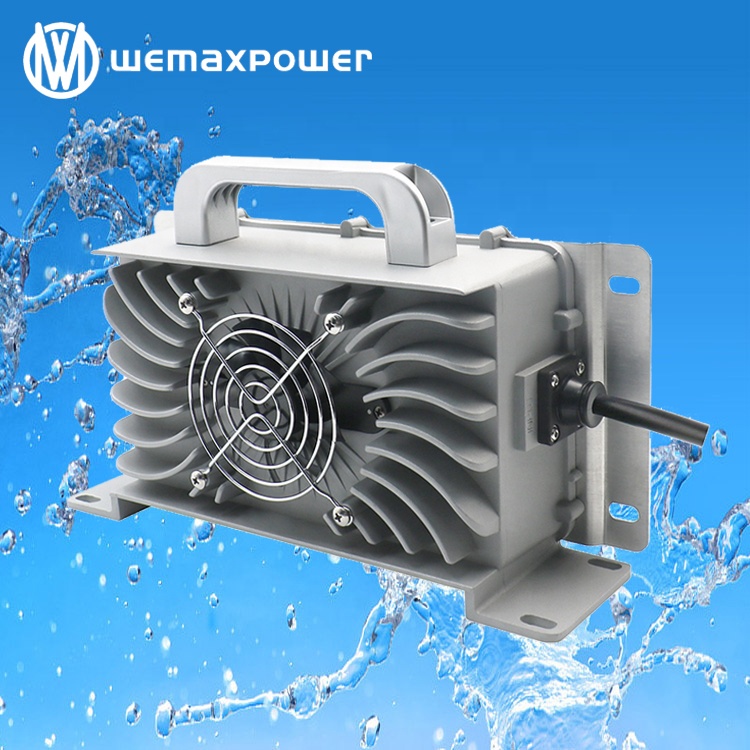

Waterproof Smart Battery Charger Details 3

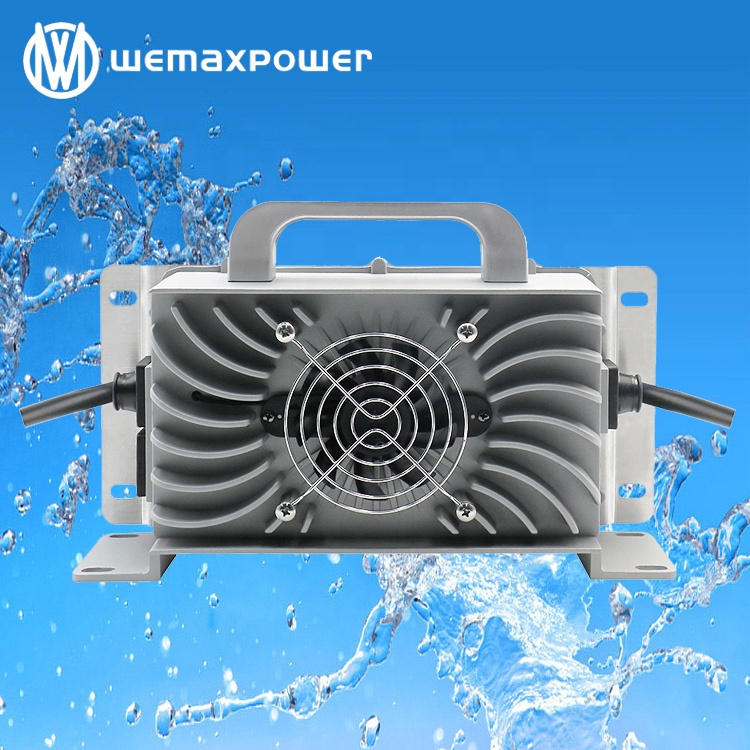

Waterproof Smart Battery Charger Details 4

Waterproof Smart Battery Charger Details 5

Please confirm the following questions & leave notes in your order.

Otherwise we cannot arrange the production.

1. What is the input AC voltage you need, 100~130Vac or 200~240Vac?
2. Which mode would you like, 12V/35A, 24V/28A, 36V/20A, 48V/15A, 60V/12A, 72V/10A?
3. What kind of battery needs to be charged? Li-ion battery, LiFePO4 battery or Lead Acid battery?
4. What is the max charging voltage of the battery?
5. What is the input plug (A~L) & output connector (1~9)?

Your notes should be formatted as:
1) 100~130Vac,
2) 12V 35A,
3) Li-ion battery,
4) 16.8V,
5) Plug B & Connector 10

Frequently Asked Questions (FAQ)

Q1: Which types of batteries can this smart charger charge?

A1: This intelligent charger is compatible with Lead Acid, Lithium-ion (Li-ion), and LiFePO4 batteries. You can specify your battery type when placing the order.

Q2: What is the waterproof rating of this battery charger?

A2: This battery charger features a high-grade IP68 waterproof rating, ensuring full protection against water and dust ingress for outdoor or demanding environments.

Q3: How do I select the proper charging current for my battery?

A3: The charging current depends on your battery capacity. For Lithium batteries, the recommended charge current is: Battery Capacity x 0.3C ~ 2C. For Lead Acid batteries, it is: Battery Capacity x 0.12C ~ 0.15C.

Q4: What protective safety measures are built into the charger?

A4: The charger includes multiple protective features: Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Reverse Polarity Protection.

Q5: Are the AC input plugs and DC output plugs customizable?

A5: Yes. We offer multiple options for AC input plugs (CN, US, EU, IT, UK, etc.) and DC connectors (Aviation Plug, XLR, Anderson, DC Jack, Alligator Clips, XT60/XT90, OT Circle Plug, etc.). Specialized Golf cart plugs can also be customized.

Q6: What is the operating temperature and environment range?

A6: The charger operates safely in temperatures ranging from -15°C to 40°C, and can be stored in temperatures from -40°C to 70°C. It is designed to work at altitudes ranging from 0 to 3000 meters.
