| Series No. | WMX-C300 |
| Model No. | WMX-BC7203W 72--Output Voltage, 3--Output Current |

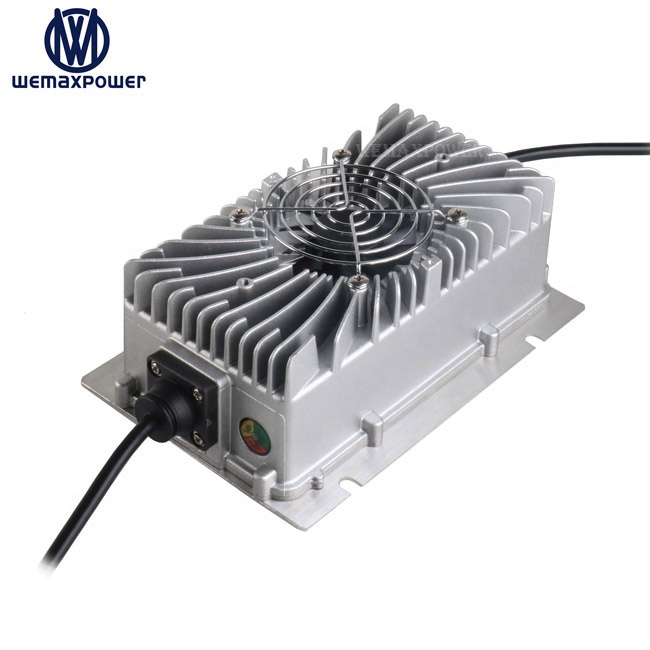

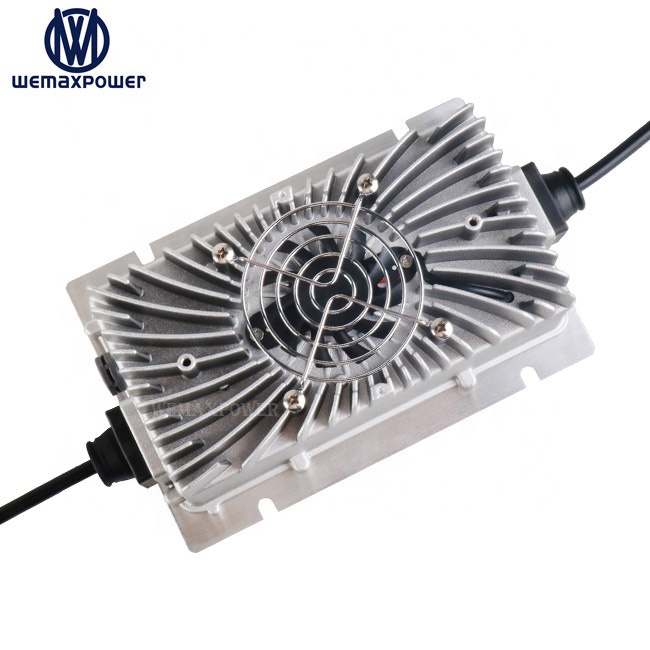

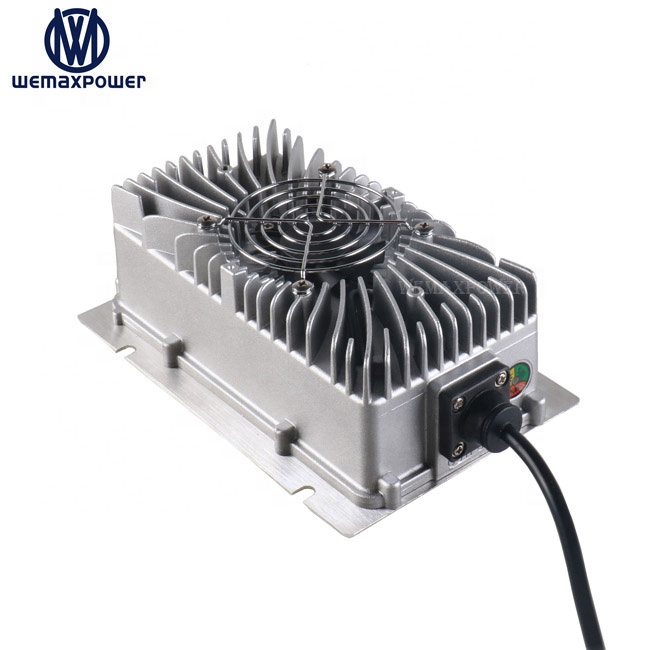

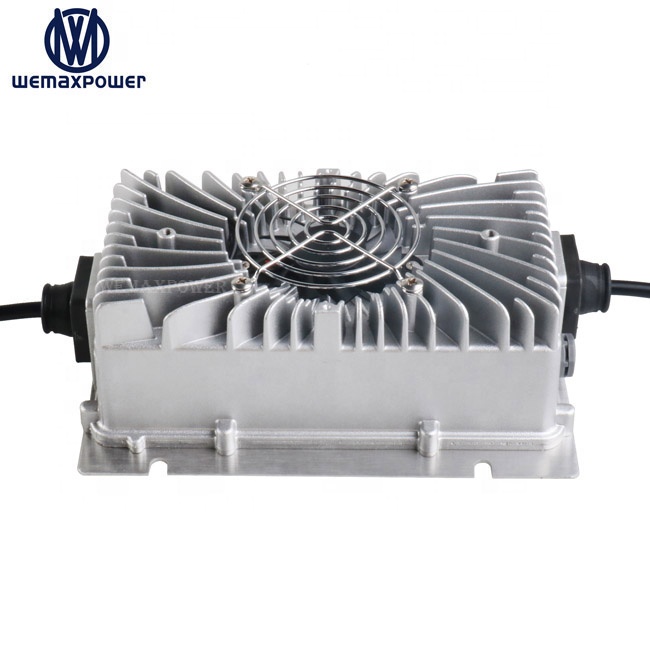

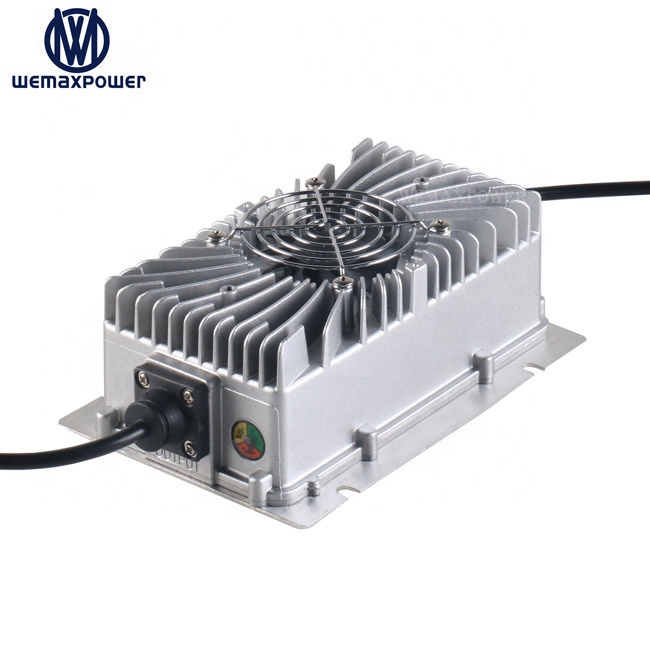

| Product name | 60v 3.5a battery charger |
| Input Voltage | 100~130Vac / 200~240Vac, 50HZ/60HZ |
| Nominal Voltage | 72 VDC |
| Charging Current | 3 A |
| Housing | Aluminum Alloy |
| Net Weight | 1.7 kg |
| Product dimension | 186*123*66mm |
| Lead acid Equal / Float voltage | 88.2V |
| LiFePO4 Charging voltage | 87.6V(24S) |
| Li-ion Charging voltage | 84V(20S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥ 90% |
| MTBF | ≥ 50000h |
| Operating Temperature | -20℃ ~ 50℃ |
| Store Temperature | -40℃ ~ 80℃ |
| Related humidity | 90%(40±2℃) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators | Red means power on / charging, Green means full charged |
| AC Plug | Accept any plug base on your request |
Please let us know the plugs you need before confirming the order.
A1: Yes, this charger is compatible with Li-ion, LiFePO4, and Lead Acid batteries. Please specify your exact battery type and required charging parameters before ordering so we can set the voltage accordingly.
A2: The charger is equipped with multiple protection features including short circuit protection, over-voltage protection, over-temperature protection, and reverse polarity protection to ensure absolute safety during operation.
A3: It uses an automatic Constant Current (CC), Constant Voltage (CV), and Float/Cut-off smart system. This limits voltage and current accurately, preventing overcharging, lowering heat production, and maximizing battery lifespan.
A4: Yes, we accept customized configurations for both input AC plugs and output DC plugs according to your local standards and machine sockets. Please refer to our plug chart and confirm your options before placing an order.
A5: The charger features clear dual-color LED indicators. A Red light signals that the power is on or charging is currently in progress, and a Green light indicates that the battery is fully charged.
A6: The charger is built in a durable, lightweight black or silver Aluminum Alloy housing. With an operating efficiency exceeding 90%, it features excellent heat dissipation, stability, and durability.
