| Series No. | WMX-C300 |
| Model No. | WMX-BC603.5W 60--Output Voltage, 3.5--Output Current |

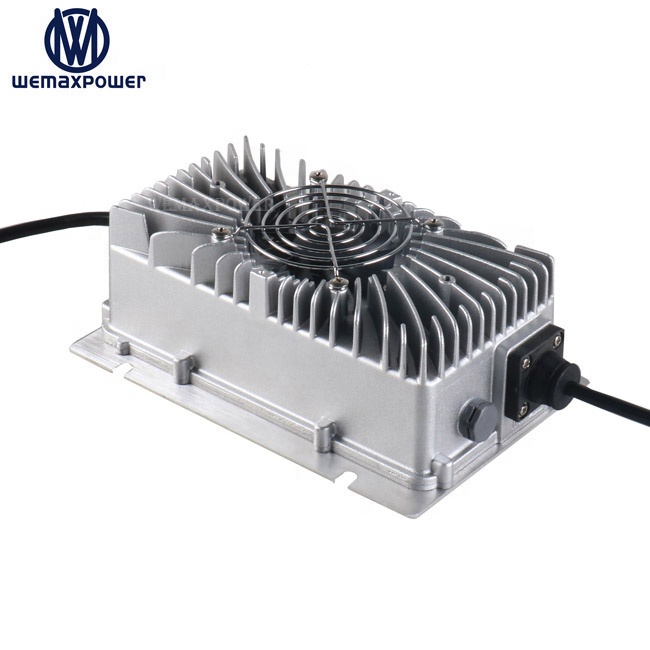

| Product name | 60v 3.5a battery charger |
| Input Voltage | 100~130Vac / 200~240Vac, 50HZ/60HZ |
| Nominal Voltage | 60 VDC |
| Charging Current | 3.5 A |
| Housing | Aluminum Alloy |
| Net Weight | 1.7 kg |
| Product dimension | 186*123*66mm |
| Lead acid Equal / Float voltage | 73.5V |
| LiFePO4 Charging voltage | 73V(20S) |
| Li-ion Charging voltage | 63V(15S), 67.2V(16S), 71.4V(17S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥ 90% |
| MTBF | ≥ 50000h |
| Operating Temperature | -20℃ ~ 50℃ |
| Store Temperature | -40℃ ~ 80℃ |
| Related humidity | 90% (40±2℃) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators | Red means power on / charging, Green means full charged |
| AC Plug | Accept any plug base on your request |
