| Series No. | WMX-C1200 | |||||
| Model Definition |
WMX-BC XX YY (BC - Battery Charger, XX - Output Voltage, YY - Max Output Charging Current) |
|||||

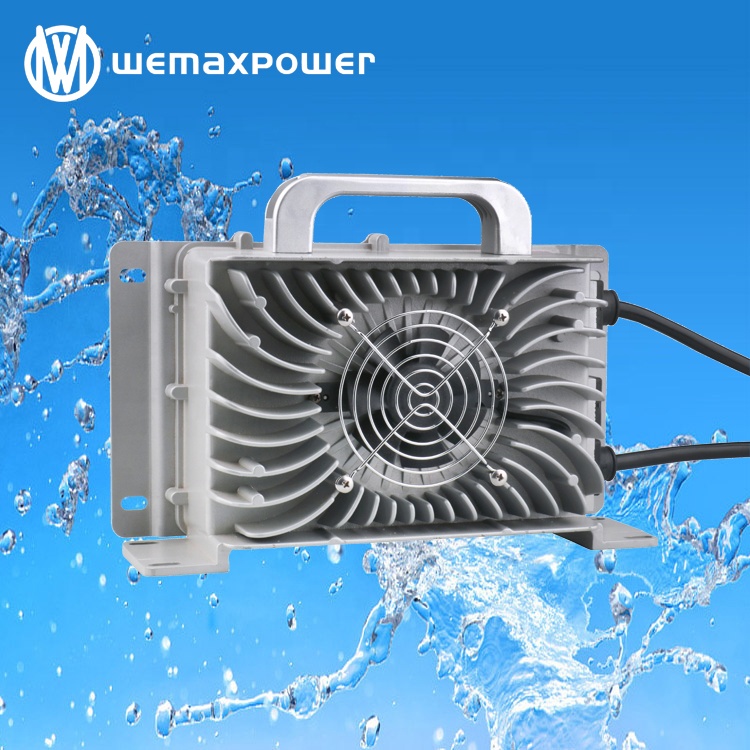

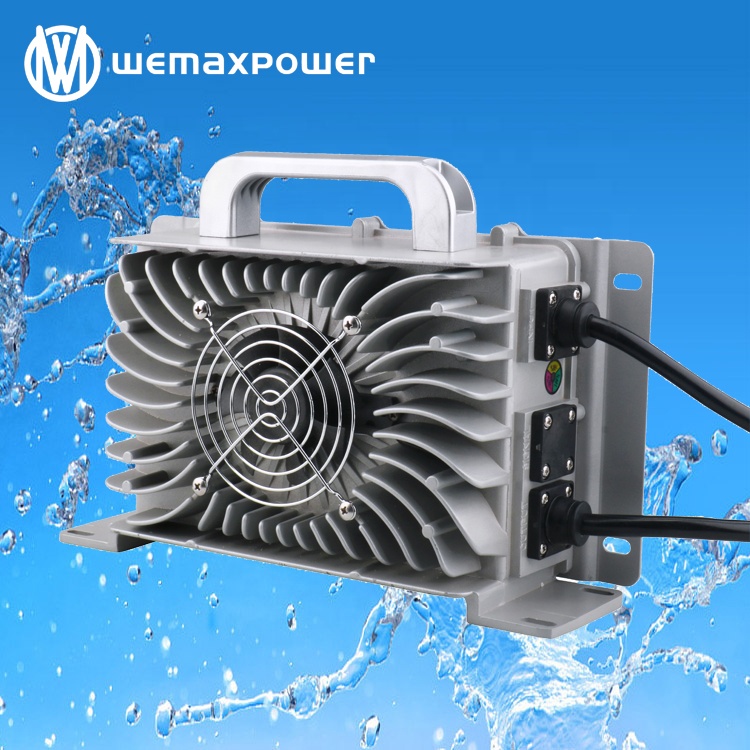

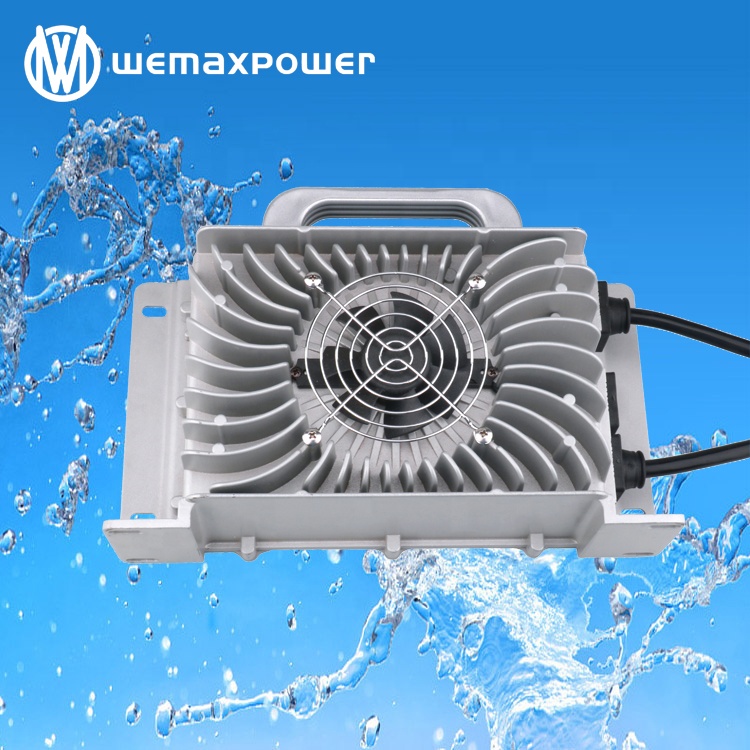

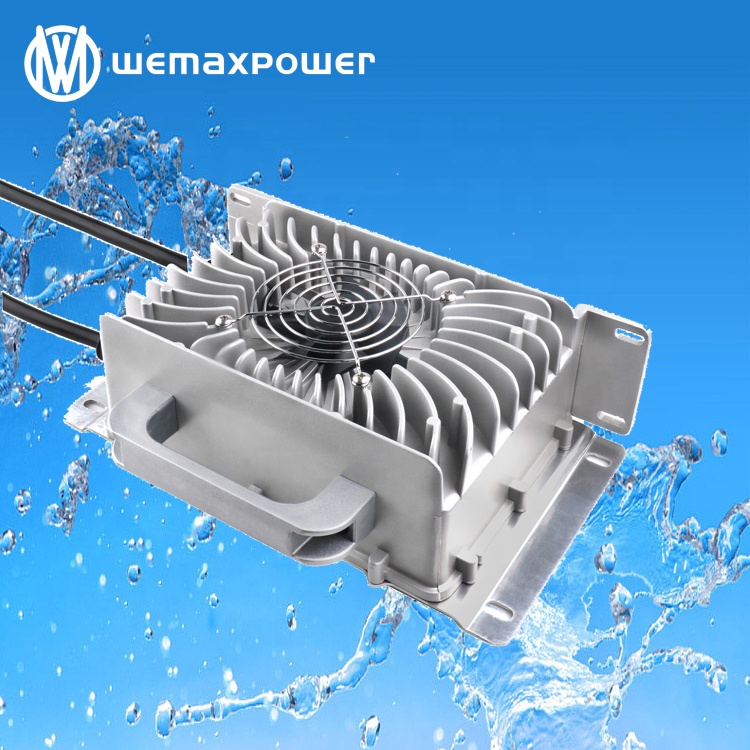

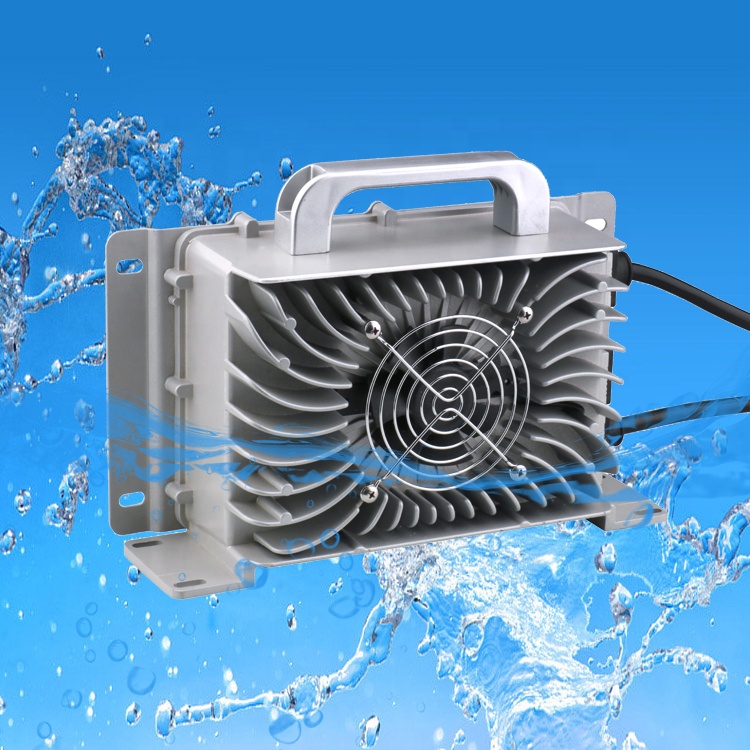

| Product Name | 12V 40A | 24V 30A | 36V 25A | 48V 20A | 60V 16A | 72V 14A Waterproof IP68 Electronic Vehicles Lithium ion LiFePO4 Lead Acid Battery Charger | |||||
| Model (WMX-BC) | BC1240 | BC2430 | BC3625 | BC4820 | BC6016 | BC7214 |
| AC Input Voltage Option |
1 Phase 100-130VAC, 50-60Hz 1 Phase 200-240VAC, 50-60Hz |
|||||
| Output Voltage | 12V | 24V | 36V | 48V | 60V | 72V |
| Output Current | 40A | 30A | 25A | 20A | 16A | 14A |
| Charging Current Selection |
Lithium battery charge current = Battery capacity x 0.3C ~ 2C Lead acid battery charge current = Battery capacity x 0.12C ~ 0.15C |
|||||
| Charge Mode | C.C, C.V, Trickle | Float | |||||
| Waterproof Rating | IP68 | |||||
| MTBF | >20,000 hours (at 25°C, full load and rated voltage input) | |||||
| Conversion Efficiency | 91% | |||||
| Application | E-Bike, Electric Scooter, Mobility Scooter, Electric Toy Cars, Handicapped Scooter, Segway, Lime Electric Scooter, Electric Skateboard, Balancing Electric Scooter, Solo Wheel | Balance Freeman, Unfolded Balance Scooter, Le Bar Cart, Electric Forklift, Power Tools, Portable Electric Device, Golf Cart, Electric Trolley | |||||
| Protections |
OVP | OCP | OTP | SCP Over Voltage | Over Current | Over Temperature | Short Circuit | Reverse Polarity Protection |
|||||
| Operating Temp. | -15°C ~ 40°C | |||||
| Storage Temp. | -40°C ~ 70°C | |||||
| Humidity | 5% ~ 95% | |||||
| Altitude | 0 ~ 3000m | |||||
| Shell Material | Aluminum Shell | |||||
| Dimensions | 287 x 169 x 89mm | |||||
| Net Weight | 4.3 ~ 4.5kg | |||||
| AC Plug Option | CN | US | EU | IT | UK | ZA | IN | KR | AU | JP | BR | CH... | |||||
| DC Plug Option | Aviation Plug (GX16-3pin) | XLR-3PIN Plug | IEC Plug | Anderson | DC Jack (5.5x2.1) | RCA Plug | Alligator Clips | XT60 | XT90 | OT Circle Plug | Bare wire | |||||
| Golf Plug Option (Customized) |
SB50 With Handle | EV Plug | Ezgo TXT Plug | Club Car Plug | Small Crowfoot | Big Crowfoot | Yamaha 2pins | Ezgo RXV | G29 Yamaha 3PINS | Grey Club Car... (Reminder: If the charger requires a golf cart plug, please contact support before placing your order as additional customization costs apply.) |
|||||
Yes, this intelligent charger is compatible with Li-ion, LiFePO4, and Lead-Acid batteries. However, you must specify your battery type when placing an order so the correct charging parameters can be configured during manufacturing.
An IP68 rating means the charger is fully dust-tight and completely protected against continuous submersion in water, making it ideal for outdoor applications and harsh environments.
You will need to match the nominal voltage of your battery (e.g., 36V or 48V) with the correct charger model. Please also ensure you provide the exact maximum charging voltage requirement in your order notes.
Yes. We offer multiple AC input plug options (US, EU, UK, AU, etc.) and a wide array of DC output connectors (Anderson, XLR, Aviation, Alligator Clips, etc.). Specialized customized plugs like golf cart plugs are also available upon request.
The charger comes standard with full electronic protection systems, including Over Voltage Protection (OVP), Over Current Protection (OCP), Over Temperature Protection (OTP), Short Circuit Protection (SCP), and Reverse Polarity Protection.
