Wemax Power
1 / 5
| Series No. | WMX-C300 |
| Model No. | WMX-BC1215W 12--Output Voltage, 15--Output Current |

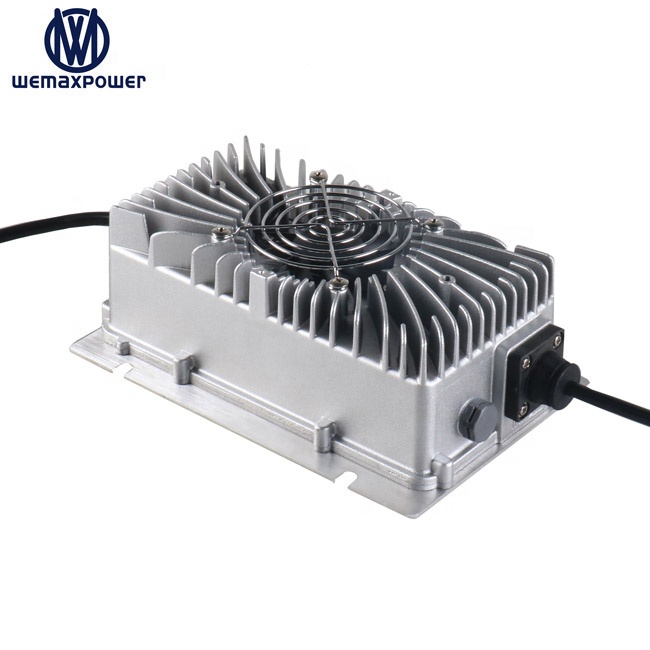

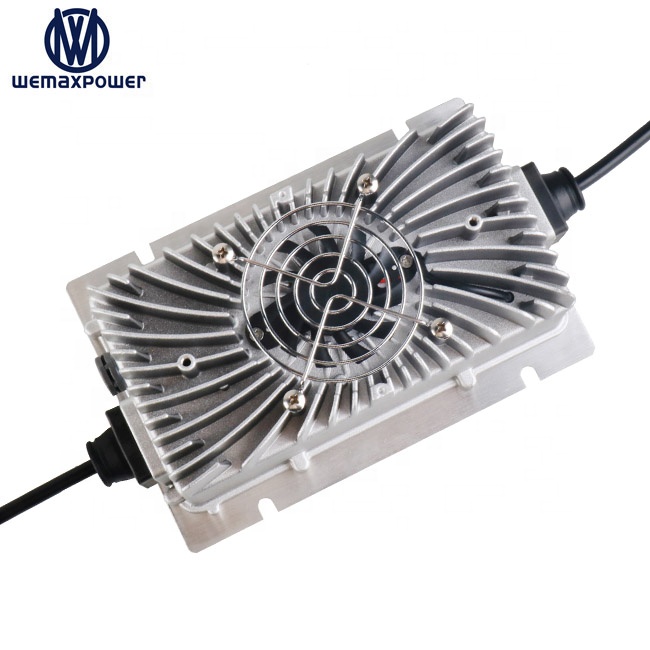

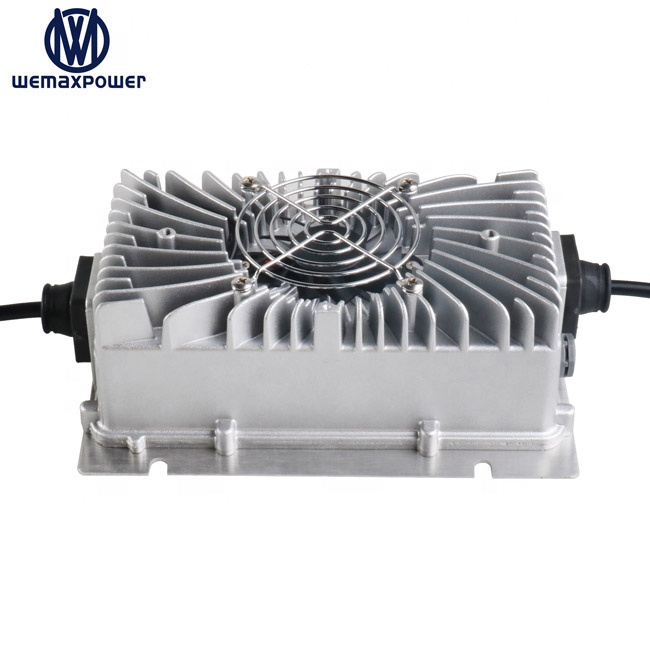

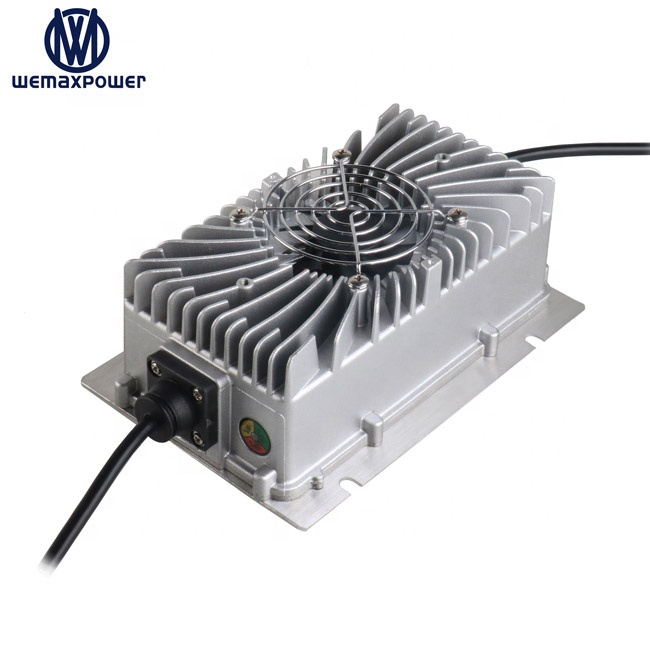

| Product name | 12v 15a battery charger |
| Input Voltage | 100~130Vac / 200~240Vac, 50HZ/60HZ |
| Nominal Voltage | 12 VDC |
| Charging Current | 15 A |
| Housing | Aluminum Alloy |
| Net Weight | 1.7 kg |
| Product dimension | 186*123*66mm |
| Lead acid Equal / Float voltage | 14.7V / 13.8V |
| LiFePO4 Charging voltage | 14.6V |
| Li-ion Charging voltage | 12.6V(3S) , 16.8V(4S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥90% |
| MTBF | ≥50000h |
| Operating Temperature | -20℃ ~ 50℃ |
| Store Temperature | (-40~80)℃ |
| Related humidity | 90% (40±2℃) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |

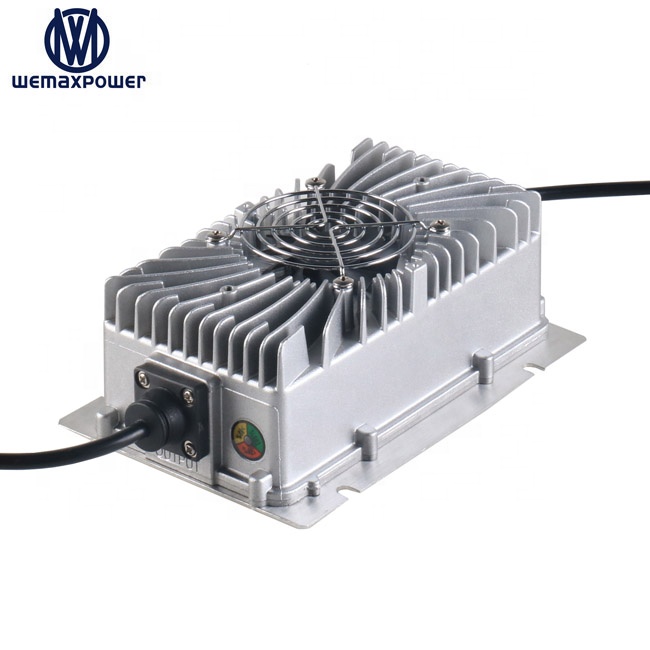

| Indicators | Red means power on / charging, Green means full charged |
| AC Plug | Accept any plug base on your request |
