Wemax Power
1 / 5
| Series No. | WMX-C1200 |
| Model No. |
WMX-BC1240W 12--Output Voltage, 40--Output Current |

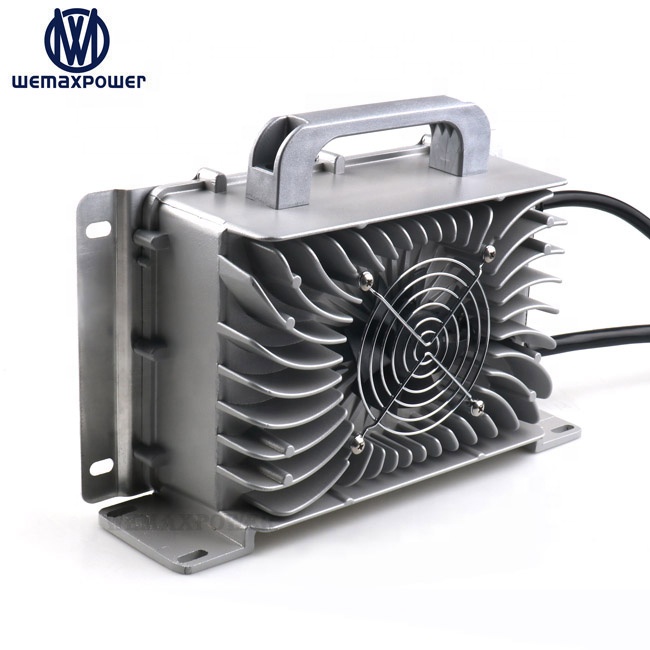

| Product name | 12v 40a battery charger |
| Input Voltage | 100~130Vac / 200~240Vac, 50HZ/60HZ |
| Nominal Voltage | 12 VDC |
| Charging Current | 40 A |
| Housing | Aluminum Alloy |
| Net Weight | 5.5 kg |
| Product dimension | 280*176*87mm |
| Lead acid Equal / Float voltage |
14.7V |
| LiFePO4 Charging voltage |
14.6V(4S) |
| Li-ion Charging voltage |
12.6V(3S) , 16.8V(4S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time |
Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥ 90% |
| MTBF | ≥ 50000h |
| Operating Temperature | -20℃ ~ 50℃ |
| Store Temperature | (-40~80)℃ |
| Related humidity | 90%(40±2℃) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators | Red means power on / charging, Green means full charged |
| AC Plug | Accept any plug base on your request |
Before you place an order, please confirm the following questions to us:
