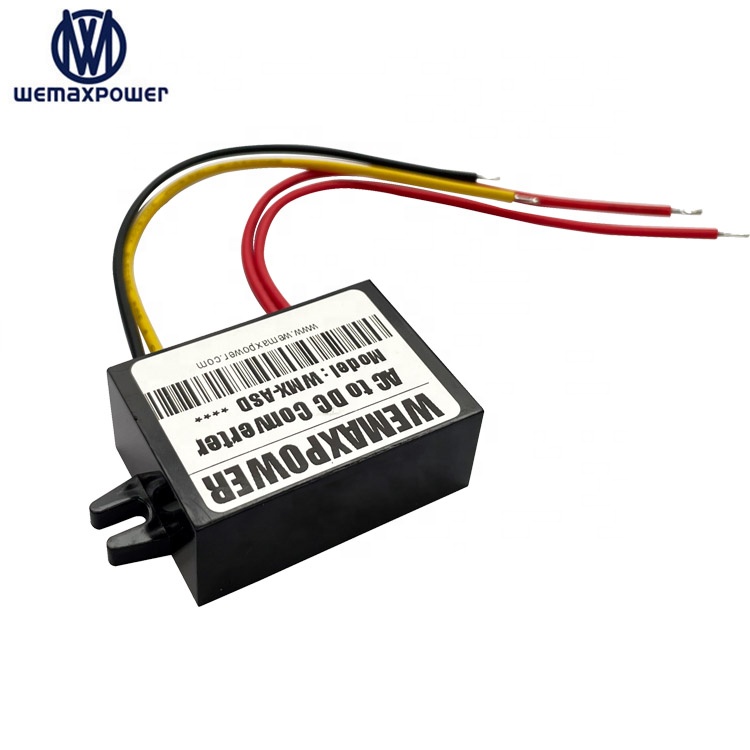

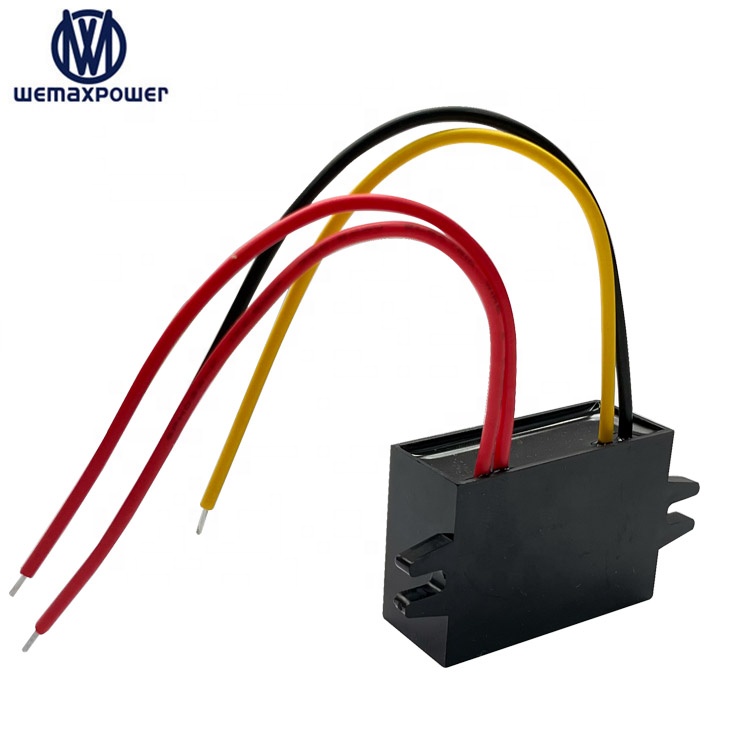

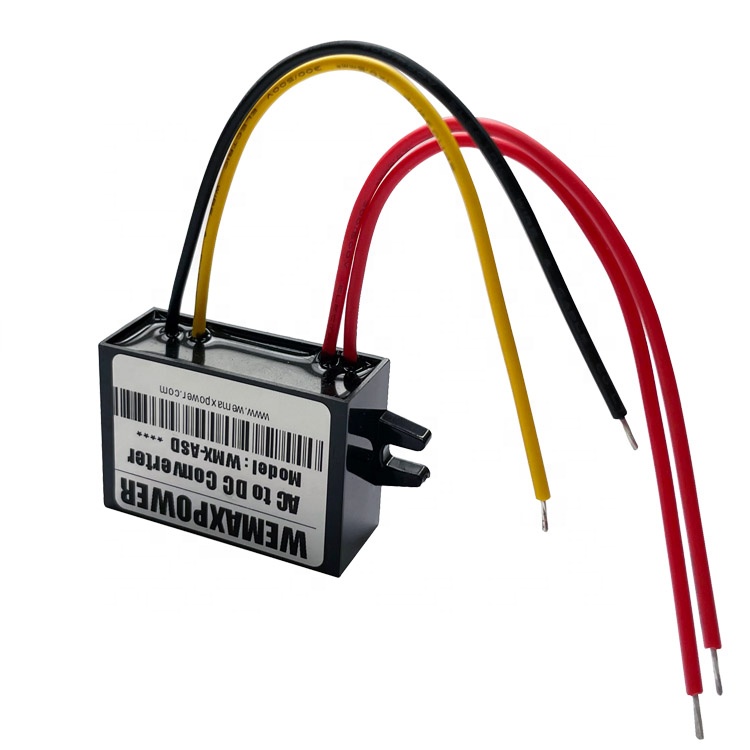

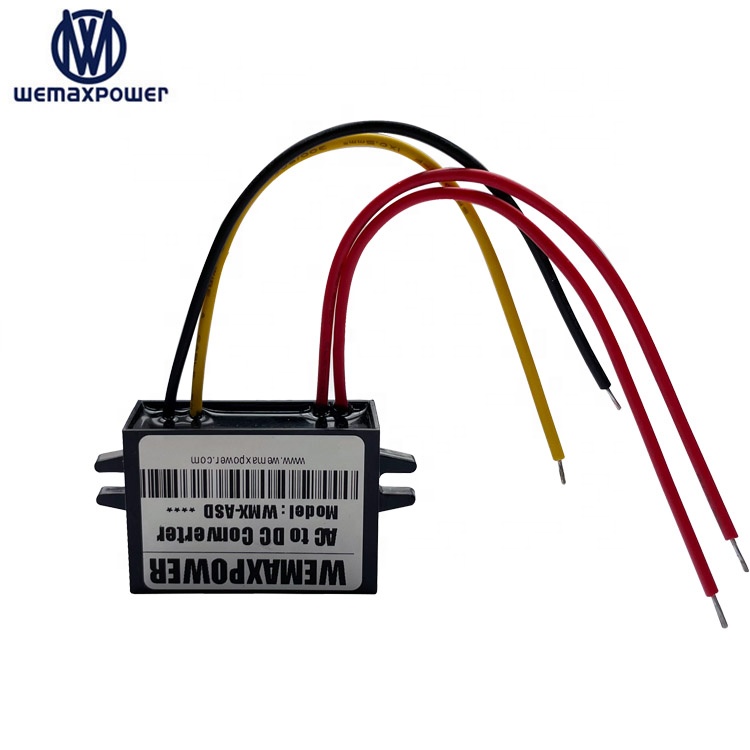

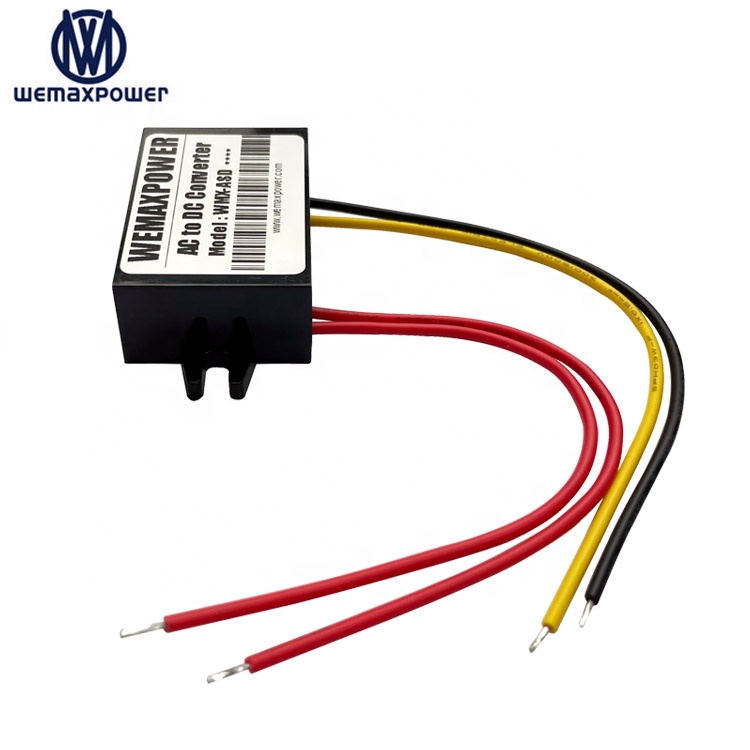

Waterproof 36W 12v Ac to 12v Dc 3A Converter AC12v to DC12v Ac-dc Converter for Printer,Router,Monitoring Switchboard

Product Description

Waterproof 36W 12v ac to 12v dc 3A converter AC12v to DC12v ac-dc converter for Printer, Router, Monitoring Switchboard

12v to 12v 3a ac to dc converter

Waterproof 36W 12v Ac to 12v Dc 3A Converter
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 93%.
  • Die-cast plastic shell, epoxy potting.
  • Non-Isolated Module.
Specifications
Series No. WMX-AD12D12
Model No. WMX-ASD12S1203
Product Name 12v to 12v ac to dc converter
Input rated voltage 12Vac
Input voltage range 10-28Vac
Conversion Efficiency 94%
Output voltage 12Vdc
Output current 3A
Output rated power 36W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size 46*32*18mm
N. Weight 45g
Cooling way Free air convection
Other Standard static bag packing
Product Showcase
Converter details
Converter features
Dimensions Section
Product dimensions details
Wiring diagram info
Wiring diagram section
Wiring instructions
Application fields
Applications guide
Quality assurances
Converter details view
Product list details
Full product series list
FAQ Section divider
Frequently Asked Questions
Q1. How do we work?

Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q2. What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q3. How do you ensure product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same item. Our support staff is always available to assist you whenever needed.

Q4. Can you customize products based on specific requirements?

Yes, we provide bespoke services to customers with specific requirements. You can send your detailed requirements via email, and we will check if we can develop them. We develop new models regularly, and some of them may not yet be updated on our website. Alternatively, you can send us samples for custom development.

Q5. How can I order and make payment?

Once your requirements are confirmed and the ideal product is determined, we will send a pro-forma invoice. You can make payment via bank transfer, Western Union, or PayPal.

Q6. What is your Minimum Order Quantity (MOQ)?

Different products have different MOQs. Generally speaking, our MOQ is 10pcs. Please feel free to check with us for specific items.
