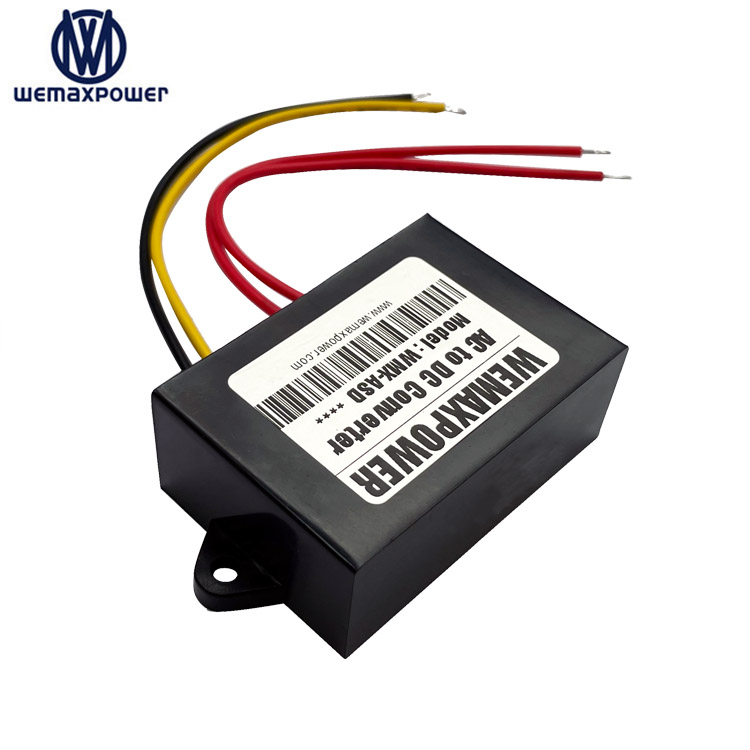

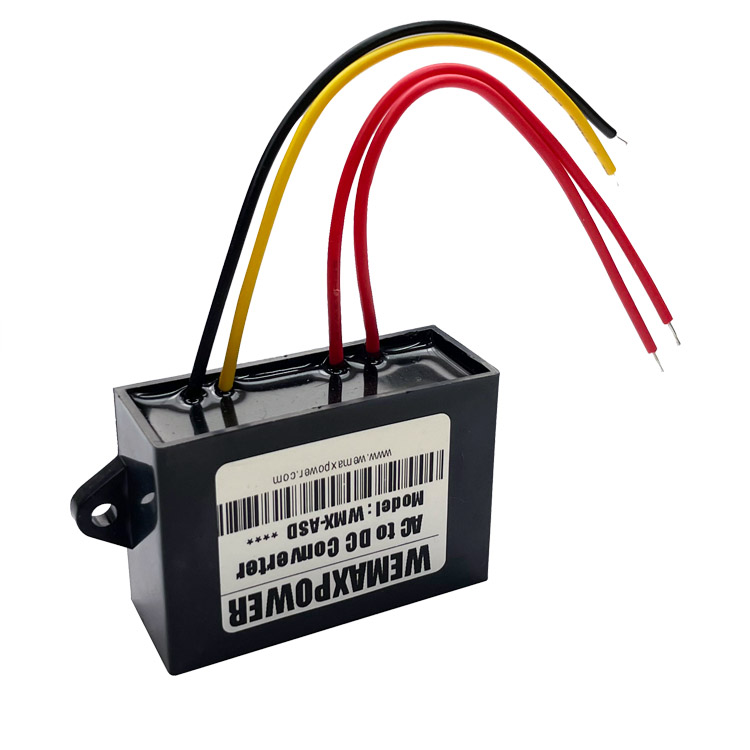

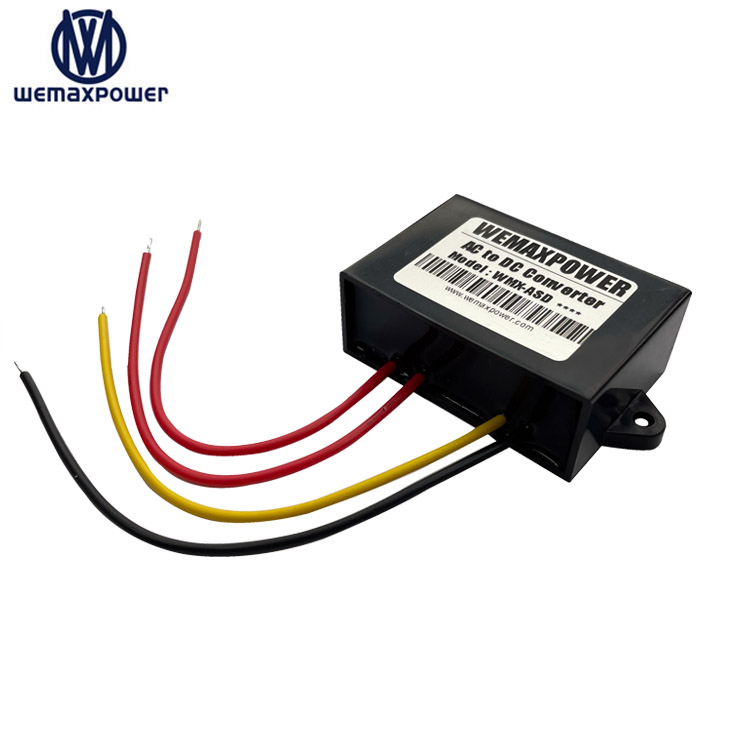

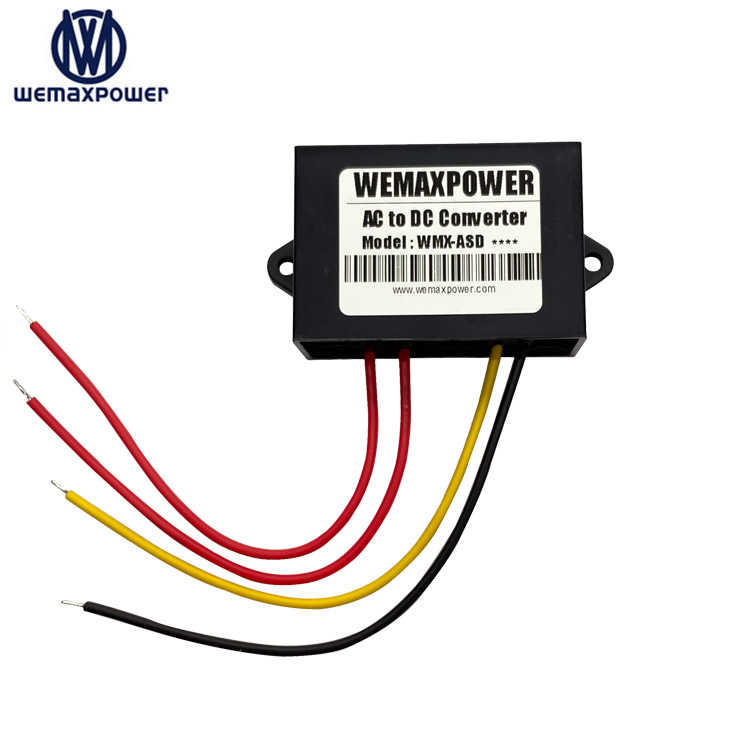

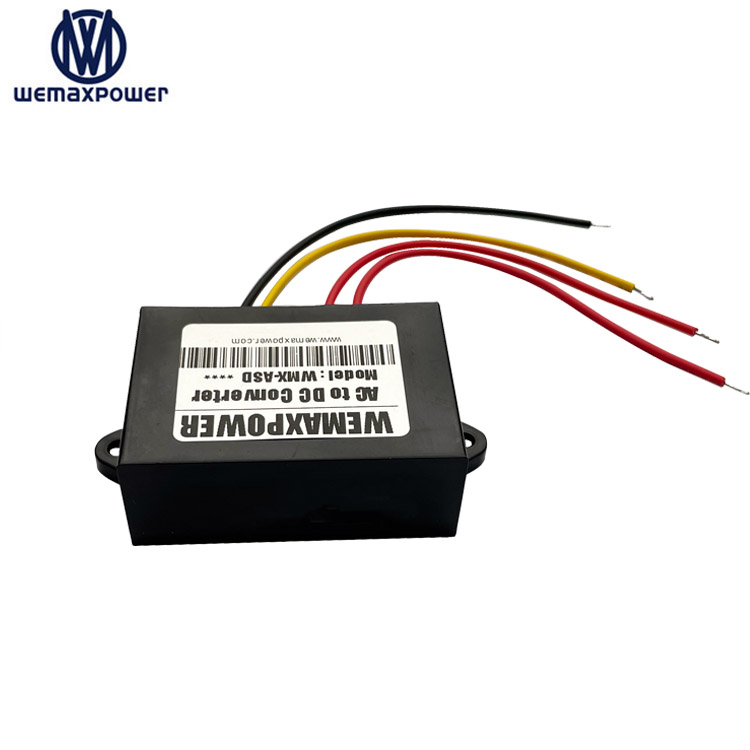

WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
1 / 5
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System
WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System

WEMAXPOWER IP68 5a Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module for Security System

Send Inquiry

Product Description

IP68 5a car monitoring ac-dc voltage transformer 24v ac to 12v dc converter module for security system

>>>24 ac to 12 dc converter<<<
Car Monitoring Ac-dc Voltage Transformer 24v Ac to 12v Dc Converter Module
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range 17-26vac.
  • Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast plastic shell, epoxy potting.
  • Non-Isolated Module.

IP68 5a car monitoring ac-dc voltage transformer 24v ac to 12v dc converter module for security system

Specifications
Model WMX-ASD24S1205
Product Name 24 ac to 12 dc converter
Input rated voltage 24 VAC
Input voltage range 17-26VAC / 17-36VDC
Conversion Efficiency 94%
Output voltage 12 VDC
Output current 5 Amps
Output rated power 60 Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP 68
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size 46*32*18mm
N. Weight 45g
Cooling way Free air convection
Package Standard static bag packing
Product Description
Product Title Visual
Product Dimensions and Details
Full Product Structure
Detailed Technical Description
Description Footer
Buyer Feedback
Customer Feedback 1
Customer Feedback 2
Customer Feedback 3
Customer Feedback 4
Divider Graphic
Frequently Asked Questions
Q1. How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q2. What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
Q3. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described and the problem is proven to be caused by our factory, we will provide exchange services for the same item. Our support team is always available to assist you.
Q4. Do you provide custom services based on specific requirements?
Yes, we provide bespoke services for customers with specific requirements. You can send us your detailed requirements, and we will check the feasibility of development. We introduce new models every month, some of which may not yet be updated on our website, or you can send us samples for custom development.
Q5. Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you evaluate the product, you will be highly satisfied with both our output and our competitive pricing.
Q6. What is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our MOQ is 1 piece. Please feel free to check with us regarding specific items.
