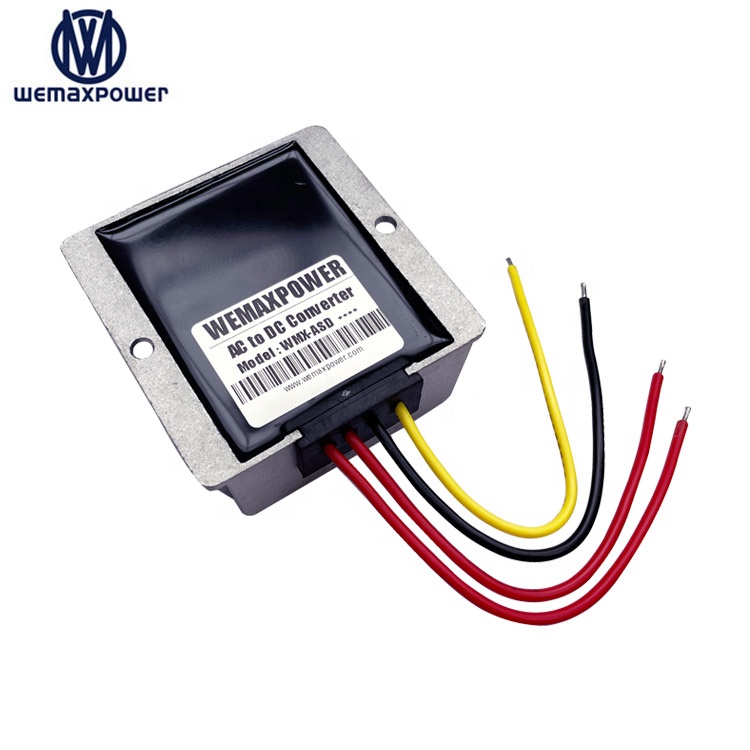

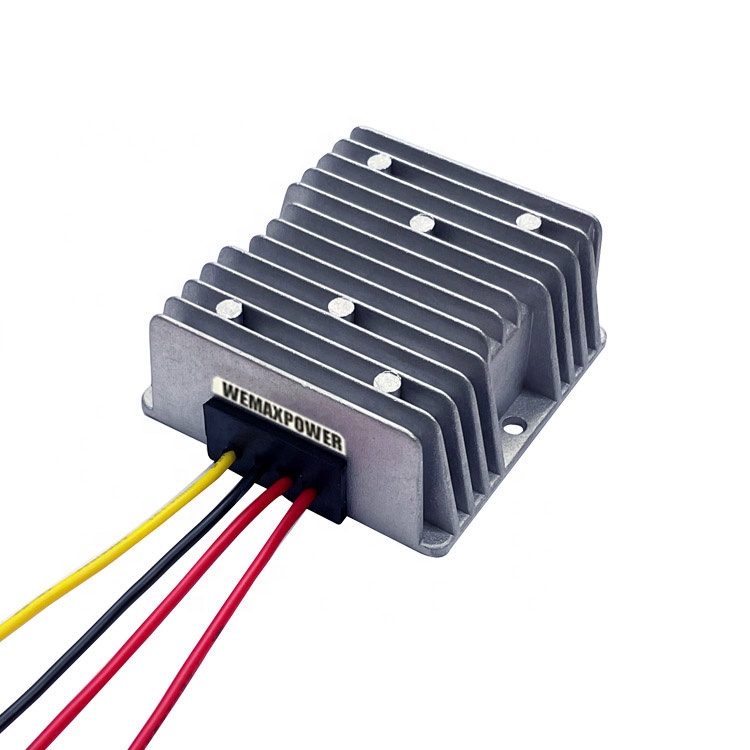

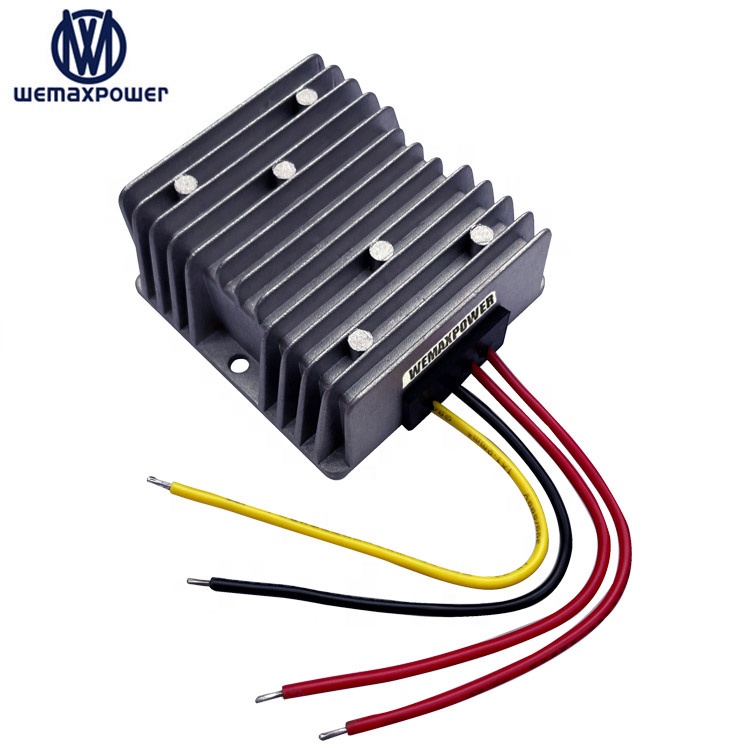

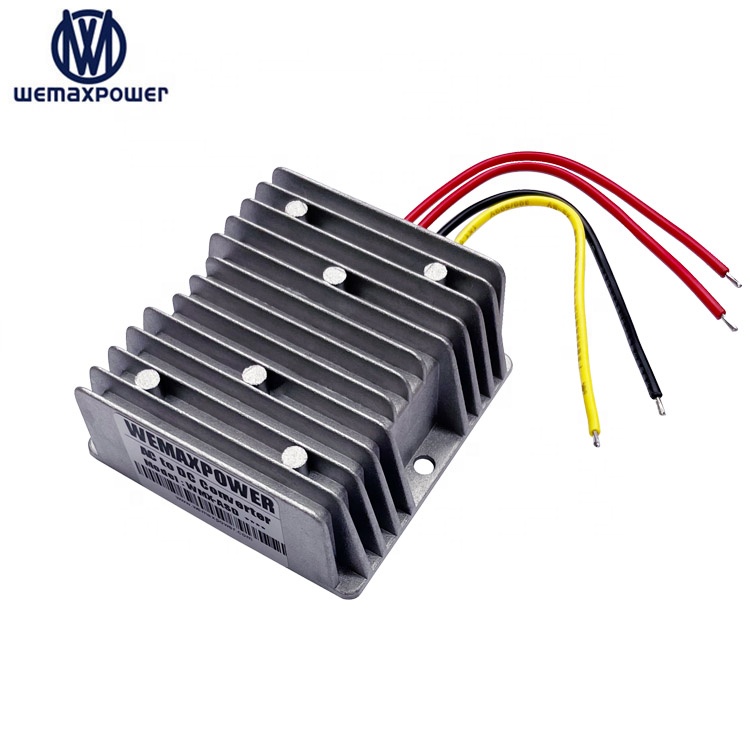

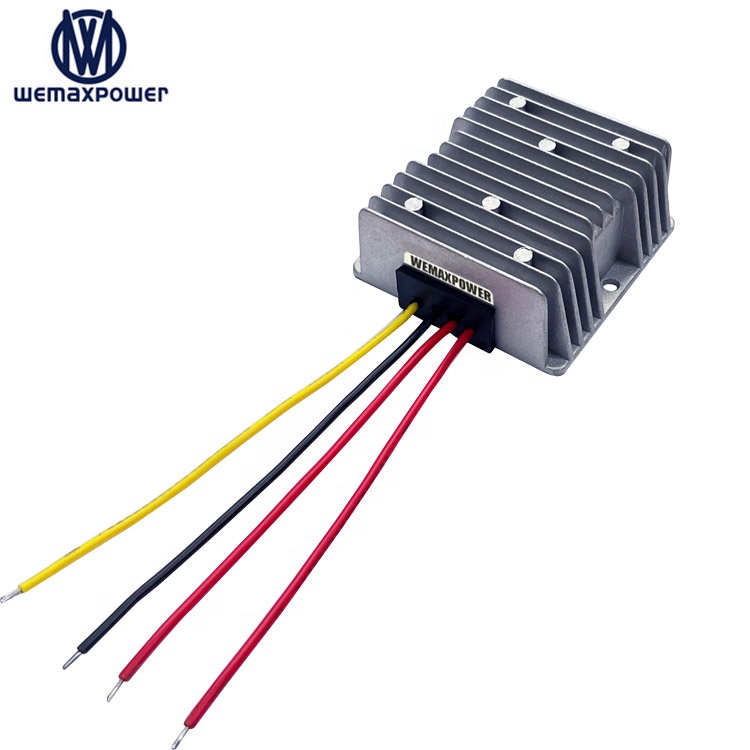

Waterproof Monitoring Car Led 5A Ac24v Step Down Dc24v Ac to Dc Voltage Regulator 24vac to 24vdc Converter

Product Description

Waterproof monitoring car led 5A ac24v step down dc24v ac to dc voltage regulator 24vac to 24vdc converter

Waterproof Monitoring Car Led 5A Ac24v Step Down Dc24v Ac to Dc Voltage Regulator 24vac to 24vdc Converter

Hot Sell Converter

Waterproof Monitoring Car Led 5A Ac24v Step Down Dc24v Ac to Dc Voltage Regulator 24vac to 24vdc Converter

24vac to 24vdc 5a ac-dc converter

Divider Line
High quality components.
Full power, stable voltage & current output.
Wide input voltage range 22-28vac.
Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
Industry grade product, efficiency up to 96%.
Die-cast aluminum shell, epoxy potting.
Non-Isolated Module.
Divider Line
SN WMX-AD24D24
Model WMX-ASD24S2405
Product Name 24vac to 24vdc ac dc converter
Input rated voltage 24Vac
Input voltage range 22-28Vac
Conversion Efficiency 96%
Output voltage 24Vdc
Output current 5A
Output rated power 120W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Cooling way Free air convection
Other White box packing
Divider Line

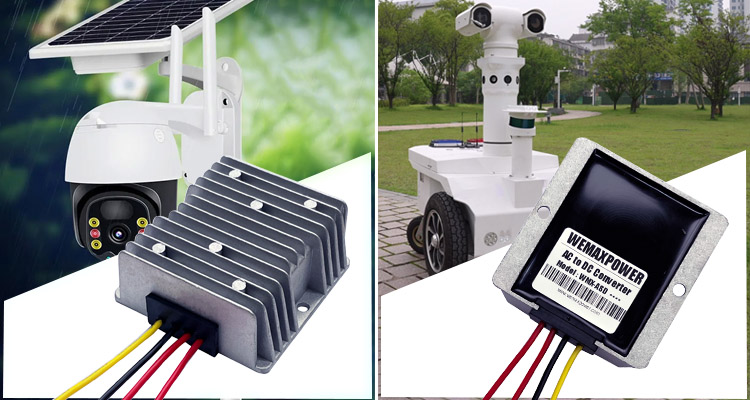

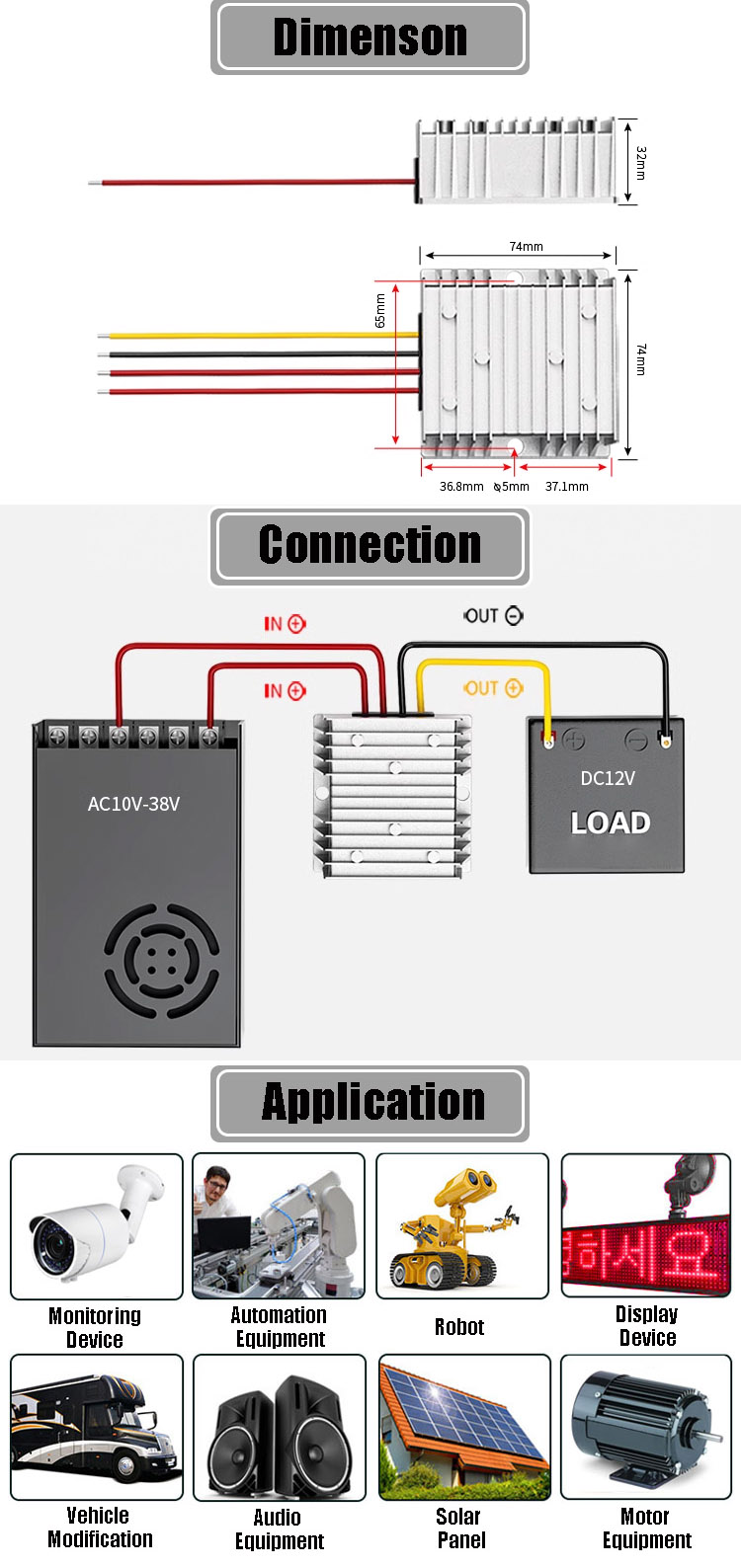

Dimensions and wiring diagram
Product detailed display 1 Product detailed display 2

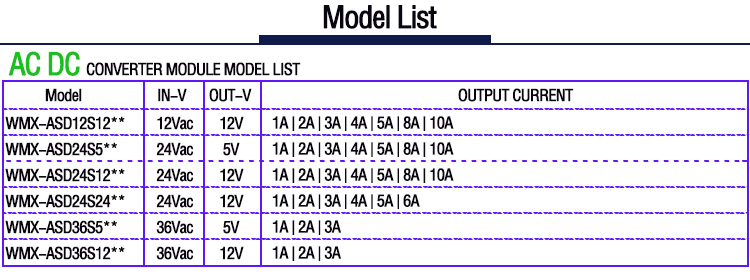

Product packaging description
Factory application range
Divider Line
Frequently Asked Questions
Q1. How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q2. What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
Q3. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything is needed.
Q4. If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.
Q5. Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.
Q6. How can I order and make payment?
Once clear your requirement and determined which product is ideal for you, we will send pro-forma invoice to you. You can pay via TT bank transfer, Western Union or PAYPAL as you like!
