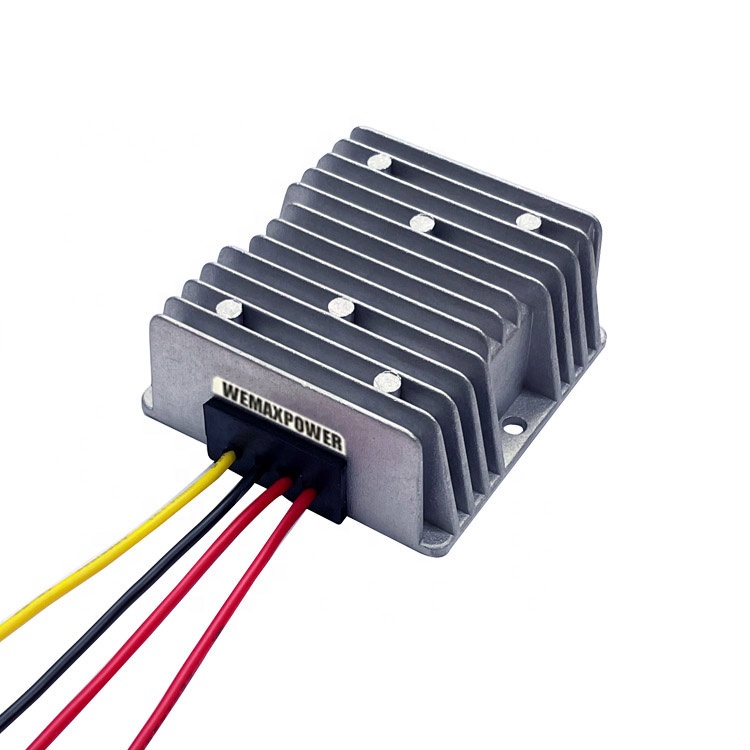

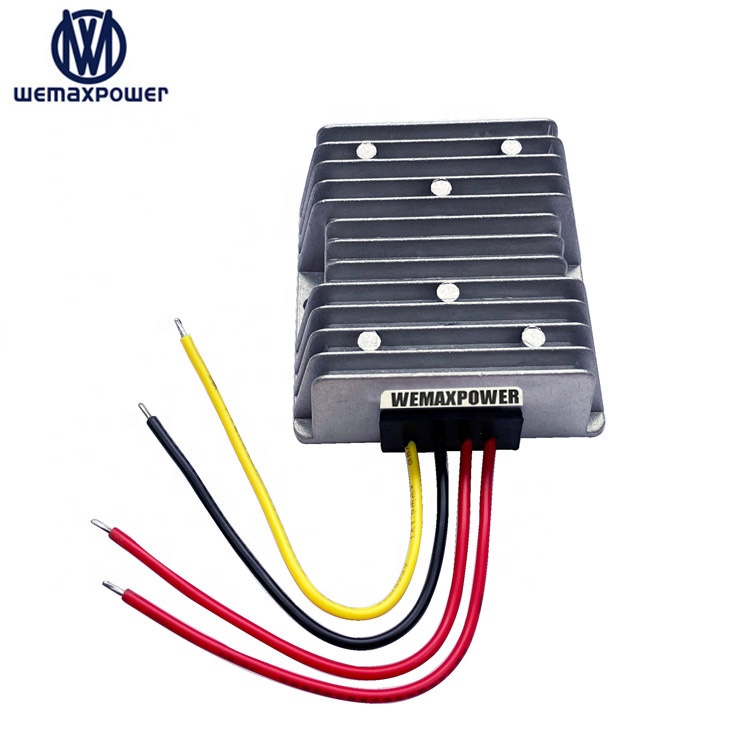

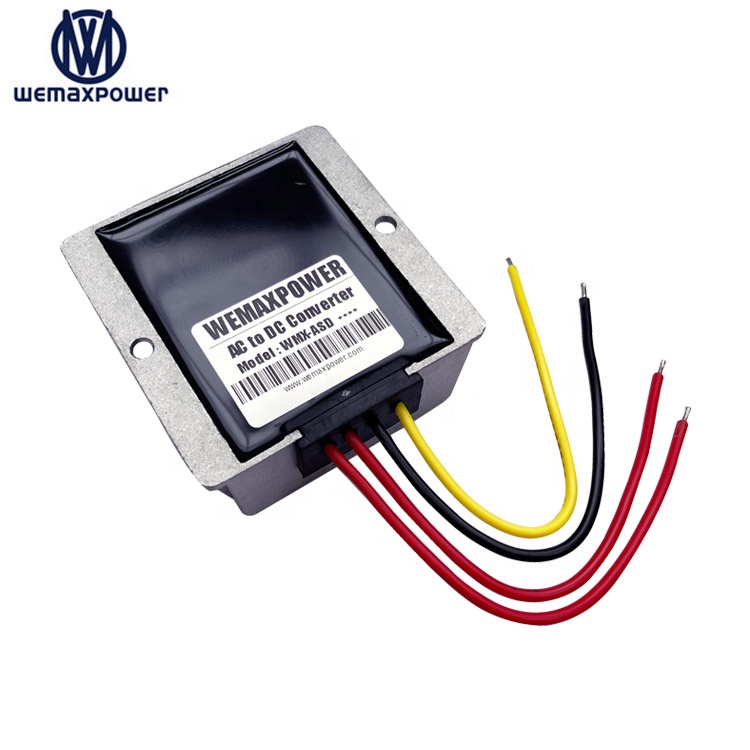

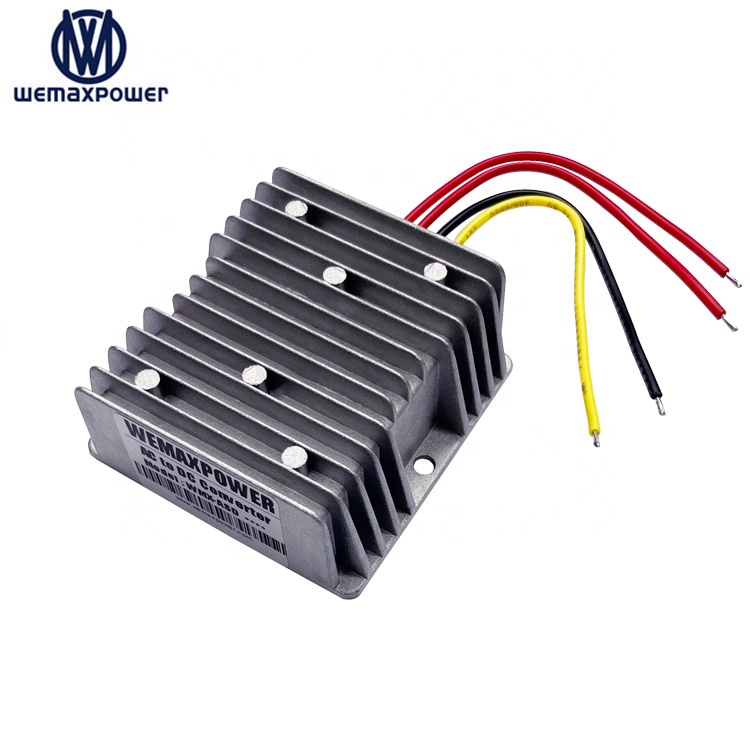

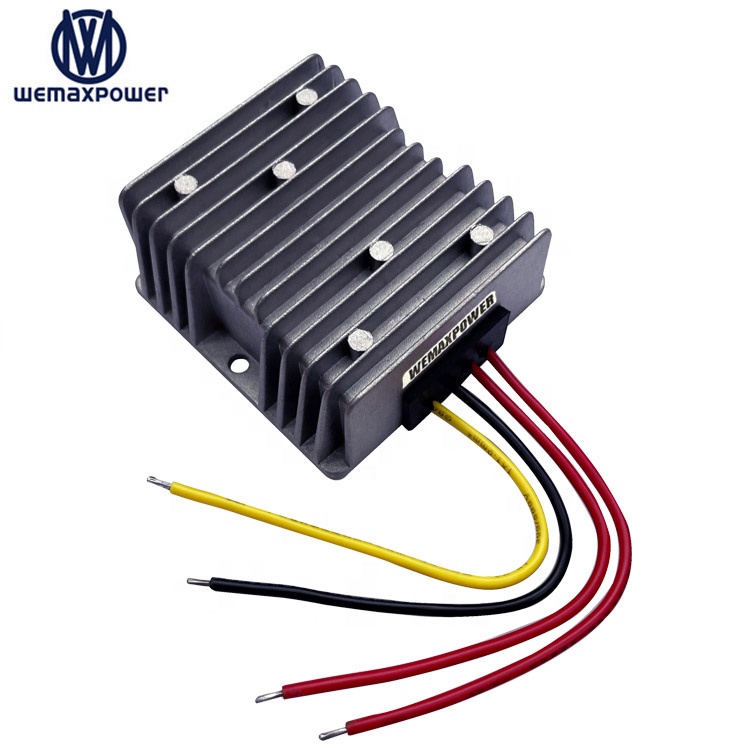

24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
1 / 5
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light
24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light

24vac to 12vdc 8amp Ac-dc Power Converter Module 8a 24v Ac to 12v Dc for Security System LED Light

Send Inquiry

Product Description

24vac to 12vdc 8amp ac-dc power converter module banner

24vac to 12vdc 8amp ac-dc power converter module 8a 24v ac to 12v dc for security system LED light

Hot Sell Converter
Hot Sell Converter Guide
24vac to 12vdc ac-dc converter
Decorative Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range 15-28vac.
  • Waterproof IP67 & anti-shock protection, Ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
Specification Divider
SN WMX-AD24D12
Model WMX-ASD24S1208
Product Name 24vac to 12vdc ac-dc converter
Input rated voltage 24Vac
Input voltage range 15-28Vac
Conversion Efficiency 96%
Output voltage 12Vdc
Output current 8A
Output rated power 96W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Cooling way Free air convection
Other White box packing
Detail Divider
Product Diagram Details
Product Detailed Parameters Spec 1 Product Detailed Parameters Spec 2
Wiring Configuration Info
Installation & Application Instructions
FAQ Divider
Frequently Asked Questions
How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
What kind of products can you buy from us?
You can purchase DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.
How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty starting from the delivery date. If the product does not work properly as described and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.
If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed requirements, and we will check if we can develop them. We develop new models every month, and some may not yet be updated on our website. Alternatively, you can send us samples and we can develop the new models specifically for you.
Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you test the product, you will be highly satisfied. Combined with our excellent service and competitive pricing, we believe we will be your ideal choice for power supply solutions.
How can I order and make payment?
Once your requirements are clear and the ideal product is determined, we will send a pro-forma invoice to you. You can pay via TT bank transfer, Western Union, or PayPal as you prefer.
