| Series No. | WMX-AD24D5 |
| Model No. | WMX-ASD24S505 |

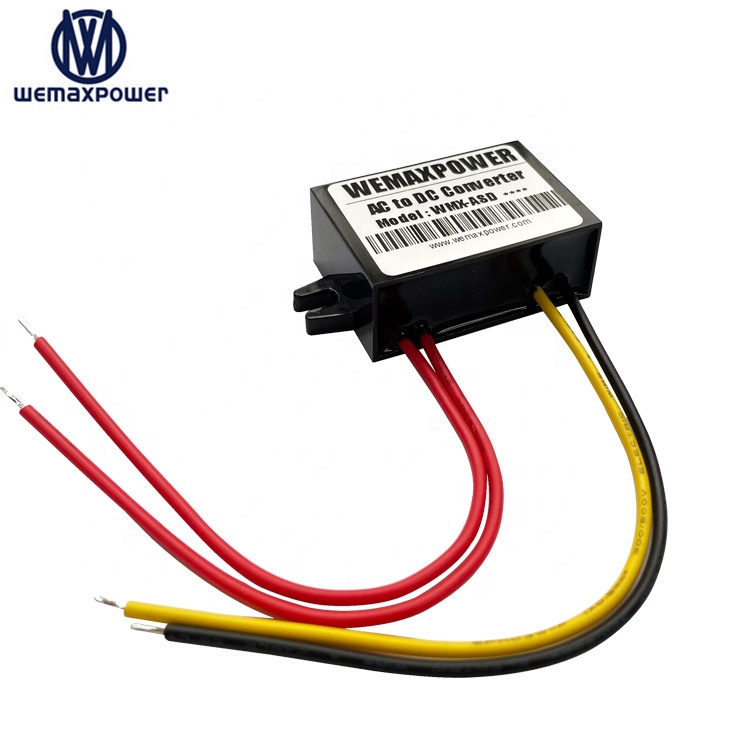

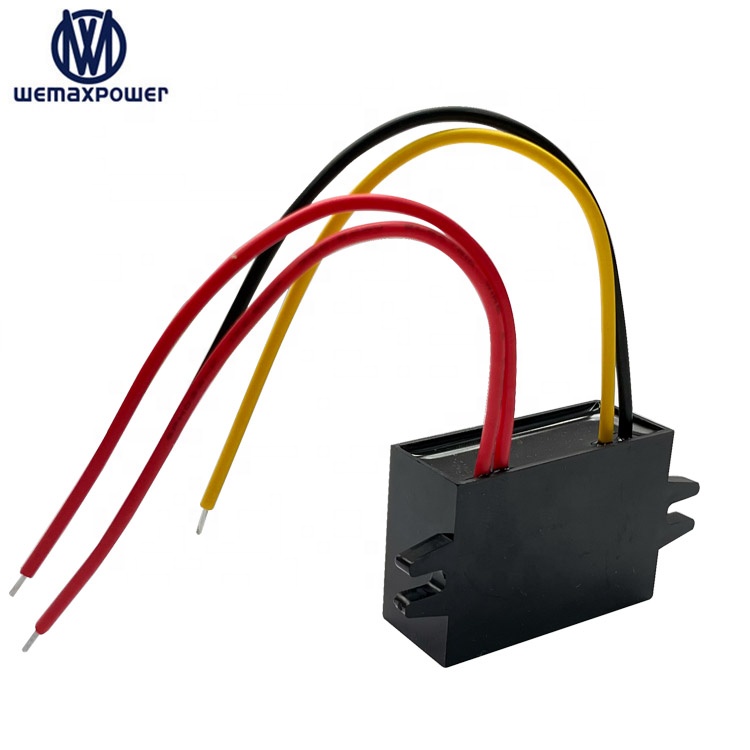

| Product Name | 24v to 5v ac to dc converter |
| Input rated voltage | 24Vac |
| Input voltage range | 14-28Vac |
| Conversion Efficiency | 94% |
| Output voltage | 5Vdc |
| Output current | 5A |
| Output rated power | 25W |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |
| Waterproof rating | IP67 |
| Protections | Reverse connection, Over-current, Over-temperature, Output short circuit |

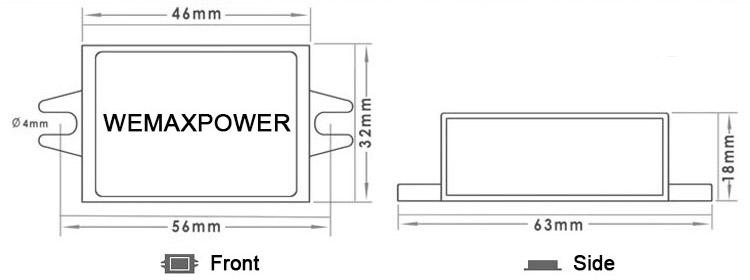

| Machine size | 46*32*18mm |
| N. Weight | 45g |
| Cooling way | Free air convection |
| Other | Standard static bag packing |
Q1. How do we work?
Since 2009, we have provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q2. What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
Q3. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by the manufacturing process, we will provide exchange services for the same specific item. Also, our support staff will always be there to assist you.
Q4. If we don't find what we need on your website, what should we do? Do you offer customization services per specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed requirements, and we will check if we can develop them. We develop new models regularly, some of which may not yet be updated on our website. Alternatively, you can send us samples and we can develop the new models specifically for you.
Q5. How can I order and make payment?
Once your requirement is clear and you have determined which product is ideal for you, we will send a pro-forma invoice. You can pay via TT bank transfer, Western Union, or PAYPAL as preferred.
Q6. What is your Minimum Order Quantity?
Different products have different MOQs. Generally speaking, our MOQ is 10pcs. Please do not hesitate to check with us for specific items.
