Product Description

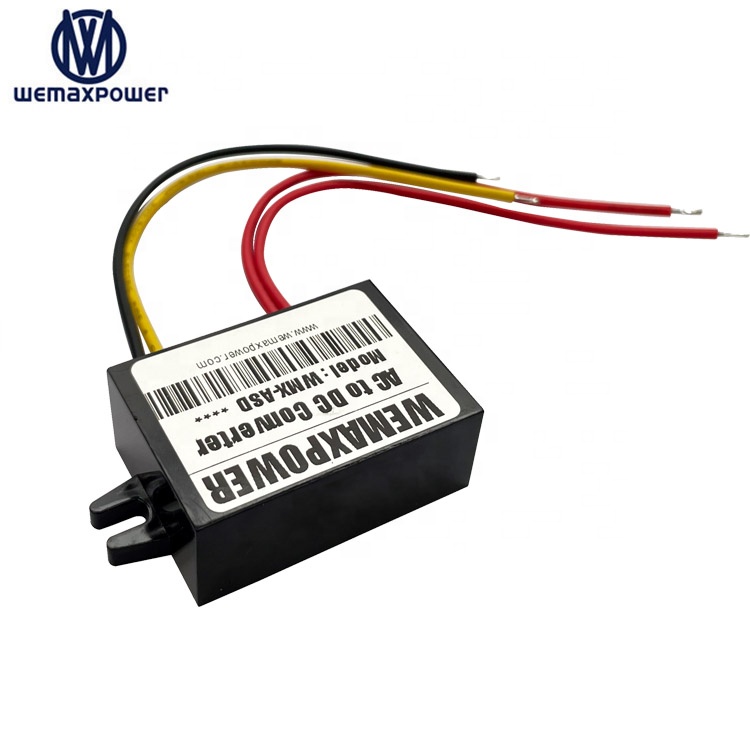

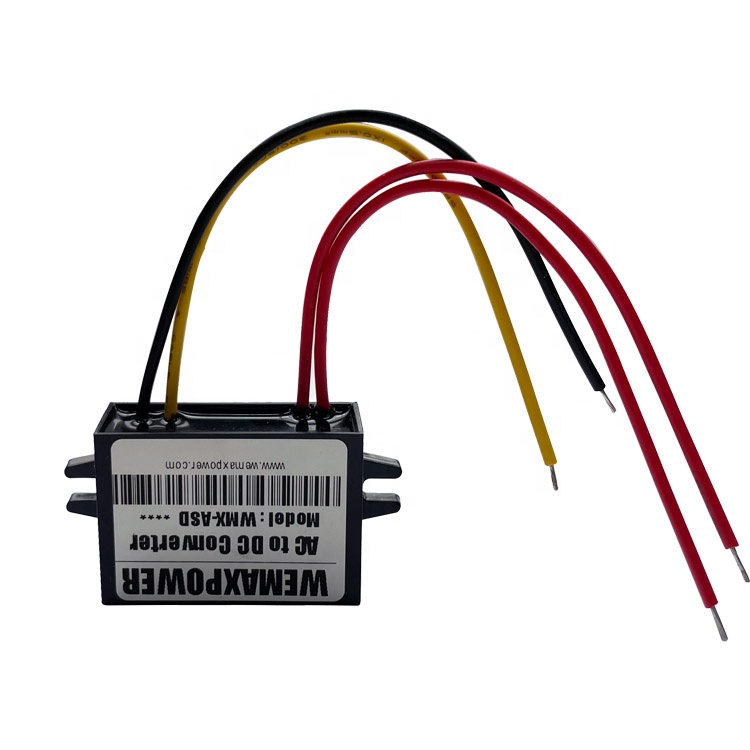

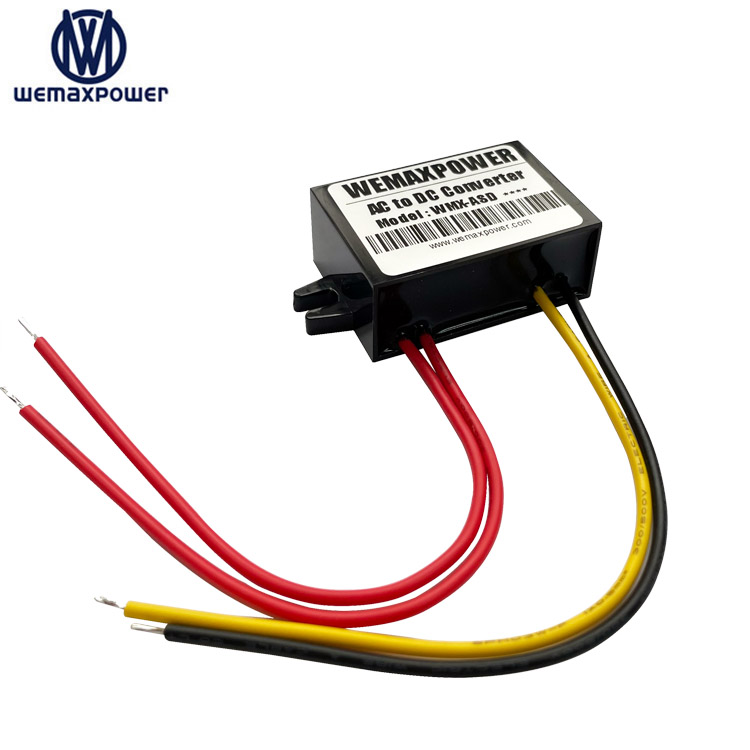

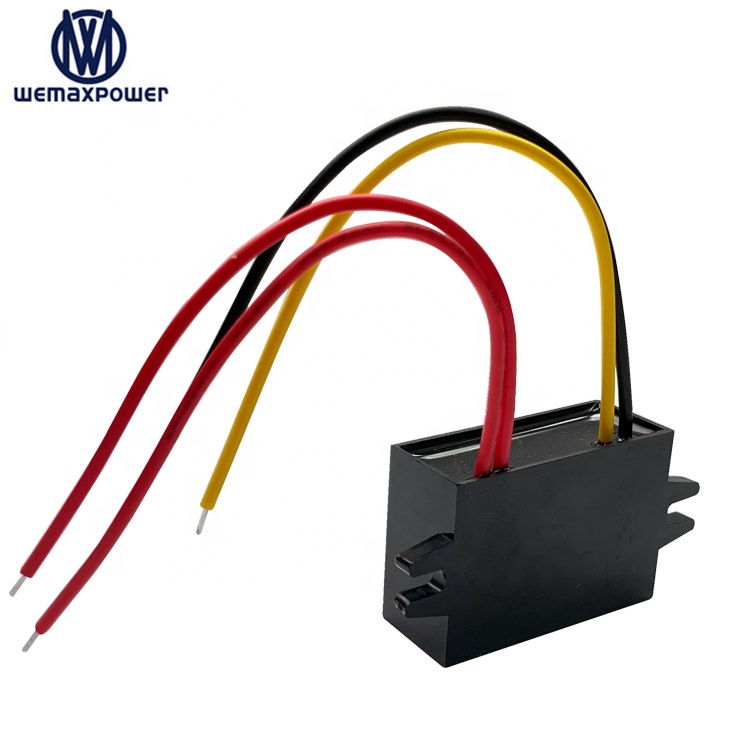

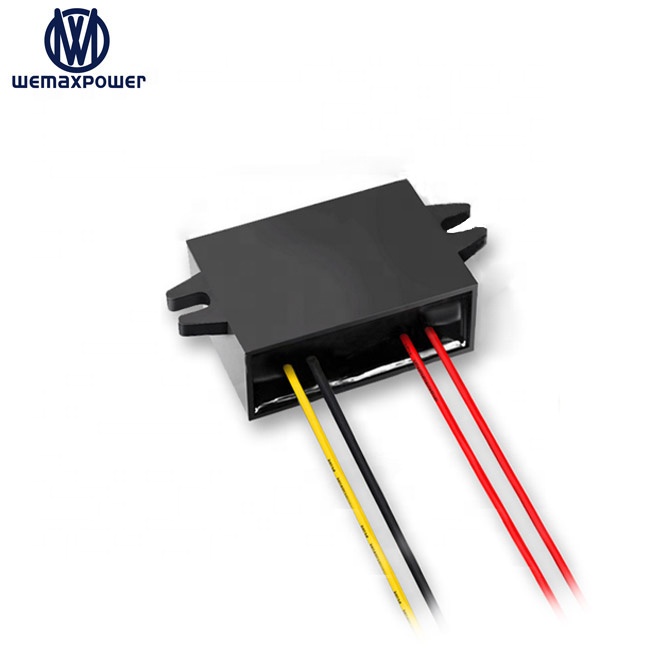

24VAC to 5VDC 1A 2A 3A Converters

AC to DC Voltage Step Down Regulator 3Amp (AC24V to 5V AC-DC Converter for Monitor Router)

24V to 5V 3A AC-DC Converter

Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 93%.
  • Die-cast plastic shell, epoxy potting.
  • Non-Isolated Module.
Specifications Divider
Technical Specifications
Series No. WMX-AD24D5
Model No. WMX-ASD24S503
Product Name 24v to 5v ac-dc converter
Input rated voltage 24Vac
Input voltage range 14-28Vac
Conversion Efficiency 94%
Output voltage 5Vdc
Output current 3A
Output rated power 15W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size 46*32*18mm
N. Weight 45g
Cooling way Free air convection
Other Standard static bag packing
Product Divider Product Details Image Drawing Divider Product Dimensions Drawing Wiring Divider Product Wiring Diagram Installation Divider Product Specifications Flowchart Applications Divider
Application Details 1
Application Details 2
Additional Information Divider Quality Certificate Drawing Packaging Divider Packaging and Shipping Detail FAQ Divider
Frequently Asked Questions
How we work?
Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything needed.
If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.
How can I order and make payment?
Once clear your requirement and determined which product is ideal for you, we will send pro-forma invoice to you. You can pay via TT bank transfer, Western Union or PAYPAL as you like!
What is your Minimum Order Quantity?
Different products have different MOQ, generally speaking, our MOQ is 10pcs, please don't hesitate to check with us for specific items.
