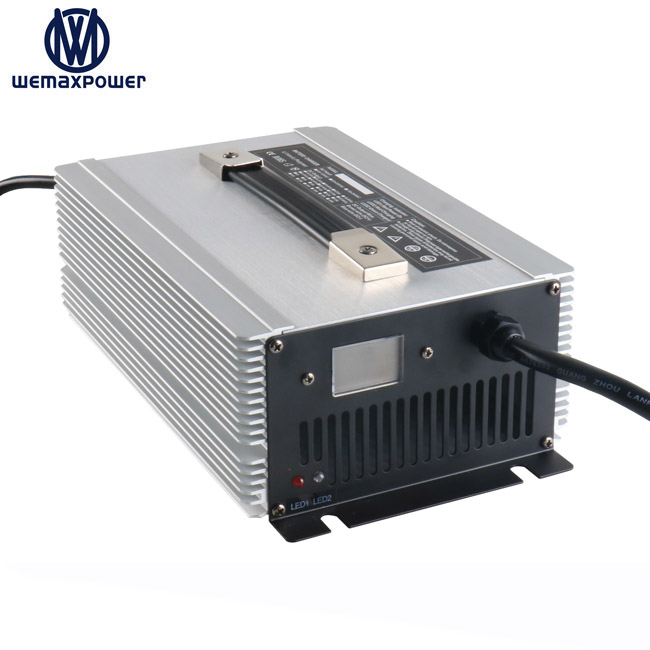

E rickshaw electric bike scooter vehicle motorcycle 71.4v 63v 67.2v 73v 73.5 Lead acid lifePO4 li-ion 60v 25a battery charger
| Series No. | WMX-C2000 |
| Model No. | WMX-BC6025 60--Output Voltage, 25--Output Current |
| Product name | 60v 25a battery charger |
| Input Voltage | 100~240Vac, 50HZ/60HZ |
| Nominal Voltage | 60 VDC |
| Charging Current | 25 A |
| Housing | Aluminum Alloy |
| Net Weight | 5.5 kg |
| Product dimension | 330*175*90mm |
| Package dimension | 40*21*17cm |
| Lead acid Equal / Float voltage | 58.8V |
| LiFePO4 Charging voltage | 58.4V(16S) |
| Li-ion Charging voltage | 50.4V(12S), 54.6V(13S), 58.8V(14S) |
| Charging Principle | Full automatic transition CC,CV and Float / Cut-off |
| Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥90% |
| MTBF | ≥50000h |
| Operating Temperature | -20℃~50℃ |
| Store Temperature | (-40~80)℃ |
| Related humidity | 90%(40±2℃) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators | Red means power on / charging, Green means full charged |
| AC Plug | Accept any plug base on your request |
Note: Before you place an order, please confirm the following questions to us:
Can this charger be used for both Lithium and Lead-Acid batteries?
Yes, this charger is compatible with Li-ion, LiFePO4, and Lead-Acid batteries. However, different battery chemistries require distinct charging profiles. Please confirm your specific battery type before ordering so we can preset the correct charging voltage parameters.
What are the safety protection mechanisms of this 60V 25A charger?
The charger is equipped with multiple protection systems including short circuit protection, over-voltage protection, over-temperature protection, and reverse polarity protection to ensure a safe and highly reliable charging process.
How does the 3-stage charging mode work?
The charger uses a smart constant current (CC), constant voltage (CV), and float/cut-off mechanism. This ensures the battery is charged efficiently, prevents overcharging, reduces thermal stress, and helps extend the lifespan of your battery.
What do the LED indicators show?
The charger features easy-to-read LED indicators: Red LED indicates that the unit is powered on and currently charging, while the Green LED indicates that the battery has reached full charge.
Can I customize the AC input and DC output plugs?
Absolutely. We accept custom plugs tailored to your specific power sockets and battery interfaces. Please refer to our plug guide and advise us on your required specifications during order placement.
Is the aluminum alloy casing durable?
Yes, the premium black and silver aluminum alloy housing is lightweight yet highly durable. It provides excellent heat dissipation properties, which helps maintain high performance during extended charging periods.
