| Series No. | WMX-C600 |
| Model No. | WMX-BC3612 (36--Output Voltage, 12--Output Current) |

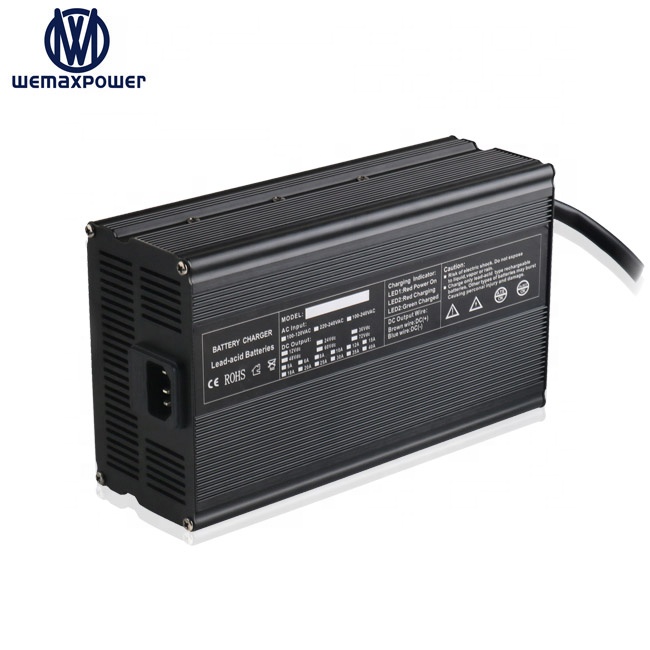

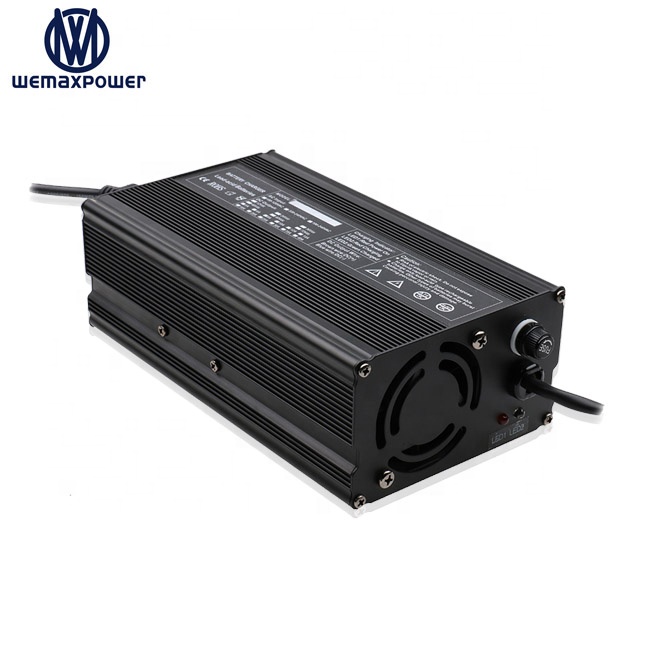

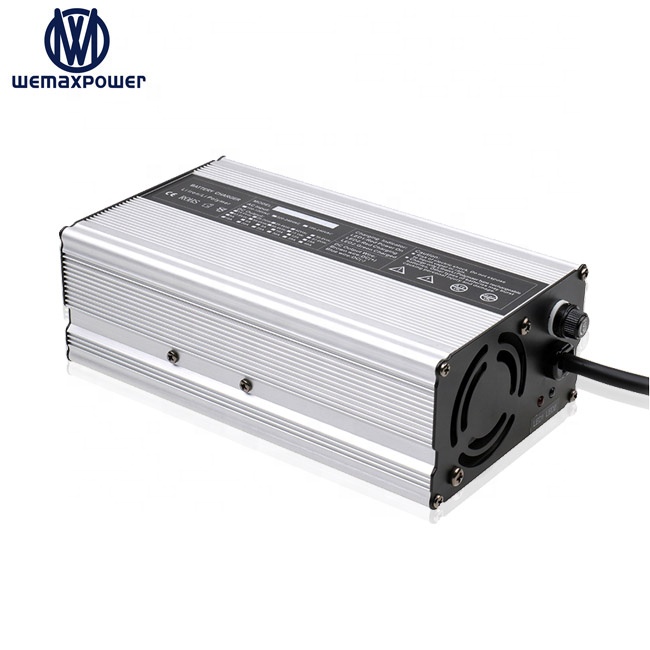

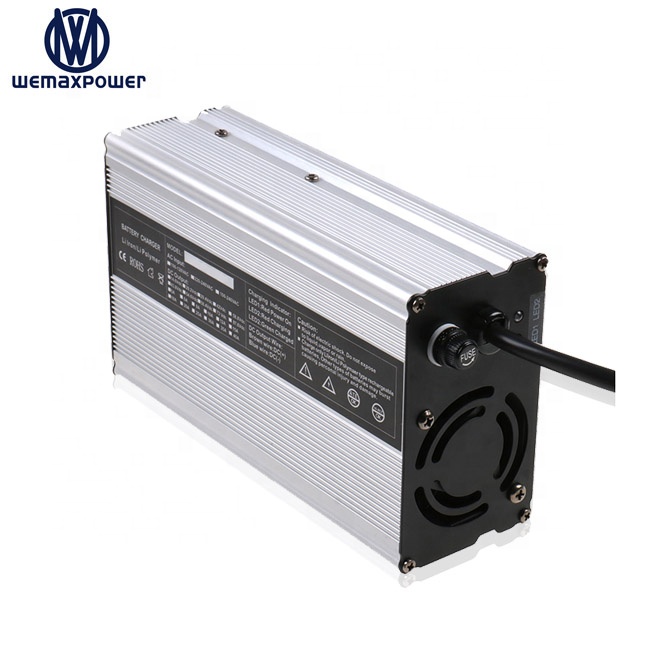

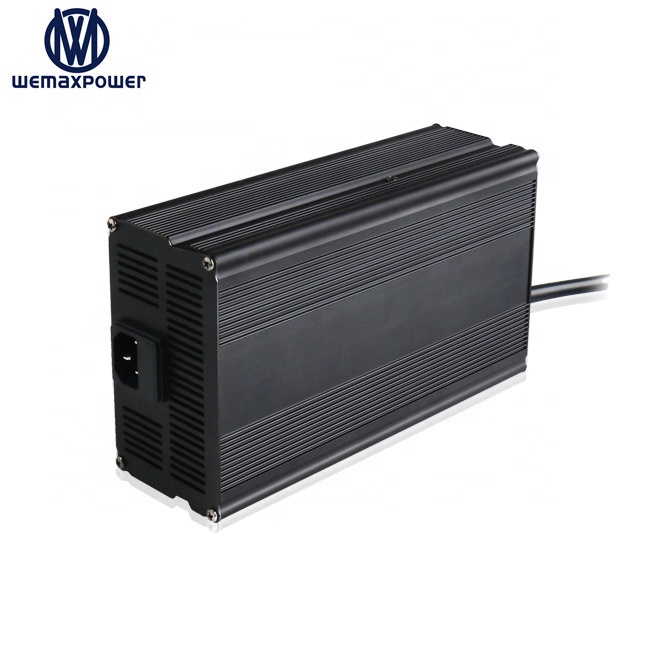

| Product name | 36v 12a battery charger |
| Input Voltage | 110V (100~130Vac) / 220V (200~240Vac), 50HZ/60HZ |
| Nominal Voltage | 36 VDC |
| Charging Current | 12 A |
| Housing | Aluminum Alloy |
| Net Weight | 2.5 kg |
| Product dimension | 210*120*70mm |
| Package dimension | 29*21*11cm |
| Lead acid Equal / Float voltage | 44.1V / 41.4V |
| LiFePO4 Charging voltage | 43.8V |
| Li-ion Charging voltage | 42V(10S) , 42.5V(10S) |
| Charging Principle | Full automatic transition CC, CV and Float / Cut-off |
| Charging Time | Cut-off point for Li battery is 5% of CC and it can be set between 3-10%. Transition for Lead acid charger is 20% of CC. |
| High-Efficiency | ≥ 90% |
| MTBF | ≥ 50000h |
| Operating Temperature | -20°C ~ 50°C |
| Store Temperature | -40°C ~ 80°C |
| Related humility | 90% (40±2°C) |
| Protection Function | Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protect |
| Indicators | Red means power on / charging, Green means full charged |
| AC Plug | Accept any plug base on your request |
| Warranty | 12 months |
