Colorful design 30ah 40ah 50ah 60ah lead acid lithium ion LiFePO4 car lawn mower floor scrubber 12v 10a battery charger
Car battery charger 12v 10a
-
✓
Full automatic transition of CC, CV, and Float / Cut-off, with precise voltage & current limits.
-
✓
High efficiency ≥ 90%, delivering high performance, stability, and durability.
-
✓
Intelligent and safe three-stage charging mode (CC-CV-Floating) offering high saturation and reduced heat emission.
-
✓
Multi-protection functions: short circuit, over-voltage, over-temperature, and reverse polarity protections.
-
✓
Durable aluminum black and silver housing, designed to be lightweight, portable, and reliable.
| Series No. |
WMX-C240 |
| Model No. |
WMX-BC1210C
(12: Output Voltage, 10: Output Current) |
| Product Name |
Car battery charger 12v 10a |
| Input Voltage |
110V (100~130Vac) / 220V (200~240Vac), 50HZ/60HZ |
| Nominal Voltage |
12 VDC |
| Charging Current |
10 A |
| Housing |
Aluminum Alloy |
| Net Weight |
1.1kg |
| Product Dimension |
170*90*50mm |
| Lead acid Equal / Float voltage |
14.7V / 13.8V |
| LiFePO4 Charging voltage |
14.6V (4S) |
| Li-ion Charging voltage |
12.6V (3S), 16.8V (4S) |
| Charging Principle |
Full automatic transition CC, CV and Float / Cut-off |
| Charging Time |
Cut-off point for Li battery is 5% of CC (adjustable between 3-10%). Transition for Lead acid charger is 20% of CC. |
| High-Efficiency |
≥ 90% |
| MTBF |
≥ 50000 hours |
| Operating Temperature |
-20℃ ~ 50℃ |
| Store Temperature |
-40℃ ~ 80℃ |
| Relative Humidity |
90% (40±2℃) |
| Protection Function |
Over voltage / Over temperature / Over current / Short circuit and Reverse polarity Protection |
| Indicators |
Red means power on / charging, Green means full charged |
| AC Plug |
Accept plug configurations based on your request |
⚠️ Warm Tip:
Please let us know the plugs you need before confirming the order.
📋 Please confirm these questions before placing your order:
- What kind of battery do you need to charge? (Li-ion battery, LiFePO4 battery, or Lead Acid battery?)
- What is the max charging voltage of the battery?
- What is the number of cells in series?
- What is the capacity (AH) of the battery pack?
- What input plug and output plug configurations do you need? (For Example: B & 1)
Can this charger support multiple battery chemistries?
Yes, this battery charger is fully compatible with Lithium-Ion (Li-ion), Lithium Iron Phosphate (LiFePO4), and Lead-Acid batteries. Please make sure to specify your exact battery type prior to ordering so the correct charging voltage parameters can be calibrated.
What are the safety protection mechanisms on this 12V 10A charger?
The charger features dynamic built-in protection logic including Short Circuit Protection, Over-Voltage Protection, Over-Temperature Protection, and Reverse Polarity Protection to secure both the charger and the battery pack.
How does the 3-stage charging process work?
It operates on an automated Constant Current (CC) - Constant Voltage (CV) - Float/Cut-off profile. This charging dynamic maximizes energy saturation, shortens charge duration, and reduces overall thermal stress on the battery cell structures.

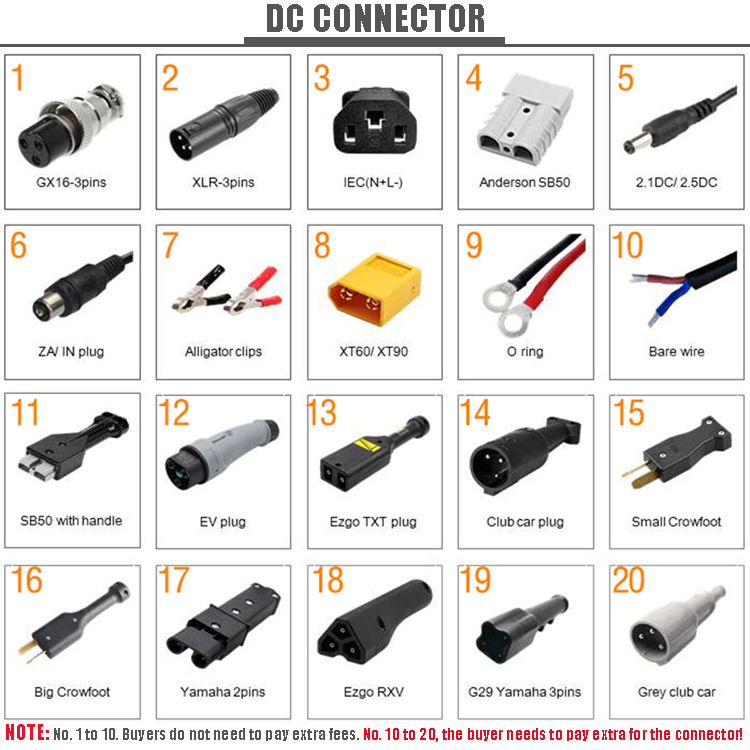

What plug styles are available for customization?
We offer customization for input AC plugs and output DC connectors based on regional grid standards and local equipment requirements. Please review the plug layout chart and indicate your specifications (e.g. Type B input & Type 1 output) when contacting us.
Is the housing suitable for heavy-duty industrial environments?
Absolutely. The charger housing is constructed from high-grade aluminum alloy, which provides outstanding durability, light weight, and natural heat dissipation capabilities, ensuring an MTBF of over 50,000 operational hours.
