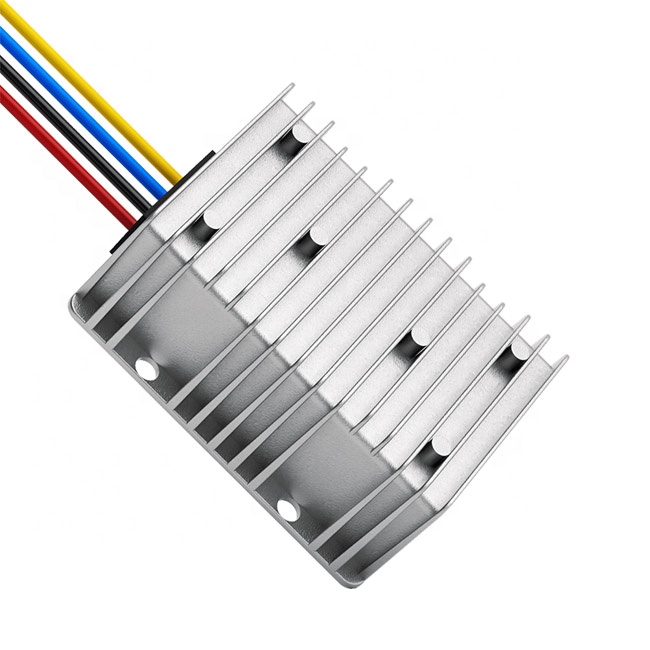

12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
1 / 5
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications
12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications

12/24Vdc to 12Vdc 15A Single Phase IP67 Waterproof Buck Boost Isolated Converter for Home & Motor Applications

Send Inquiry

Product Description

Waterproof 9-36v 12/24v step up down 12vdc 15amp voltage buck boost isolation module 12v 24v to 12v 15a dc isolated converter

Waterproof Buck Boost Isolated Converter
Similar Products
Similar DC-DC Converters Overview

12/24v to 12v isolated dc converter

Isolated DC Converter Feature Divider
1

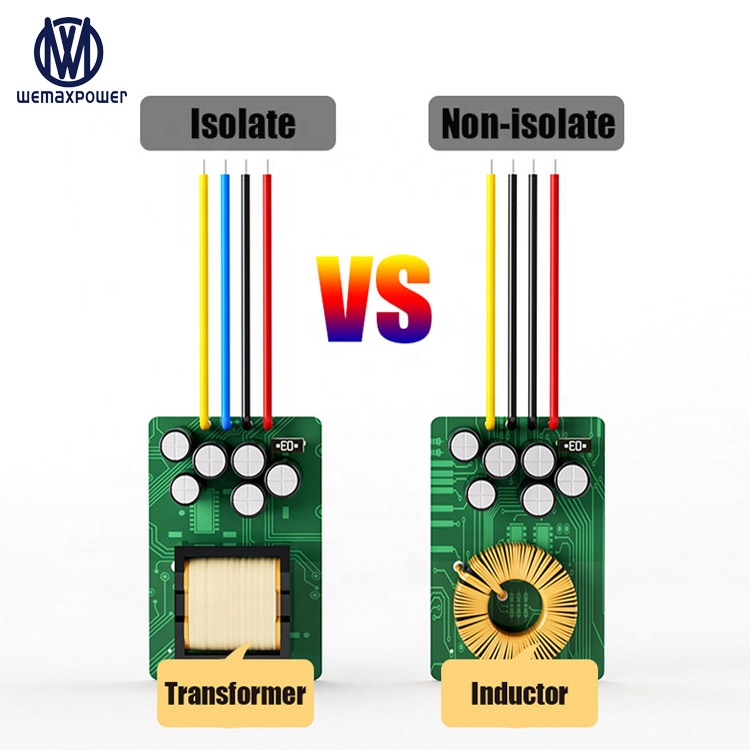

The input & output electrical appliances are completely isolated.
2
No high voltage direct output.
3
Positive and negative PSU can also be used.
4
Intelligent overload protection.
5
Prevent burning expensive load equipment.
6
Die-cast shell for more efficient heat dissipation.
7

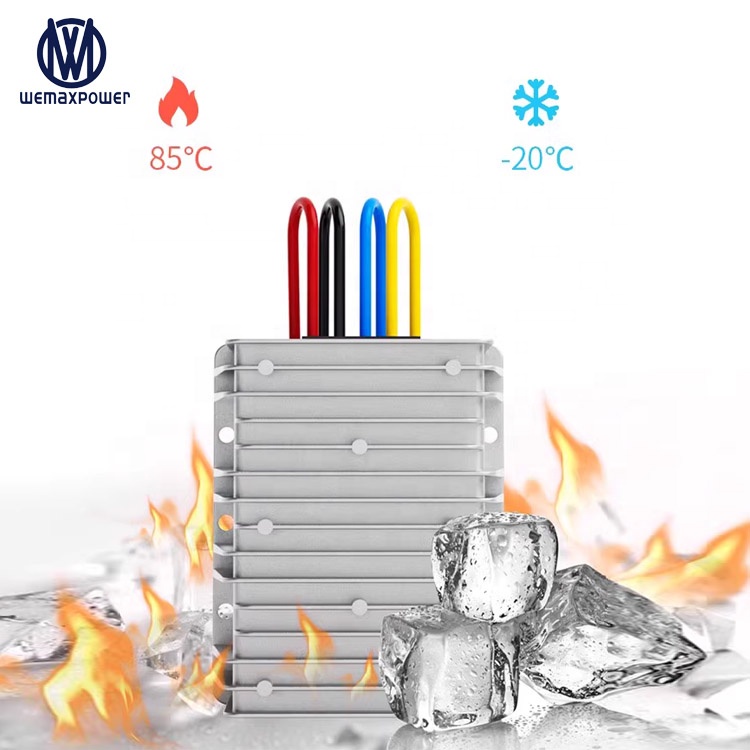

Suitable for ambient temperature -20~80°C.
8
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.
9
Industrial grade PSU chip, safe and reliable.
Specifications Divider
Series No. WMX-D9-36D12
Model WMX-DSD9-36S1215-I
Product Name 12/24v to 12v isolated dc to dc converter
Input rated voltage 12/24Vdc
Input voltage range 9-36Vdc
Conversion Efficiency 96%
Output voltage 12Vdc
Output current 15Amps
Output rated power 180Watts
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 100*80*39mm
N. Weight 490g
Type Input & output Isolation
Packing Standard box
Product Description
Product Description Divider
Technical Drawing 1
Technical Drawing 2
Technical Drawing 3
Wiring Guide Divider
Wiring Instructions
Installation Applications
FAQ Divider
Frequently Asked Questions
Q How do we work?
Since 2009, our factory has provided various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q What kind of products can you buy from us?
We offer a wide range of products including DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.
Q How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty from the delivery date. If the product does not work properly as described and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.
Q Do you provide customization services according to specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed requirements and we will check if we can develop them. We develop new models every month, some of which may not yet be updated on our website. You can also send us samples and we can develop new models especially for you.
Q Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you have the product in hand, you will be highly satisfied with its performance and build quality.
Q What is your Minimum Order Quantity?
Different products have different MOQs. Generally speaking, our MOQ is 1 piece. Please feel free to check with us for specific items.
