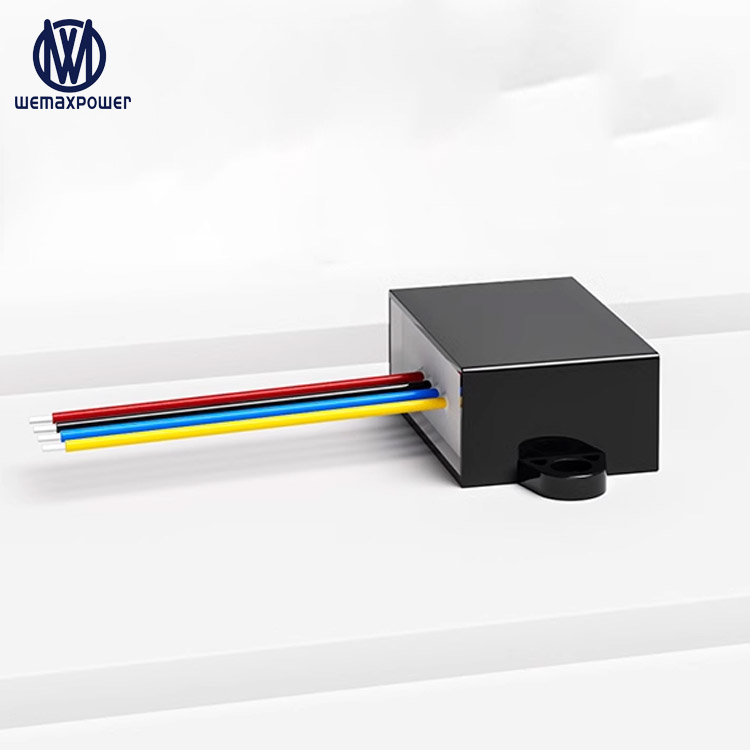

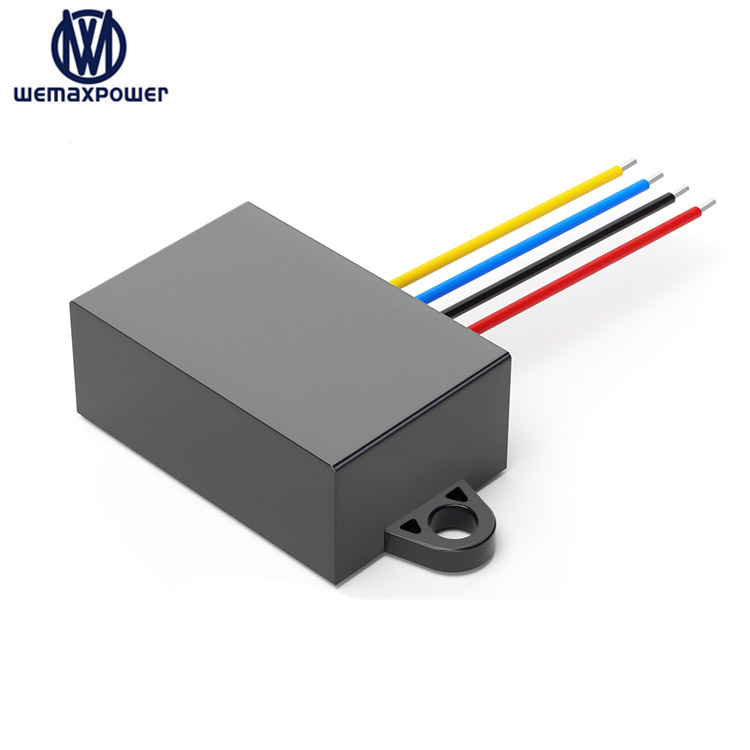

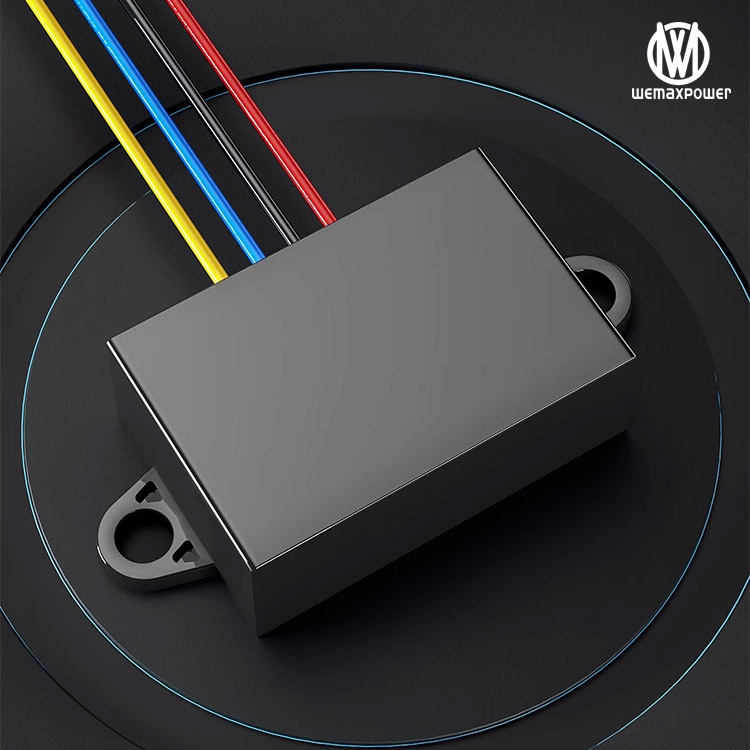

High quality CE RoHS 36w car led step down voltage transformer 60v to 12v 3a dc dc converter
9-36v to 12v 3a isolated converter
Key Features
-
✓

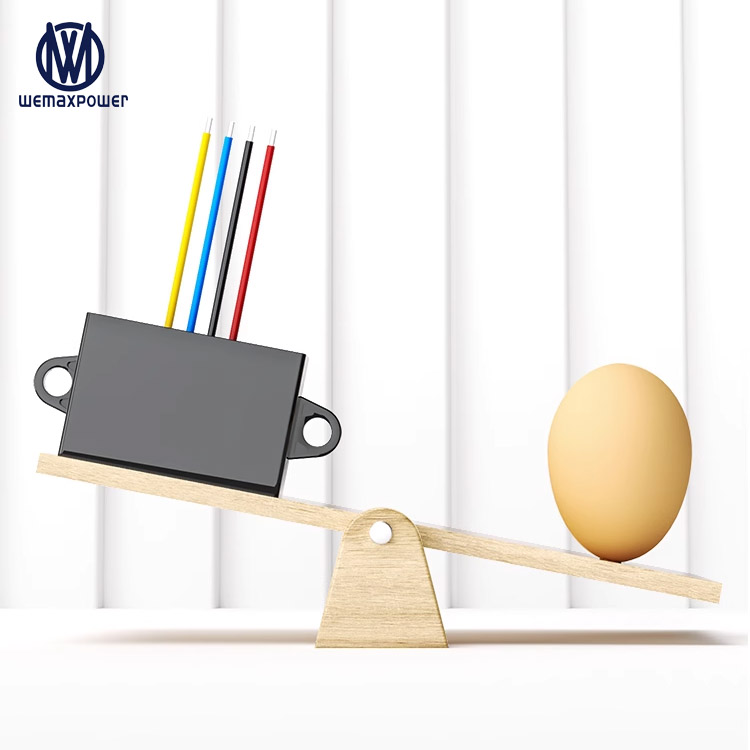

Light weight, small size, easy install
-
✓
Supports wide range voltage input
-
✓
Imported industrial grade power chips
-
✓
Synchronous rectification technology with high conversion efficiency
-
✓
Sufficient power
-
✓

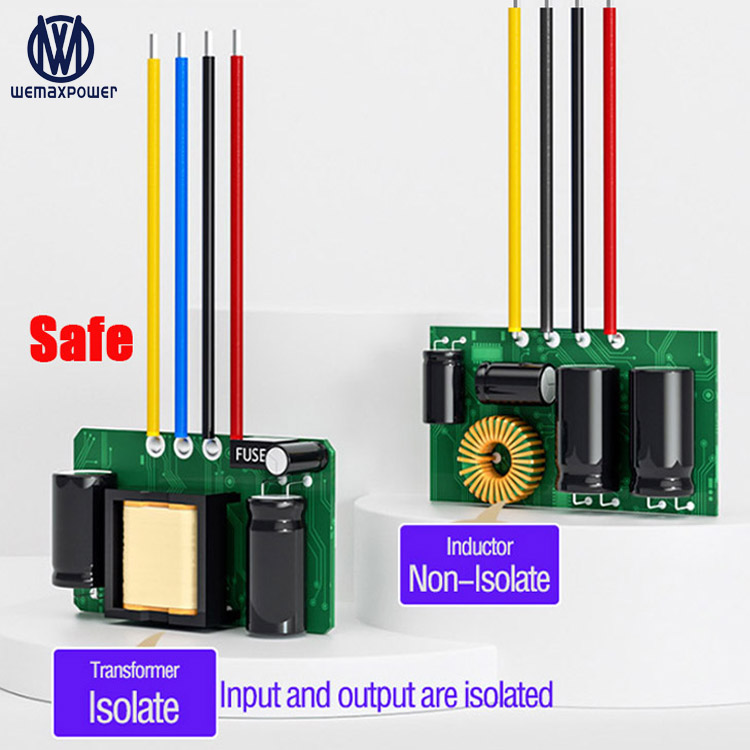

Isolation transformer, isolation voltage: 1500VDC
-
✓
Isolate power supply, isolate input and output from each other, refuse to burn out expensive load equipment, safe and reliable
-
✓
ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation
-
✓
Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
-
✓
Adapt to ambient temperature -20~85 ° C
-
✓
Multiple protection functions. Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
-
✓
Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc
Technical Specifications
| Product Name |
9-36v to 12v 5a isolated converter |
| Model NO. |
WMX-DSD9-36S1203-I |
| Input Voltage |
12/24Vdc (9~36Vdc) |
| Output Voltage |
12Vdc |
| Output Current |
3A |
| Output Power |
36W |
| Input/Output wire length |
13~15cm |
| Working Temperature |
-40°c ~ +80°c |
| Waterproof |
IP67 |
| Converter type |
Isolated |
| Shell material |
Plastic |
| Dimension & N.W |
58*40*22mm, N.W: 90g |
| Protections |
Over-load, Over-current, Over-temperature, Over-voltage |
Important Notes for Selection:
1) If you are not familiar with how to choose the appropriate converter module, you should know the power of load equipment (based on equipment label and parameter labeling) before purchasing.
2) If you need to work for a long time, you should choose the power module with higher power. The actual power of load equipment is 30%~80% of the rated power of the module.
3) Full load and overload have a great impact on the stability, temperature and service life of the module. At any time, it may cause irreparable damage.
Product Details
Buyer Feedback
Frequently Asked Questions
Why choose us?
We are a direct manufacturer of DC-DC converters with more than 8 years of experience. The performance of our converters is very stable, and our product technology is updated every year. We supply both OEM and ODM services.
Are there any requirements for product load?
Yes, these DC-DC converters output a fixed voltage, so they cannot be used to charge batteries directly. If you need to charge batteries, please select our dedicated DC-DC chargers.
Why are other products cheaper than yours?
Many cheap suppliers use low-quality components, which leads to insufficient power output. Our products are made with imported high-grade components that support long-term full-load operation safely.
What about your after-sales service?
1. Guarantee time: 1 year.
2. Return policy: We provide replacements if there are any quality issues.
What can you get from us?
1. Excellent products designed with strict quality control.
2. Comprehensive services including OEM, ODM, reliable after-sales support, and fast delivery.
3. Professional business consultations.
What is the MOQ of the 9-36v to 12v 5a isolated converter?
We support a low MOQ. Sample orders starting from 5 units for testing purposes are available.
