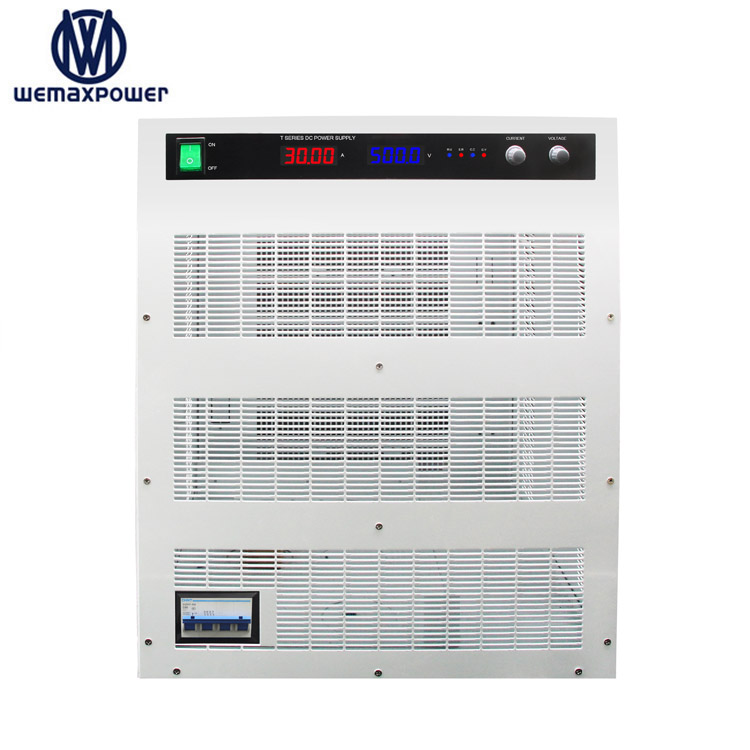

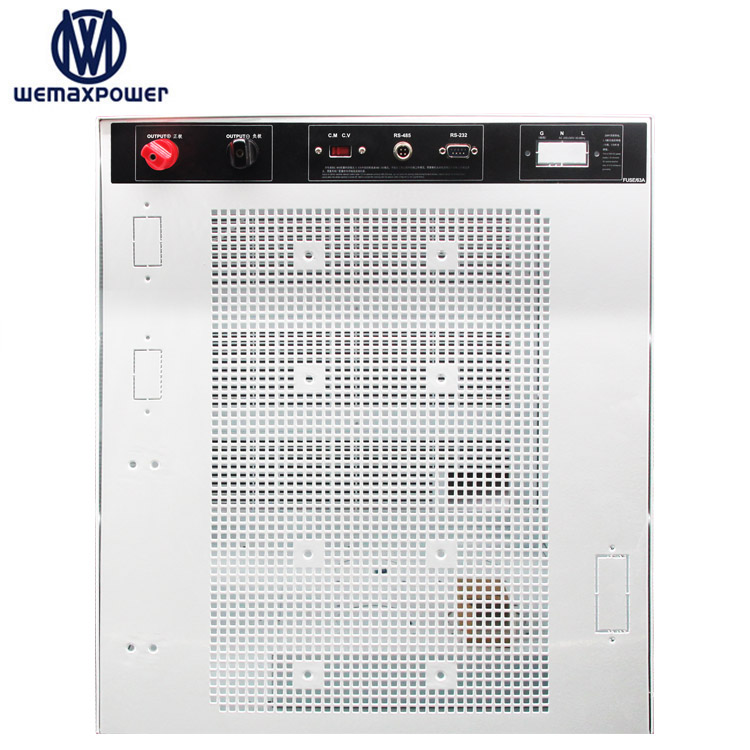

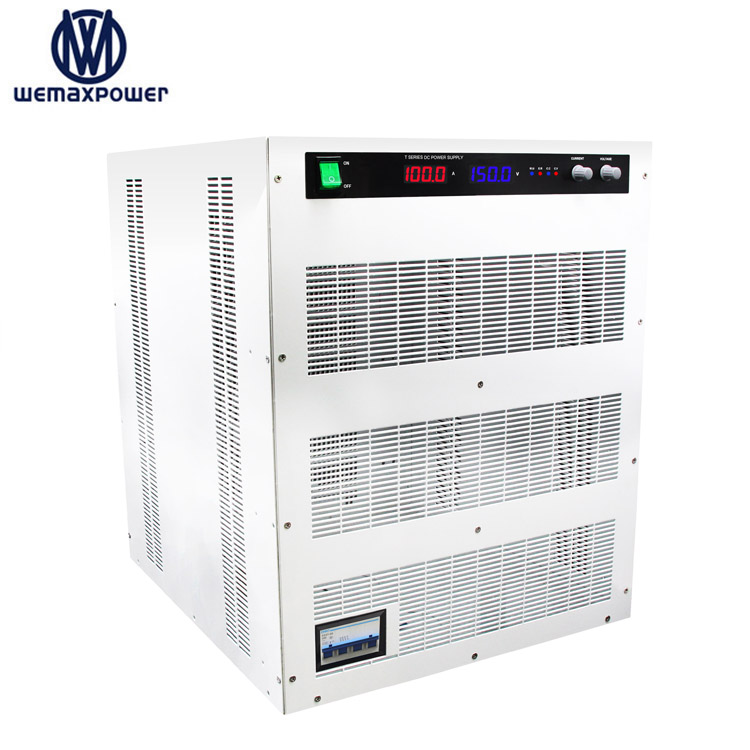

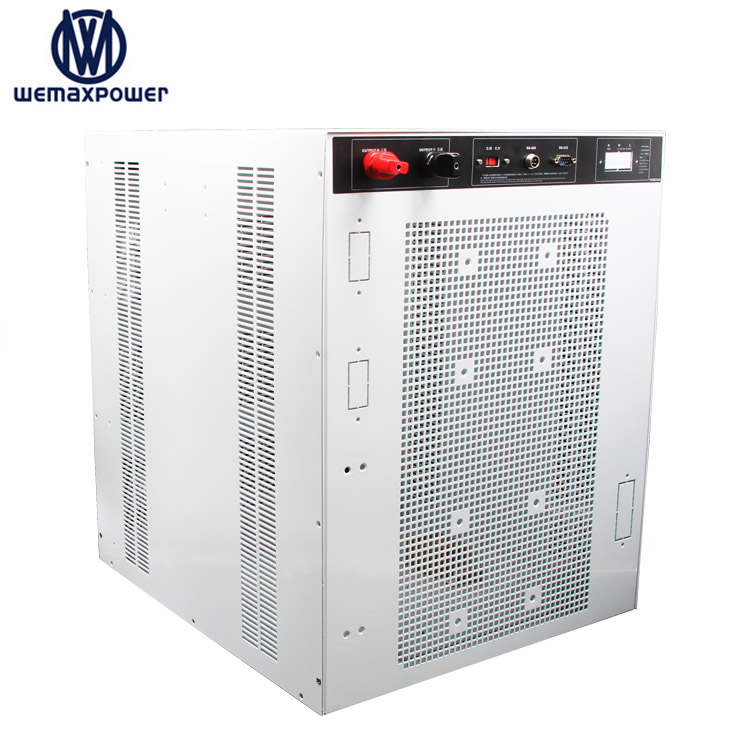

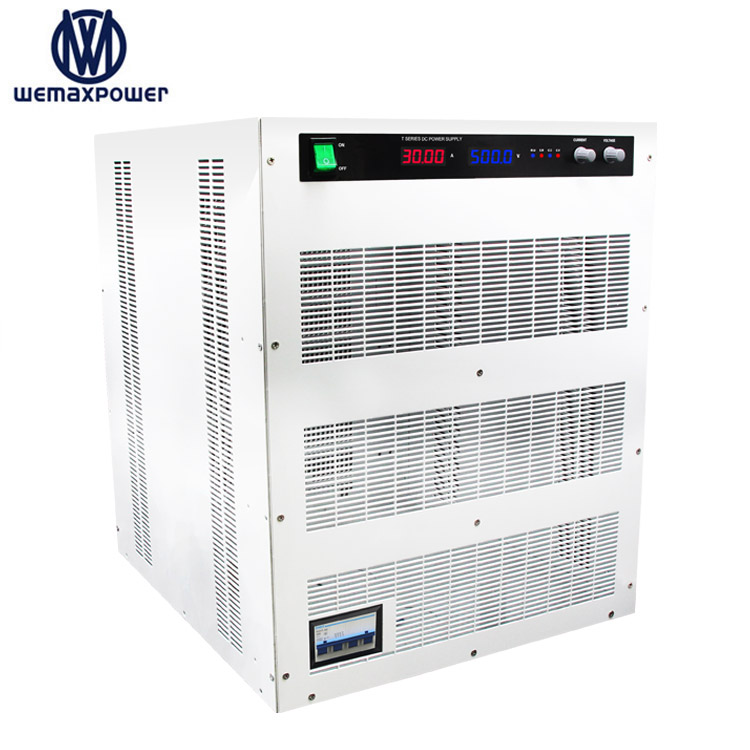

15000W 15KW 200V 75A & 250V 60A & 300V 50A & 375V 40A & 500V 30A Constant Current Constant Voltage Switching Dc Power Supply

1 / 5

15000W 15KW 200V 75A & 250V 60A & 300V 50A & 375V 40A & 500V 30A Constant Current Constant Voltage Switching Dc Power Supply

Send Inquiry

Product Description

Constant Voltage Switching DC Power Supply

Power Supply Series

500~1000W

1001~1500W

1501~2000W

2001~3000W

3001~4000W

4001~6000W

6001~8000W

8001~10KW

10.1~12KW

12.1~20KW

PART 1. PRODUCT INTRODUCTION

💎

15000W 15KW Constant current constant voltage switching dc power supply is a high performance dc power supply for industrial applications.

💎

Features high accuracy, high precision, and high stability. It is the ideal choice for research units, laboratories, and production line life testing.

💎

Designed with perfect over-voltage and over-temperature protection lines for enhanced reliability.

💎

Equipped with voltage and current regulation devices for simple and convenient operation.

Applications: Industrial control, electronic power, electroplating, communication, scientific research, instrumentation, military, medical, ship, railway, and battery charging.

PART 2. PRODUCT FEATURES

✅

Small size and light weight, suitable for working table and rack installation.

✅

Use PWM modulation, crystal module consumption of low power, high efficiency, and power saving.

✅

Forced air cooling heat treatment with a very low temperature coefficient.

✅

Low noise and low ripple output.

✅

High gain amplifier circuit design with rapid response characteristics.

✅

Voltage and current digital display with 4-bit high sampling rate and resolution.

✅

Built-in O.V.P and O.T.P protection lines for reliable safety.

✅

Load terminal voltage detection for accurate reading and control.

15KW SPECIFICATION TABLE

Model Definition	WMX-ASD XXX YYY (XXX: Voltage, YYY: Current)
Available Models	16093.5 \| 20075 \| 24062.5 \| 25060 \| 30050 \| 37540 \| 40037.5 \| 50030
Input Voltage	1 Phase: AC110V/220V ±10%; 3 Phase: AC208/380V ±10%, 50Hz/60Hz
Output Power	15000W (15KW)
Load Regulation	≤0.5%+30mV
Ripple	≤0.5% + 10mVrms
Display Accuracy	±1%+1 word (10%-100% rating)
Efficiency	≥83~86%
Cooling Mode	Forced air cooling
Protection	Lower voltage, over voltage, over current, short circuit, overheating
Dimension	483475525mm (NW: 65kg)
Remote Control Function (Optional)
• 0-5Vdc / 0-10Vdc analog signal control & read-back • 4-20mA analog signal control • RS232/RS485 Communication port

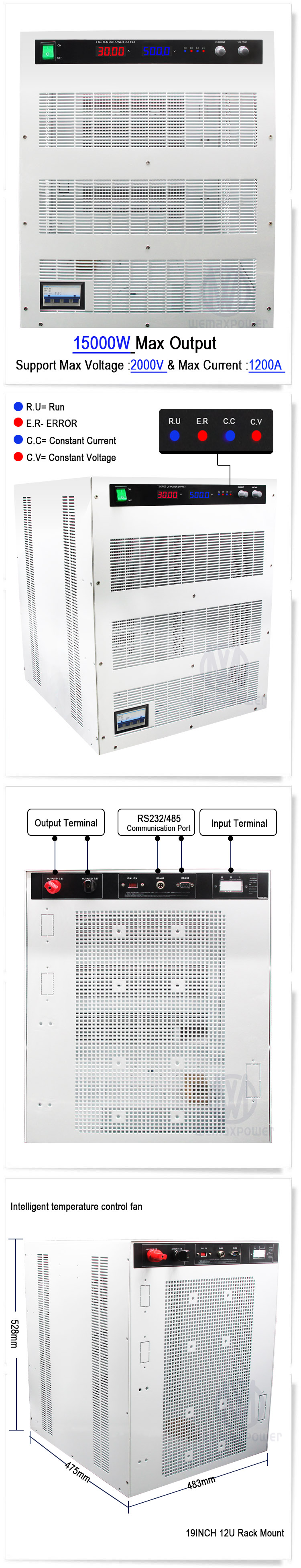

PRODUCT VISUALS

Frequently Asked Questions

Q1. How do we work?

Since 2009, our facility has provided various power solutions for global projects, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to high-quality, high-performance, and cost-effective options for all power conversion needs.

Q2. What types of products are available?

You can find a wide range of DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.

Q3. How is product quality ensured?

All processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty. If a product fails to work as described due to manufacturing issues, we provide exchange services for the specific item.

Q4. Do you offer customization services?

Yes, we provide bespoke services based on specific requirements. If you have unique technical needs, we can check for development feasibility. We develop new models regularly to meet evolving industrial standards.

Q5. What are the key protection features of this 15KW power supply?

The unit includes comprehensive safety features: Over-Voltage Protection (O.V.P), Over-Temperature Protection (O.T.P), over-current protection, and short-circuit protection to ensure long-term industrial reliability.

Q6. Can the output voltage and current be adjusted?

Yes, the standard design allows the output current to be adjusted from 10% of the maximum output to the full rated current. Custom versions allowing 0-Max current adjustment are also available upon request.
