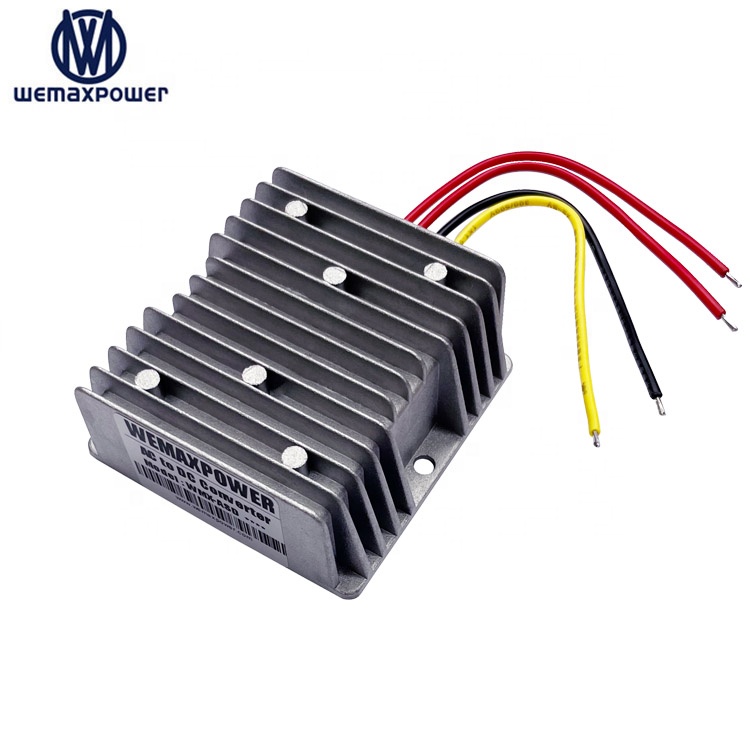

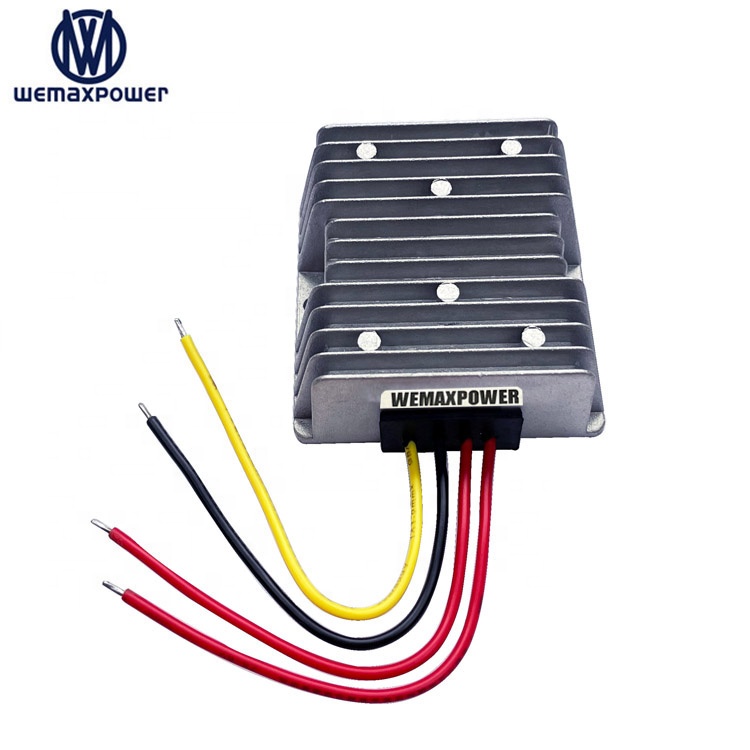

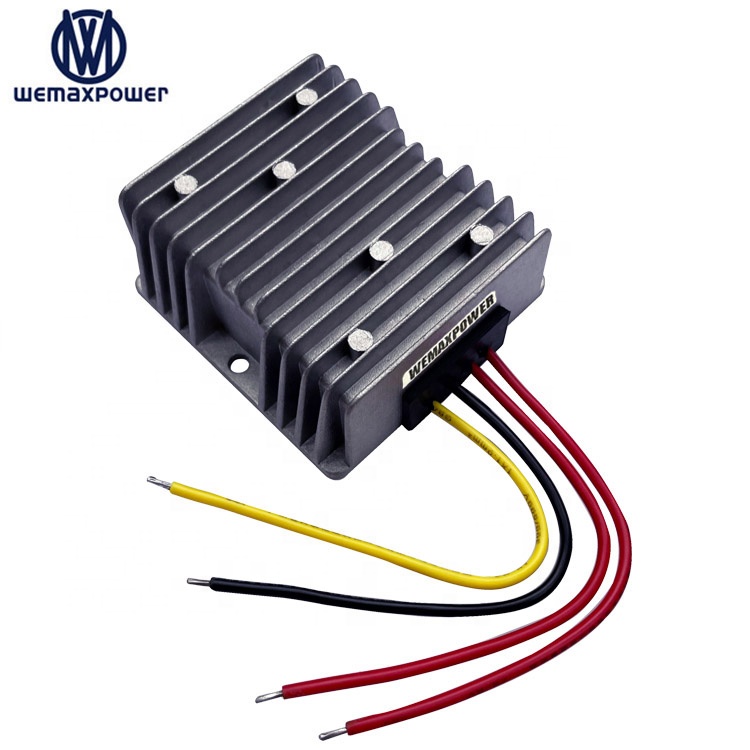

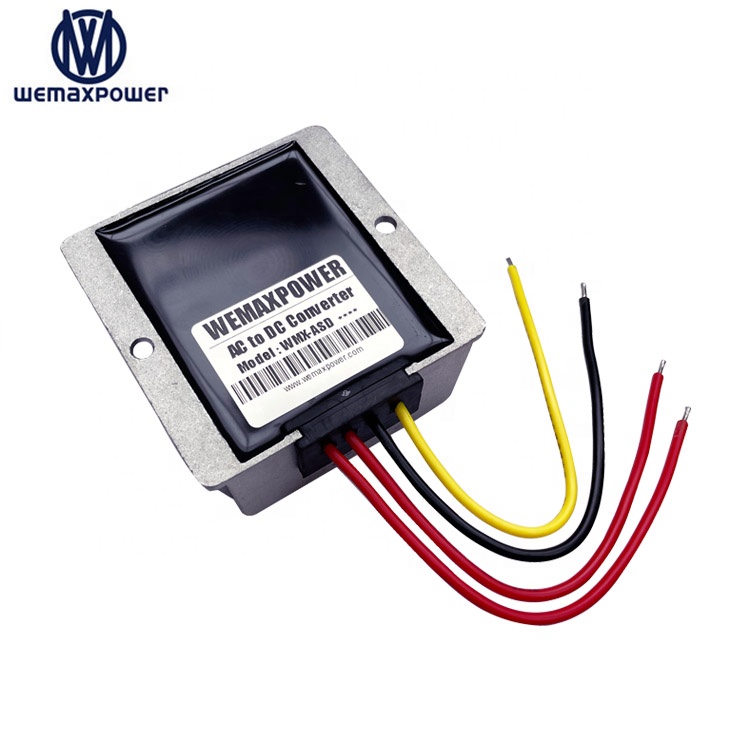

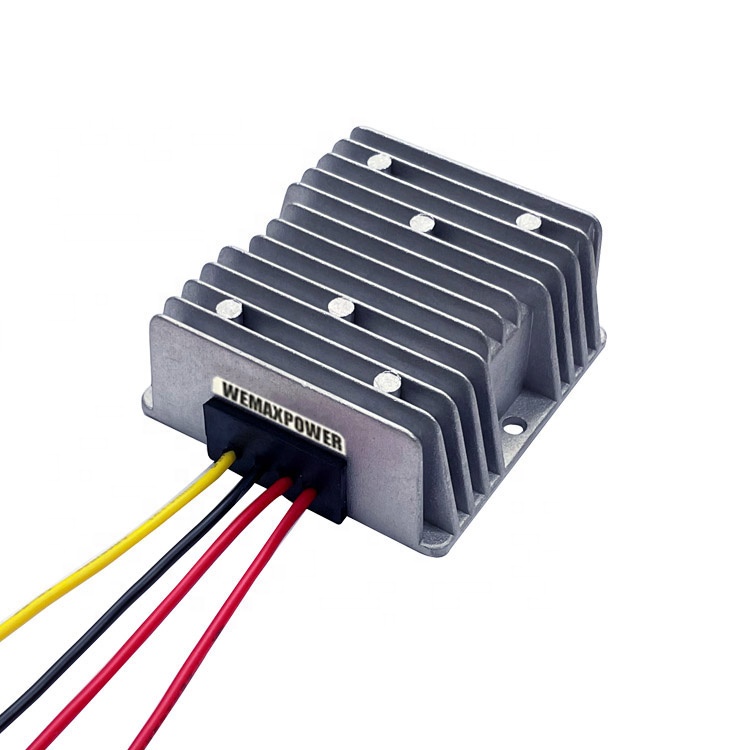

24v Ac 12v Dc 5amp Power Converters Step Down Module 5a 24vac to 12vdc Converter for Camera Monitor Led

Product Description

24v ac 12v dc 5amp power converters step down module 5a 24vac to 12vdc converter for Camera Monitor led

24v Ac 12v Dc 5amp Power Converters Step Down Module 5a 24vac to 12vdc Converter for Camera Monitor Led
Hot Sell Converter
Hot Sell Converter Grid

24vac to 12vdc ac-dc converter

divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range 15-28vac.
  • Waterproof IP67 & anti-shock protection, ultra compact size, light weight.
  • Industry grade product, efficiency up to 96%.
  • Die-cast aluminum shell, epoxy potting.
  • Non-Isolated Module.
divider
SN WMX-AD24D12
Model WMX-ASD24S1205
Product Name 24v to 12v ac dc converter
Input rated voltage 24Vac
Input voltage range 15-28Vac
Conversion Efficiency 96%
Output voltage 12Vdc
Output current 5A
Output rated power 60W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Over-load, Over-current, Over-temperature, Over-voltage
Machine size 74*74*32mm
N. Weight 290g
Cooling way Free air convection
Other White box packing
divider
24v Ac 12v Dc 5amp Power Converters Step Down Module Dimension
Detailed specifications sheet 1
Detailed specifications sheet 2
Wiring diagram instructions
Wiring details guide
