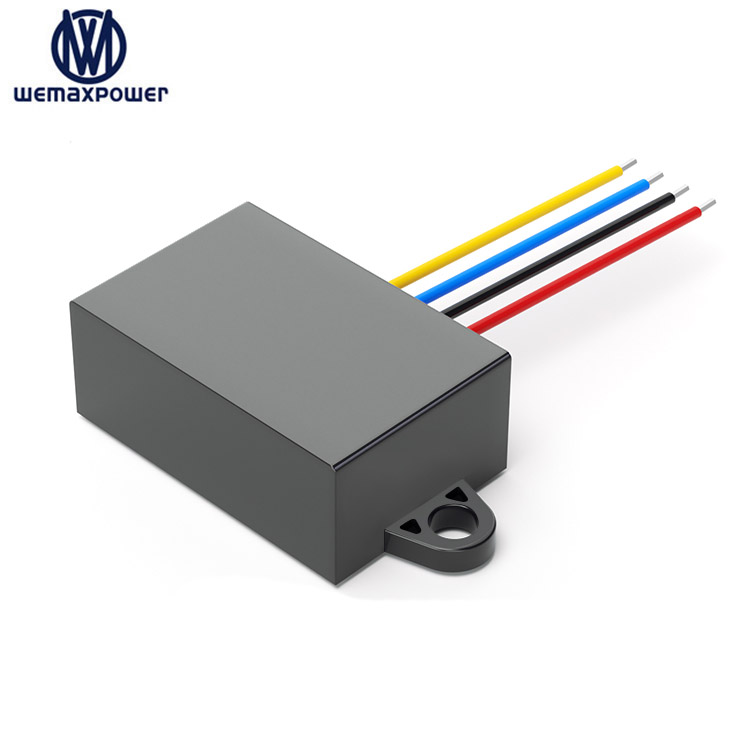

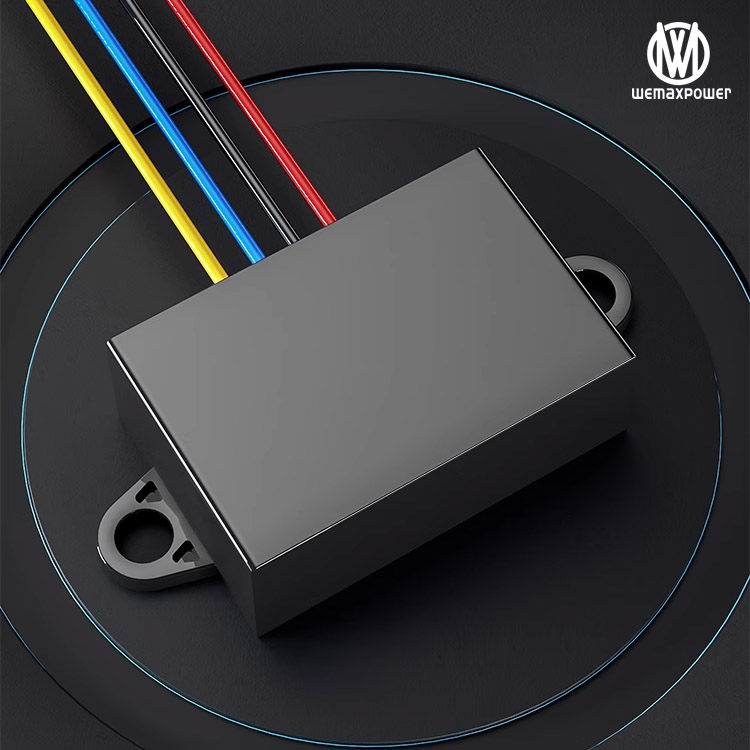

36VDC 48VDC to 12VDC 5A Isolated DC Step Down Converter Single Phase for Motor & Air Conditioner Applications

1 / 5

36VDC 48VDC to 12VDC 5A Isolated DC Step Down Converter Single Phase for Motor & Air Conditioner Applications

Send Inquiry

Product Description

36VDC 48VDC Buck 12VDC 5Amp Isolation Module Voltage Step Down DC Regulator

36V 48V to 12V 5A Isolated Converter

30~60V to 12V 5A Isolated Converter

Isolated DC-DC Converter - Safe and Reliable

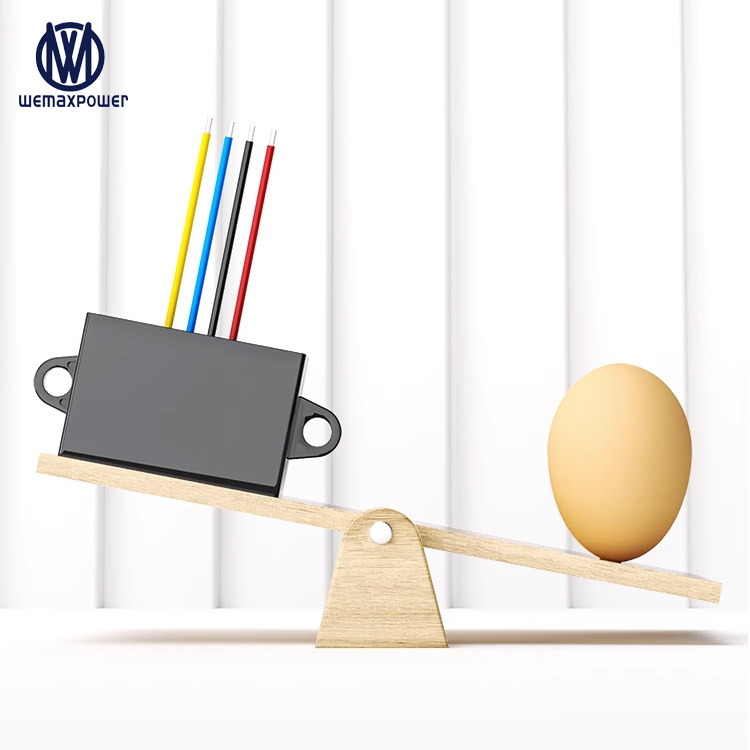

✓Light weight, small size, easy install
✓Supports wide range voltage input
✓Imported industrial grade power chips
✓Synchronous rectification technology with high conversion efficiency
✓Sufficient power supply

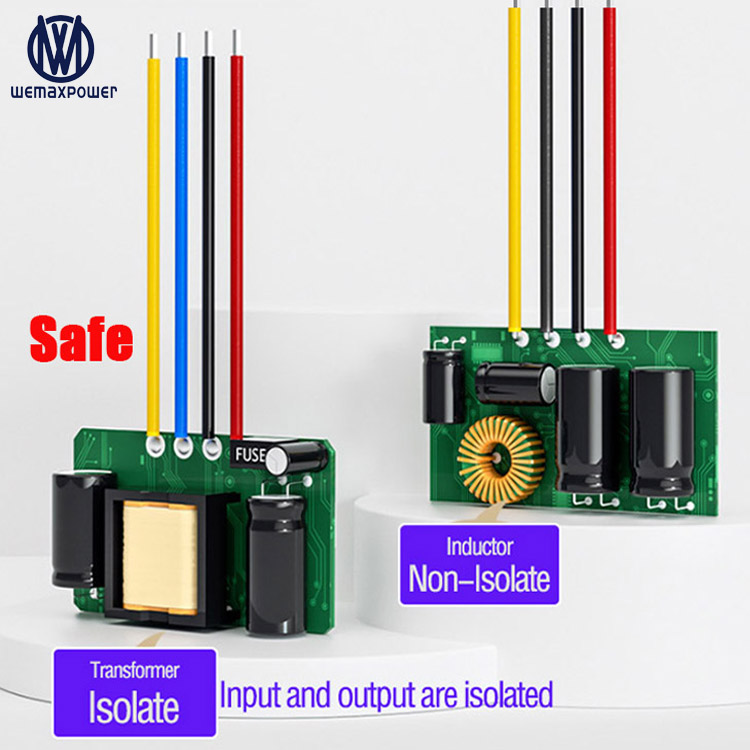

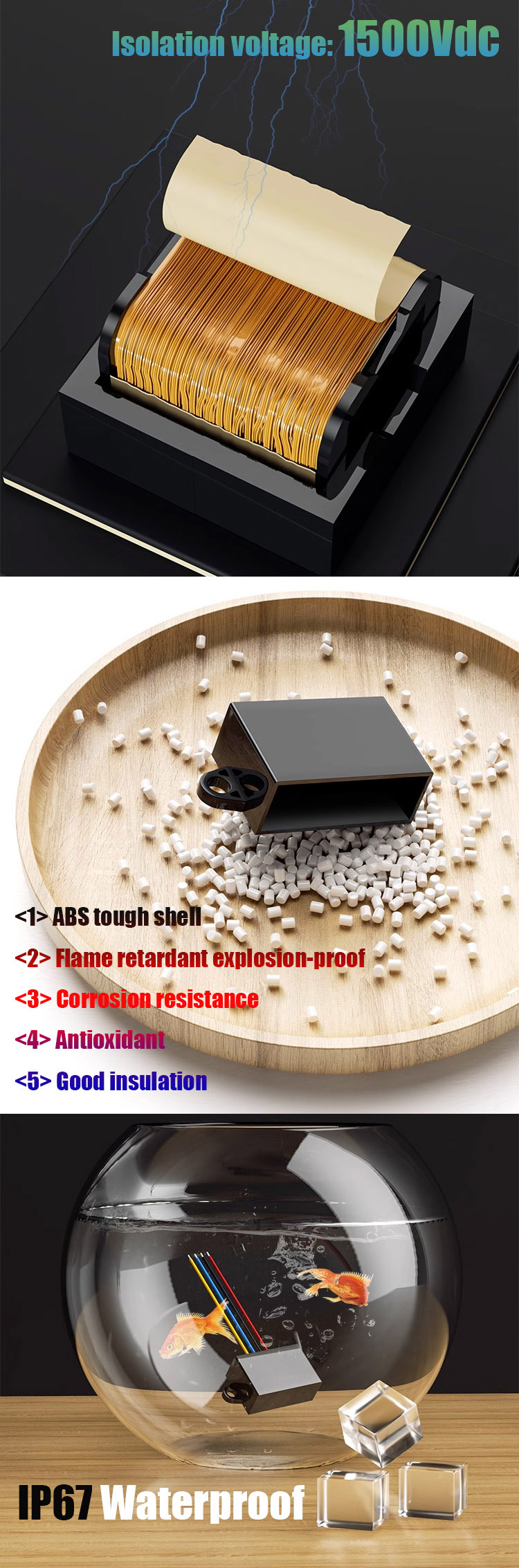

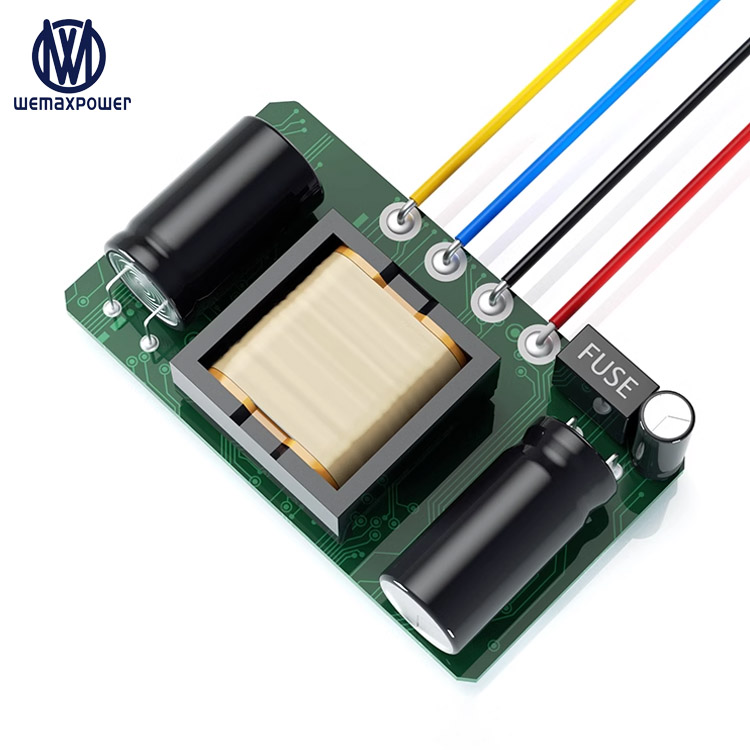

✓Isolation transformer, isolation voltage: 1500VDC

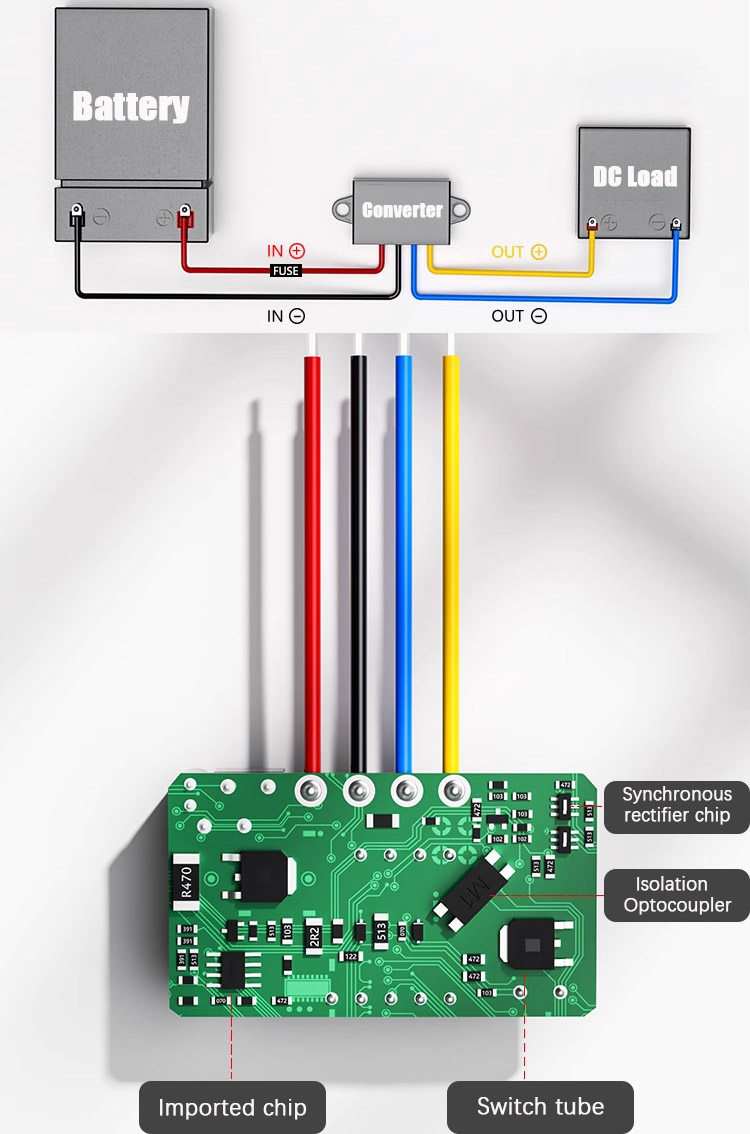

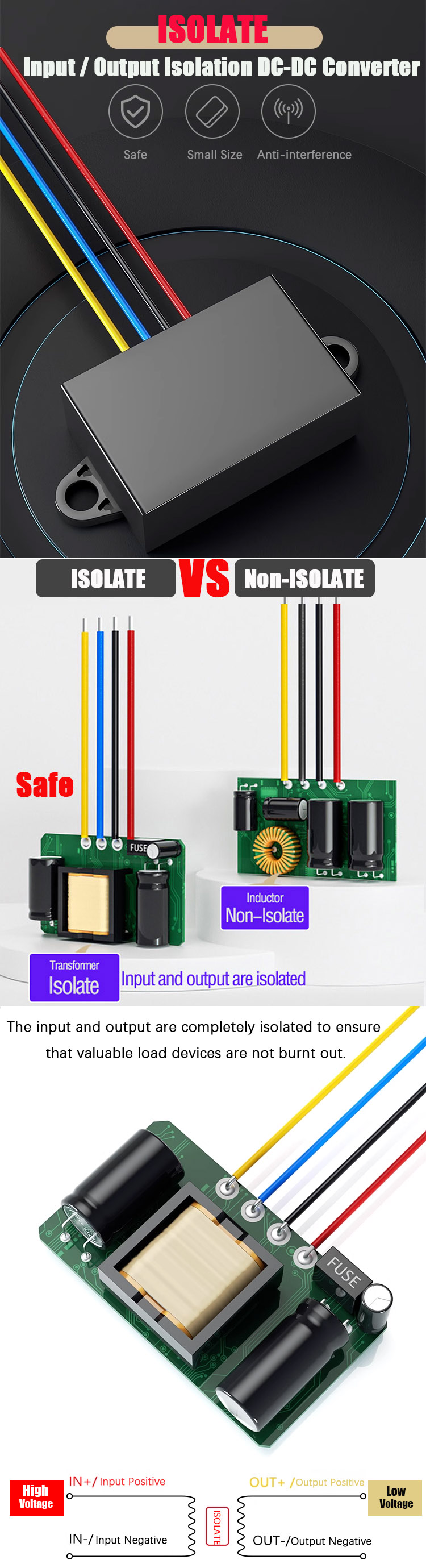

✓Isolated power supply: isolates input and output to prevent damage to expensive load equipment
✓ABS tough shell: flame retardant, explosion-proof, corrosion resistant, good insulation, and fast heat dissipation
✓IP67 waterproof grade, shockproof, moisture-proof, and dustproof
✓Adaptable to ambient working temperatures of -20°C to 85°C
✓Multiple protection functions: Over current, over voltage, over temperature, and short circuit protection

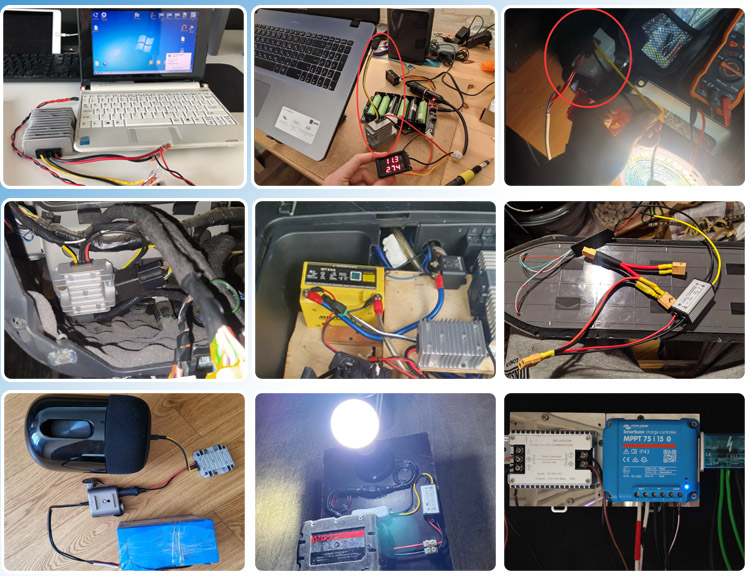

✓Widely used: Intelligent robots, communication base stations, industrial control, onboard systems, and peripherals

Series No.	WMX-D30-60D12
Model	WMX-DSD30-60S1205-I
Product Name	30-60V to 12V 5A Isolated Converter
Input Rated Voltage	36V / 48V
Input Voltage Range	30~60Vdc
Conversion Efficiency	96%
Output Voltage	12Vdc
Output Current	5A
Output Rated Power	60W
Voltage Regulation	< 1%
Load Regulation	< 2%
Ripple (Full Load Test)	< 150mV
No-Load Current	< 20mA
Working Temperature	-40°C ~ +80°C
Waterproof Rating	IP67
Protections	Over-load, Over-current, Over-temperature, Over-voltage

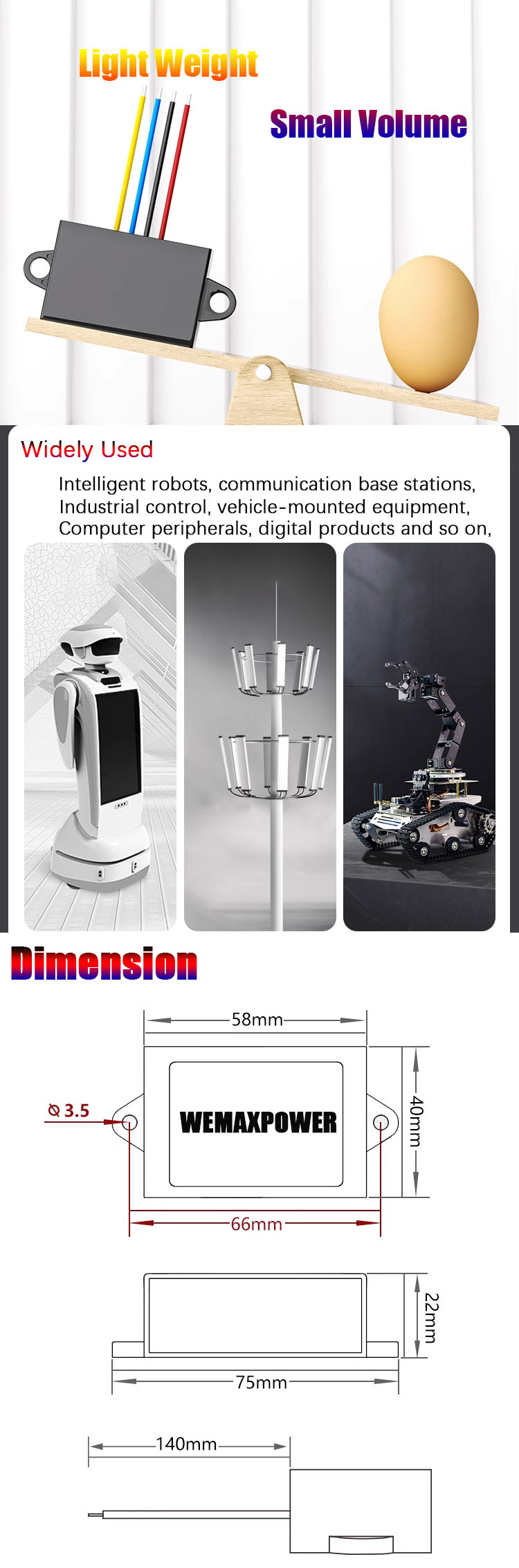

Machine Size	584022mm
N. Weight	90g
Type	Input & Output Isolation

Product Overviews

Frequently Asked Questions

What range of power conversion solutions do you provide?

We provide various power solutions for different projects worldwide, including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet diverse power conversion needs.

What kind of products can we purchase from your selection?

Our product range includes DC-DC Converters, DC-DC Chargers, Voltage regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.

How do you ensure product quality and reliable performance?

All processes strictly adhere to ISO-9001 procedures. We offer a 12-month quality warranty from the delivery date. If a product does not function properly as described and the issue is proven to be a manufacturing defect, we will provide exchange services for that item. Our support team is always available to assist.

Do you offer custom solutions based on specific technical requirements?

Yes, we provide bespoke services to customers with custom requirements. You can send us your detailed specifications, and we will check feasibility for development. We develop new models regularly, some of which may not yet be updated online. We can also develop new models based on physical samples.

Can I request sample units for testing before placing a bulk order?

Yes, we are pleased to offer samples to verify product quality and performance. We are confident in the high reliability and competitiveness of our power supply units.

What is your Minimum Order Quantity (MOQ)?

Different products have different MOQs. Generally speaking, our minimum order quantity is 2 pieces. Please contact us to confirm for specific items.

Product Detail

36VDC 48VDC to 12VDC 5A Isolated DC Step Down Converter Single Phase for Motor & Air Conditioner Applications

Product Description

36VDC 48VDC Buck 12VDC 5Amp Isolation Module Voltage Step Down DC Regulator

36V 48V to 12V 5A Isolated Converter

Product Overviews

Frequently Asked Questions

Related Products

Product Detail

36VDC 48VDC to 12VDC 5A Isolated DC Step Down Converter Single Phase for Motor & Air Conditioner Applications

Product Description

36VDC 48VDC Buck 12VDC 5Amp Isolation Module Voltage Step Down DC Regulator

36V 48V to 12V 5A Isolated Converter

Product Overviews

Frequently Asked Questions

Related Products

Waterproof 36vdc 48vdc Buck 5vdc 24amp Isolation Module Step Down Dc Voltage Regulator 36v 48v to 5v 25a Dc Isolated Converter

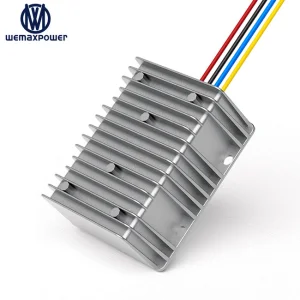

Waterproof 36vdc 48vdc Buck 5vdc 24amp Isolation Module Step Down Dc Voltage Regulator 36v 48v to 5v 24a Dc Isolated Converter

Isolated 12V DC Converter 60V/72V/80V to 12V 10A Step Regulator Automotive Home Use IP67 Waterproof

DC Regulator Isolation 36v 48vdc to 24vdc 5a 120w Step Down Dc Dc Converter 48v to 24v Isolated

80vdc 100v 120v to 24vdc 5a Isolation Converters Step Down Dc Regulator 80v to 24v Dc Isolated Converter

Isolated DC/DC Converter 12V 8A 96W for Home Air Conditioner & Motor-IP67 Waterproof Aluminum Shell

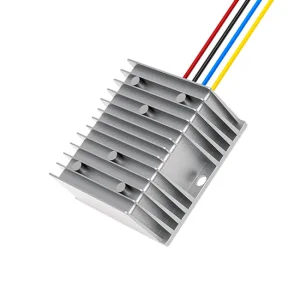

Isolated DC Voltage Converter 80V-150V to 5V 100W 20A Step Down Regulator for Industrial Motor Applications IP67 Waterproof

Voltage Step Down Isolation Dc Regulator 12/24v Convert 5vdc 10a 12v 24v to 5v Isolated Dc Step Down Converter

Buck Module 24A Isolated DC Voltage Converter 12V/24V to 5VDC Single Phase Automotive

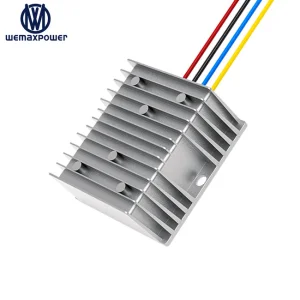

Waterproof 10a 50w Voltage Buck Module Dc Dc Step Down Regulator 60vdc 72vdc 80v to 5v Isolated Converter
