| * Adjustable Power Supply Series * | ||||
|---|---|---|---|---|
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
DC Power Supply is widely applied into industrial control, electronic power, electroplating, communication, scientific research, instrument, medical, ship, railway and other high-tech fields.

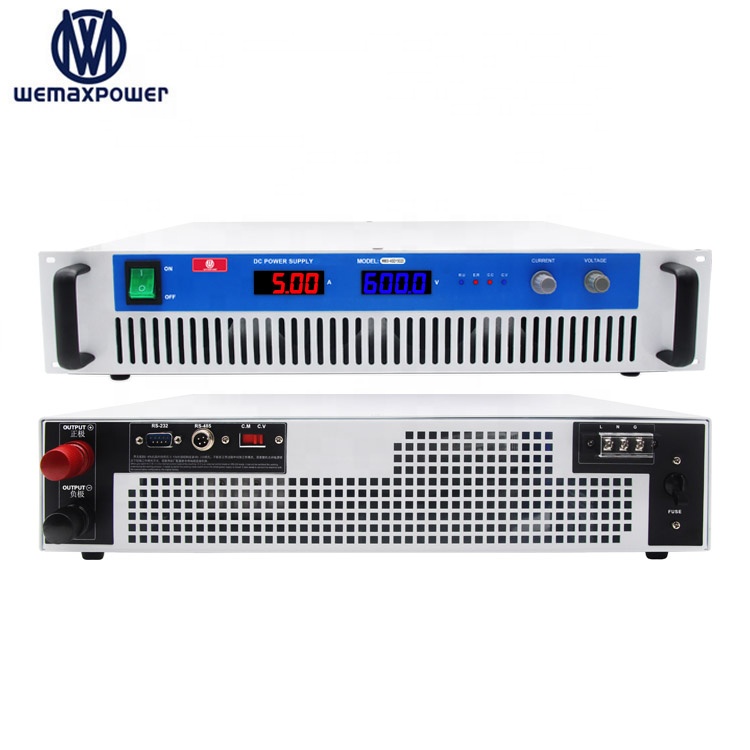

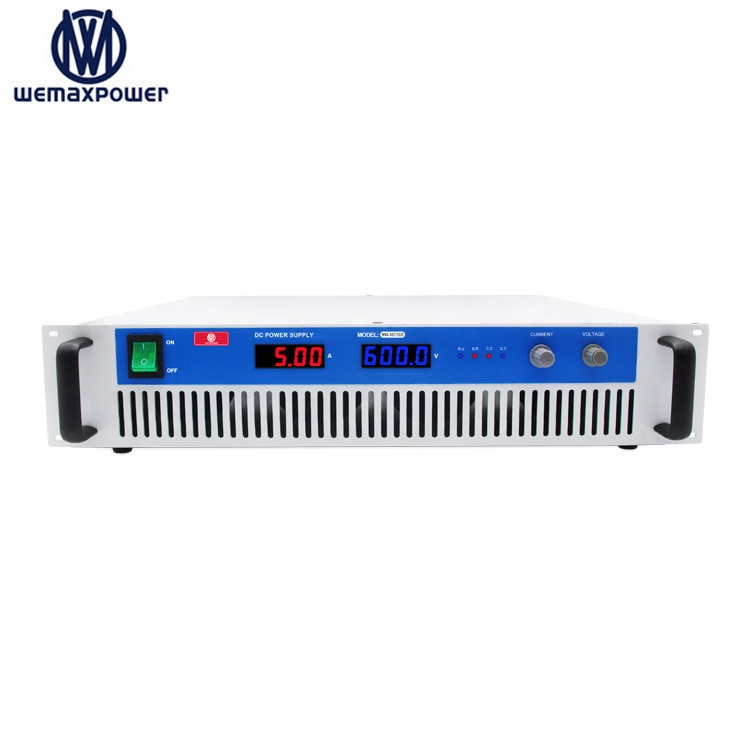

| Model | WMX-ASD 600 5 (600-Output Voltage, 5-Output Current) |
| Input Voltage |
1 Phase: AC220V±10%, 50Hz/60Hz 1 Phase: AC110V±10%, 50Hz/60Hz 3 Phase: AC380V±10%, 50Hz/60Hz |
| Output Voltage/Current Customize range |
0~600V, 0% to 100% adjustable, 0.5~5A, 10% to 100% adjustable. |
| Output Power | 3000W |
| Output mode | Constant voltage & Constant Current |
| Load Regulation | ≤0.5%+30mV |
| Ripple | ≤0.5% + 10mVrms |
| Power supply stability | ≤0.3%+10mV |

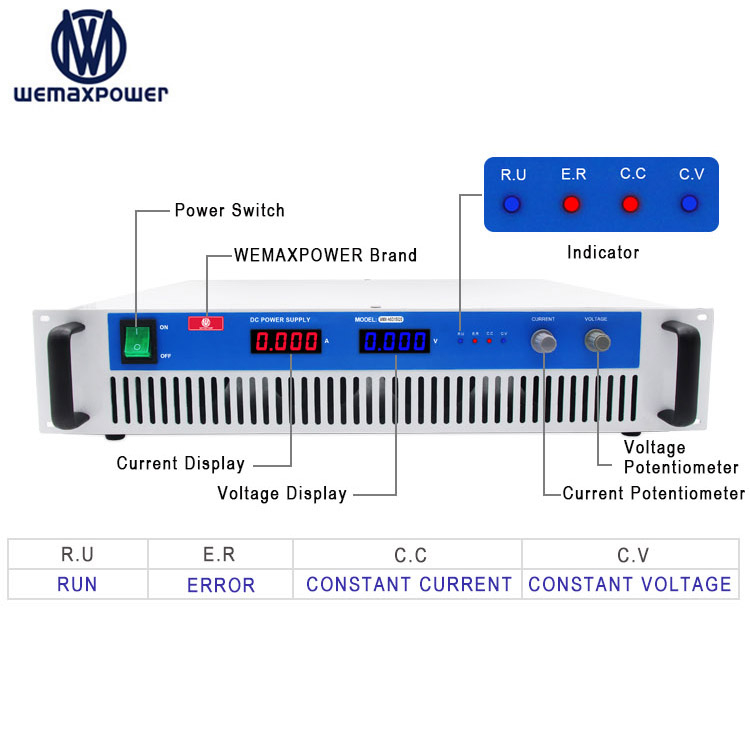

| Voltage | Current Display Accuracy | Precision of 4 digit table : ±1%+1 word (10%-100% rating) |
| Voltage | Current value display Format | Display format: 0.000 ~ 9999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A; |
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
| Operation Temperature | Humidity | Operation Temperature : (0~40)℃; Operation Humidity : 10% ~ 85% RH |
| Storage Temperature | Humidity | Storage Temperature : (-20~70)℃; Storage Humidity : 10% ~ 90% RH |
| Over-Temperature Protection | (75~85)℃ |
| Heat Dissipation Mode/ Cooling mode | Forced air cooling |
| Efficiency | ≥86% |
| Start-up Output voltage setting time | ≤3S |
| Protections | Lower voltage, over voltage, over current, short circuit, overheating. |
| Insulation Strength |
Input output: AC1500V, 10mA, 1 minutes; Input - machine shell: AC1500V, 10mA, 1 minutes; Output - shell: AC1500V, 10mA, 1 minutes |
| Insulation Resistance | Input-Output ≥20MΩ; |
| MTTF | ≥50000h |

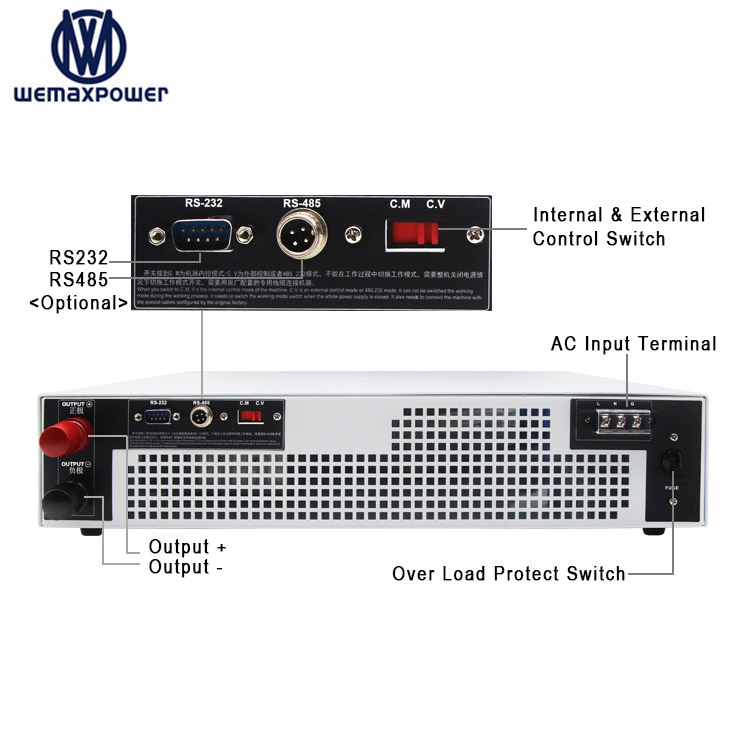

| Remote Control (Non-Standard functions) |
• 0-5Vdc /0-10Vdc analog signal control output voltage & current • 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current • 0-5Vdc /0-10Vdc analog switch signal to control output ON/OFF • 4-20mA analog signal control output voltage & current • RS232/RS485 Communication port control by computer |

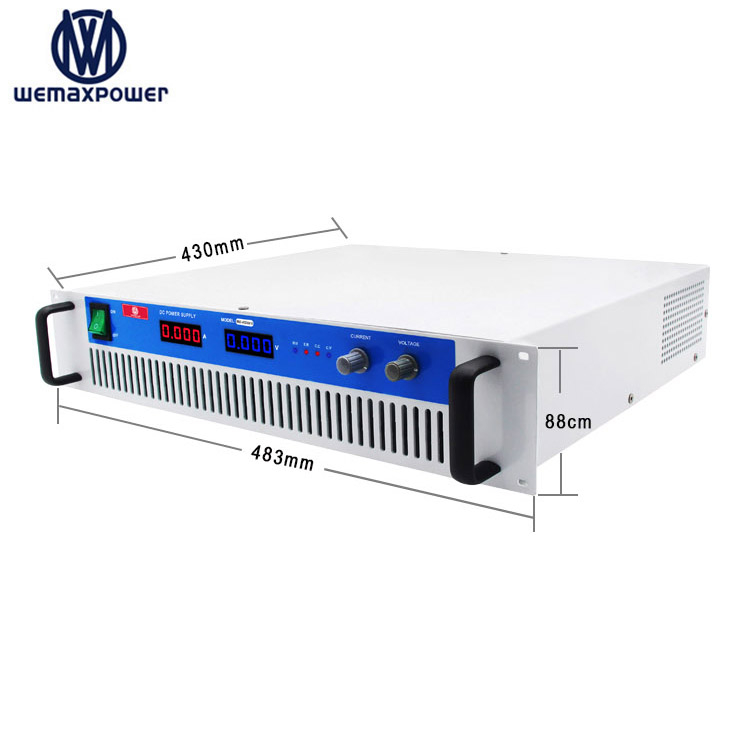

| Dimension | 483*430*88mm |
Q1. How do you provide power solutions?
Since 2009, our factory has provided various power solutions for different projects worldwide. This includes DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.
Q2. What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, and Switching Power Supply.
Q3. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. We have a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same item. Our staff will always be there to support you.
Q4. Do you offer customization services per specific requirements?
Yes, we can provide bespoke services to customers with specific requirements. You can send your detailed specifications, and we will verify if we can develop them. We design new models regularly, some of which may not yet be updated on our website. Alternatively, you can send us samples for custom development.
Q5. Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you evaluate them, you will be highly satisfied with our product quality, competitive prices, and services.
Q6. What is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our MOQ is 1 set. Please check with us for specific items.
