| Adjustable Power Supply Series | ||||
|---|---|---|---|---|
| 500~1000W | 1501~2000W | 3001~4000W | 6001~8000W | 10.1~12KW |
| 1001~1500W | 2001~3000W | 4001~6000W | 8001~10KW | 12.1~20KW |
| Technical Specifications | |
|---|---|
| Model | WMX-ASD 50 50 (50-Output Voltage, 50-Output Current) |
| Input Voltage |
1 Phase: AC220V±10%, 50Hz/60Hz 1 Phase: AC110V±10%, 50Hz/60Hz 3 Phase: AC380V±10%, 50Hz/60Hz |
| Output Voltage/Current Customize range |
0~50V, 0% to 100% adjustable 5~50A, 10% to 100% adjustable |
| Output Power | 2500W |
| Output mode | Constant voltage & Constant Current |
| Load Regulation | ≤0.5%+30mV |
| Ripple | ≤0.5% + 10mVrms |
| Power supply stability | ≤0.3%+10mV |

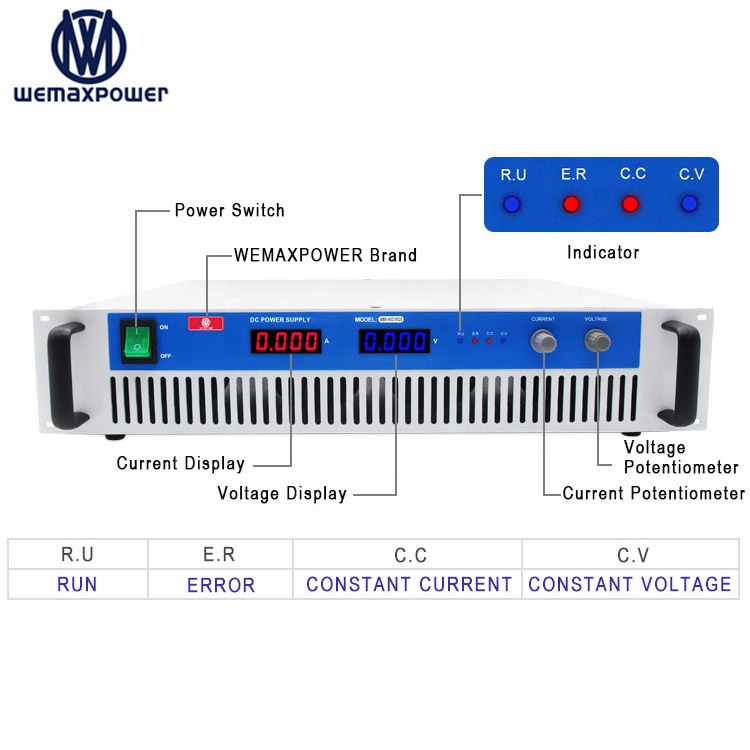

| Voltage | Current Display Accuracy | Precision of 4 digit table: ±1%+1 word (10%-100% rating) |
| Voltage | Current value display Format | Display format: 0.000 ~ 9.999V; 0.00 ~ 99.99V; 0.0 ~ 999.9A |
| Output Voltage Overshoot | Build in O.V.P Protection with a rate of + 5% |
| Operation Temperature | Humidity | Operation Temperature: (0~40)℃; Operation Humidity: 10% ~ 85% RH |
| Storage Temperature | Humidity | Storage Temperature: (-20~70)℃; Storage Humidity: 10% ~ 90% RH |
| Over-Temperature Protection | (75~85)℃ |
| Heat Dissipation Mode/ Cooling mode | Forced air cooling |
| Efficiency | ≥86% |
| Start-up Output voltage setting time | ≤3S |
| Protections | Lower voltage, over voltage, over current, short circuit, overheating. |
| Insulation Strength |
Input - Output: AC1500V, 10mA, 1 minute; Input - Machine shell: AC1500V, 10mA, 1 minute; Output - Shell: AC1500V, 10mA, 1 minute |
| Insulation Resistance | Input-Output ≥20MΩ; Input-Shell ≥20MΩ; Output-Shell ≥20MΩ |
| MTTF | ≥50000h |
| Remote Control (Non-Standard functions, custom order required) |

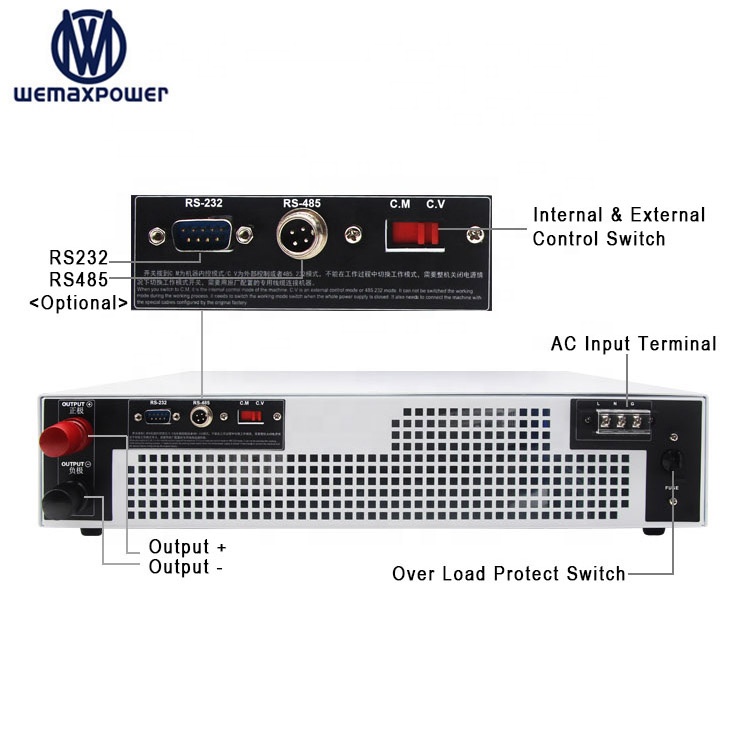

• 0-5Vdc /0-10Vdc analog signal control output voltage & current • 0-5Vdc /0-10Vdc analog signal to read-back output voltage & current • 0-5Vdc /0-10Vdc analog switch signal to control output ON/OFF • 4-20mA analog signal control output voltage & current • RS232/RS485 Communication port control by computer |

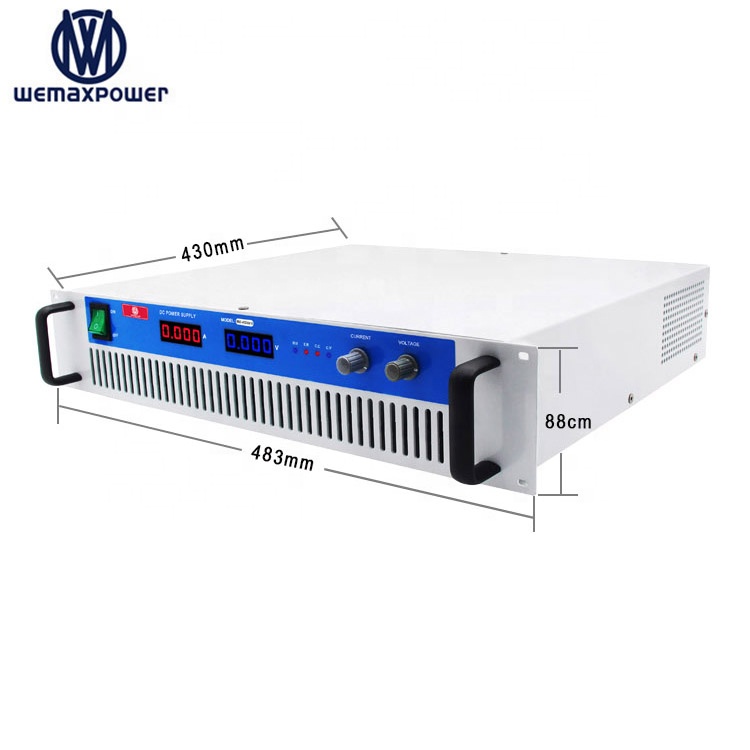

| Dimension | 483*430*88mm |
