12V 24V to 12V Isolated DC-DC Converter
| Series No. | WMX-D9-36D12 |
| Model | WMX-DSD9-36S1206- |
| Product Name | 12v 24v to 12v isolated converter |
| Input rated voltage | 12Vdc / 24Vdc |
| Input voltage range | 9-36Vdc |
| Conversion Efficiency | 96% |
| Output voltage | 12Vdc |
| Output current | 6Amps |
| Output rated power | 72Watts |
| Voltage regulation | < 1% |
| Load regulation | < 2% |
| Ripple (full load test) | < 150mV |
| No-load current | < 20mA |
| Working Temperature | -40°c ~ +80°c |

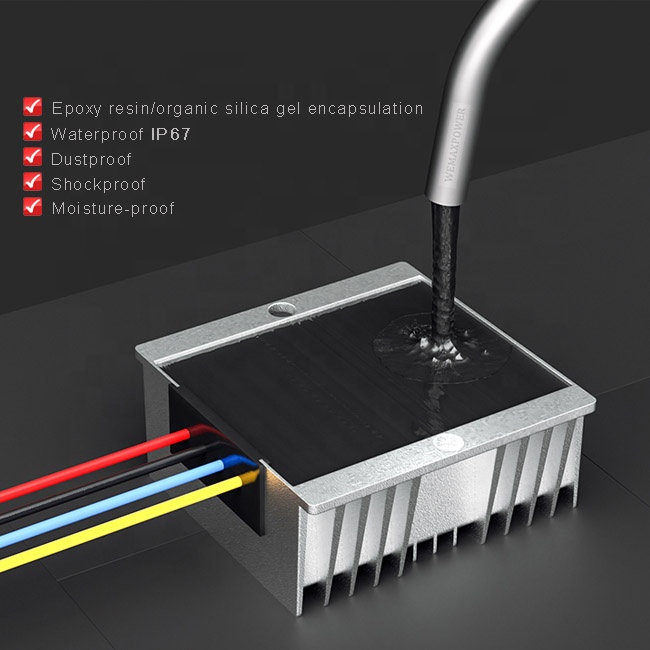

| Waterproof rating | IP 67 |
| Protections | Over-load, Over-current, Over-temperature, Over-voltage |
| Machine size | 74*74*32mm |
| N. Weight | 290g |
| Cooling way | Free air convection |
| Packing | White standard box |
| Type | Input output Isolation |
We are a professional DC-DC converters manufacturer with more than 10 years of experience. The performance of our converters is extremely stable, and our product technology is updated every year to ensure maximum reliability.

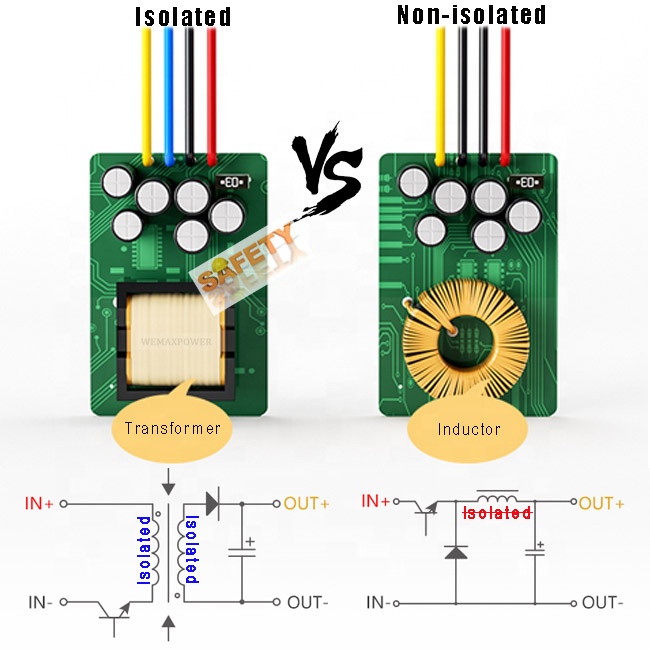

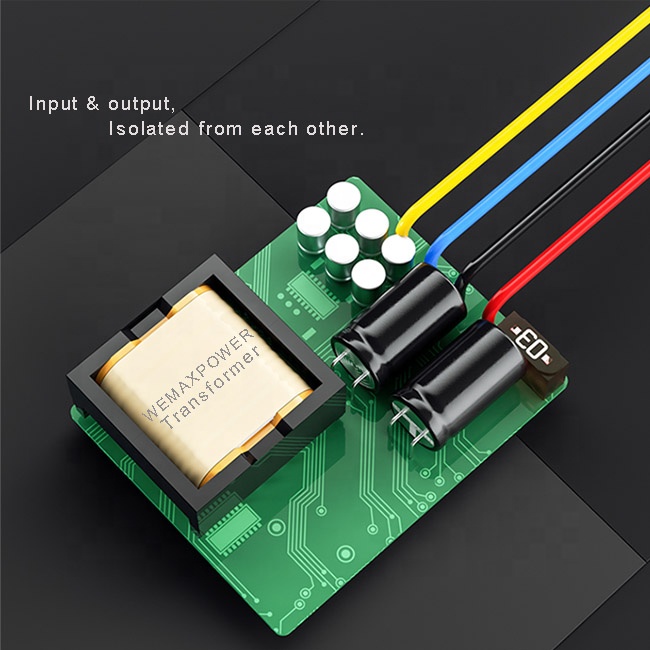

Because the converter is isolated, once the converter is burnt out, the output voltage will become 0V. This prevents any negative impact on the load and protects it from being damaged.
Many low-cost alternatives use cheap components that fail to deliver the rated power output. Our products utilize premium imported components designed to support continuous, long-term work under full load safely.
We provide a 1-year warranty. Under our return policy, we exchange goods if any quality issues occur within the warranty period.
We accept multiple payment methods including L/C, T/T, Western Union, MoneyGram, and PayPal. Delivery is handled via DHL, UPS, FedEx, TNT, EMS, or Sea shipping depending on your needs.
We support a low MOQ. Sample units (2 to 5 units) are available for testing before bulk orders.
