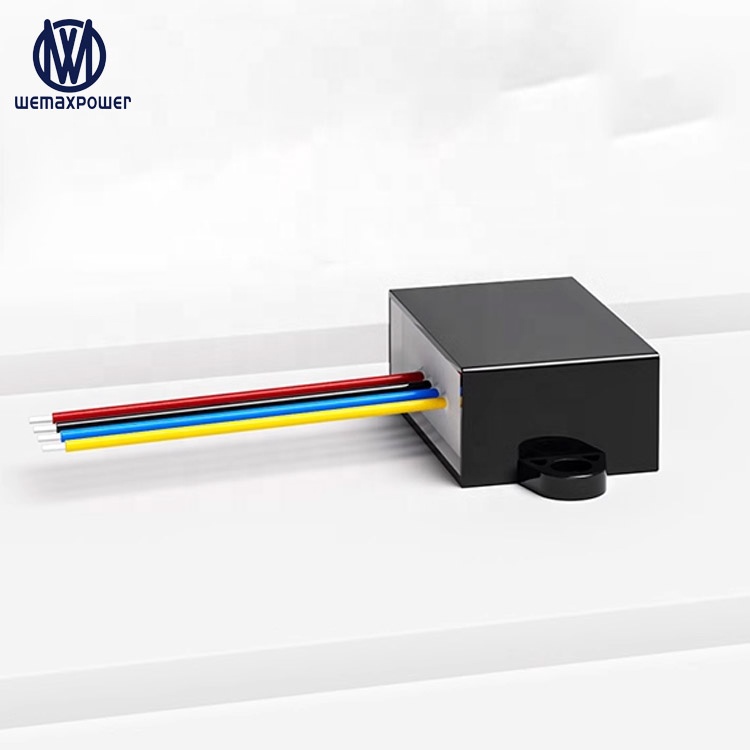

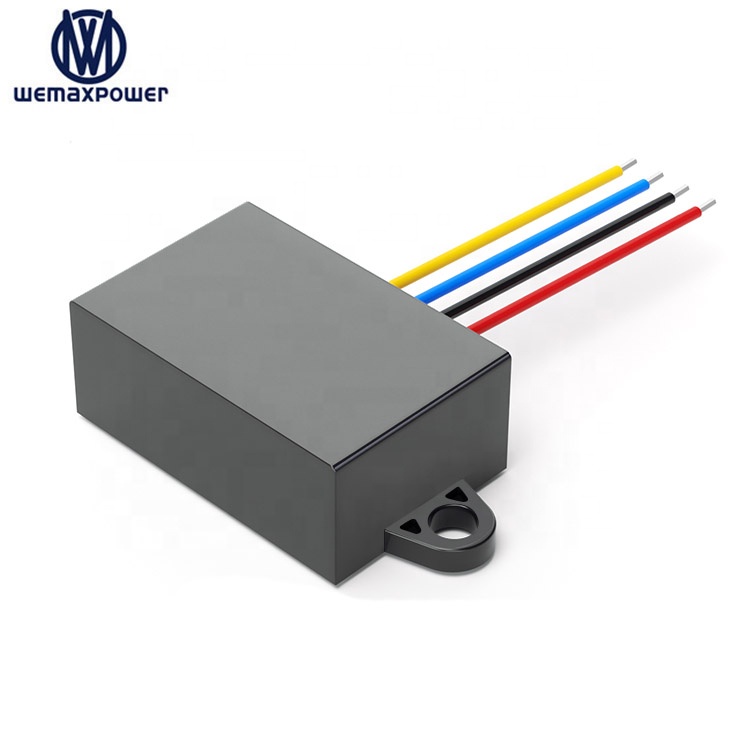

Buck Module Isolation 12/24v Voltage Step Down 5vdc 8a Dc Regulator 12v 24v to 5v 8amp Isolated Converter

1 / 5

Buck Module Isolation 12/24v Voltage Step Down 5vdc 8a Dc Regulator 12v 24v to 5v 8amp Isolated Converter

Send Inquiry

Product Description

Buck module isolation 12/24v voltage step down 5vdc 8a dc regulator 12v 24v to 5v 8amp isolated converter

12v/24v to 5v isolated converter

🛡️ Isolate dc dc converter , Safe and reliable

1 Light weight, small size, easy install
2 Supports wide range voltage input
3 Imported industrial grade power chips
4 Synchronous rectification technology with high conversion efficiency
5 Sufficient power

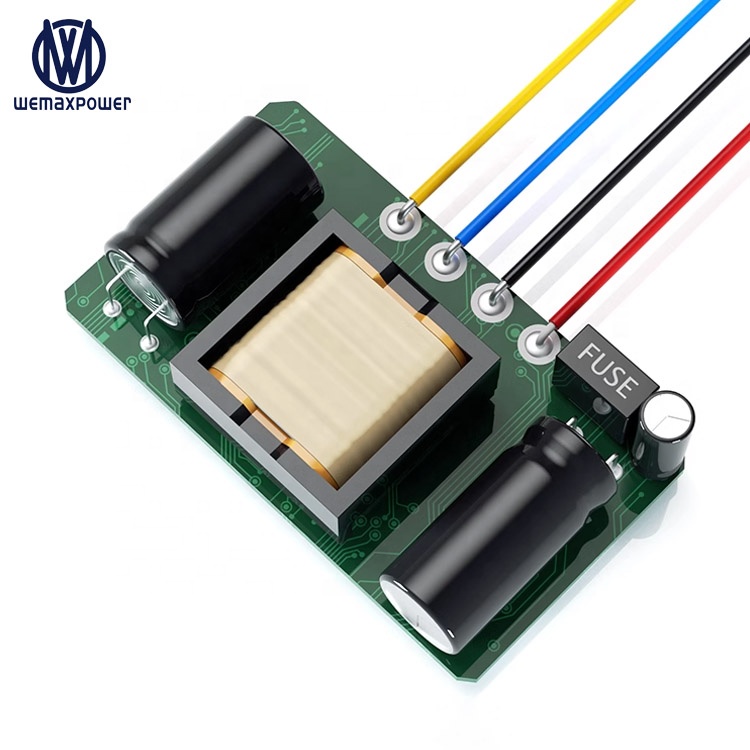

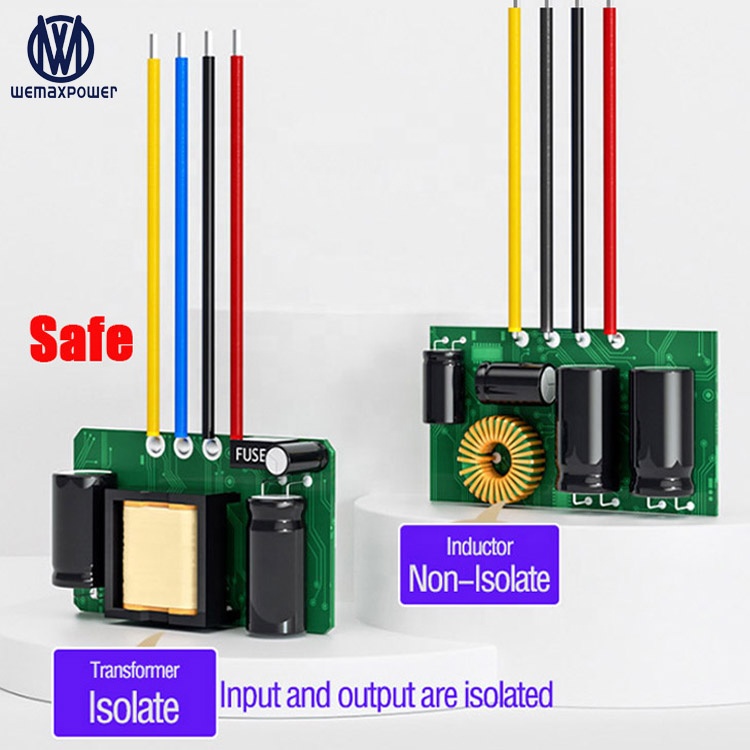

6 Isolation transformer, isolation voltage: 1500VDC
7 Isolate power supply, isolate input and output from each other, prevent burn out expensive load equipment, safe and reliable

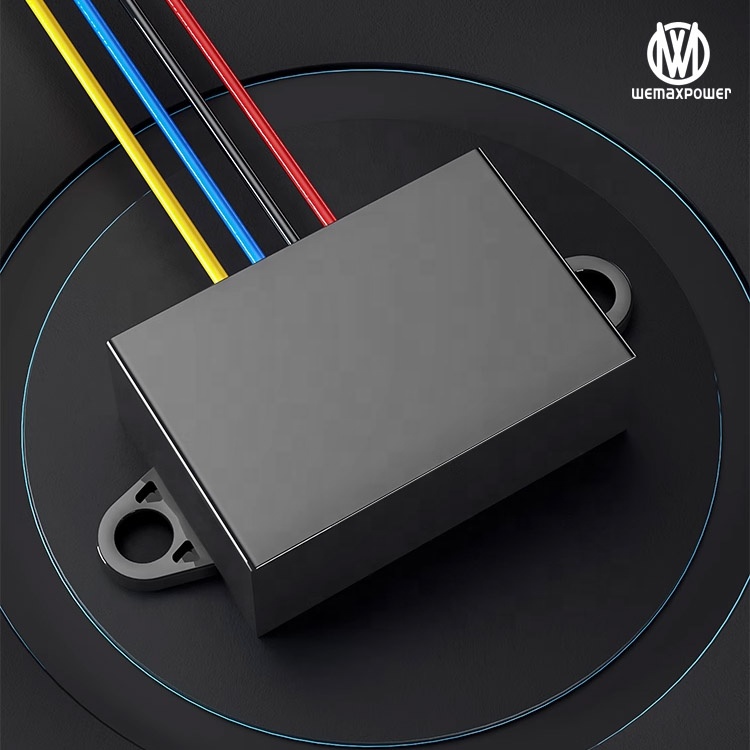

8 ABS tough shell, flame retardant and explosion-proof, corrosion resistant, antioxidant, good insulation, fast heat dissipation
9 Waterproof (IP67 waterproof grade), shockproof, moisture-proof, dustproof
10 Adapt to ambient temperature -20~85 ° C
11 Multiple protection functions. Over current, over voltage, over temperature protection, short circuit protection, strong anti-interference ability
12 Widely used: various instrument fields such as intelligent robots, communication base stations, industrial control, power supply systems, onboard equipment, computer peripherals, digital products, etc

Series No.	WMX-D9-36D5
Model	WMX-DSD9-36S508
Product Name	12v/24v to 5v 8a isolated Converter
Input rated voltage	12/24Vdc
Input voltage range	9-36Vdc
Conversion Efficiency	96%
Output voltage	5Vdc
Output current	8Amps
Output rated power	40Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP 67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	584022mm
N. Weight	90g
Type	Input & output Isolation

Product Overviews

💡 Frequently Asked Questions

Q1 How we work?

Since 2009, our factory has provided various power solutions for different projects worldwide. Including DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q2 What kind of products can you buy from us?

DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.

Q3 How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staffs will always be there for you if anything needed.

Q4 If we don't find what we need on your website, what should we do? Do you make customize service as per customer's specific requirements?

Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, we will check if we can develop them. We develop new models every month, and some of them may not yet be updated on our website. Or you can send us samples and we can develop the new models especially for you.

Q5 Can I buy 1 or 2 pieces of samples for testing before place bulk order?

Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solution.

Q6 What is your Minimum Order Quantity?

Different products have different MOQ, generally speaking, our MOQ is 2pcs, please don't hesitate to check with us for specific items.
