Product Description

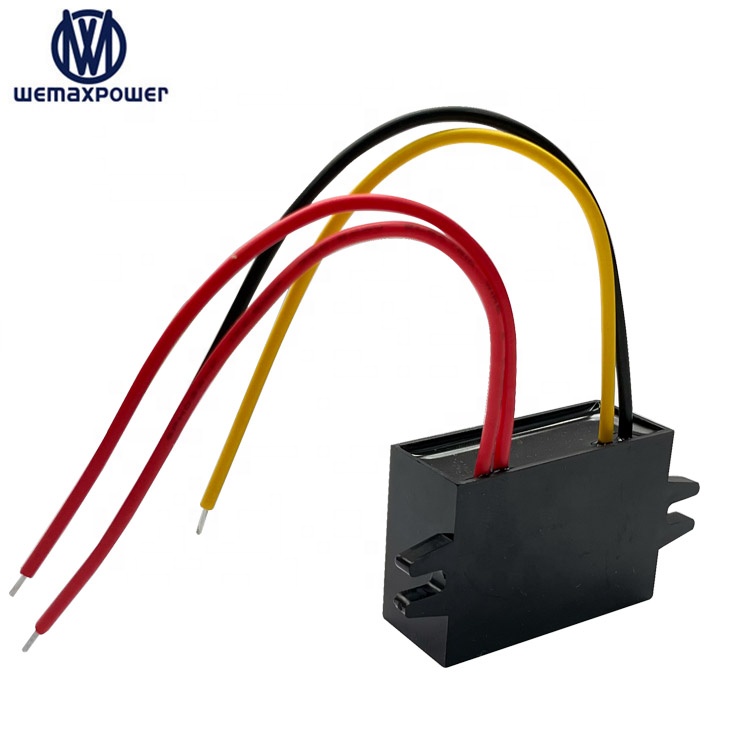

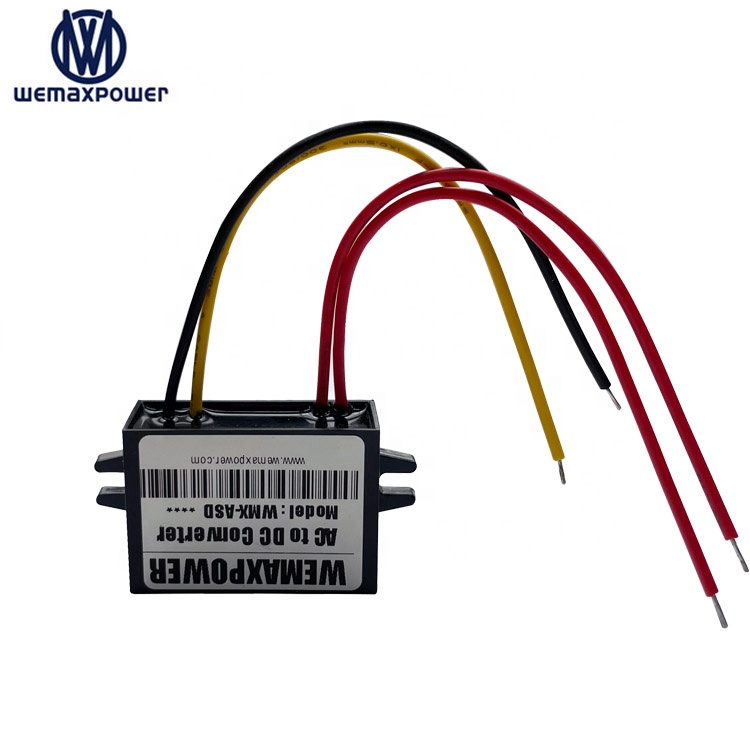

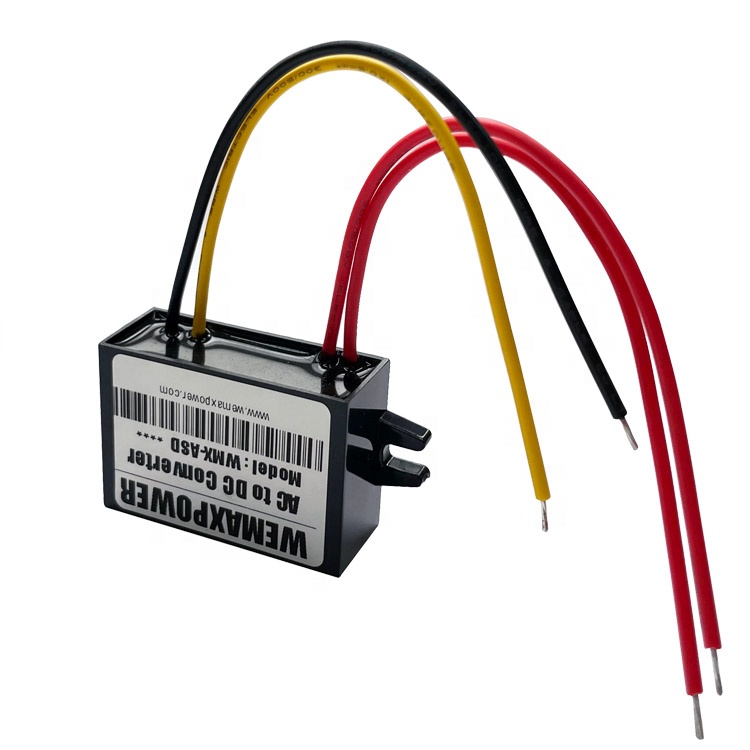

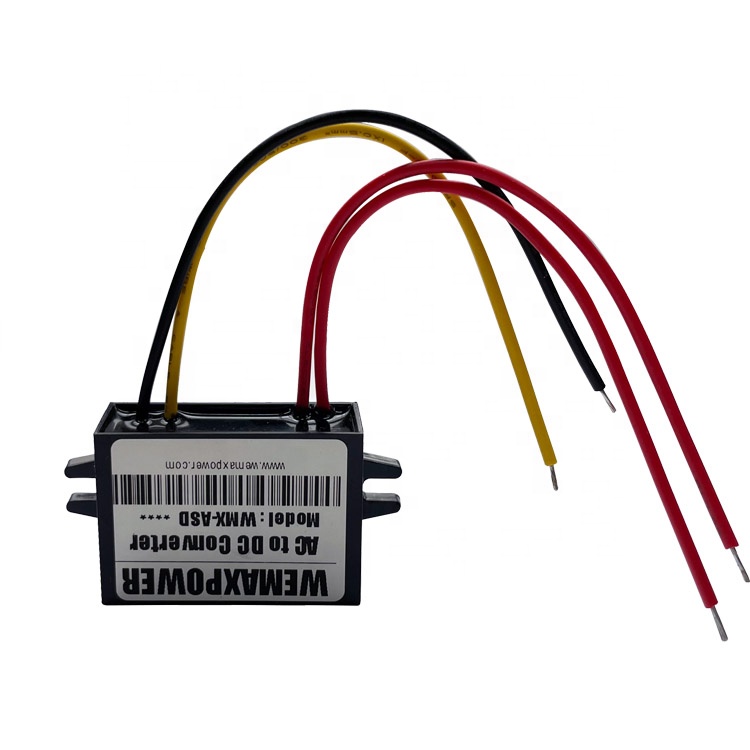

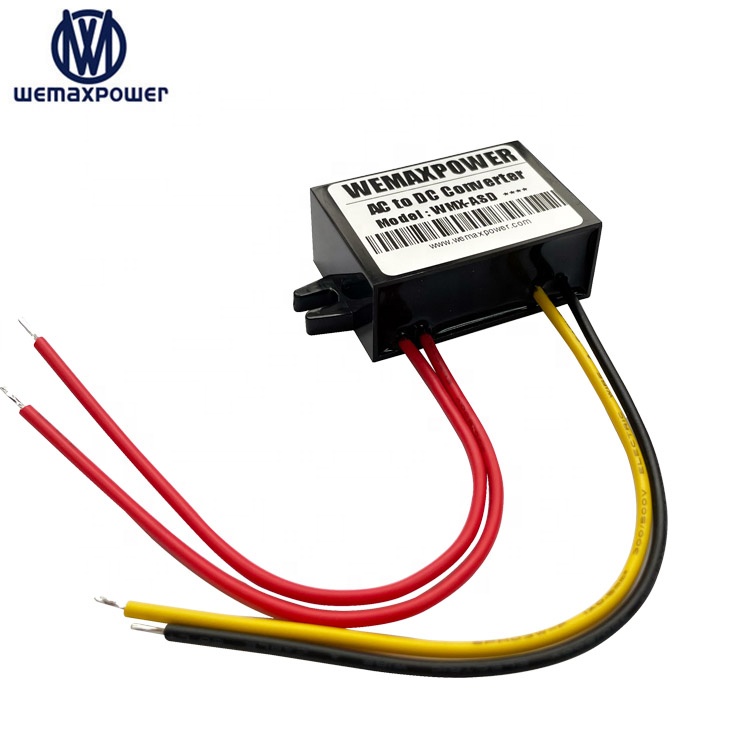

CE Approved AC to DC 1A 24VAC to 24VDC Converter Voltage Regulator AC24V to DC 24V 1Amp for Security Monitoring
CE Approved Ac to Dc 1A 24vac to 24vdc Converter Voltage Regulator Ac24v to Dc 24v 1amp for Security Monitoring
24VAC to 24VDC 1A AC DC Converter
Features
Features Divider
  • High quality components.
  • Full power, stable voltage & current output.
  • Wide input voltage range.
  • Waterproof & anti-shock protection, ultra compact size, light weight.
  • Industry grade product.
  • Die-cast plastic shell, epoxy potting.
  • Non-Isolated Module.
Divider
Model No. WMX-ASD24S2401
Product Name 24vac to 24vdc converter
Input rated voltage 24Vac
Input voltage range 22-28Vac
Conversion Efficiency 94%
Output voltage 24Vdc
Output current 1A
Output rated power 24W
Voltage regulation < 1%
Load regulation < 2%
Ripple (full load test) < 150mV
No-load current < 20mA
Working Temperature -40°c ~ +80°c
Waterproof rating IP67
Protections Reverse connection, Over-current, Over-temperature, Output short circuit
Machine size 46*32*18mm
N. Weight 45g
Cooling way Free air convection
Other Standard static bag packing

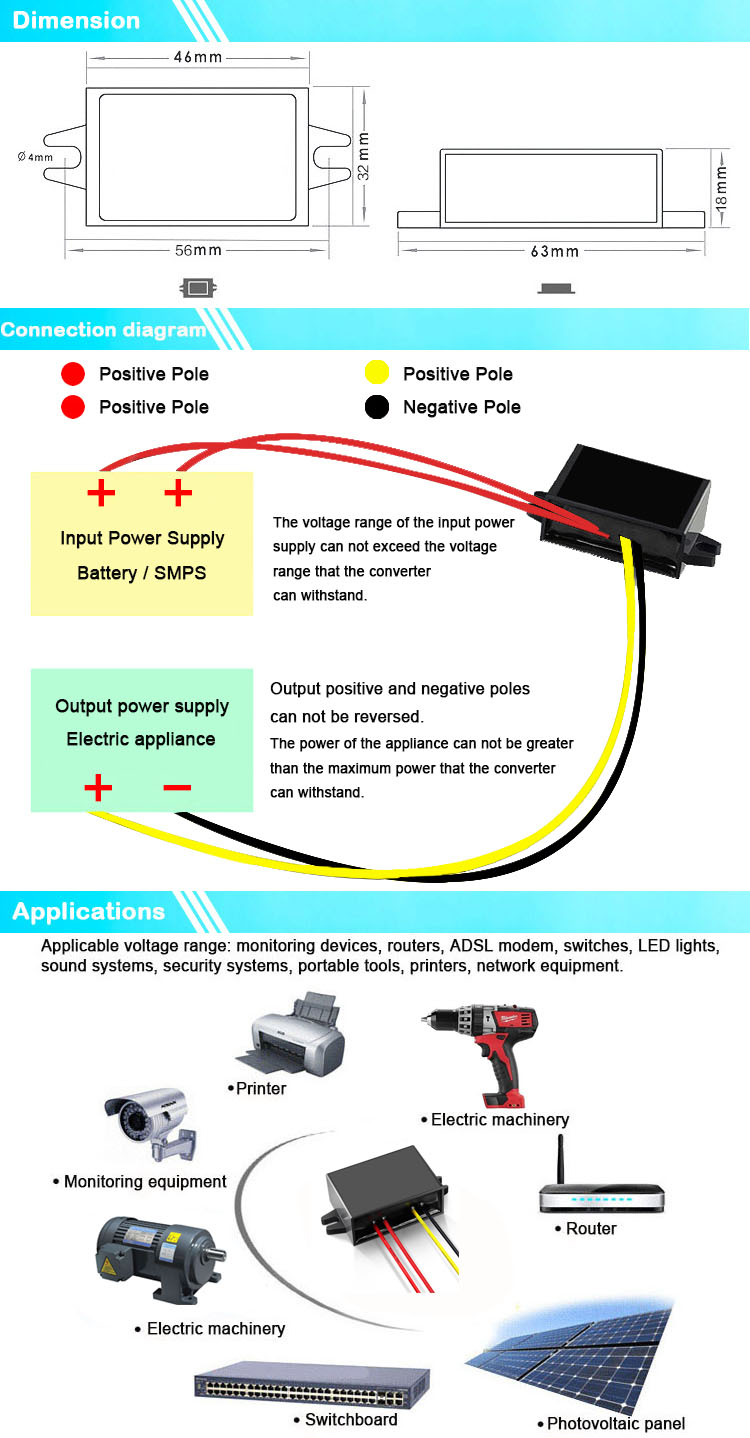

Technical Specifications Specifications
Product Description
Product Details 1 Product Details 2
Divider
Certification Showcase
FAQ
FAQ Section Divider
Q1. What kind of products can you buy from us?
DC-DC Converter, DC-DC Charger, Voltage regulator, Adjustable Power Supply, Power Inverter, Battery Charger, AC DC Converter, Switching Power Supply.
Q2. How do you ensure your product and service quality?
All our processes strictly adhere to ISO-9001 procedures. And we have 12 months quality warranty against delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item. Also, our staff will always be there for you if anything is needed.
Q3. Do you provide customized services based on specific requirements?
Yes, we can provide bespoke service to customers with specific requirements. You can send the detailed requirements by email, and we will check if we can develop them. We develop new models every month, some of which may not yet be updated on our website. Alternatively, you can send us samples and we can develop the new models especially for you.
Q4. Can I buy 1 or 2 pieces of samples for testing before placing a bulk order?
Yes, we are pleased to send you samples to test the quality and performance. We are confident that once you get it in your hand, you will be very satisfied. Moreover, with our excellent service and competitive price, we believe that we will be your good choice for power supply solutions.
Q5. What is your Minimum Order Quantity (MOQ)?
Different products have different MOQs. Generally speaking, our MOQ is 1~2pcs. Please don't hesitate to check with us for specific items.
Q6. What about the delivery date?
If we have stock of the item you need, we can send goods to you within 1-3 working days after receiving deposit or 100% payment into our bank account. If we don't have stock, the delivery date can be different for different products. Generally speaking, it will take 1 to 4 weeks.
