CE Approved 10a 80v 90v 100v 120v to 24v Dc Voltage Regulator 120vdc 100vdc Step Down 24vdc 10amp Dc to Dc Isolated Converter

1 / 5

CE Approved 10a 80v 90v 100v 120v to 24v Dc Voltage Regulator 120vdc 100vdc Step Down 24vdc 10amp Dc to Dc Isolated Converter

Send Inquiry

Product Description

CE approved 10a 80v 90v 100v 120v to 24v dc voltage regulator 120vdc 100vdc step down 24vdc 10amp dc to dc isolated converter

Similar Products

75~150v to 24v isolated dc converter

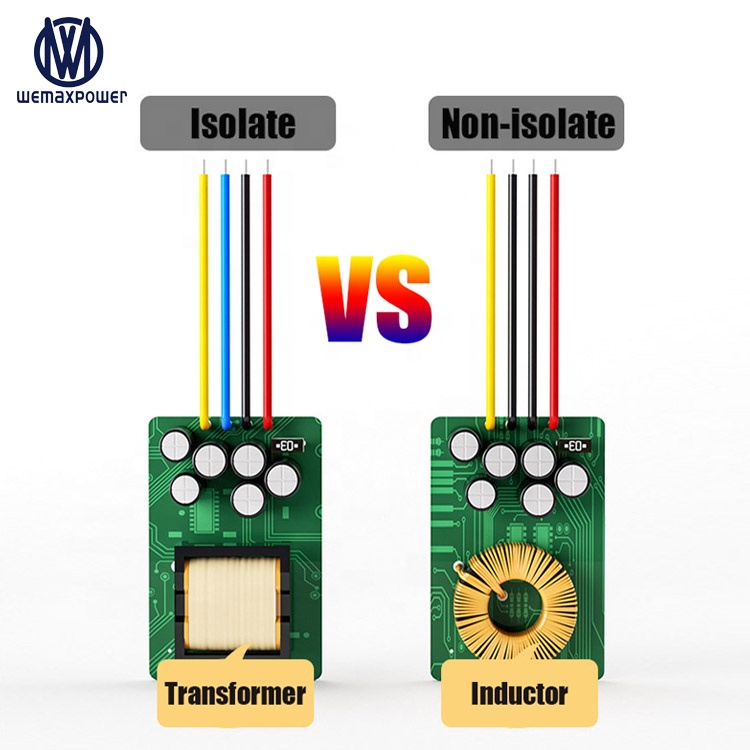

The input&output electrical appliances are completely isolated.
No high voltage direct output.
Positive and negative PSU can also be used.
Intelligent overload protection.
Prevent burning expensive load equipment.

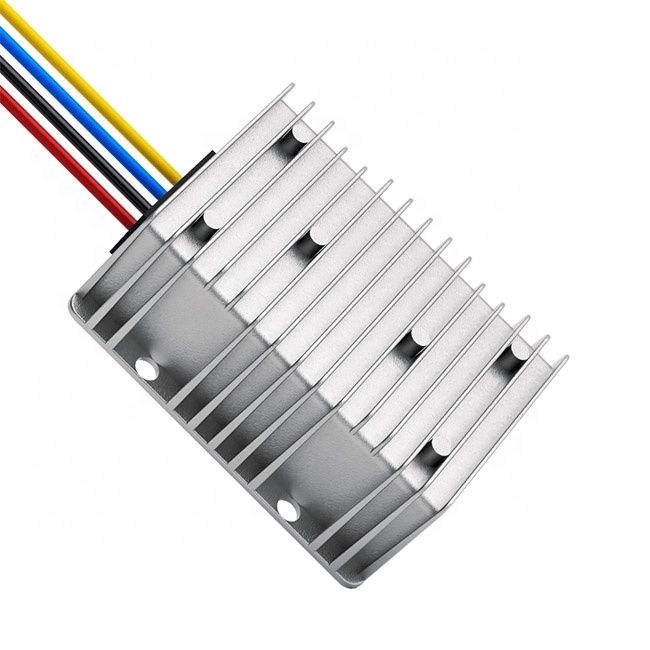

Die-cast plastic shell for more efficient heat dissipation.

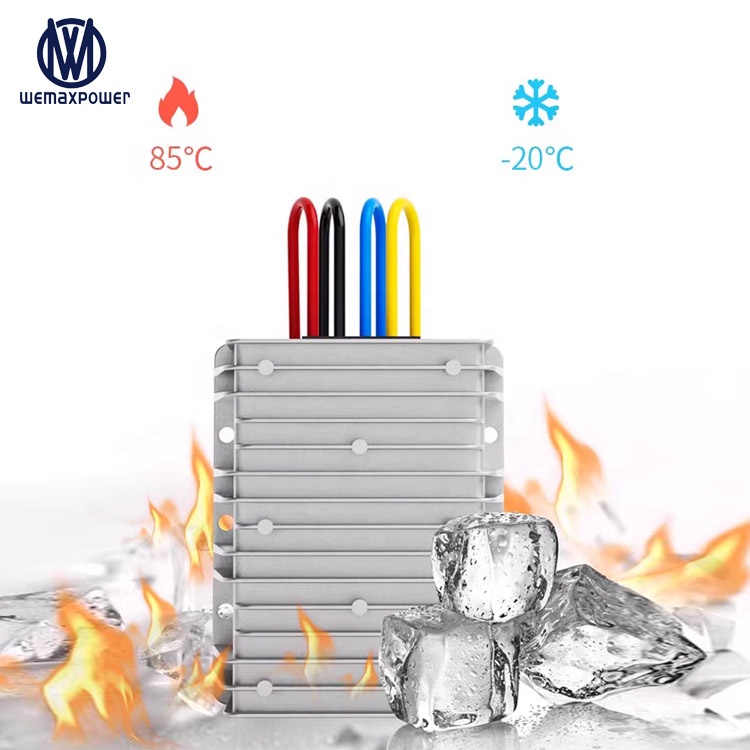

Suitable for ambient temperature -20~80°C.
Epoxy resin glue filling, IP67 protection grade, waterproof, anti shock, moisture-proof, dust-proof.

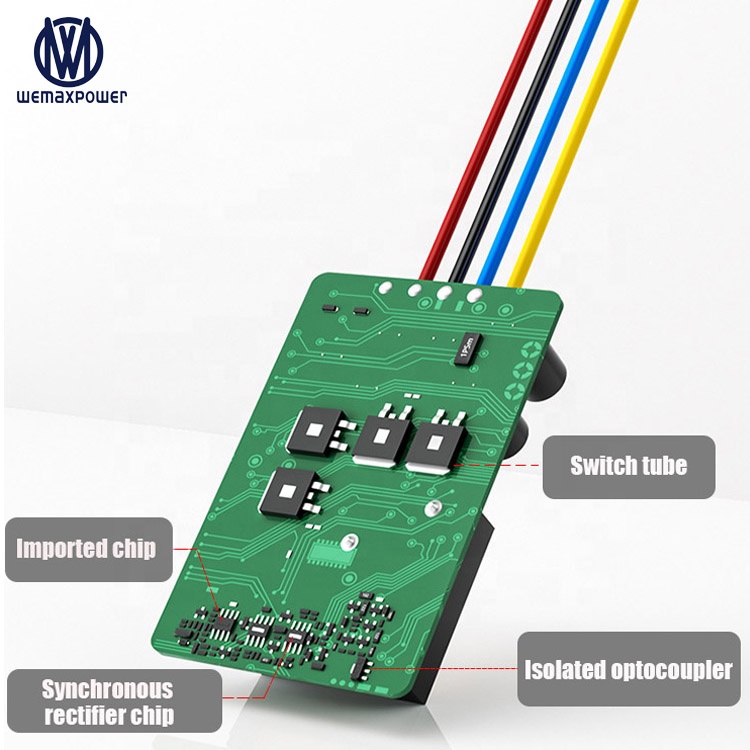

Industrial grade PSU chip, safe and reliable.

Series No.	WMX-D75-150D24
Model	WMX-DSD75-150S2410
Product Name	75-150v to 24v isolated converter
Input rated voltage	80/90/120Vdc
Input voltage range	75-150Vdc
Conversion Efficiency	96%
Output voltage	24Vdc
Output current	10Amps
Output rated power	240Watts
Voltage regulation	< 1%
Load regulation	< 2%
Ripple (full load test)	< 150mV
No-load current	< 20mA
Working Temperature	-40°c ~ +80°c
Waterproof rating	IP67
Protections	Over-load, Over-current, Over-temperature, Over-voltage
Machine size	1008039mm
N. Weight	490g
Type	Input & output Isolation
Packing	Standard box

Product Description

Frequently Asked Questions

Q How does your factory provide power solutions?

Since 2009, our factory has provided various power solutions for different projects worldwide. These include DC to DC, AC to DC, DC to AC, and AC to AC power supplies. We are committed to providing high-quality, high-performance, and cost-effective options to meet the power conversion needs of our customers.

Q What kind of products can we buy from you?

You can purchase a wide range of power products including DC-DC Converters, DC-DC Chargers, Voltage Regulators, Adjustable Power Supplies, Power Inverters, Battery Chargers, AC-DC Converters, and Switching Power Supplies.

Q How do you ensure your product and service quality?

All our processes strictly adhere to ISO-9001 procedures. We provide a 12-month quality warranty from the delivery date. If the product does not work properly as described, and the problem is proven to be caused by our factory, we will provide exchange services for the same specific item.

Q Do you offer customized services based on specific requirements?

Yes, we can provide bespoke services to customers with specific requirements. You can send us your detailed requirements, and we will check if we can develop them. We develop new models regularly, or you can send us samples for us to develop new models specifically for you.

Q Can I purchase samples for testing before placing a bulk order?

Yes, we are pleased to send you 1 or 2 pieces of samples to test the quality and performance. We are confident that you will be satisfied with the product, our excellent service, and our competitive prices.

Q What is your Minimum Order Quantity (MOQ)?

Different products have different MOQs. Generally speaking, our MOQ is 1 piece. Please contact us to check the specific requirements for your items.
